Overview
Quick Details
Place of Origin:
Sichuan, China
Model Number:
510-6A
Theory:
Video Microscope
Drawtube:
BINOCULAR
Product name:
china dental microscope dental operating microscope
function:
dental stomatology surgical microscope zoom
Certificate:
ISO 9001,ISO13485
binocular tube:
45 degree binocular tube
Color:
white
Objectives:
F=250mm (200mm,300mm,350mm,400mm or 180mm-300
filter:
OG530, Red free filter, small spot
pupil distance:
55mm~75mm
diopter adjustment:
+6D ~ -6D
Banlance arm:
120° Banlance arm
Supply Ability
Supply Ability:
25 Set/Sets per Month dental operating microscope
Packaging & Delivery
Packaging Details
dental microscope packing in carton
Port
chengdu
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Products Description

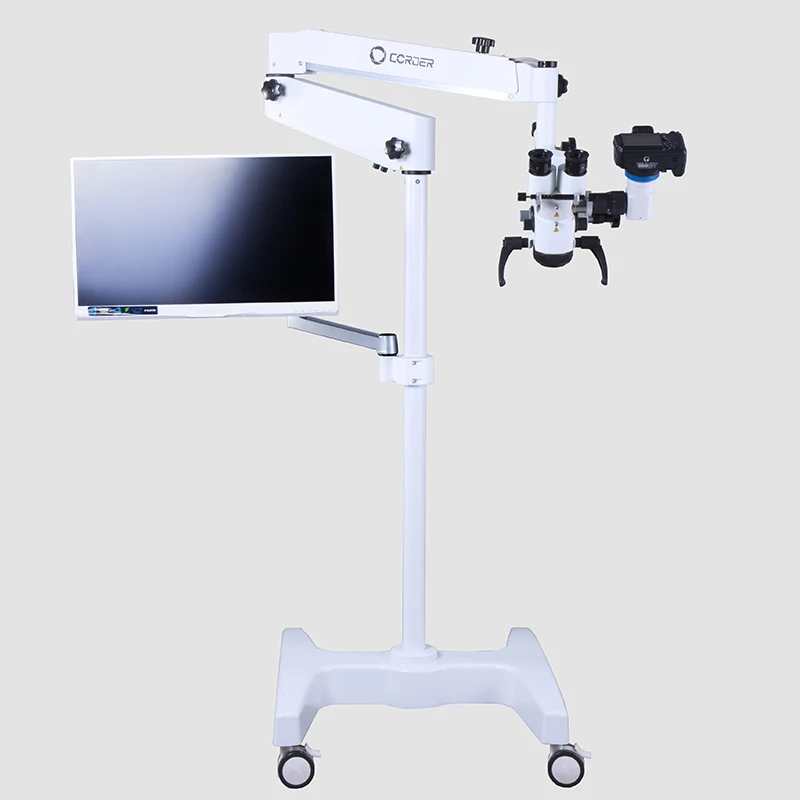

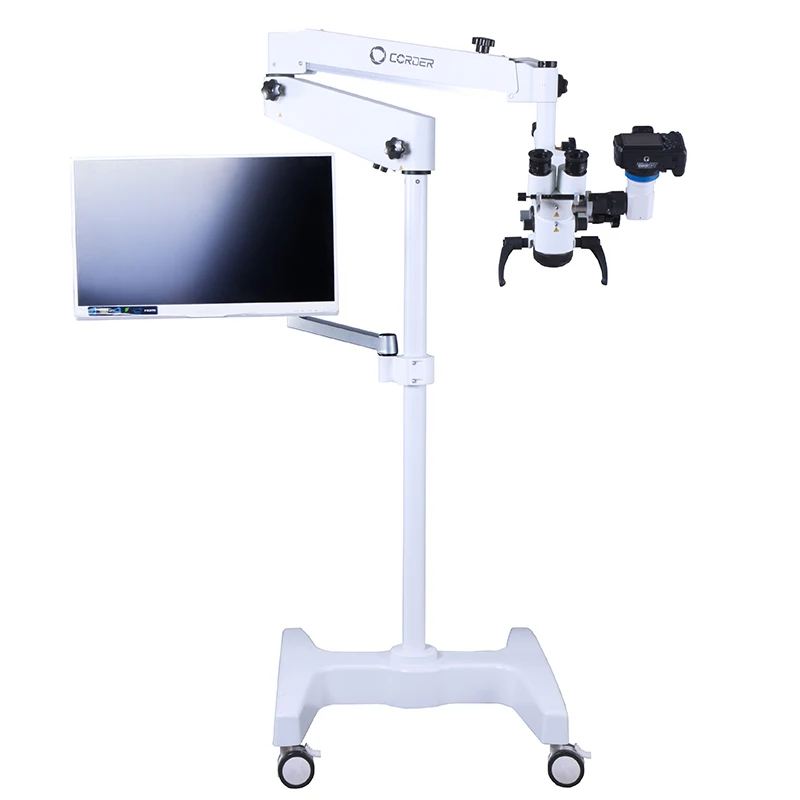

510-6A high performance microscope is the perfect combination of excellent optical quality and comfortable handling.

510-6A professional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of high-end microscope, and modern consulting room perfect fit. Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.

Treatment of dental pulp disease,Periodontal disease, restorative dentistry

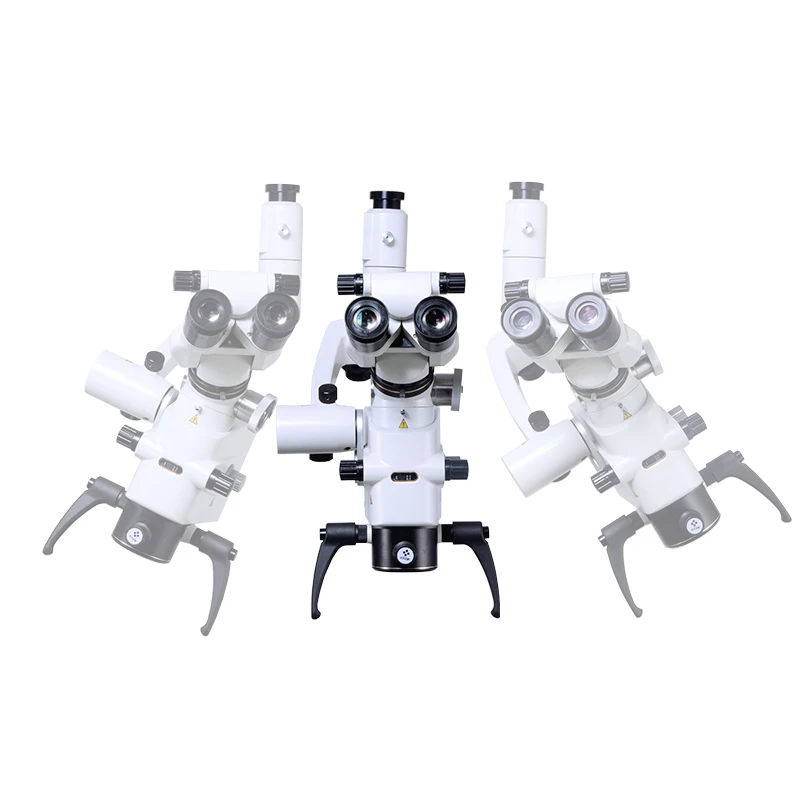

Convenient positioning, Angle adjustment, comfortable feel.
The operating range of the Corder professional-grade operating microscope zoom objective is 180-300mm, and the zoom objective lens has a zoom range of up to 180mm, covering almost all the operating range required for oral treatment. By adjusting the zoom knob, you can easily tighten the focus anywhere without changing the position of the microscope or your seat, making your job very easy.
Title goes here.


You can observe the minute anatomical structure and details of the pulp chamber and root canal, and even directly observe the shape of the root tip. Whether it is cosmetic tooth repair, routine root canal treatment, difficult root canal treatment, root canal retreatment or root tip surgery, you will have a clearer vision and a clearer diagnosis, thus improving the treatment quality.

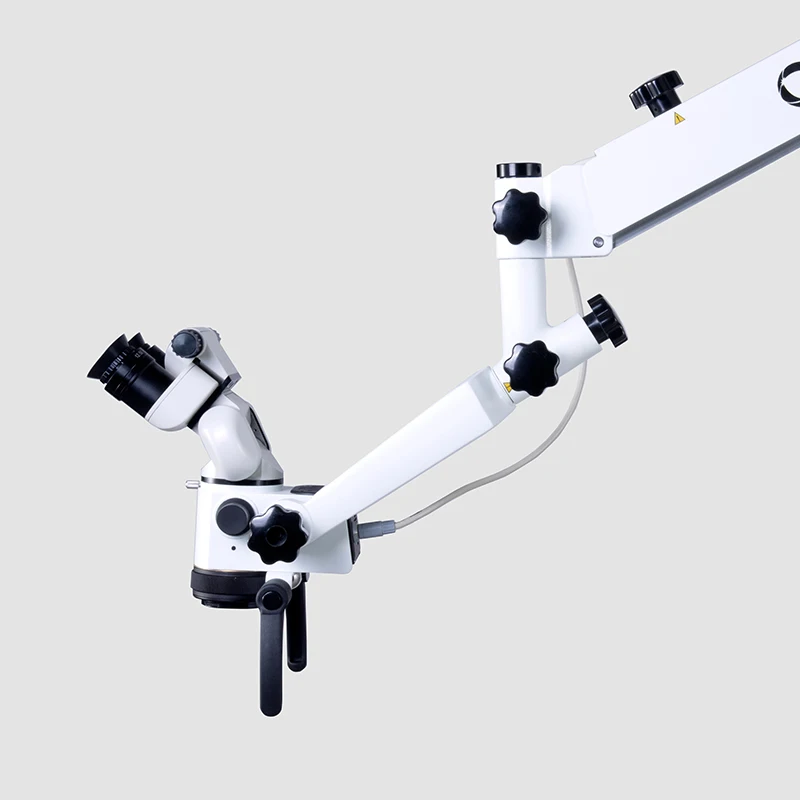

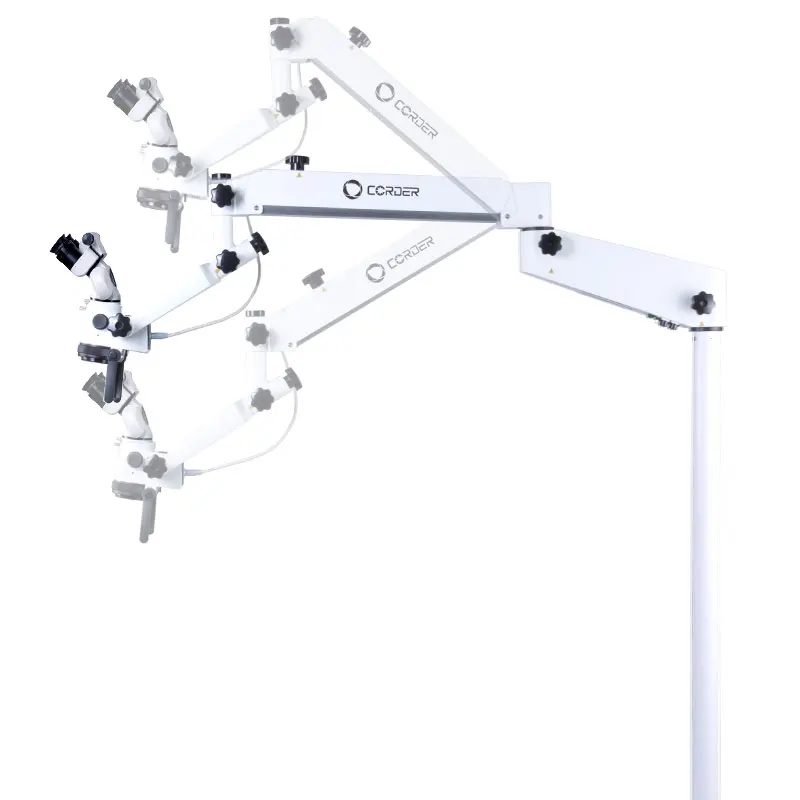

German imported gas spring, the optimized force word structure enables you to move microscope any desired working Angle conveniently and precisely.

A modular solution to fit your needs

Microscope sysems oter o brond new dimension in perormance, lexbilily and economy in diagnosics and surgery. Corder microscope packs a high level of performane in is smll pckage. lis compact design is tailored to oplimize use of imited operating room spoce.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Multi-layer optical lens, multi-layer nano-optical coating,3 magnification, eyepiece with 12.5x/10x wide-angle eyepiece, can provide a wide field of view and 3D stereo imaging. Special refractive compensation adjustment (+6- 6D) is suitable for the operator who wears glasses.

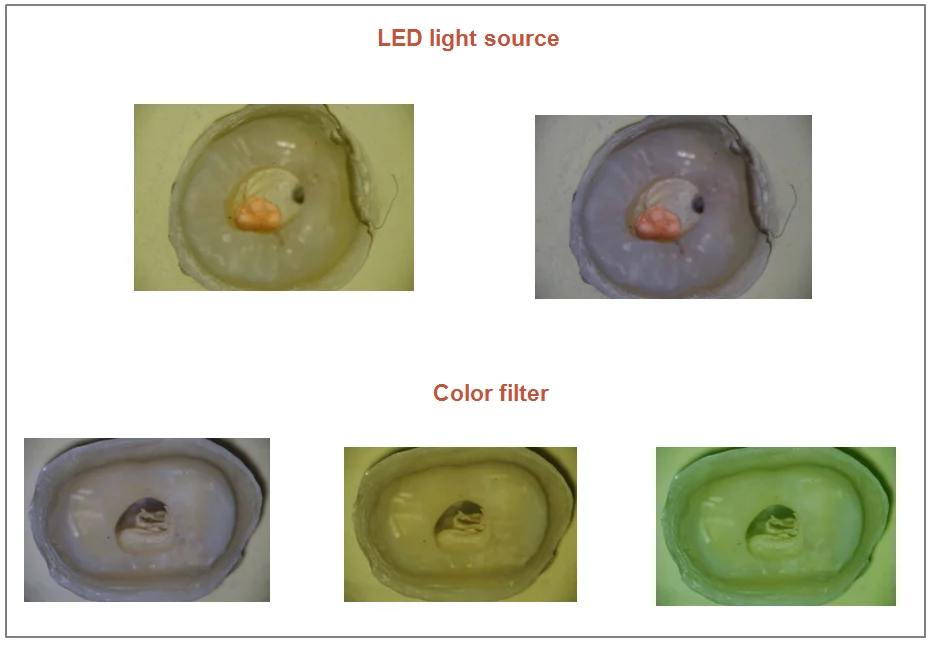

Equipped with LED lighting system, to provide you with high-quality lighting, whether color resolution or color temperature are close to natural daylight, cost-effective, no maintenance. Less heat, less noise. You can also use the knob to control the brightness of the light and adjust it to an orange filter (to prevent curing of uv-curable resin materials and to extend the operating time).
Product Paramenters
Model
ASOM-510-6A
Function
Dental
Electrical data
Power socket
220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ
Power consumption
40VA
Safety class
class I
microscope
Tube

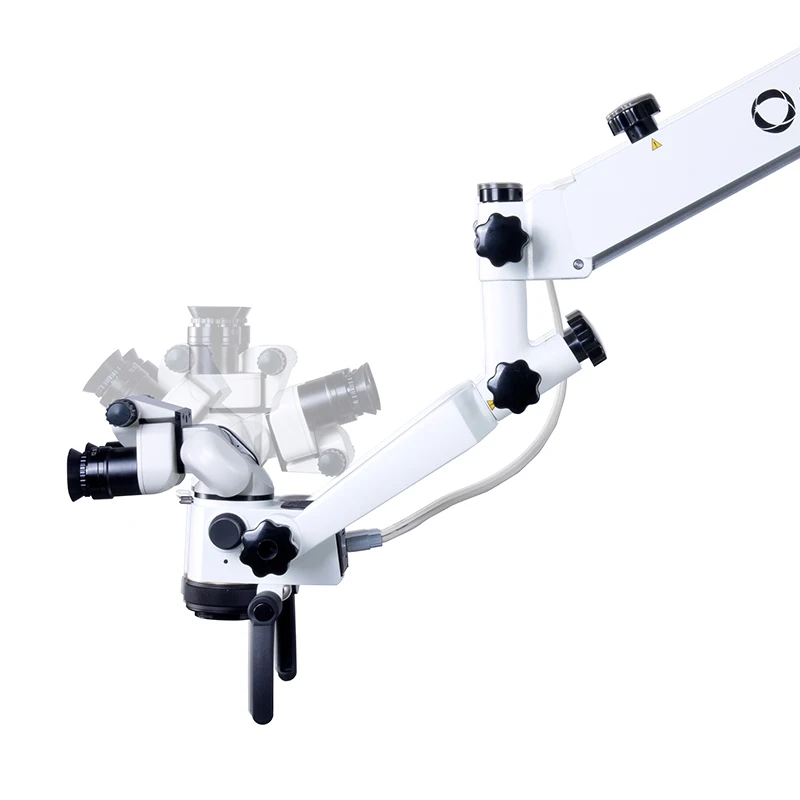

0-200 degree inclinable binocular tube
Magnification
manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,12x ( F 250mm)/ 5 steps ,ratio 0.4,0.6,1,1.6,2.5,
total magnification:3.6x,5.4x,9x,14.4x,22.5x(F 250mm)
Stereo base
22mm
Objectives
F=250mm (200mm,300mm,350mm,400mm or 180mm-300mm adjustable objectives for optional)
Objective focusing
15mm
Eyepiece
12.5x/ 10x
pupil distance
55mm~75mm
diopter adjustment
+6D ~ -6D
Feild of veiw
3 steps: Φ53mm,Φ32mm,Φ20mm / 5 steps:55.6mm,37.1mm,22.2mm,13.9mm,8.9mm
Reset functions
yes
Light source
LED cold light with life time >80000 hours, brightness >60000 lux , CRI>90
filter
OG530, Red free filter, small spot
Banlance arm
120° Banlance arm
Automatic switching device
Built-in arm
Light intensity adjustment
Using a drive knob on the optics carrier
Stands
Max extension range
1193mm
Base
610 × 610 mm
Transportation height
1476 mm
Balancing range
Min 4 kg to max 7.7 kg load on the optics carrier
Brake system
Fine adjustable mechanical brakes for all rotation axes
with detachable brake
System weight
68 kg
Stand options
Ceiling mount,Wall mount,Floor plate,Floor stand
Accessories
Knobs
sterilizable
Video adapter

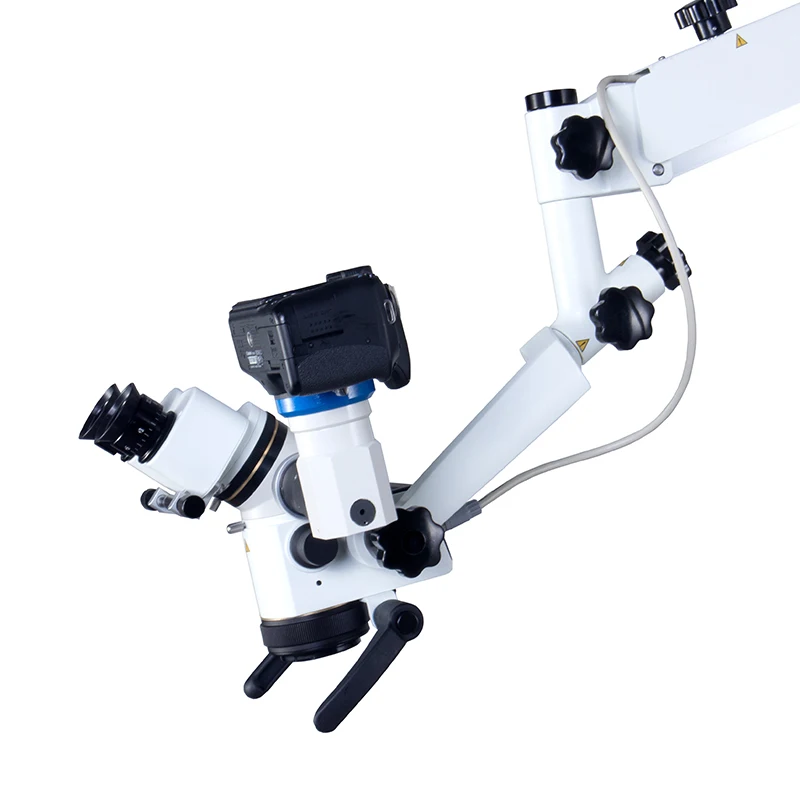

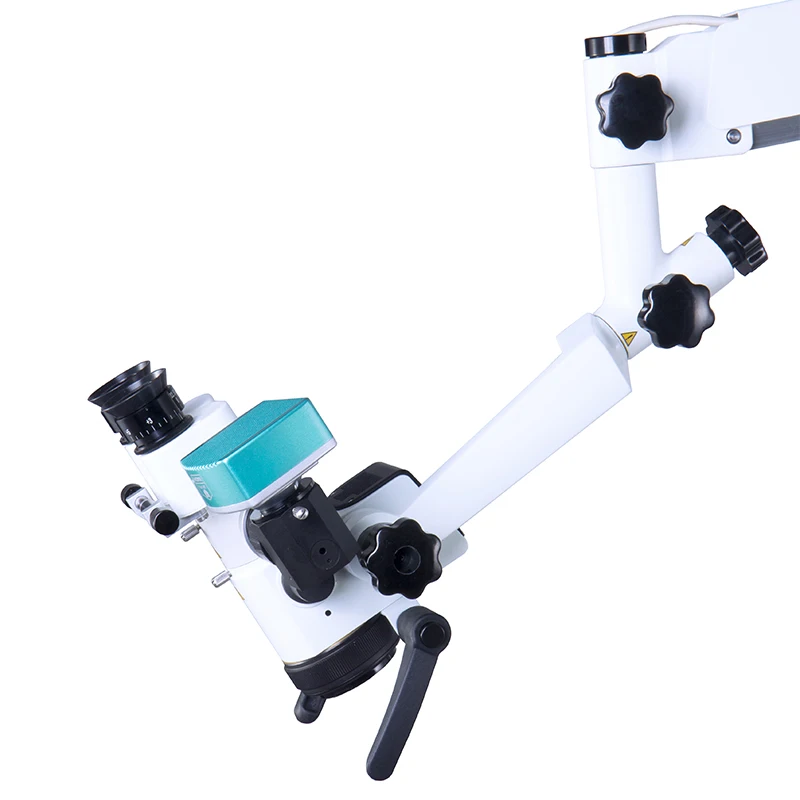

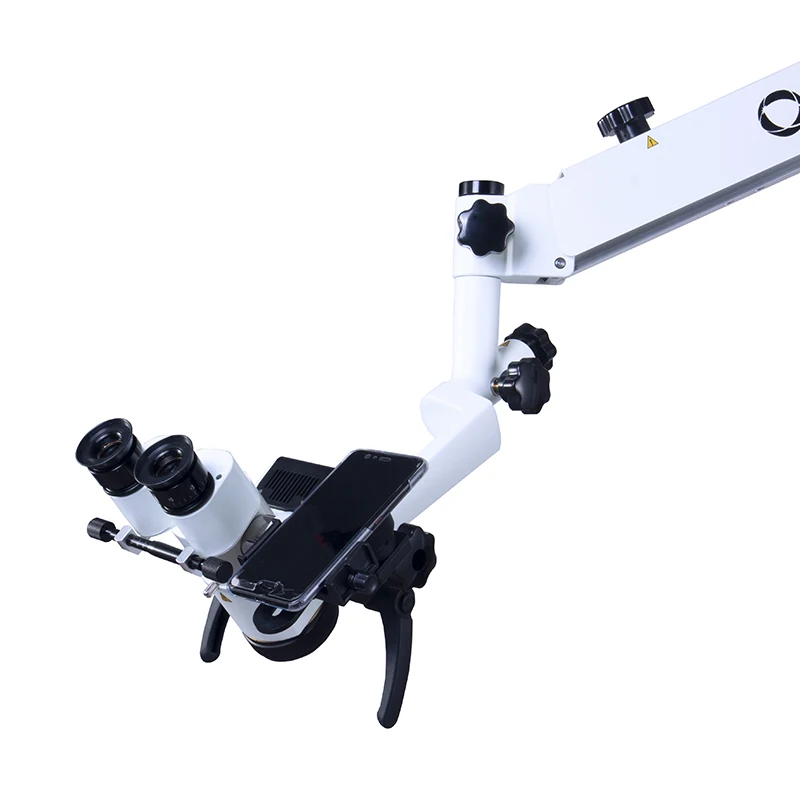

Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adaper,camcorder adapter
Ambient conditions
Use
+10°C to +40°C
30% to 75% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Storage
–30°C to +70°C
10% to 100% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Limitations on use
The CORDER surgical microscope may be used in enclosed rooms and
on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill
CORDER Microsystems' specifications (see installation manual)
Use
+10°C to +40°C
+50°F to +104°F
30% to 75% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Storage
–30°C to +70°C
–22°F to +158°F
10% to 100% relative humidity
500 mbar to 1060 mbar atmospheric pressure
Limitations on use
The Corder ASOM-3 surgical microscope may be used in enclosed rooms and
on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill
Leica Microsystems' specifications (see installation manual)
Company Profile
Chengdu Corder Optics and Electronics Co., Ltd. is one of the subsidiary companies of Optoelectronic Technology Research Institute of Chinese Academy of Sciences (CAS).

Our company's main products include ASOM operation microscopes, LX slit lamp microscopes,spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to
several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.

Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our goal is to be a global market leader in life science and medical microscopy products with the highest price-to-performance ratio.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Captures the essence of optical and mechanical perfection.
With the clarity of vision to respond to evolving needs in modern microscopy, Corder was founded on its unique abilities to deliver high precision microscopes and optical instruments. From design concepts to finished products, the Corder brand captures the essence of optical and mechanical perfection.

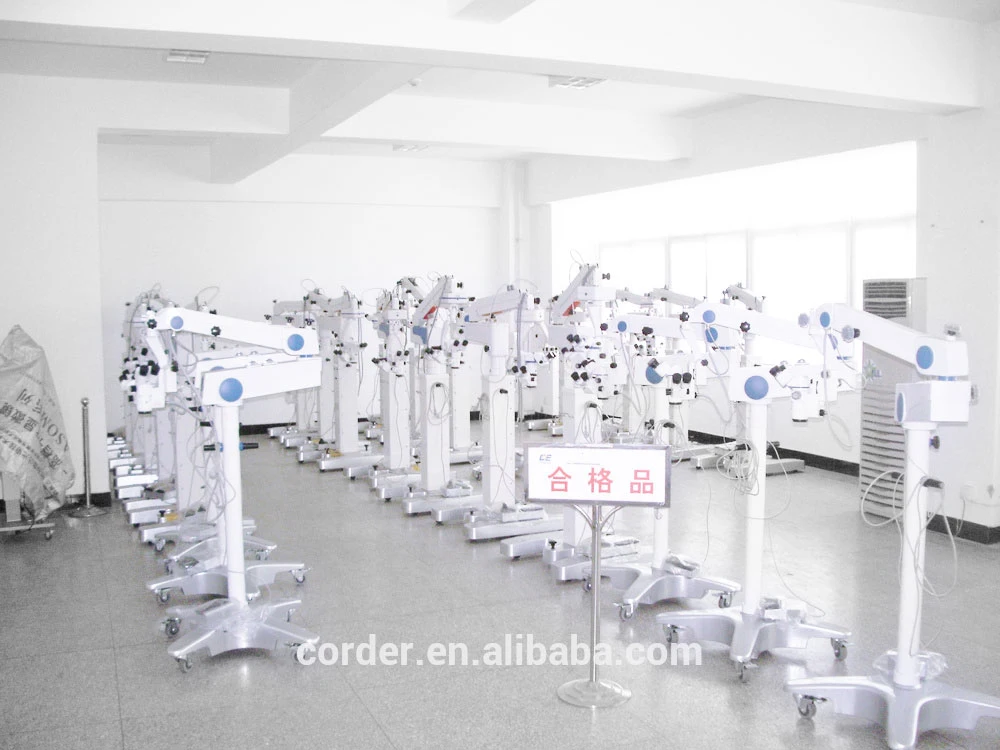

MANUFACTURING TECHNIQUE

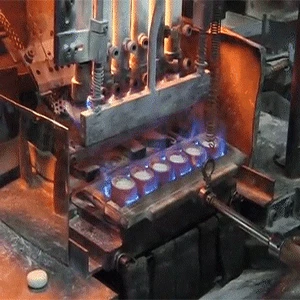

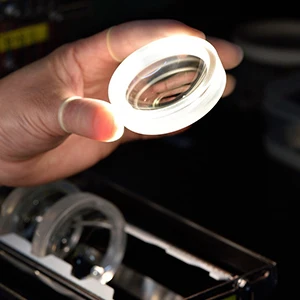

Optical wool glass is made from a patented raw material formulation
30 production processes are completed by hand

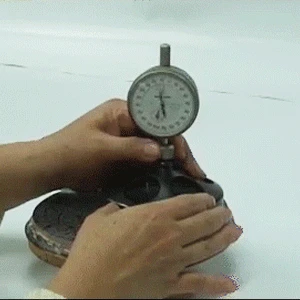

60 quality control checks by experienced technicians to ensure consistent quality
Obtain durable high quality optical glass.

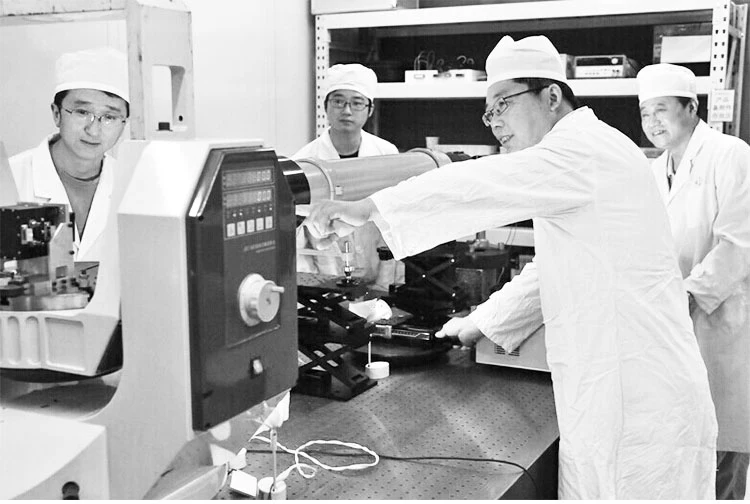

We have more than 30 years experience of QC team and strictly quality control system in our production process.

Exhibition

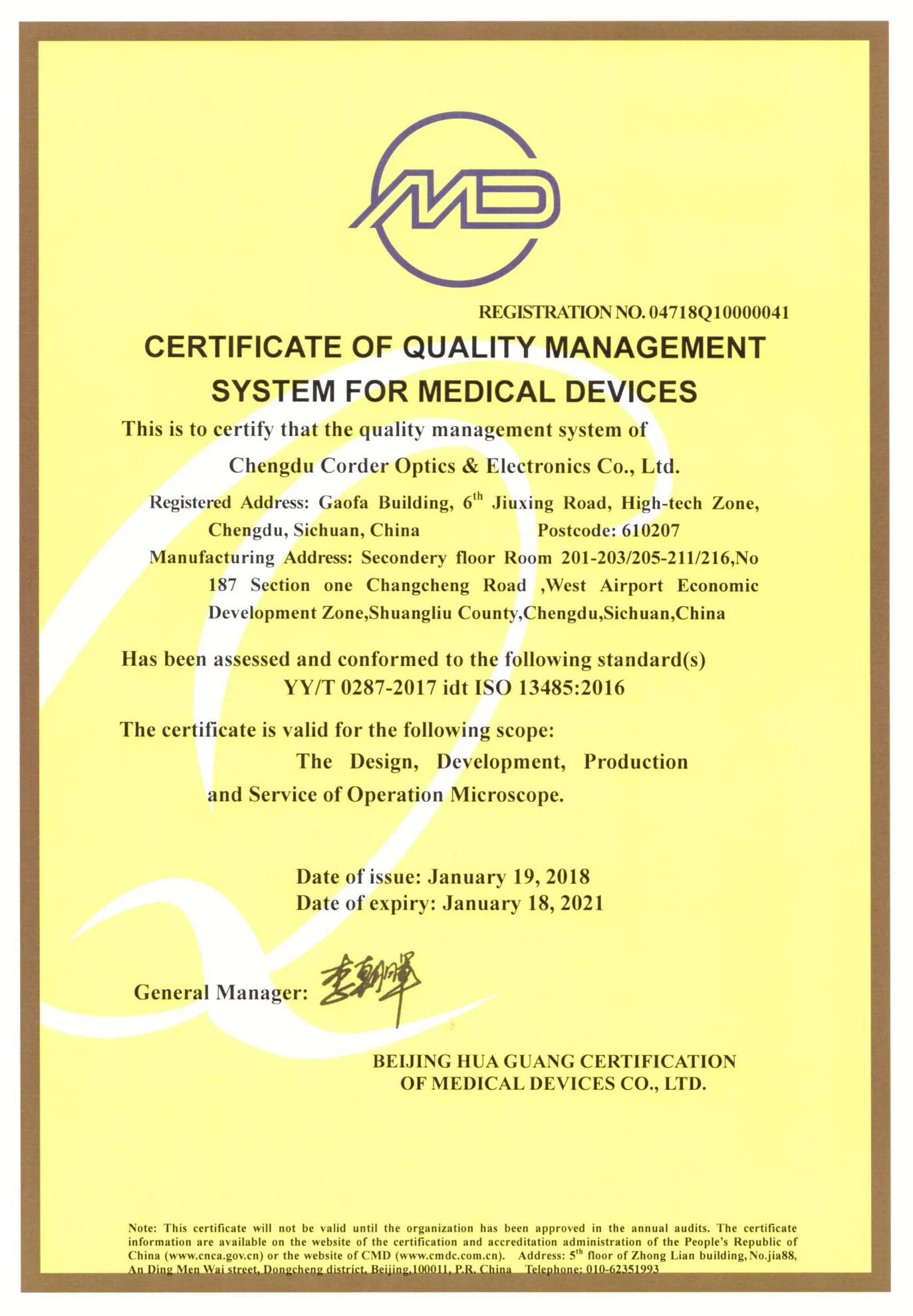

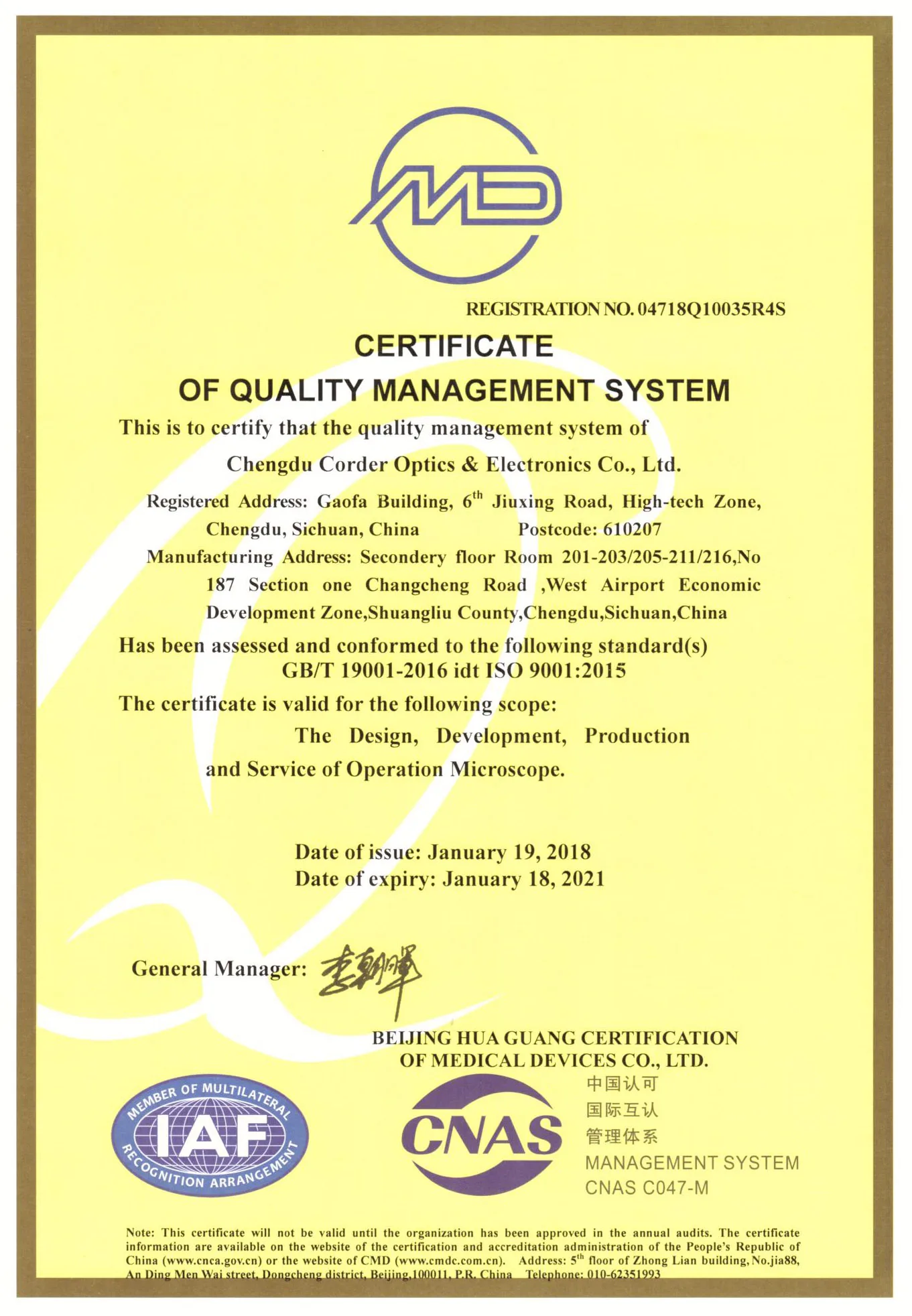

Certifications
ISO 9001
ISO 13485

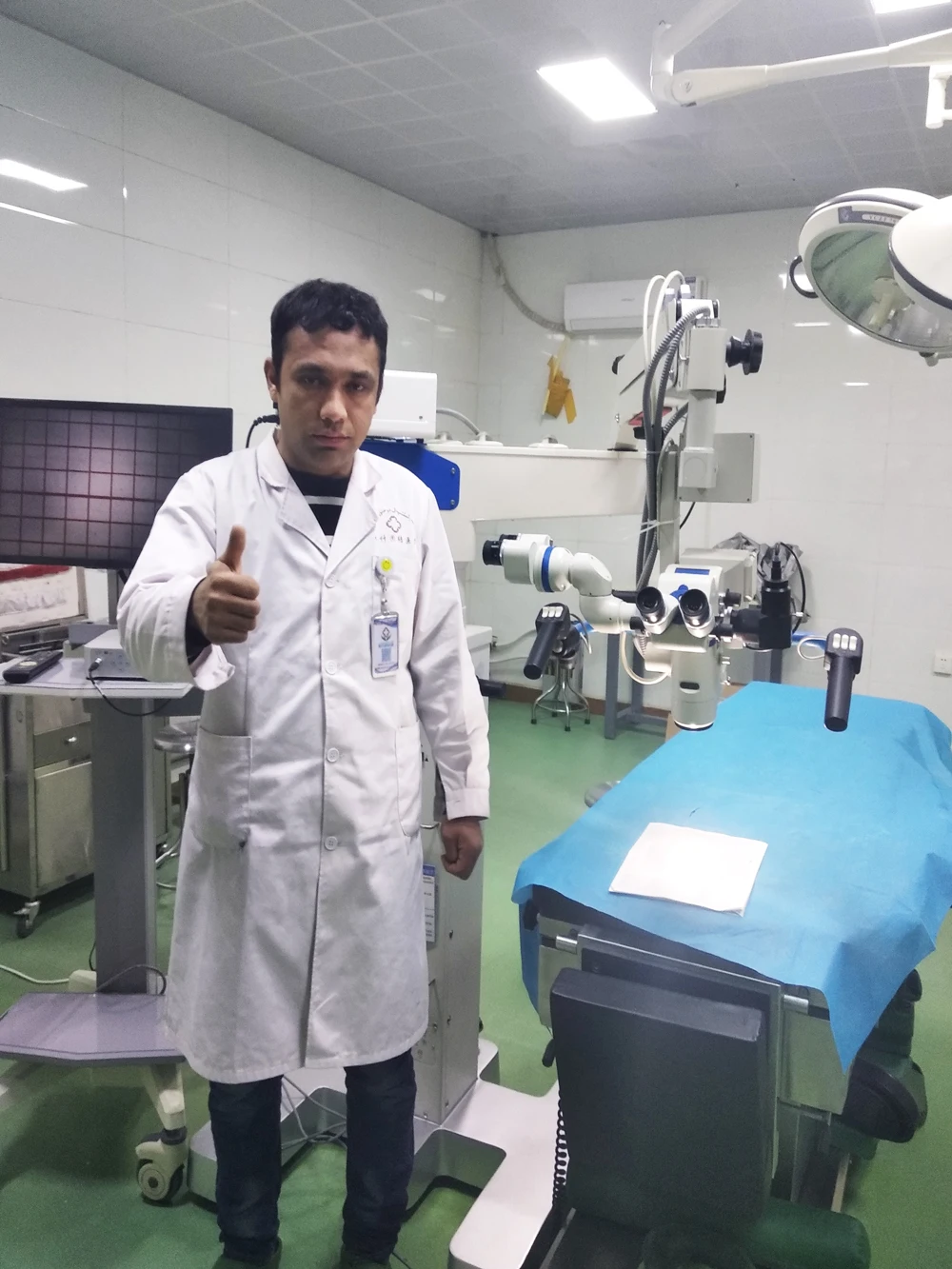

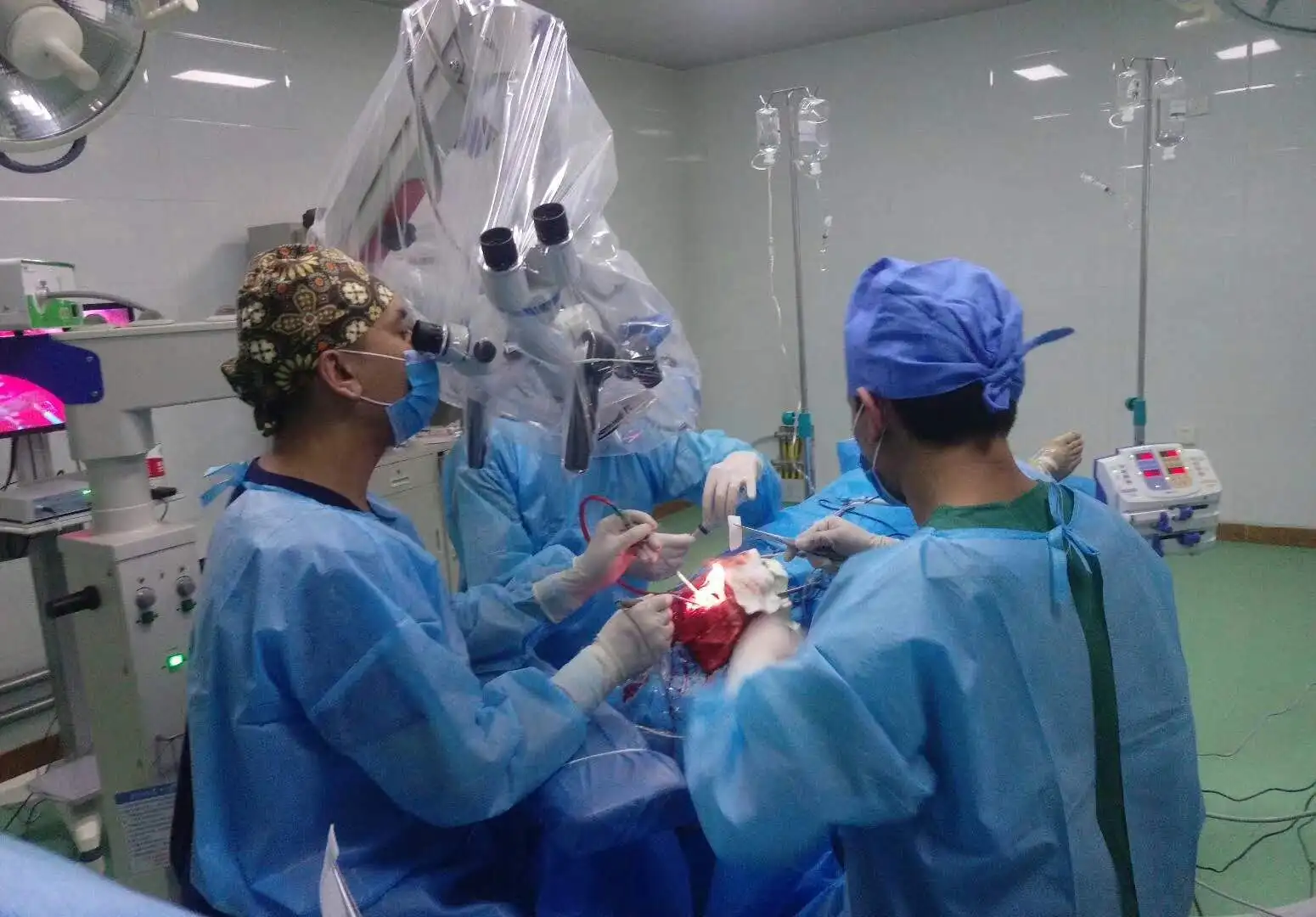

Customer Photos

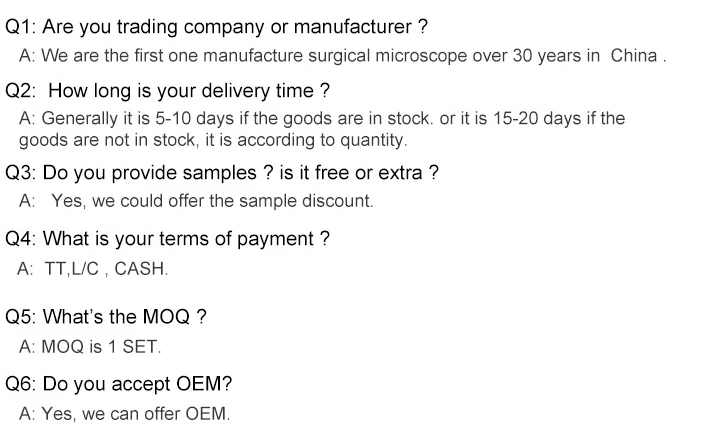

FAQ
