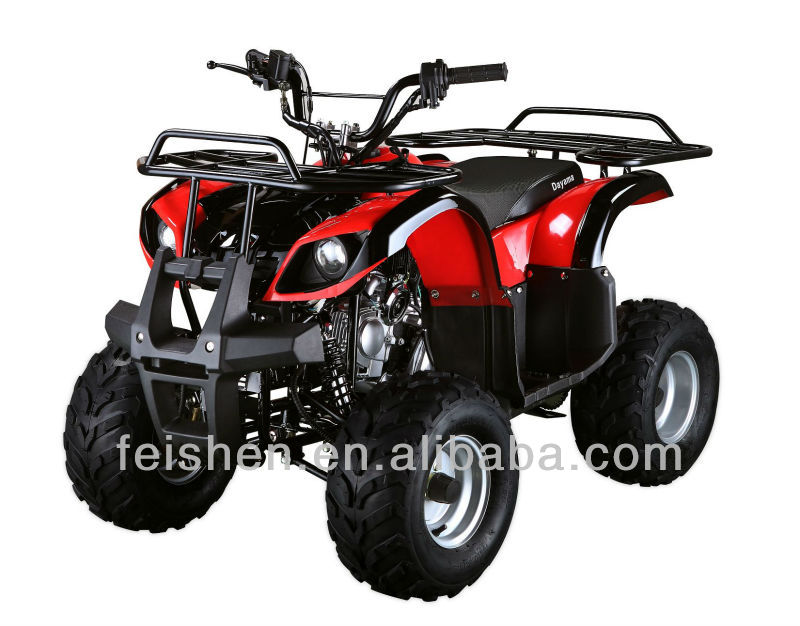

kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)

FOB Reference Price:Get Latest Price
US $330-400 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
2000 Piece/Pieces per Month
Port:
FOB NINGBO, SHANGHAI FOR kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
50cc
Engine Type:
4 Stroke
Transmission Type:
Automatic
Transmission System:
Chain Drive
Certification:
EC
Brand Name:
BUYANG,FEISHEN
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
FA-D50
PRODUCT NAME:
kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)
ENGINE TYPE:
4 Stroke,Air Cooled
MAX.POWER(KW/rpm):
2.2KW/7500rpm
MAX.SPEED:
3.7(24KM/h)
STARTING:
Electric
GEARSHIFT:
Circle Gearshift/Automatic
TRANSMISSION:
Chain Transmission
BRAKE FRONT/REAR:
Disc Brake
FUEL CAPACITY:
3.4L
NET WEIGHT(kgs/lbs):
92kgs
Packaging & Delivery
Packaging Details
steel frame + carton 36pcs/20FT, 108pcs/40HQ for kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)
Delivery Time
30 DAYS FOR kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)

kids ATV quad bike 50cc,70cc,90cc,110cc (FA-D50)



FA-D50FA-D70FA-D90FA-D110
ENGINE TYPE4 Stroke,Air Cooled
MAX.POWER(KW/rpm)2.2KW/7500rpm3.7KW/8000rpm3.8KW/8000rpm6.0KW/8500rpm
MAX.TORQUE(NM/rpm)2.5N.M/6000rpm4.5N.M/6000rpm5.6N.M/6000rpm7.0N.M/6000rpm
MAX.SPEED3.7(24KM/h)6.7(32KM/h)10.5(40KM/h)
CYLINDER NO.Single Cylinder
BORE STROKE39.0mm × 41.4mm47.0mm ×41.4mm47.0mm × 49.5mm52.4mm × 49.5mm
DISPLACEMENT49ml69.5ml86ml107ml
COMPRESSION RATIO8.8:18.8:19.0:19.6:1
CARBURETORPZ19L-126 PZ19L-037e
LUBRICATECombined Force-feed And Splash Lubrication
AIR FILTER TYPEDry Air Filter Net
SPARK PLUGA7RTC
STARTINGElectric
IGNITIONC.D.I
STARTING PROCEDUREStart Electric Lock , Hold Brake , Then Press Start Switch
GEARSHIFTCircle Gearshift/Automatic
TRANSMISSIONChain Transmission
BRAKE FRONTDisc Brake
BRAKE REARDisc Brake
BRAKE DISTANCE7m/30km/h
FRONT SUSPENSIONDouble Swing Arm
REAR SUSPENSIONSingle swing Arm
SHOCK ABSORBER(F)Double
SHOCK ABSORBER(R)Single
BATTERY12V/5AH
ENGINE OILSF 15W/40
FUEL93# unleaded gasoline
FUEL CAPACITY3.4L
TURNING RADIUS2500mm
MAX.LOAD(kgs/lbs)90kg
FRONT TIRE*16/8-7
REAR TIRE*16/8-7
CATTON DIMENSIONS 1420×860×910mm
CARTONE SIZE (L/M/H)1320×780×660mm
PACKAGE40HQ`(SET)108pcs/ 40'HQ
WHEELBASE(mm)830mm
SEAT HEIGHT(mm)620mm
GROUND CLEARANCE160mm
NET WEIGHT(kgs/lbs)92kgs92kgs92kgs92kgs









6 inch and 7 inch tires available



Longcin brand engine, 50cc/70cc/90cc/110 automatic

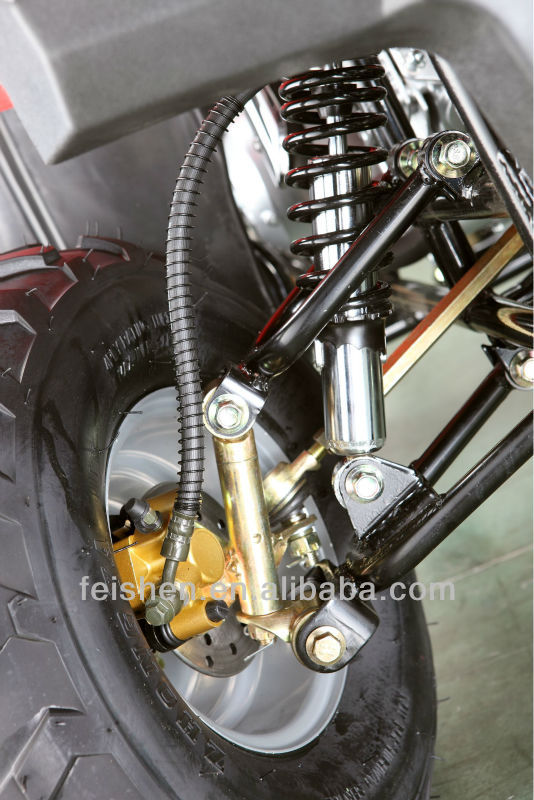

FRONG AND REAR DISC BRAKE, REAR FOOT BRAKE

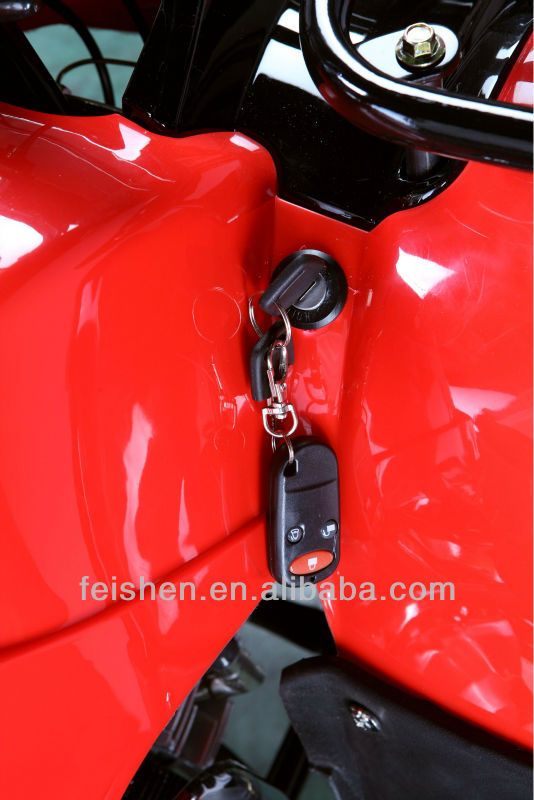

 REMOTE CONTROL IS AVAILABLE
