large 5 axis foam cnc router+5 axis cnc router+large 5 axis cnc router for foam polythene+2D 3D hot wire cutting+3d scanner

FOB Reference Price:Get Latest Price
US $19,000-21,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
300 Set/Sets per Month
Port:
Qindao
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
FASTCUT
Model Number:
ZTM-360
Voltage:
AC380V, AC380V
Power(W):
4.5kw air cooling spindle(optional:6kw or bigger spindle motor)
Dimension(L*W*H):
680x320x550mm
Weight:
3000kg
Certification:
CE ISO9001 FDA SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Machine model:
ZTM-360
Effective Cutting aera:
680x320x550mm
inverter:
Sunfar 5.5KW-11.5KW
Control system:
Taiwan Syntec control system
Motor:
Taiwan Delta servo motor
Guideway:
Hiwin 25 linear guideway
Cables:
Shanhai Ehu
Compatiable design software:
UG,PowerMill,etc
Color:
Customized available
Packaging & Delivery
Packaging Details
wooden case available
Delivery Time
7-15 days after deposite



large 5 axis foam cnc router+5 axis cnc router+large 5 axis cnc router for foam polythene+2D 3D hot wire cutting+3d scanner



5 axis 5 axis cnc router cnc router  Taiwan Syntec control system cnc router

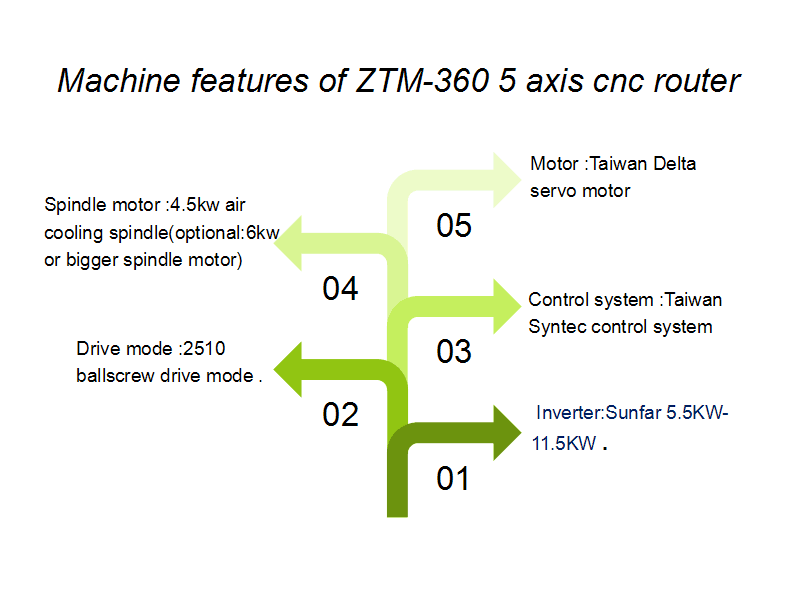

Machine features:

Technical parameters:





Model

ZTM-360 5 axis cnc router

Max workign size

X axis:680mm

Y axis:320mm

Z axis :550mm

A axis:360 degree

B axis: ±90 degree

Workpiece length

300MM-600M(or customized as your requests)

Control system

Taiwan Syntec control system

Spindle motor

4.5kw air cooling spindle(optional:6kw or bigger spindle motor)

Guideway

Hiwin 25 linear guideway

Drive mode

2510 ballscrew drive mode

Tools diameter

3.175,4,6,8,10,12,12.7mm

Voltage

AC380V

Inverter

Sunfar 5.5KW-11.5KW

Motor

Taiwan Delta servo motor

Electronic parts

German Schneider electronic parts

Cables

Shanhai Ehu

Limit switch

Taiwan Omron

Guideway test precision

0.001

Ballscrew test precision

0.001

Engraving precision

0.05mm/300mm

Compatiable design software

UG,PowerMill,etc

X,Y,Z Connection Mode

German C class coupling

Travel speed

X,Y:40000mm/min

Z axis:10000mm/min

Engraving speed

20000mm/ mm

Gross weight

3000kg

Design gallery

we send for free





 Applicable Scopes:



Mould industry: casting. car. ceramic and wash utensils, steamer, barge, space flight, chemical industry, wind power generation, rail traffic, and Artworks.



Three-dimensional processing industry: process large-scale stone, FRP edge cut, process resin and other solid carbides.



Teaching experience industry:Chairs and other furniture that need 3D processing.

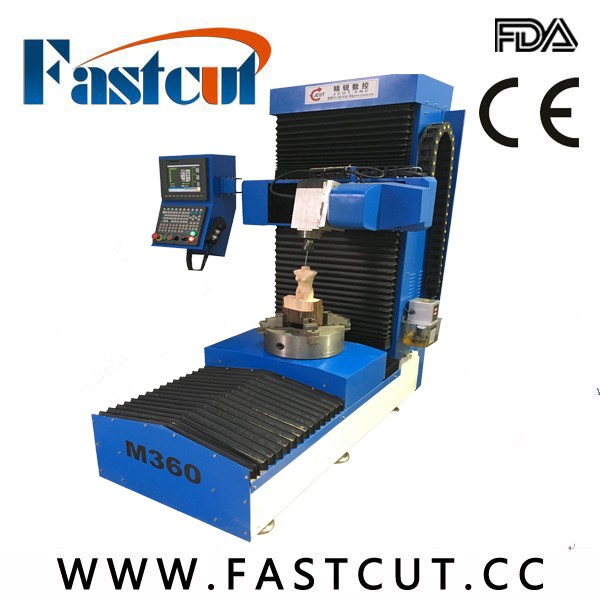

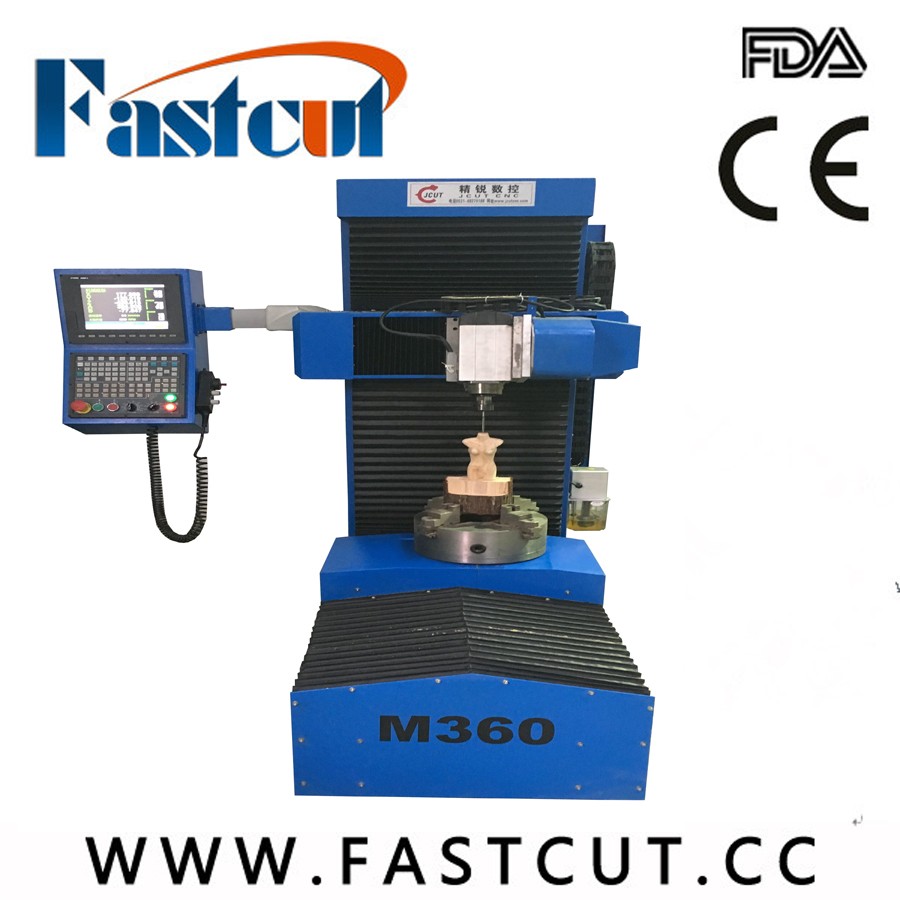

Main picture:





Samples:

Certificates:



certificates
C
Certificates



Suppliers:



suppliers
S
Suppliers



Company information:



Company information
C
P
Company Information



 Company  advantage:

1.First-class factory meets international production plant's standard, ten years' manufacture and export experiences



2.Own most advanced domestic cnc machining production equipments



3.20 professional high-end R&D technical staff, and can provide multiple languages and real-time online technical support



4.5-9 days machine production time, one year warranty and lifetime free maintenance



5.OEM and ODM services avaliable



6.Same quality, our price and service are better;Same price, our quality and service are better



7.with CE, FDA, SGS, ISO9000 certifications.



Contact us: the link  https://youtu.be/uSDw7H5bRSM
