laser cutting machine stainless steel

FOB Reference Price:Get Latest Price
$84,000.00 - $90,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
BFC
Power:
4000W
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Speed:
120m/min
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cutting Thickness:
20mm
CNC or Not:
yes
Cooling Mode:
WATER COOLING
Control Software:
automatic control
Place of Origin:
Beijing, China
Brand Name:
BOAO
Certification:
ce, ISO
Laser Source Brand:
Raycus Fiber laser
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
4000 KG
Key Selling Points:
Automatic
Warranty:
2 years, 2 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Advertising Company
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Germany, Viet Nam, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Morocco, Argentina, South Korea, Chile, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Morocco, Argentina, South Korea, Chile, Colombia, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Malaysia
Product name:
Fiber Laser Metal Cutting Machine
Laser power:
4000W
Function:
Cutting Metal Materials
Power supply:
380V 50Hz/ 220V 60Hz
Laser source:
Raycus IPG
Control system:
Cypcut Control System
Cutting Area:
3500x1500mm
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Tianjin
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Machines Introduction
Worktable Type :
Single Worktable Type
Actual Cutting Size:
3000x1500mm
Cutting Thickness:
<25mm
Materials :
Steel,Al, Brass,Alloy etc..
Laser Power :
4000W
Delivery Time :
45 Working Days
Warranty &Service :
2 Years
Main Parts

Laser Source

Original Raycus Fiber laser Source

Laser Head

Raytools Of Swiss, Automatic Focus

Laser Cutting Software

CypCut Cutting Software In original

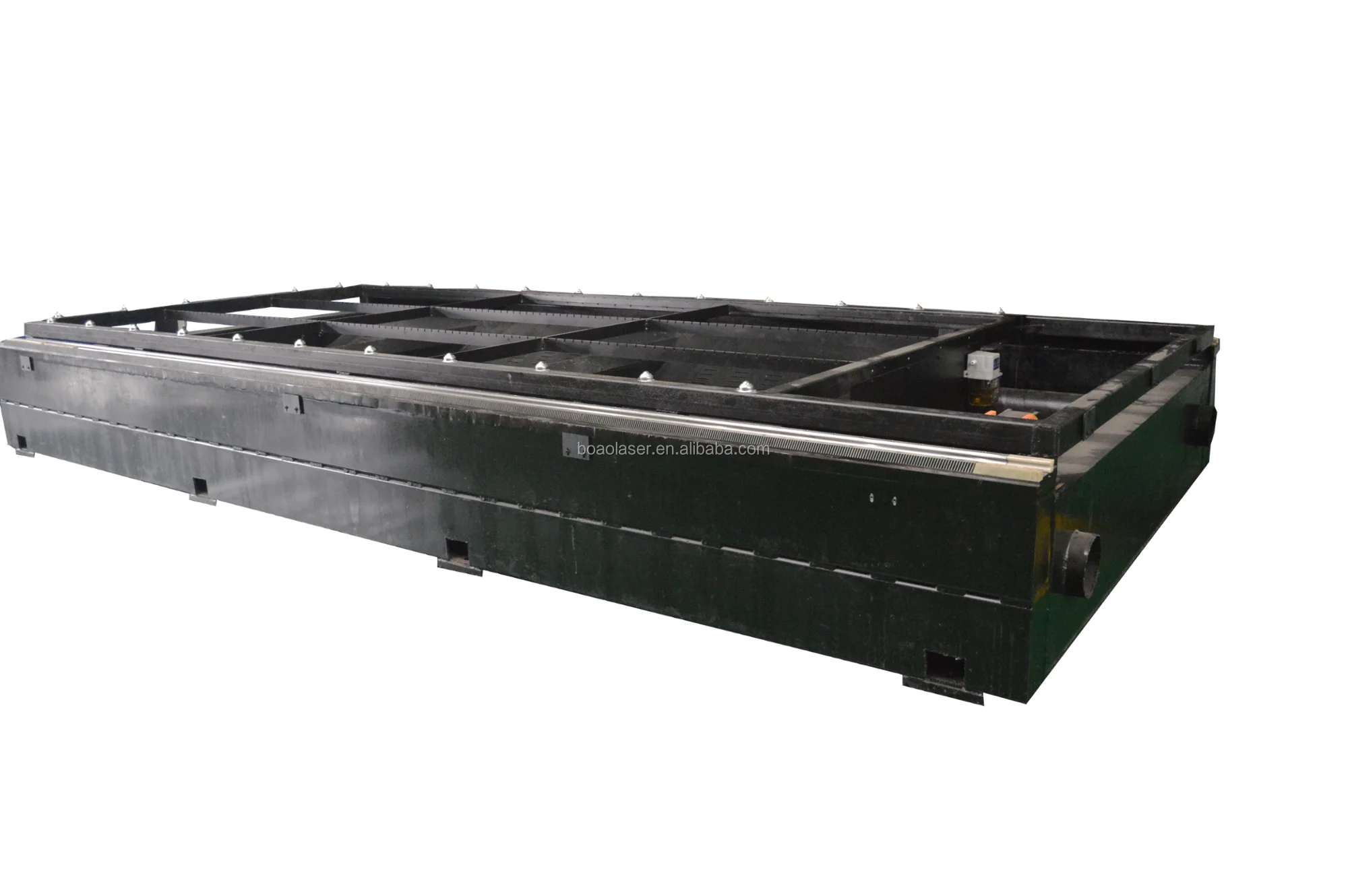

Heavy Designing Worktable

Heavy Machine Tool Designing /Welded Bed /Precision Gantry Machining Center finishing milling/Secondary annealing/The Effective
Elimination of Stress

Servo Motor System

YASKAYA Motor System of Japan .Y Axis :Double Driver,2.0KW /X axis 1.3KW /Z axis 400W
This type of configuration ensure the Repeating Precision Of Worktable: < +-0.03mm .

APEX Reducer

APEX reducer /higher precision
(Ensure The worktable movement more stable under higher precision condition )
Technical Parameters
Model NO:
BFW4000
Laser Type
RAYCUS CHINA
Laser Wavelength
1060nm
Laser Maximum Power
3000W
Max. Cutting thickness
≤20mm
Total Power Consumption
<35KW (380v/ 3Phase/50Hz/)
Working Size
3000*1500 mm
Max.cutting speed
0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision
≤±0.03mm/m
X, Y, Z Axis Repeat Precision
≤±0.03mm /m
Min line width
≤0.15mm
Maximum Empty Running Speed
100m/min
Driving way
Imported servo motor
Transmission way
Y-axis import gear rack double driver, X-axis imported ball screw
Worktable Max Load
3Tons
Cooling System
Water Cooling
Continuous working time
24 Hours
Environment temperature
0-35°C
Power requirements
380V/3 Phases /50Hz or 60Hz
Machines And Cutting Photo
Customers Photo

Germany

Slovenia

Indonesia

Romania

Vietnam

Kzakstan

Italy

Russia

Korea

Turkey

Pakistan

Mexico

Production Procedure

Materials

Welding Worktable

Secondary Annealing

After Effective Elimination of Stress

Worktable Ready

Production

Running Test

Ready For Shipment

Transporation

Installationg And Training in Customers Factory
BOAO laser will arrange engineers go to customers factory provide the Insatllation And Training directly in English.
BOAO laser Company
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) as the high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.

Products:

BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .

Employee:

The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.

Quality Control :

Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .

Service :

BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Service
Website :
www.boaolaser.com
General Manager:
Mr. Andy Yue
Email:
sales@boaolaser.com
andy@boaolaser.com
Tel:
0086-13910058345
0086-13911547331
0086-10-82895922
Wechat/Whatsapp:
0086-13910058345
