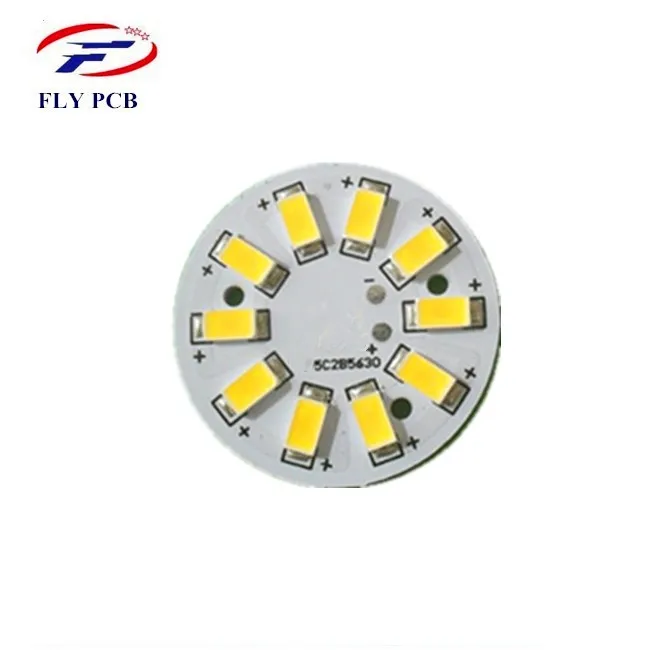

led printed circuit, led light circuit board, led smd pcb board

FOB Reference Price:Get Latest Price
$0.25 - $1.33 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FLY
Model Number:
AL18071221
Base Material:
Aluminum Base
Copper Thickness:
1/2OZ 1OZ 2OZ 3OZ
Board Thickness:
1.0mm
Min. Hole Size:
0.15
Min. Line Width:
0.1 0mm
Min. Line Spacing:
0.1mm4mil)
Surface Finishing:
ENIG/OSP
Min. line Width/Space:
0.1mm(4mil)
Outline tolerance:
±0.10mm(4mil)
Insulation Resistance:
>1012 Ω Normal
Electric strength:
>1.3kv/mm
S/M abrasion:
>6H
Colors:
white,snow white
Layer:
single/double
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Inner Vaccum Packing Outer Carton Box.
Port
EXW, FOB Shenzhen
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 10 To be negotiated
Specification
Setting Information
Material
Aluminum base
Application
LED lights
Material
15W
Light color
Yellow/white
Installation
SMT
Temperature
5000K
Surface finishing
ENIG/OSP
Size
Customized
Company Information

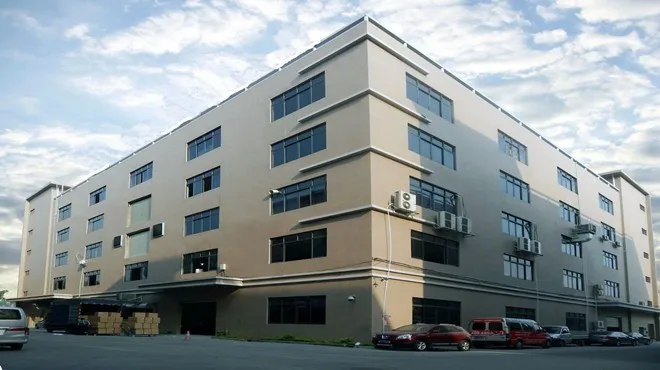

Fly PCB Electronic Co.,Ltd. is a manufacturer specializing in the research & development, manufacture and marketing of PCB boards. We have had about 300 workers and 15 R&D technicians since our company was established in Shenzhen City of Guang dong Province in 2003. Covering an area of 8,000 square meters, our workshops are equipped with about 60 automotic machines.

FAQ

Q1. If you don't have any file, how can you get the price?
Tell me your led quantity and model number, and PCB board size. We can make estimate price for you.

Q2.Can I have a sample to test?
A:Yes,we can send you samples to test.

Q3.What is the lead time?
A:Samples need 7 working days,mass production needs 10-15working days, according to the order volume.

Q4.Do you have MOQ limit?
A:Even 1 pcs,we care.

Q5.Can you offer the best price for us?
A:Yes,we are specialized LED PCB manufacturer for 20years directly,we can offer lower price.

Q6.How do you ship the goods and how long does it take arrival?
A:Usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.

Q7.What are the payment terms?
A: Paypal,Western Union and T/T Bank is acceptable.

Q8.Can we visit your factory?
A:Yes,welcome to visit our factory anytime. We will show you our factory and production line.


LED CHIP Model:

Regular m
odel: 5730 0.5w, 5630 0.5w, 2835 0.5w/0.2w/0.1w, 3528 0.2w, 5050 0.2w, 3030 1W, 3535 1W, 0805, 7020 0.5w ect.



Process

Blank PCB:
Material Cutting→Drilling→PTH→Photo process→Circuit Exposure→Etching→Touch up→Pannel plating→Plug hole→Print Solder mask ink→Surface Finish→Profile→Punch/V-cut→E-testing→→Final Visual Inspection→Packing


PCB Assembly:

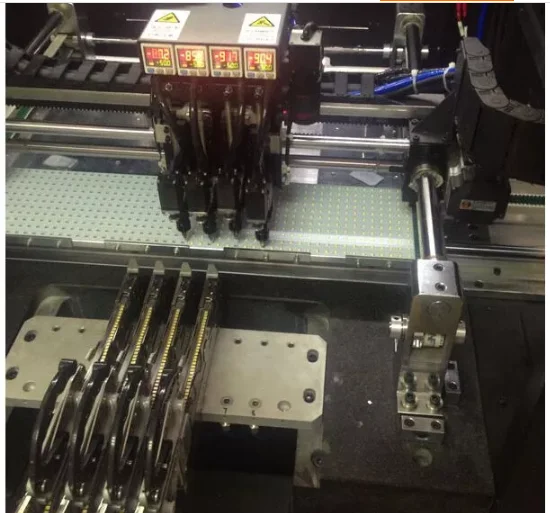

PCB board finish→components ready→SMT/DIP→Function/Aging Testing→Final Inspection→Package.

Package
Package
Shipping way
