lithium battery 80a lithium battery

  • 10-99 Pieces
    $43.00
  • 100-499 Pieces
    $42.00
  • 500-999 Pieces
    $39.00
  • >=1000 Pieces
    $28.00
1 batch = 10 Pieces
Quantity:
- + Pieces available
Samples:
$43.00 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
4 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Samples - $43.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HRCPOWER
Model Number:
HRC-XK-006-17S40A
Base Material:
FR-4/aluminum/ceramic
Copper Thickness:
1oz
Board Thickness:
1.6mm
Min. Hole Size:
0.004"
Min. Line Width:
0.3mm/0.2mm
Min. Line Spacing:
0.10mm
Surface Finishing:
Immersion Gold
Product name:
lithium ion battery BMS
Application:
Electronics Device
Certificate:
ISO9001
PCB Item:
Engineering
PCB Assembly process:
SMT THT DIP
Solder Mask:
Green. White
Charging voltage:
72V
recharging current:
40A
Temperature range of Operating:
-20~45
humidity range of Save environment:
≤40%

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X13 cm
Single gross weight:
5.000 kg
Package Type:
PP bag; Carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 4 7 15 To be negotiated
Video Description
Product Description

Smart lithium battery lifepo4 bms 48v 16s 80a bms lithium battery


Application and features:


a. Applicable to 17 series 40AH and below lithium manganese oxide/lithium cobaltate/lithium ion/lithium polymer/ternary battery pack;

b. Perfect overcharge protection, over-discharge protection, over-current protection, short-circuit protection and disconnection protection;

c. The external protection adopts aluminum heat sink, which is shockproof, drop-proof, anti-impact and increase heat dissipation and increase the strength;

d. The main control IC adopts a highly integrated dedicated battery protection IC with reliable and stable protection functions, low self-loss and ESD protection.

Detailed Images
NO
Test items
Min
typical
Max
unit
1
Charging voltage
71.06
71.4
72
V
2
Charge MOS tube withstand voltage value


100(DC)
V
3
Discharge MOS tube withstand voltage value


100(DC)
V
4
recharging current

40
43
A
5
Continuous discharge current

40
43
A
6
Discharge overcurrent protection current (100A electronic load)
85
95
105
A
7
Discharge Overcurrent Protection Delay (Nebula Protection Board Tester)
300
470
600
mS
8
Single consumable current (3.30V)
15
23
33
uA
9
Single section overcharge detection voltage
4.21
4.25
4.29
V
10
Single section overcharge recovery voltage
4.05
4.15
4.2
V
11
Single section overcharge detection delay
0.5
1
2
S
12
Single section over discharge detection voltage
2.67
2.75
2.83
V
13
Single section over discharge recovery voltage
2.9
3
3.1
V
14
Single section over discharge detection delay
0.5
1
2
S
15
Short-circuit/over current protection recovery conditions
Short-circuit/overcurrent protection removes load automatically after recovery



16
Overcharge(overdischarge)recovery conditions
Discharge short-circuit/discharge over-current protection removes load automatically after recovery



17
Short circuit protection delay
500
1000
1800
uS
18
Protection circuit internal resistance

8
15
mΩ
19
Maximum temperature rise of normal current

45
60
ºC
20
Discharge MOS protection temperature
65
70
75
ºC
21
temperature range of Operating
-20
25
45
ºC
22
temperature range of Save environment
20
25
30
ºC
23
humidity range of Save environment
≤40%
Package and Shipment
Company Profile
Shenzhen Hrcpower Technology Co., Ltd. founded in 2010, situated in Shenzhen City, Guangdong Province in South China, is a integration of industry and trade leading manufacturer of high-end power supply products such as power adapter, USB charger, PC PSU, IPC PSU, switching power supply,BMS etc... TOHKDEER is our own brand.Headquartered in Shenzhen, the company has a production base of 20,000 sqm in Dazhou, Sichuan province in 2017. HRCPOWER owns 20 million units annual production capacity.In order to expand production and better cooperate with customers to shorten the production cycle, we set up a new factory "Dongguan Hrcpower Electronic Technology Co., LTD."(2400 sqm) in Dongguan city this year.We take pride in a number of senior engineers and technicians with over 20 years of experience in this sector as well as advanced equipment and the top-ranking management system, which make it possible for us to provide our customers with high quality products, competitive prices and first-class service. our strategy is to intensify our team spirit and devote more resources to the research and development of new products in order to meet customers' demands and enhance our core competence in the future. HRCPOWER is qualified by ISO9001, our products are in accordance with RoHS and REACH standards, and certificated by CB、UL、Fcc、CE、KC、PSE、CCC、BSMI、GS、SAA etc...Established long-term and stable cooperation with brands such as Sungrow, Solis, Schnedider and Luxpower.Meanwhile, a host of checks at various levels shall be conducted to ensure high quality before shipment, make sure that we provide customer better products. Our company has always been to the "quality of survival, management to promote efficiency, technology to expand the market, reputation to win the word of mouth" enterprise spirit, to provide reliable guarantee for the majority of customers.We look forward to your visit with high quality, good price, high service and high efficiency.

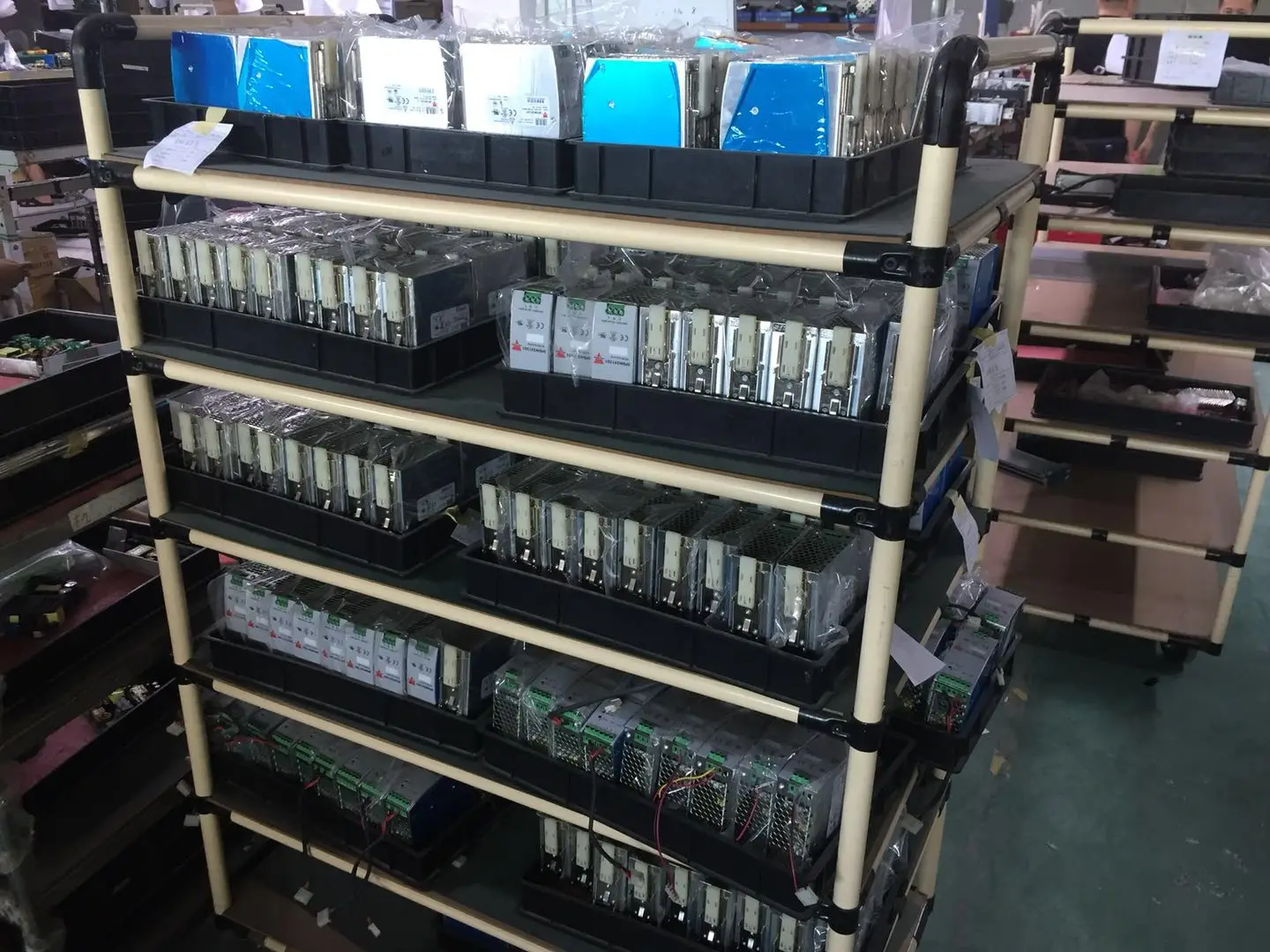

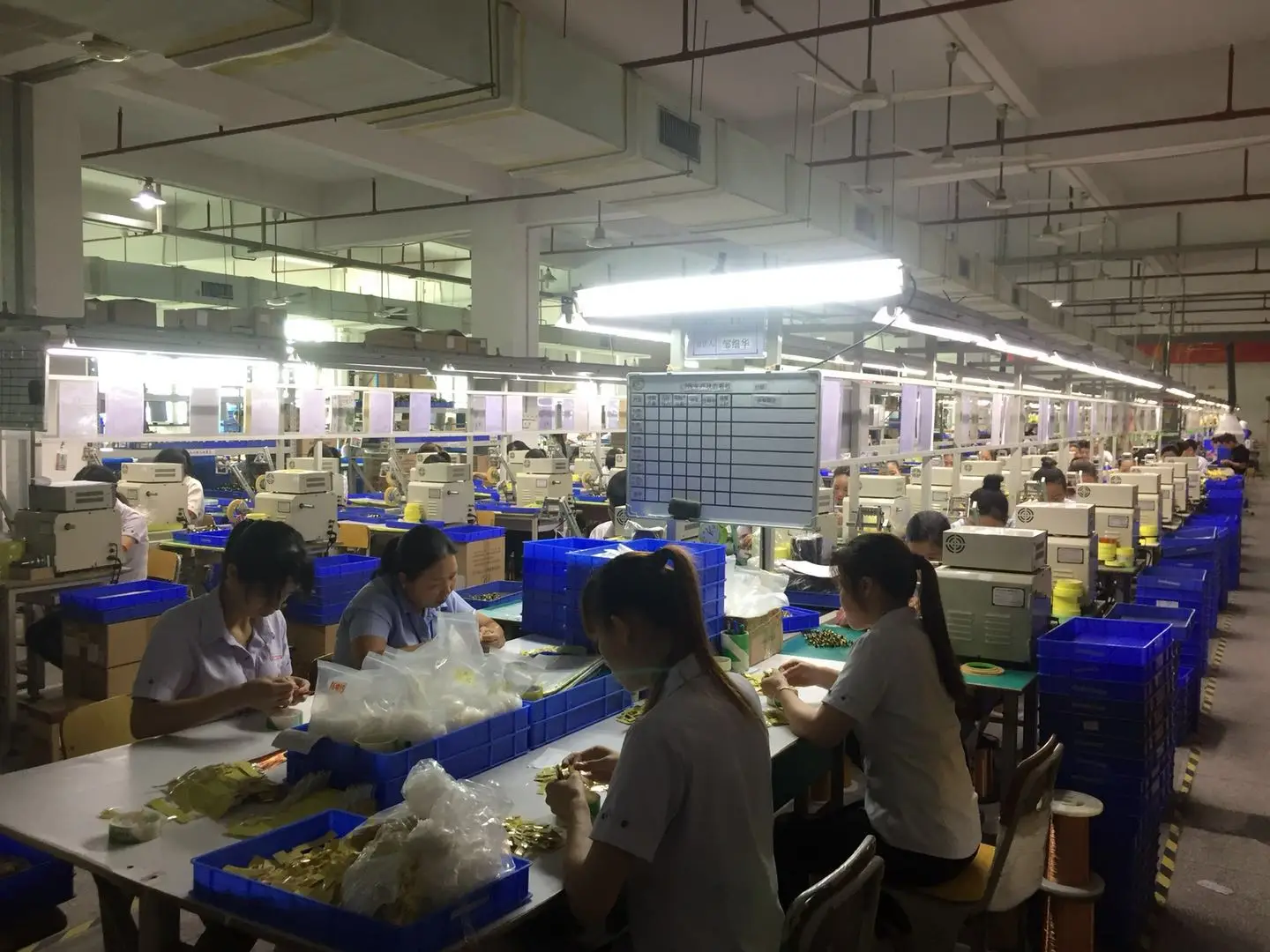

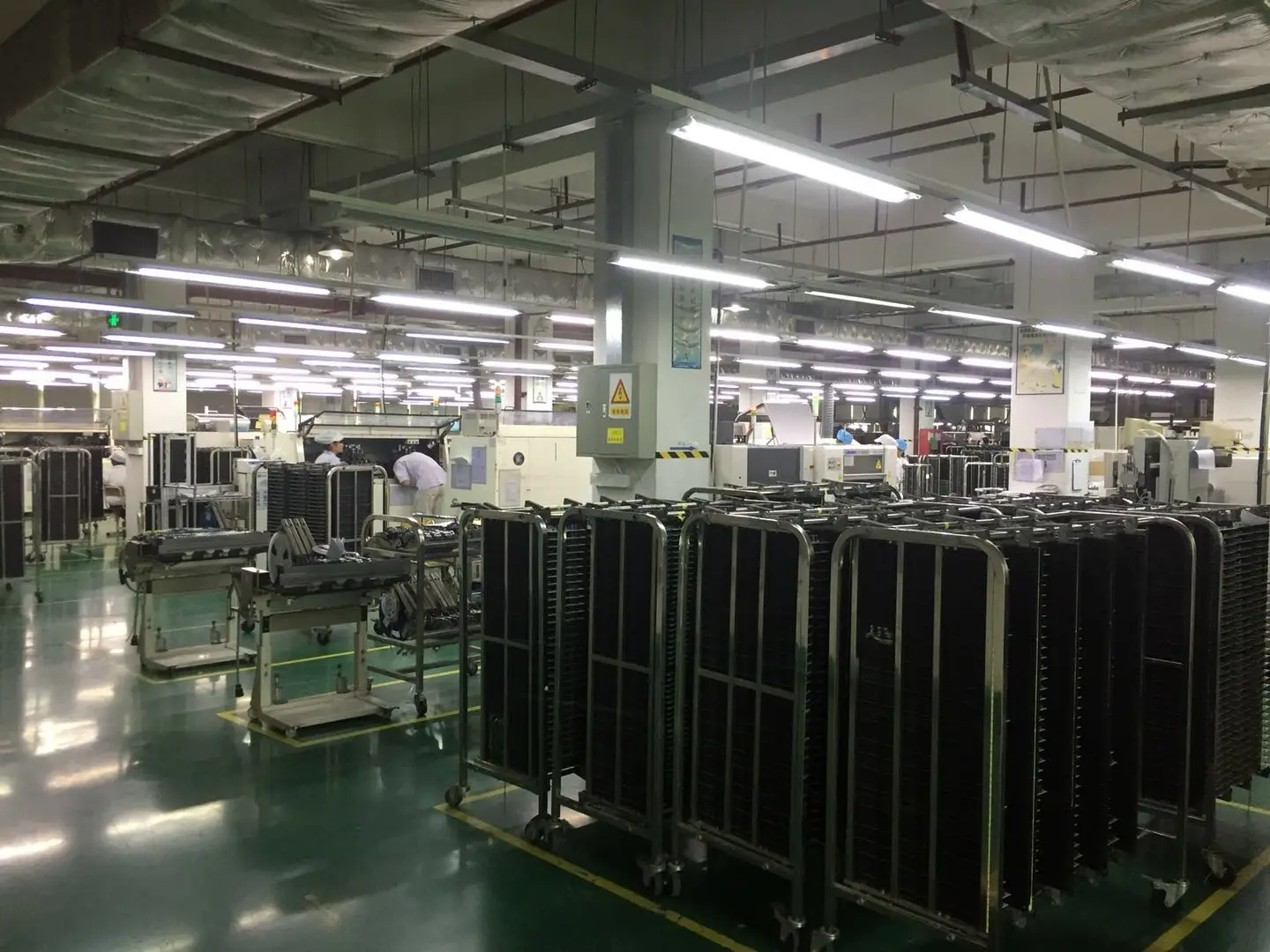

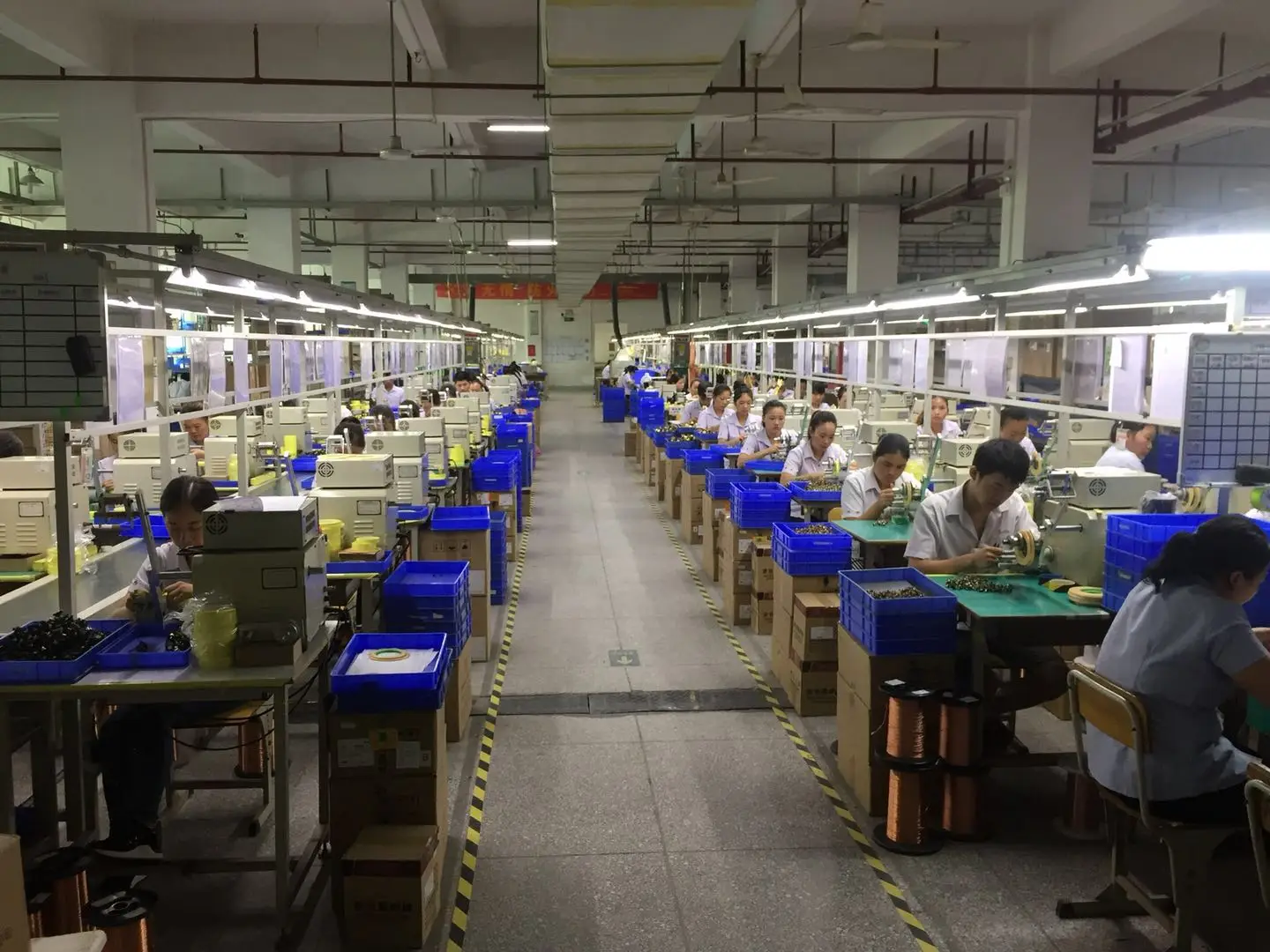

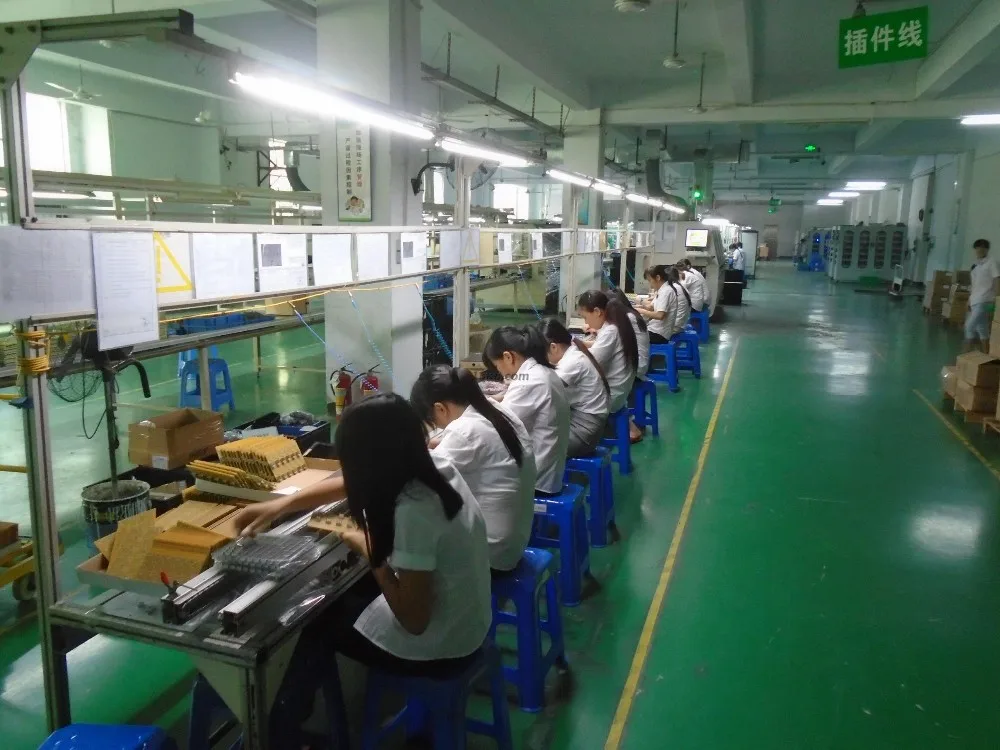

Our Factory
Certifications
Exhibition
Cooperation Brand

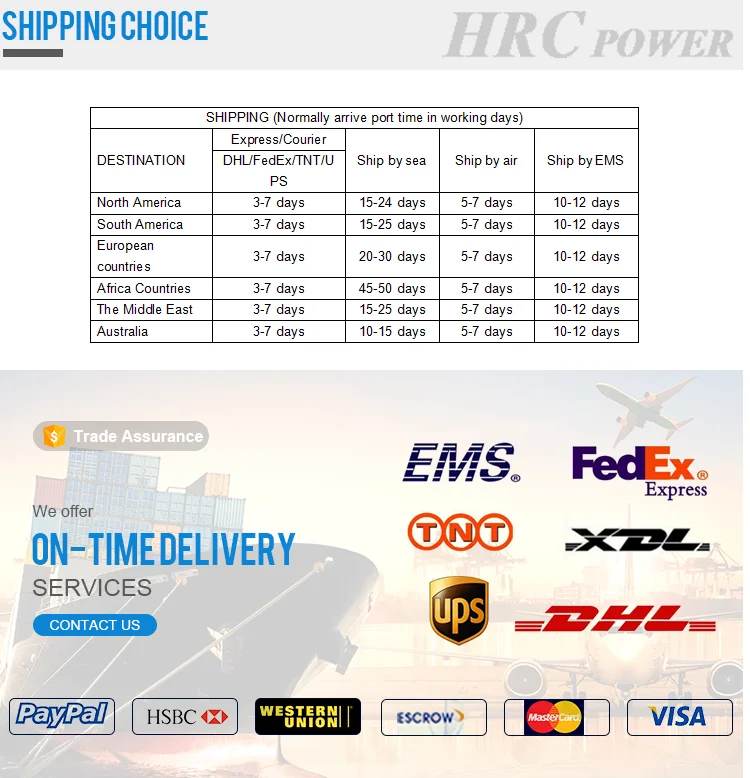

Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Western Europe(40.00%),South America(20.00%),Eastern Europe(10.00%),Southern Europe(9.50%),Southeast Asia(5.00%),Northern Europe(5.00%),Eastern Asia(3.00%),Africa(2.00%),South Asia(1.50%),North America(1.00%),Mid East(1.00%),Central America(1.00%),Domestic Market(0.50%),Oceania(0.50%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Power Adapter,Power Charger,BMS,PC PSU,IPC PSU
4. why should you buy from us not from other suppliers?
Hrcpower have been striving to provide best quality products with advanced technology and first class service to our partners around the world
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
