long range car parking uhf rfid reader

FOB Reference Price:Get Latest Price
$90.00 - $140.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ACM
Model Number:
ACM-801
Product Name:
long range car parking uhf rfid reader
Frequency:
902-928MHZ
Operation Mode:
Fixed Frequency or FHSS or Software Programmable
RF Power Output Adjustable:
Power Output Adjustable Range:0.1W --- 1W
Built- in Antenna Type:
Built-in Circularly polarized antenna.
Communication Ports:
RS-232 ,Weigand 26 bits \ 32bits
Communication Rates:
Up to 57,600bps and software programmable
Power Consumed:
DC-9V±0.5V Adapter, less than 3 Amps
Dimension / Weight:
460X460X45MM
Operation Temp:
Working Temp.:-35°~ +60 ° Storage Temp.:-50°~ +80°
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1 set in a carton;
Carton size : 25*25*70cm;
Weight :6kg
Port
Shenzhen
Lead Time :
3 working days after payment received
Product Description

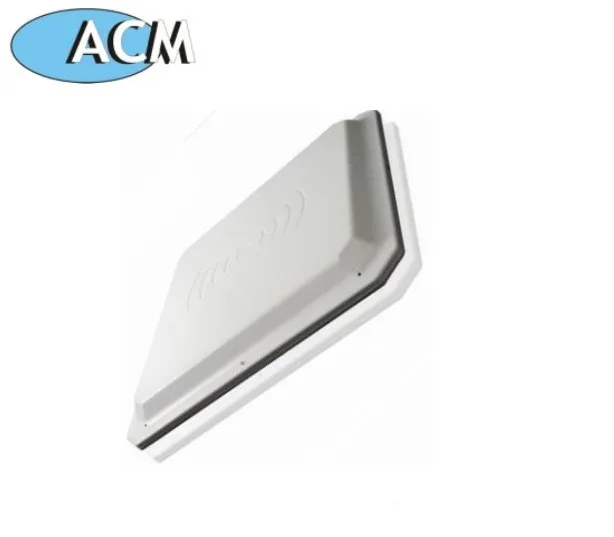

long range car parking uhf rfid reader

RFID UHF Long Range Reader(ACM801A)The products can be compatible with multi-protocol,small volume,quickly read, linear polarization antenna is no limited of direction for tag, proof-water, can be used widely in RFID Systems.



Scanner Model
ACM801A
Protocol
ISO18000-6C(EPC GEN2)
Frequency Range
ISM 902~928MHZ (FCC)  or  920~925MHz (CHN)
Operation Mode
Fixed Frequency  or  FHSS  Software Programmable
RF Power Output
0~30dBm
Reading  Rate
Software  Programmable,can identify fast-moving electronic lables whose speed is greater than 120km/h
Reading Mode
Auto And Touch or  Software  Programmable
Data Input
Input  One Team
Reading Range
reading/writing range is not less than12M,the longest reading range is 30M
Reading Clue
Buzzer
Antenna
Built-in Antenna,12dbi level polarization
Power Consumed
DC-9V±0.5V  Adapter, less than 3 Amps
Dimension
460X460X45MM
Avoirdupois
6 Kg
Operation Temp
-35℃~+65℃, Storage temp.:-45℃~+95℃
Communication ports
RS 232/ 485  ,    Wiegand26/34 Software Programmable

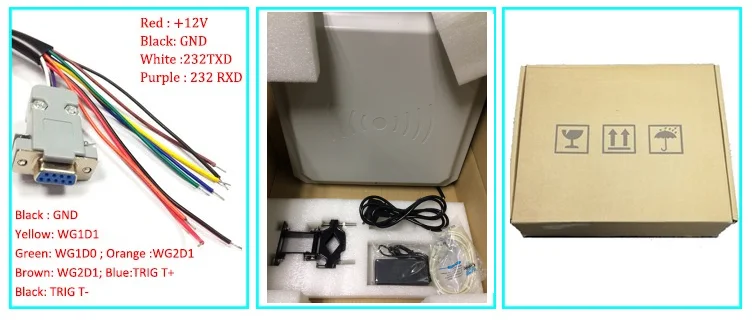

               Wiegand 26&RS232                            Packing Includes                                Standard packing

Shipping

Shipping Way

We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

Other UHF reader
Except the ACM812A , we also can supply ACM802A , ACM818A , ACM801A . The main difference of them are the reading distance . Also , ACM801A can be used to read multi-tag(200 pcs at one time ) . For more detail , please click following picture .

ACM802A

8-10m reading range UHF reader

ACM818A

10-15m  long range UHF reader

ACM801A

10-15m UHF reader
About Us

ACM Shenzhen Goldbridge industrial company

As a one of leading exporter of RFID products in China , Our own factory is in DongGuan . We have been in this field for 17 years already . We have rich production and exportation experience on RFID products . Our strength products are : RFID card , RFID keyfob , RFID wristband , RFID tag and various RFID reader . We are also the access control solution provider .

Your May Need

UHF card

ACM-UHF-I  UHF card 860-915mhz RFID card 86*54mm

UHF stikcer

ACM-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm

UHF anti-metal tag

ACM-UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm
Related Products
1 door access controller
ACM-WG01 1 door access controller 2 reader connection
2 Doors access controller
ACM-WG02 2 doors access controller 4 readers connection
4 Doors access controller
ACM-WG04 4 doors access controller 2 for enter 2 for exit with free software

Thanks for watching .  Please kindly know , one stop RFID products supplier --ACM is your reliable partner  . If you have any question during shopping , just fell free to contact us . I am sure any inquire from your will get our prompt attention and reply .
