low cost rubber waterjet cutter waterjet cutting machine for sale

  • 1 - 1 Sets
    $62,800.00
  • 2 - 4 Sets
    $55,000.00
  • >=5 Sets
    $49,999.00
Cutting Width:
2000MM rubber cutting machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
rubber cutting machine (Min. Order: 1 Sets) Less
Samples:
$49,999.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Power Source:
electrical
Condition:
New
Cutting-off Force(T):
3000 T
Cutting Stroke(mm):
2000*4000MM
Place of Origin:
Shandong, China, Shandong, China (Mainland)
Brand Name:
WAMIT
Model Number:
WMT2040-AL
Voltage:
380V, can do 220V, 415v, 440v
Dimension(L*W*H):
2000*4000*2000MM
Certification:
CE, ISO
Year:
newest
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Video technical support, Field installation, commissioning and training, Online support
Key Selling Points:
Eco-friendly
Power (kW):
37 kW
Weight (KG):
5000 KG
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
malaysia, Australia, Morocco, Colombia, south africa, UNITED KINGDOM, United States, VIET NAM, peru, indonesia, Mexico, RUSSIA
Showroom Location:
Morocco, CHILE, south africa, malaysia, Australia, United States, VIET NAM, SAUDI ARABIA, indonesia, Mexico, Thailand
Applicable Industries:
Hotels, Manufacturing Plant, Construction works , Advertising Company, rubber cutting machine
Processing Type:
rubber cutting Machine
Product Name:
rubber waterjet cutting machine
Continuous Working Pressure:
350-380mpa
Working area:
2000*4000mm
Cutting accuracy:
±0.05mm
Max pressure:
420mpa
linear guider:
imported from TAIWAN HIWIN
Way of drive:
servo motor and driver
Cutting thickness:
0-200mm
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
soft packing or wooden case in 40'FCL
Port
Qingdao port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Products Description

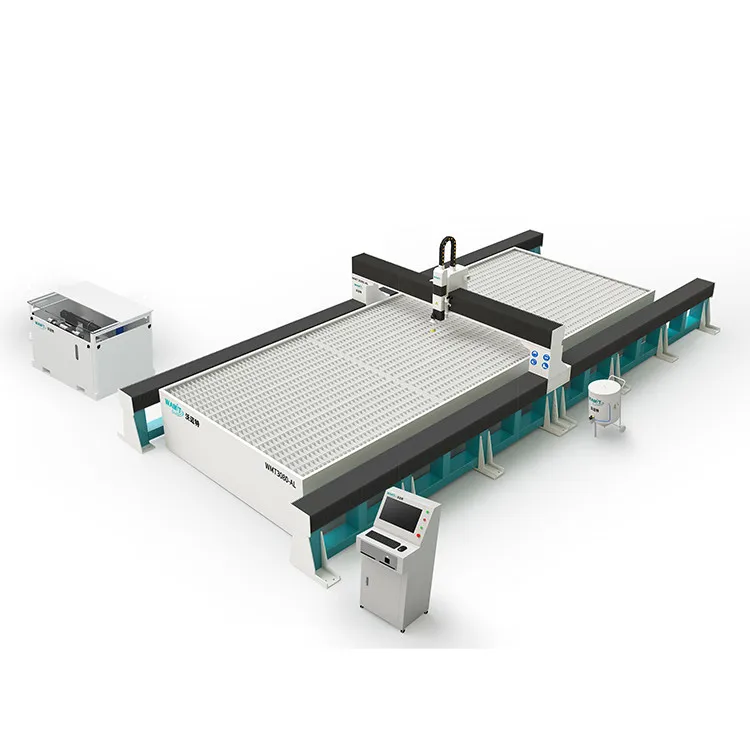

low cost rubber waterjet cutter waterjet cutting machine for sale

The gantry-style balanced design structure is more stable and improves the accuracy of the machine. Ultra-high pressure cutter head, which can be cut with pure water and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts Taiwan's high-quality guide rail and Swedish ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use. China's first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain. The CNC control system uses the WEIHONG professional waterjet cutting CNC system. we also have ITALY imported ECS software which can support more than 15 languages.

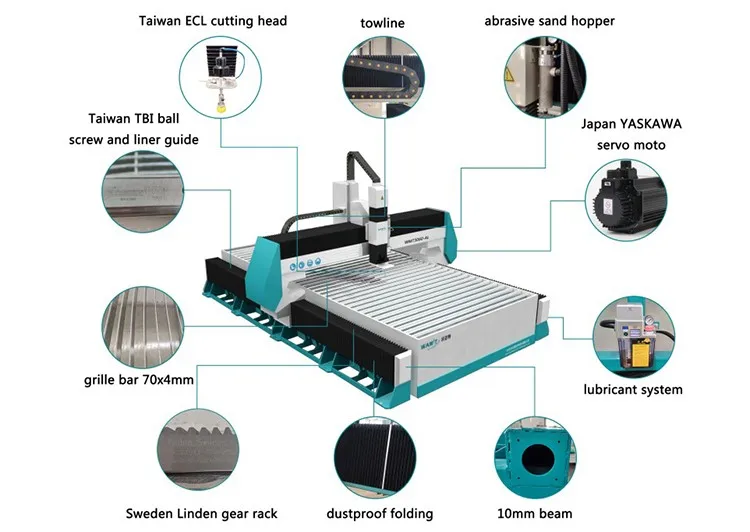

More advantages

1. Automatic lubrication system from the Valley of Japan.
2. The internal components are selected from Schneider International brand, with first-class quality and reliable work.
3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ).
4. High precision, Ensure cutting results.
5. Provide customizable services.
6. After-sales Service: Field maintenance and repair service, Online support, Field installation, commissioning and training, Video technical support, Free spare parts.

Size
Can be customized to any size, mini platform or ultra-large platform or other size can be customized.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model
WMT 1010
WMT 2050
WMT 3020
WMT 3080
WMT 5030
Cutting table
X axis(mm)
1200
2200
3200
3200
5200
Y axis(mm)
1200
5200
2200
8200
3200
Max.cutting range(mm)
X axis(mm)
1000
2000
3000
3000
5000
Y axis(mm)
1000
5000
2000
8000
3000
Z axis(mm)
250
250
250
250
250
Control system
Adopt industrial PC
Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function. • Support for DXF files. • Support forward and reverse processing functions. • Uniform speed control function. • Two modes of segmentation and smooth machining. • Automatic processing with small arc speed. • Coordinate recovery function after power off. • Double lift speed parameter function. • With cycle processing. • Convenient pause to continue and start machining in any segment. • Free time delay setting. • Apply SIEMENS PLC instead of relay, buttons are Schneider.

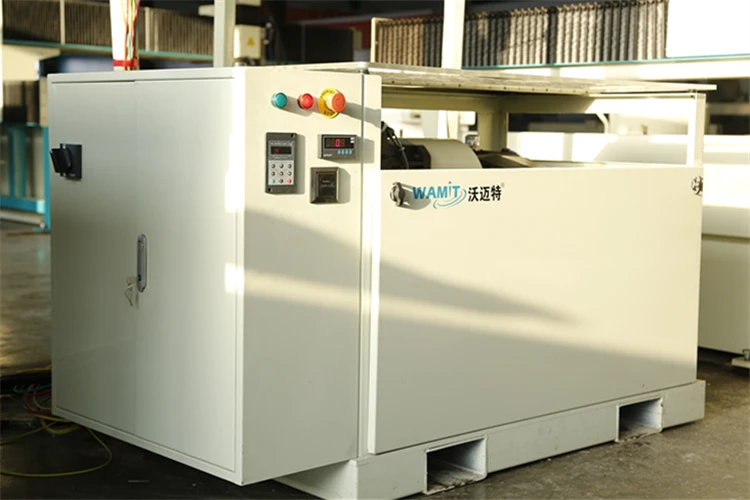

HP intensifier pump


HP hydraulic intensifier pump



Maximum pressure: 60000Psi.
Boost ratio: 20:1.
Working pressure: 46000 Psi -55000 Psi.
Maximum displacement: 3.7L/min.
Inlet pressure: 0.4MPa.
Main motor power: 37KW.
With Siemens motor and Siemens high quality PLC control

Intensifier parts and pipe system (high pressure cylinder, Ceramic plunger assy, high pressure seal, low pressure seal, high pressure pipeline, check valve, etc.) Single row water filtration system (5Micron, 1micron, series) Manual voltage regulation Over-pressure automatic shutdown and under-voltage automatic protection function. A10V071 automatic variable oil pump and Schneider electrical components with high performance.
Abrasive feeder

• 170 liter capacity • High-precision sensors alert operators when they need to replenish sand • Safety relief valve • Working pressure: 0.2-0.3MPa • Water separator
No need electronic control, simple operation, reliable, maintenance-free. Can supply the cutting sand quantity . Need less than 0.2Mpa compressed gas pressure. Provide sand storage for the water jet cutter and automatically transfer the sand to the sand bucket. Can increase the automation of the equipment and reduce the labor intensity of the operator.
Cutting Speed




Cutting
speed
Materials
Thinkness
Cutting Speed of direct drive pump (mm/min)
Cutting Speed of 420MPa(mm/min)
Marble
25
1000
800
30
800
600
Microcrystal stone
16
1200
900
Ceramic tile
12
2000
1500
14
1400
900
Glass
5
2000
1600
8
1800
1400
10
1500
1100
12
1200
900
14
1000
700
Carbon Steel plate
10
330
270
12
280
220
14
240
180
16
200
140
20
170
110
22
140
85
Aluminum
12
800
600
30
200
160

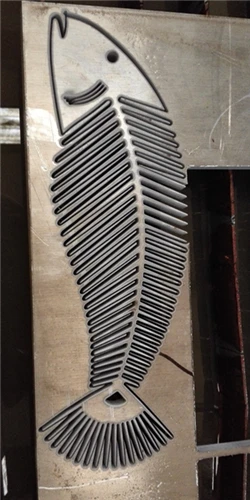

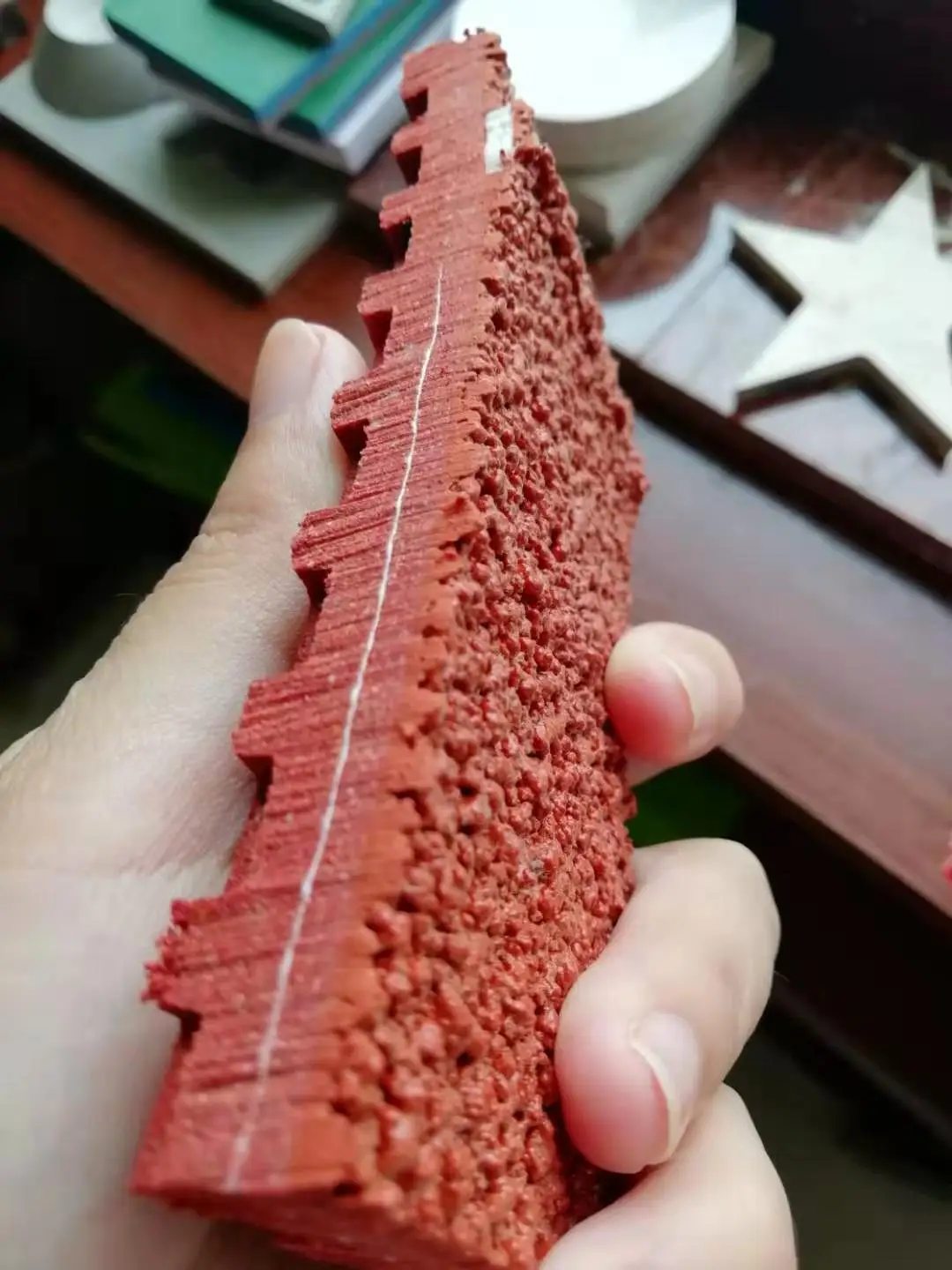

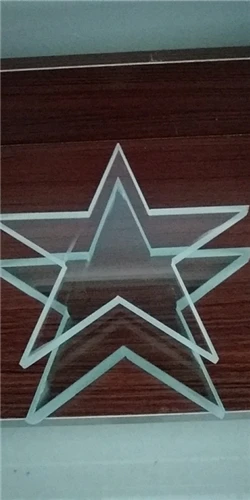

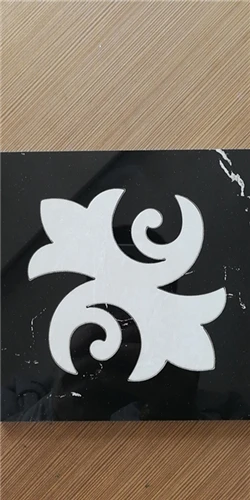

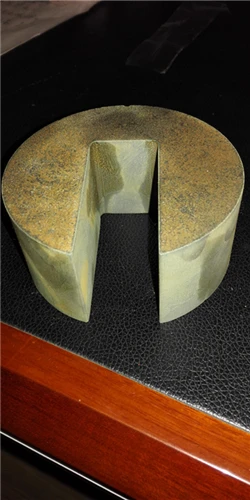

Our cutting sample
Our Customer
Packaging & Shipping
FAQ


1. Are you manufacturer or trading company? We are manufacturer of water jet cutting machine in JINAN city, Shandong, China. 2. What kind of material does your water jet cutting machine can cut? There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy. 3. What's your CNC water jet cutting machine's max. cutting thickness? Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. 4. How we supply after-service? Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos. 5. What's your delivery time? Generally speaking is 30 days. if have stock, 7-15 days.
