low price Hook according to the special ESMLS02F Digital Load Cell

FOB Reference Price:Get Latest Price
$30.00 - $160.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
kexlimice
Model Number:
LS02
Output:
Analog SENSOR
Theory:
Resistance Sensor
Usage:
PRESSURE SENSOR
Name:
ESMLS02F Digital Load Cell Elecronic Balance
Output signal:
2.0 mv/v
Measuring range:
5kg~20T
Working temperature:
-20°C ~+65°C
Accuracy:
0.03%FS
Allow over load:
150%F.S
material:
Alloy steel
Briadge voltage:
10VDC
Creep:
±0.05% F.s/30min
Sealing rate:
IP67
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing/as customer request
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Video Description



load cell 1



5

  ESMLS02F Digital Load Cell Elecronic Balance

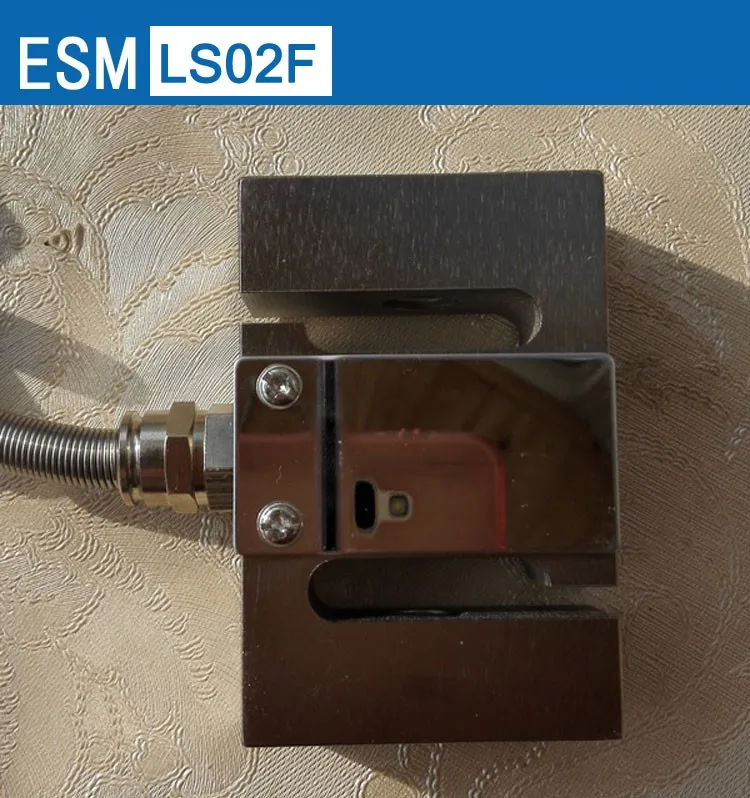

LS02 series S type load cell

Can withstand both the pulling and pressure, can be output symmetry. Compact structure, and complete specifications. Suitable for batching scales, mechanical and electrical integration, said measurement and control Hook scale and other force values.

Technical parameter



Capacity

0-20T

Comprehensive precision

0.05% F·S

Sensitivity

2±0.1mv/v

Creep

±0.02% F·S/30min

Nonlinear

±0.05% F·S

Hysteresis error

±0.05% F·S

Repeatability error

±0.05% F·S

Zero temperature error

±0.02%F·S/10℃

Output Temperature error

±0.02%F·S/10℃

Input impedance

685±35Ω

Output Impedance

650±1Ω

Insulation Resistance

≥5000MΩ

Excitation voltage

9~15VDC

Material

Alloy steel

Connection type

Input(+):red       input(-):black

Output(+):green   output(-):white

 size:
