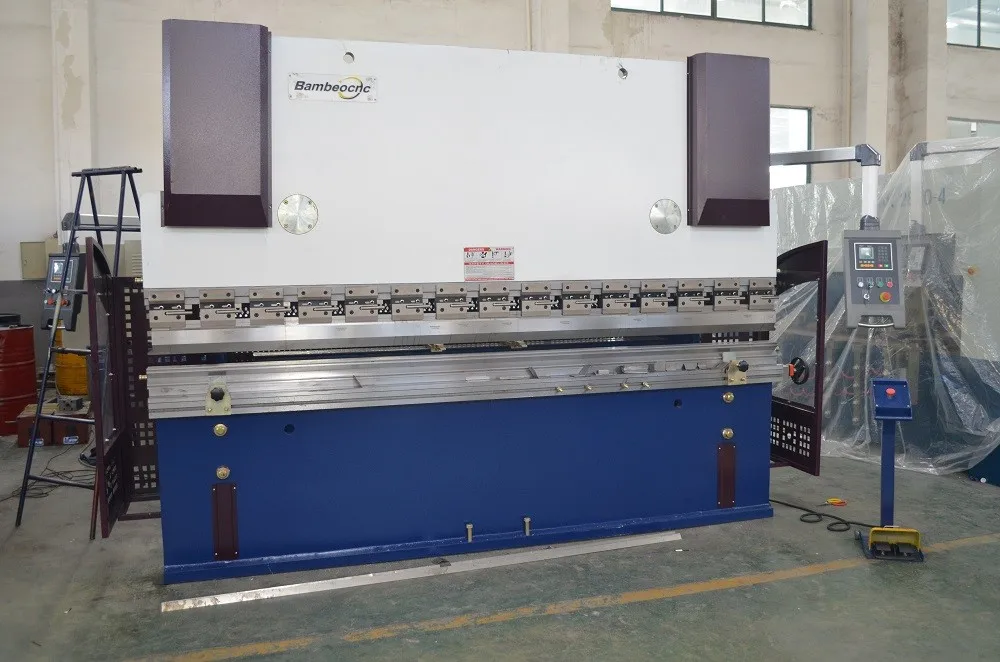

manual sheet metal used cold bend press brakes machine for sale

FOB Reference Price:Get Latest Price
$8,000.00 - $9,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WC67Y
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 26 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China (Mainland)
Brand Name:
Bamboo
Material / Metal Processed:
Carbon Steel
Automation:
Automatic
Certification:
ISO 9001:2000
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
4 Years
Product name:
press brake
Hydraulic System:
Bosch Rexroth Germany
Material thickness:
3.2 mm
Electrics:
Schneider from France
Tube:
EMB From Germany
Seal Ring:
NOK from Japan
Foot Switch:
Karcon from South Korea
Ball Screw:
Hiwn From Taiwan
Voltage:
220V/380V/400V
Machine Type:
Press Brake
Raw Material:
Steel Bar
Power:
Hydraulic
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wrapped by plastic films and fixed by steel wires in the containers
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 26 To be negotiated
Product Description

Main Features

●Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
●Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany
●Mechanical synchronous meahanism and the complex compensation are designed so as to raise the workpieces precision.
●The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by E21.
●Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
●Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

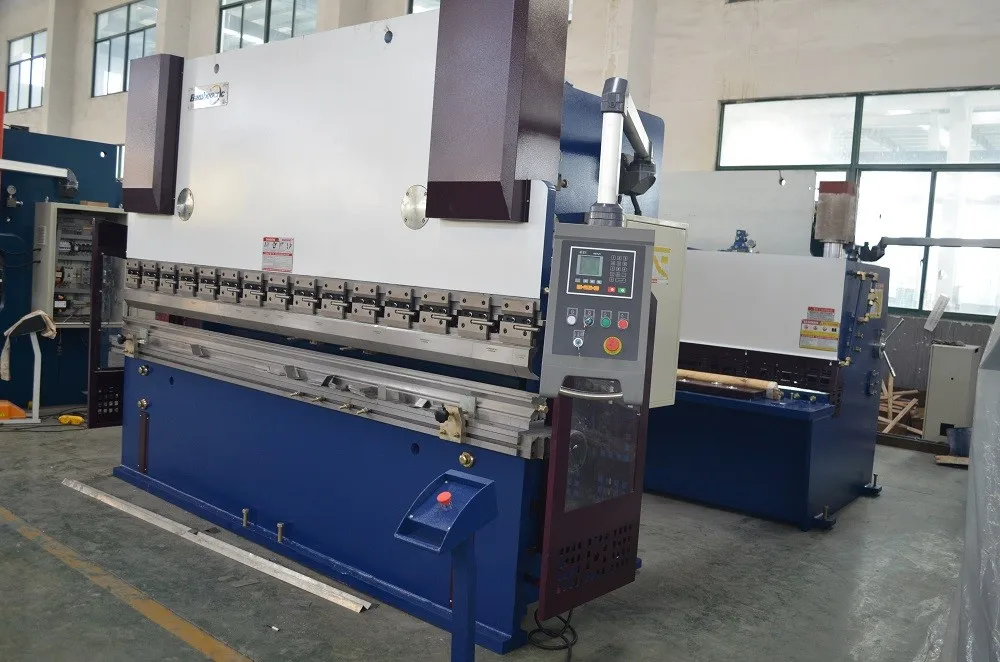

The Picture



Standard Configuration

●Estun E21
●Hydrualic System Bosch Reroth from Germany
●Sunny pump
●Main Motor Germany Siemens Brand
●Electric Scheider france
●Karcon foot switch
●EMB Tube
●Ball Screw hiwin taiwan +Polish Rod
●Stroke Motor KUNGTE
●Seal ring :NOK JAPAN
 Oil tank with oil gauge
●Safety fences




Optional Configuration

●Controller: E200,Delem DA41
●Die and punch
●Motor driven Crowning
●Fast clamp
●Stopper finger
●X axis Y axis motor




Technical Parametres
Product Details

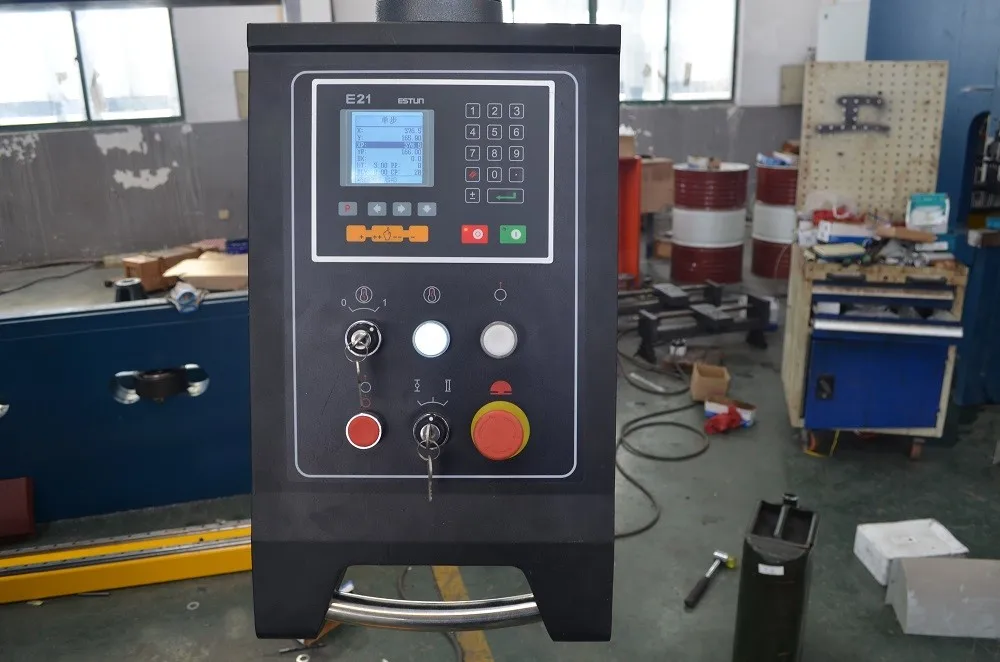

Hydraulic Press Brake Controller : ESTUN E21 From China

●Monochrome LCD Box Panel.;

●Integral factor programmable freely;

●Automatic positioning control;

●Spindle allowance offset;

●Internal time relay;

●Stock counter;

●Backgauge Accuracy 0.05mm

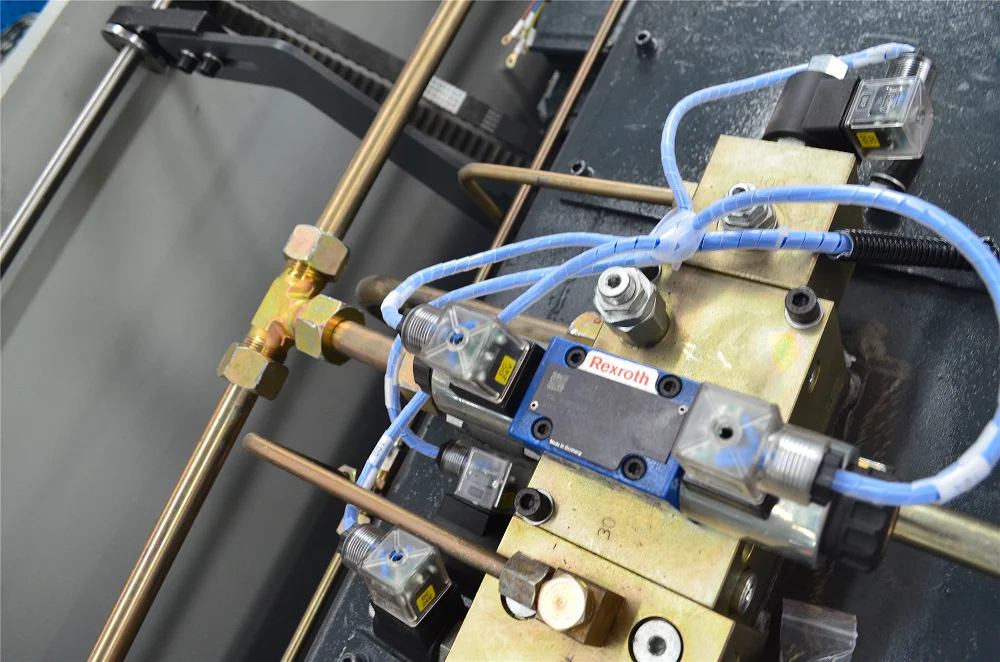

Hydraulic Press Brake Hydraulic System --BOSCH Rexroth  from Germany

●Hydraulic system is from Bosch -Rexroth,Germany.
●Adopt integrated hydraulic control system, more reliable and easy for maintenance.
●Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
●Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
●The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

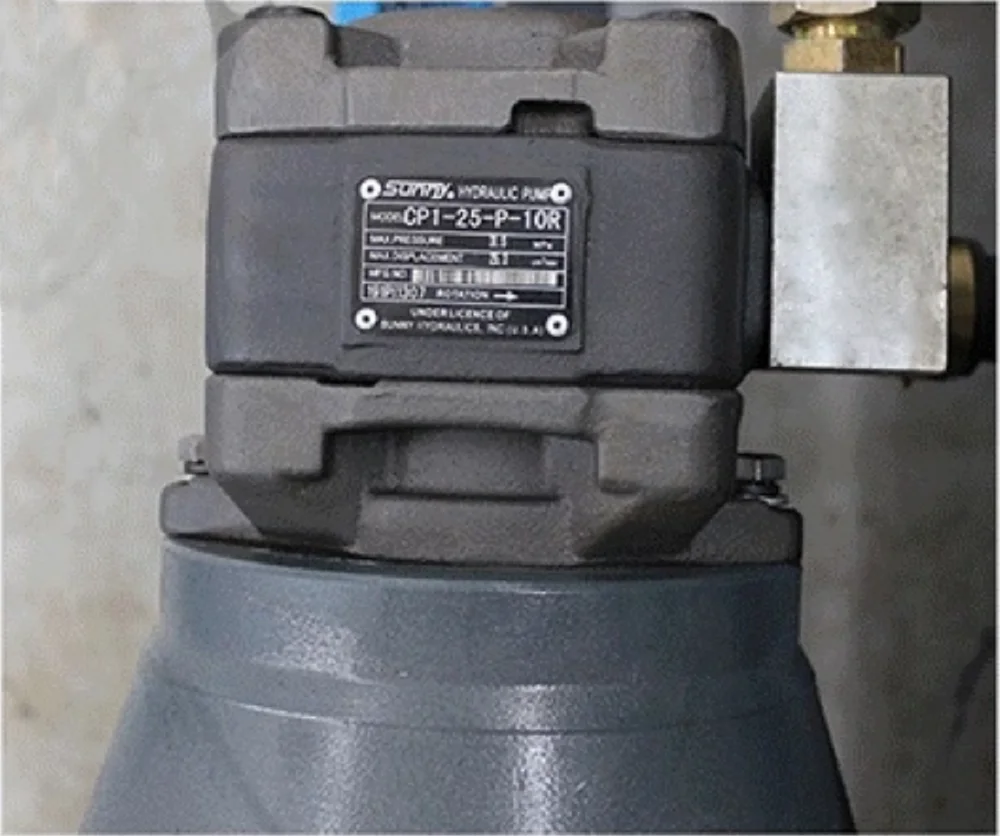

Sunny Pump

American world famous brand for hydraulic pump. It performs well and provides great power for the whole system.Using Sunny pump ensures the pump service life and lower working noise.

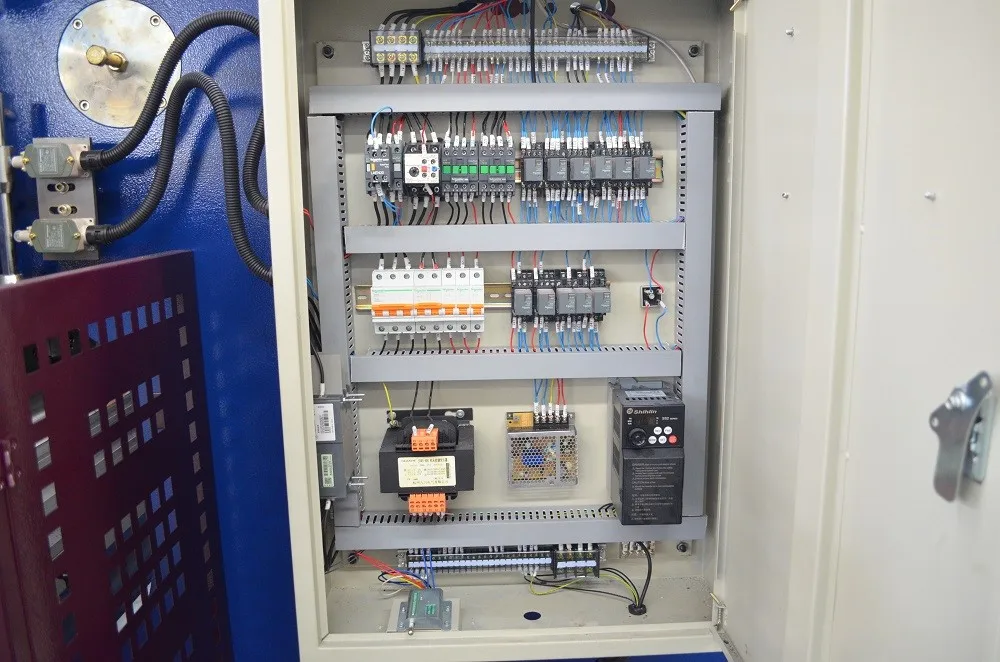

Electric from France Schneider

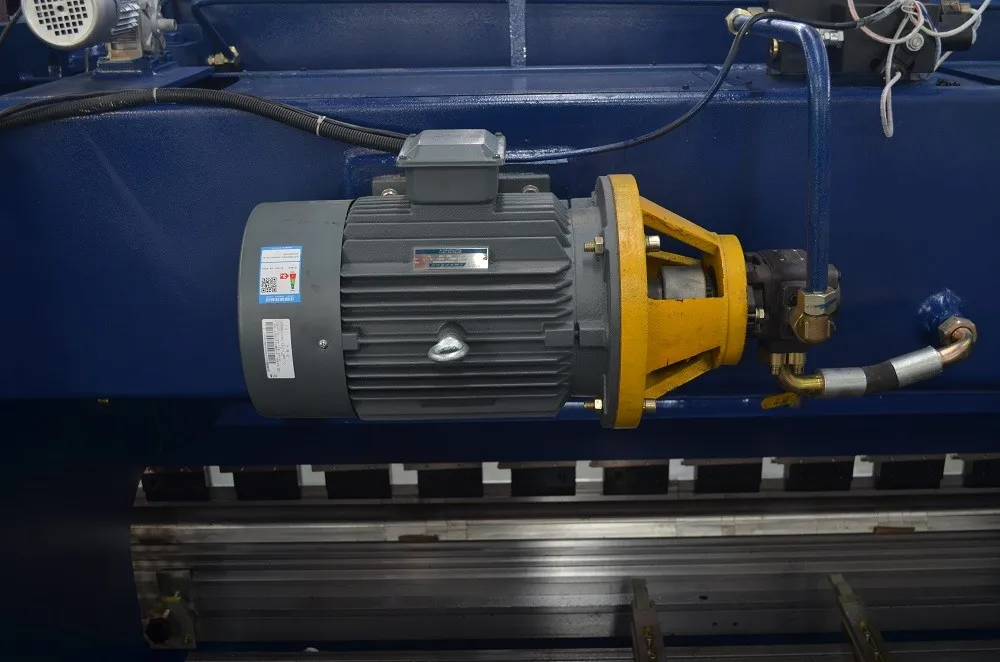

Press Brake Main Motor Siemens From Germany

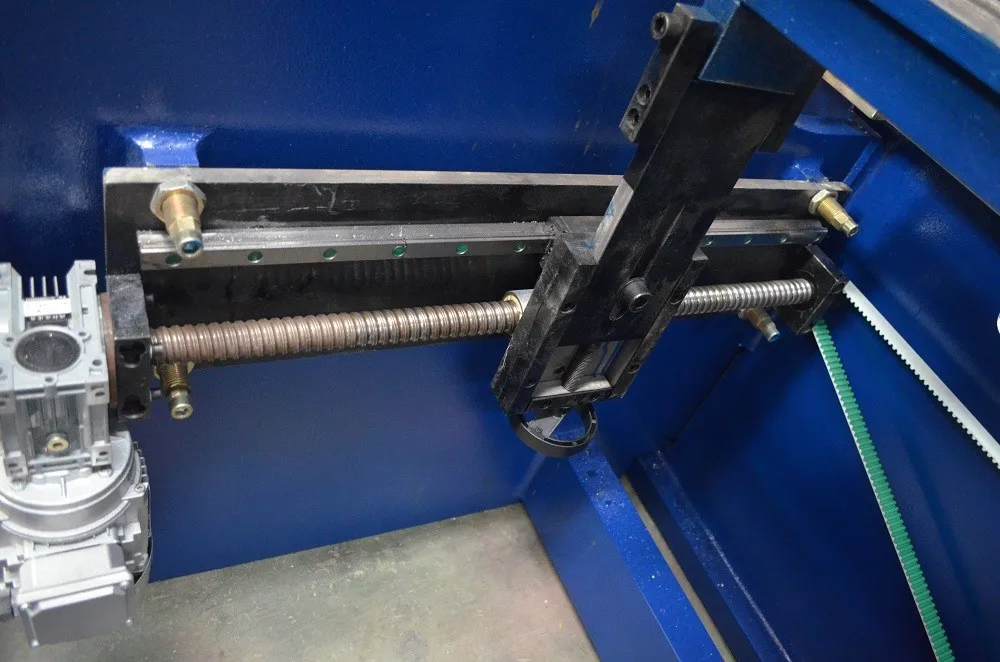

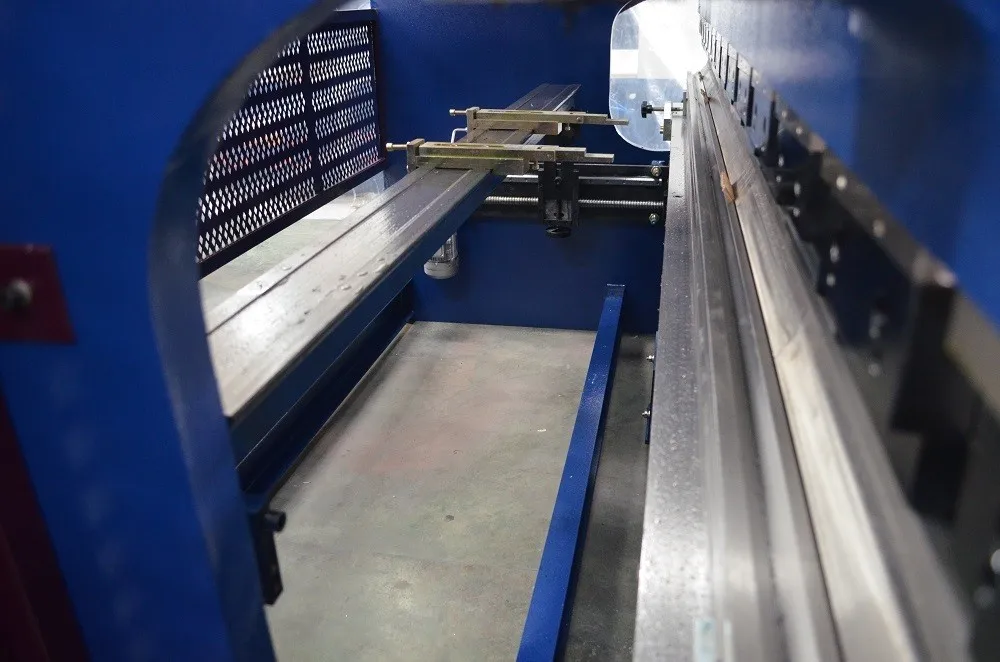

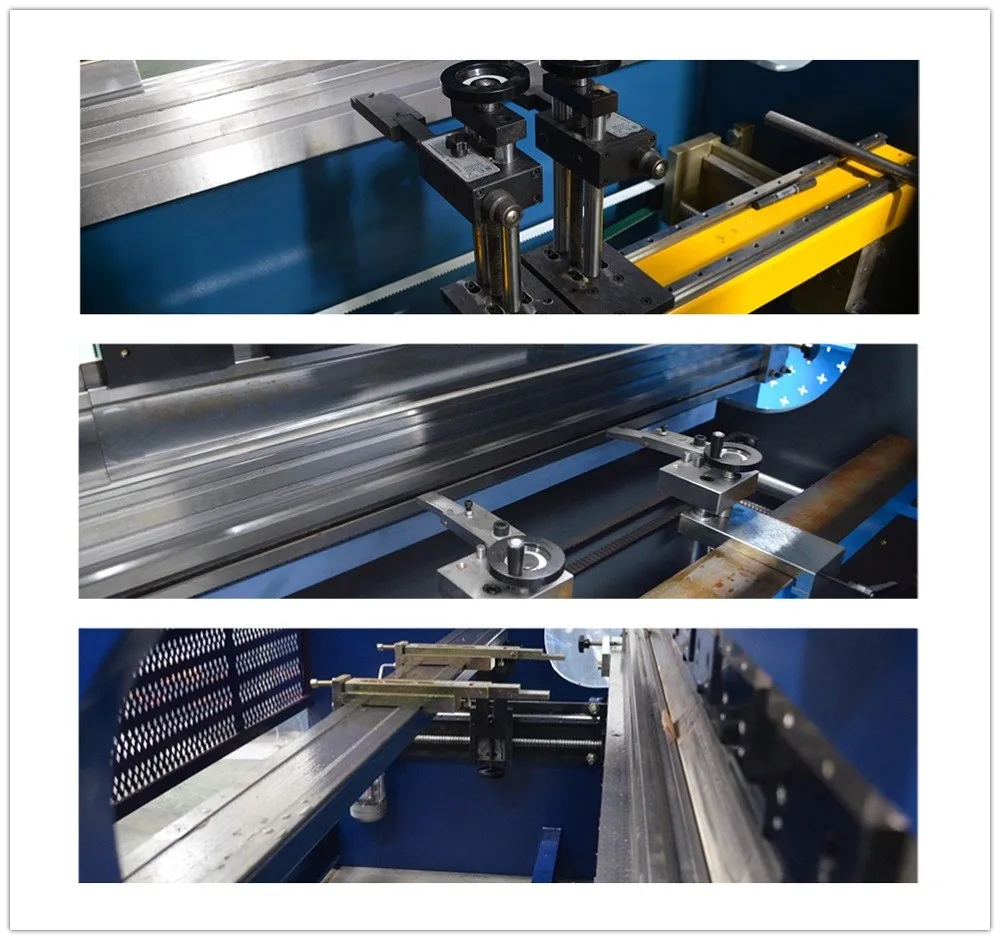

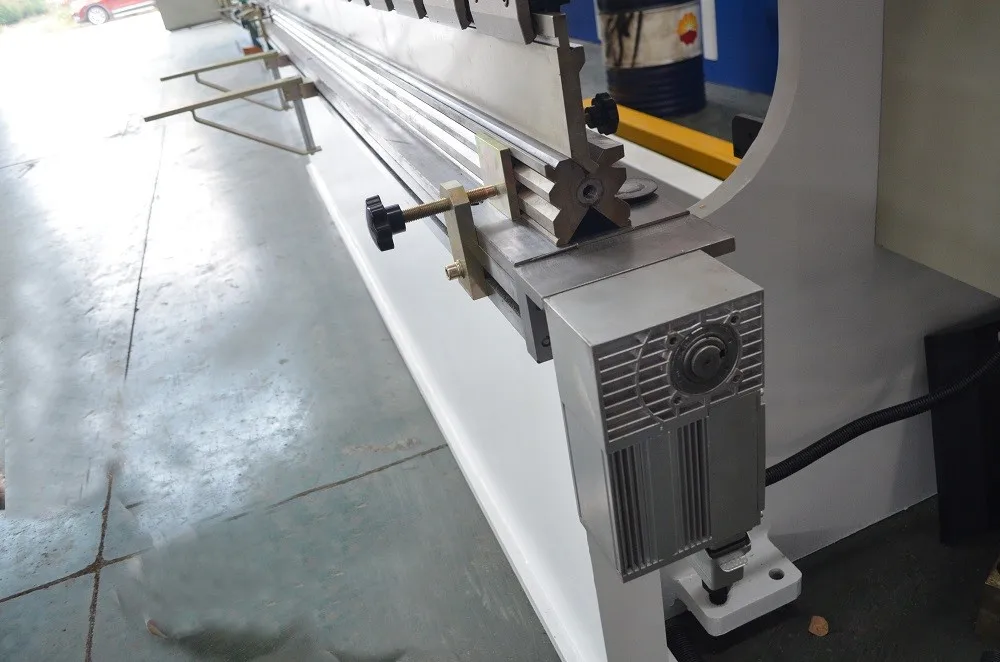

Hydarulic Press Brake Ball Screw+Linear Guide Hiwin From TaiWan with Synchronous Belt

●High Precision Backgauge is equipped with fine ball screw and guide linear
●Backgauge adopts horizontal installation shell structure with high stability,singe shell double guide rail, high precision,X-axixs drive, automatioc CNC sytem

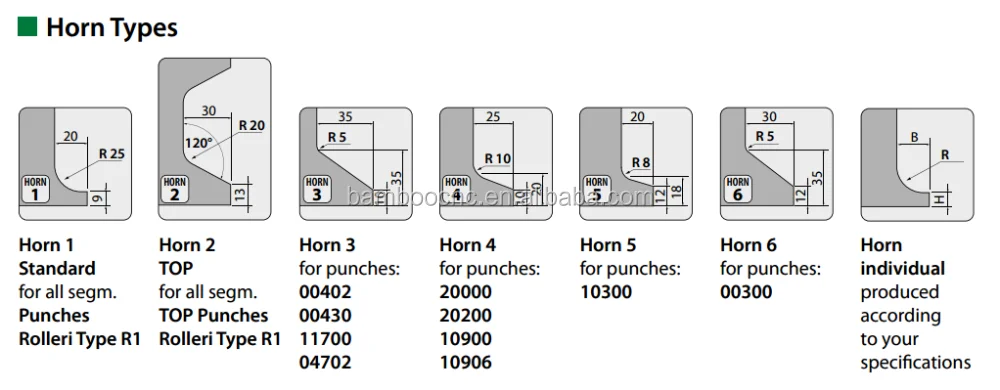

Hydraulic Press Brake Die

●Up punching dies will be cut into section as the requirement as below:
●25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
●The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation

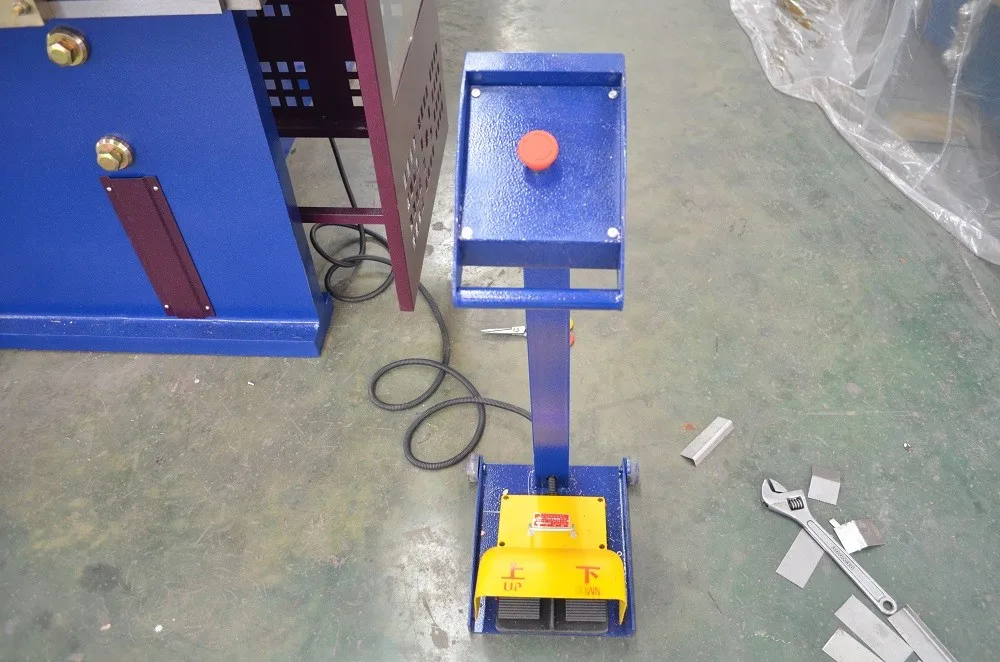

 Foot Switch:

 It is movable and can stop the operation anytime you want by emergency button. Enchancing the service life and optional sensitivity. It is more reliable.

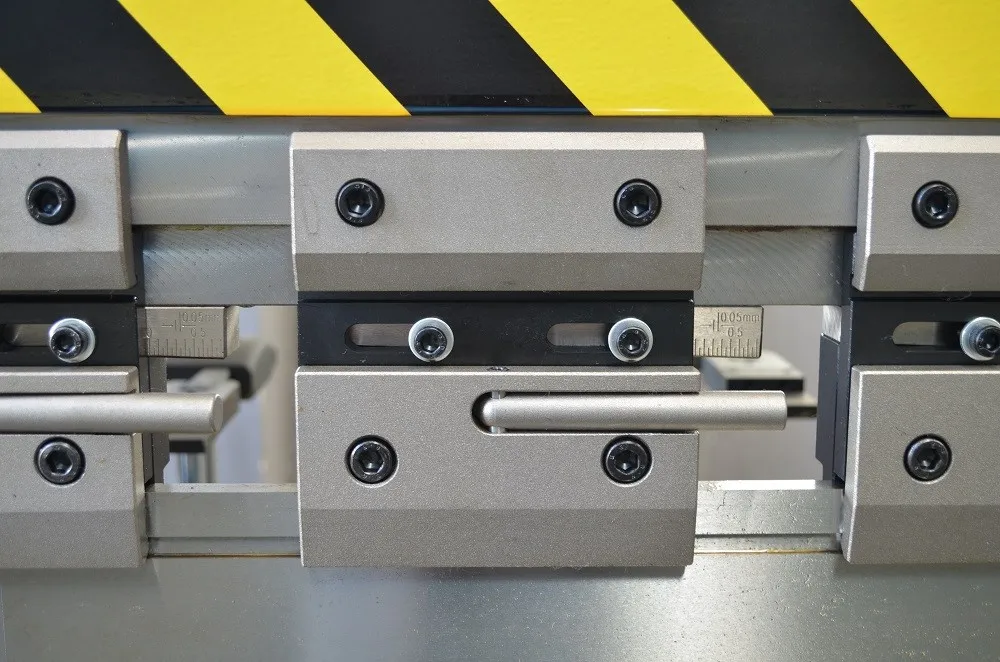

Upper Die and Fast Clamp

Upper die is a kind of mechanical hook-type clamps. it is more safe when exchanging die. What is more, upper quick clamp  have a compensation device, you can adjust the upper die by hand which can  improve the precision of bending.

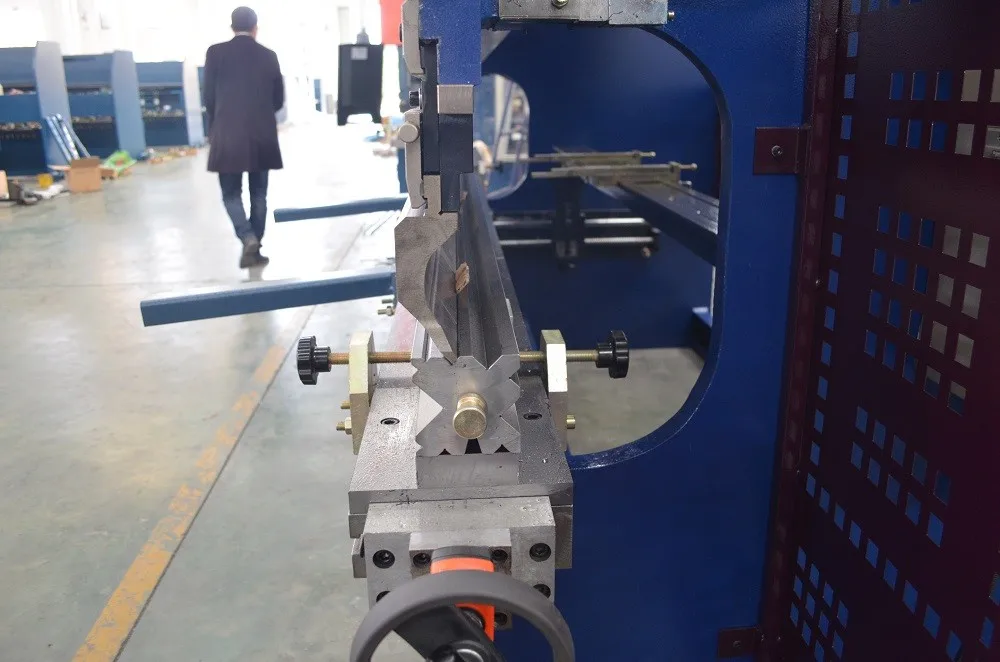

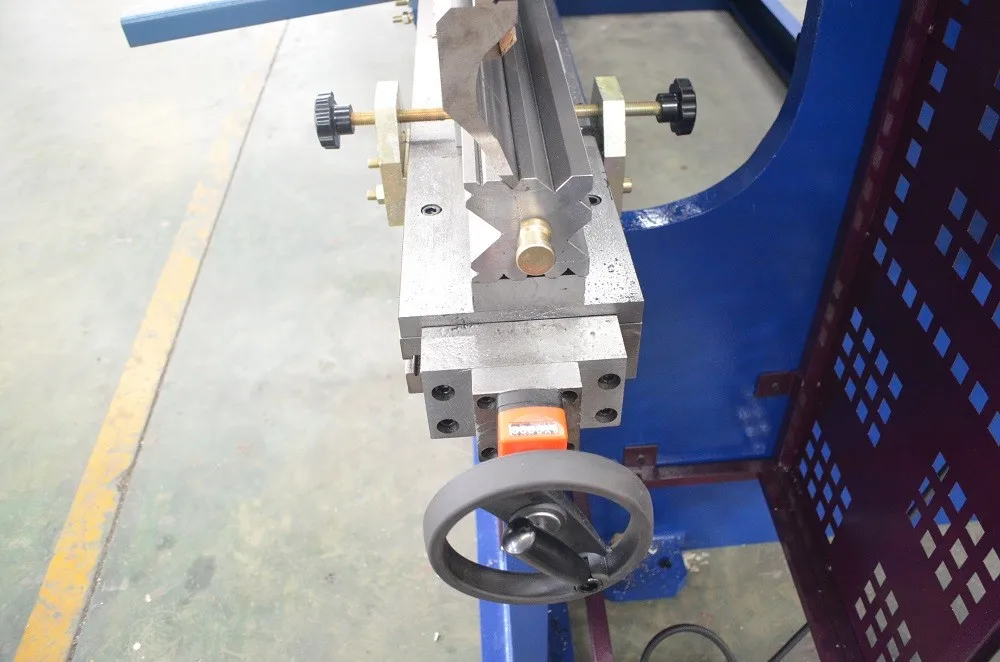

Lower Die with a Compensation Device

 The compensation device is equipped with lower die . You can adjust it by your hand, very simple and convenient.


Motor Driven Crowning

You can also choose motor driven crowning. It improves the accuracy of bending angle and linearity.

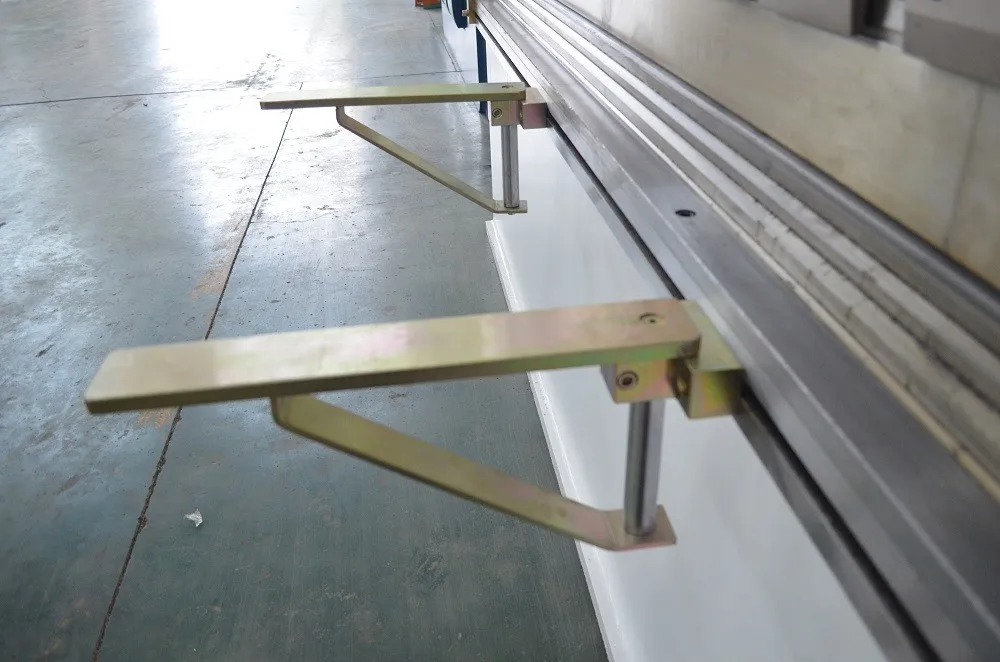

Front Arm

Front Arm has a simple structure. It is used for hold up metal sheet before the metal sheet is conveyed to the base of the bending machine.


Stoppers

We have different kind of stoppers for your choosing.

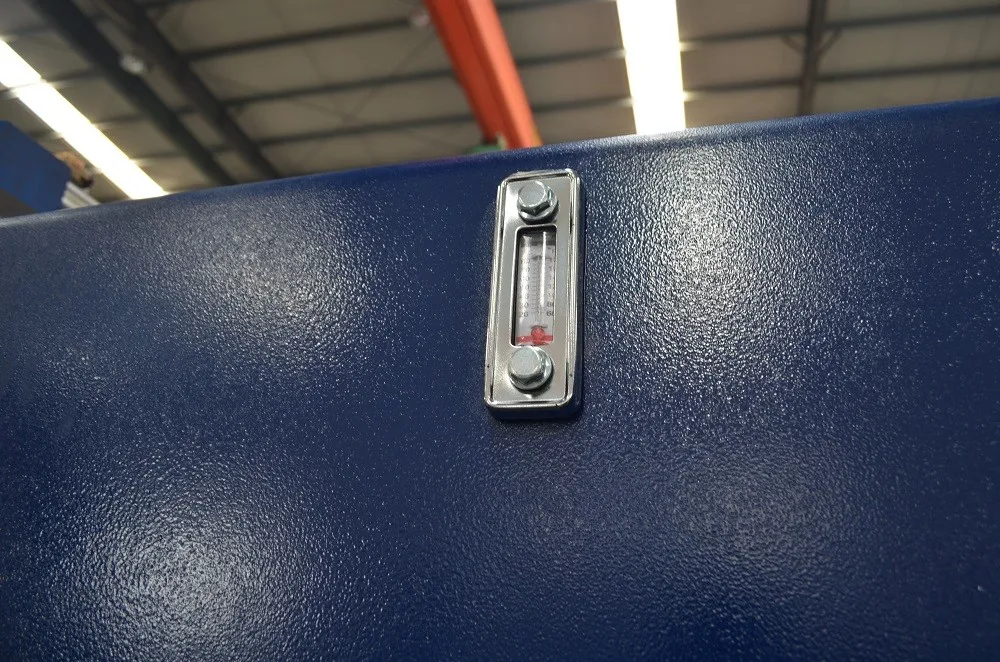

Oil Gauge

The oil tank is equipped with an oil gauge. You can see the oil level clearly.

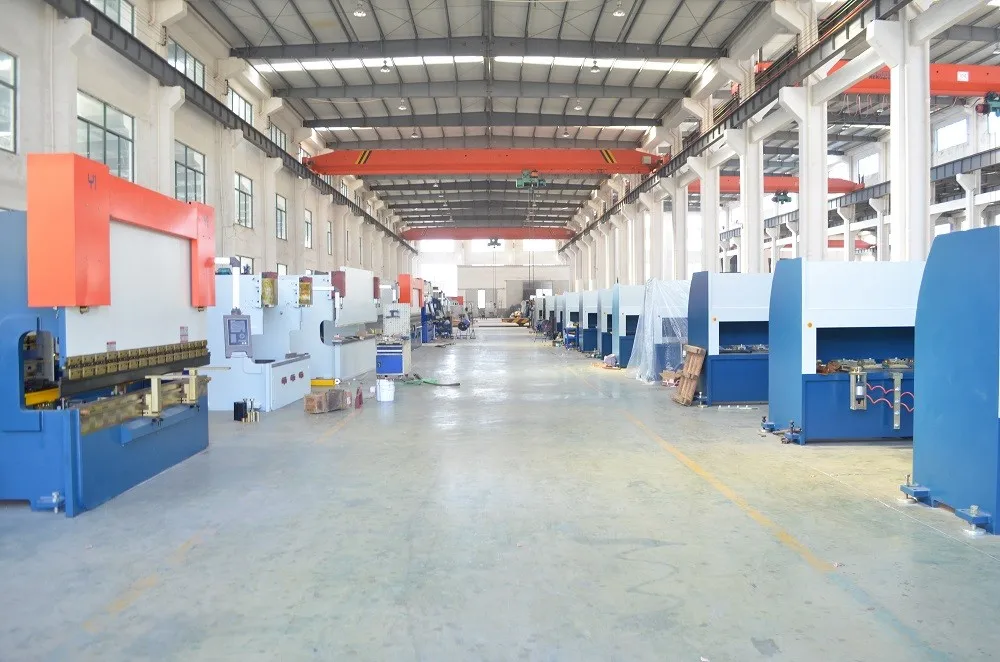

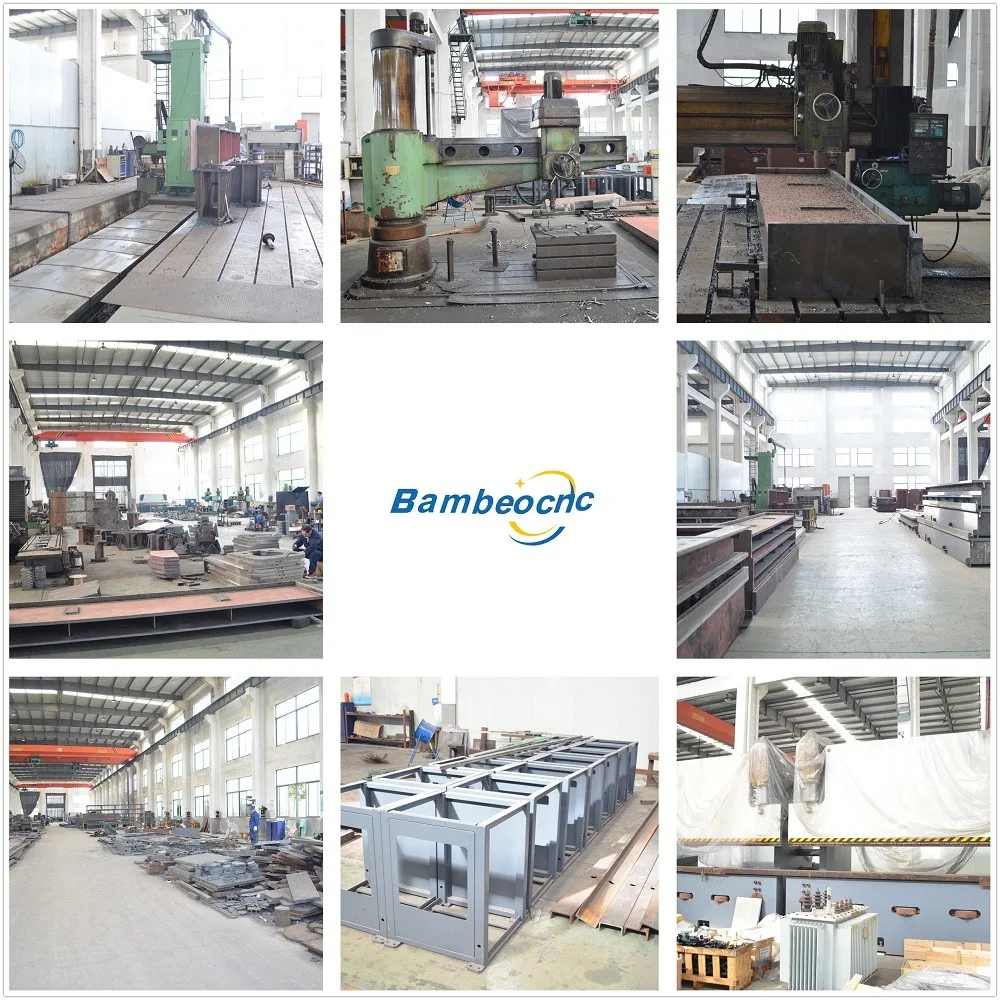

Factory

BAMBOO CNC Machinery

BAMBOO is a leading manufacturer and global supplier of sheet metal working machinery specializing in the production of CNC press brake,Hydrualic Shearing Machine ,Hydraulic Press .Power Press ,Iron worker and Laser cutting macine.etc.

BAMBOO With 10 years of experience in a 2000 square meter modern production facility by a qualified team of 220 people adopting efficiency and quality as primary principles besides leading Sheet Metal Processing Machines sector via its powerful R&D structure.

Packing & Delivery

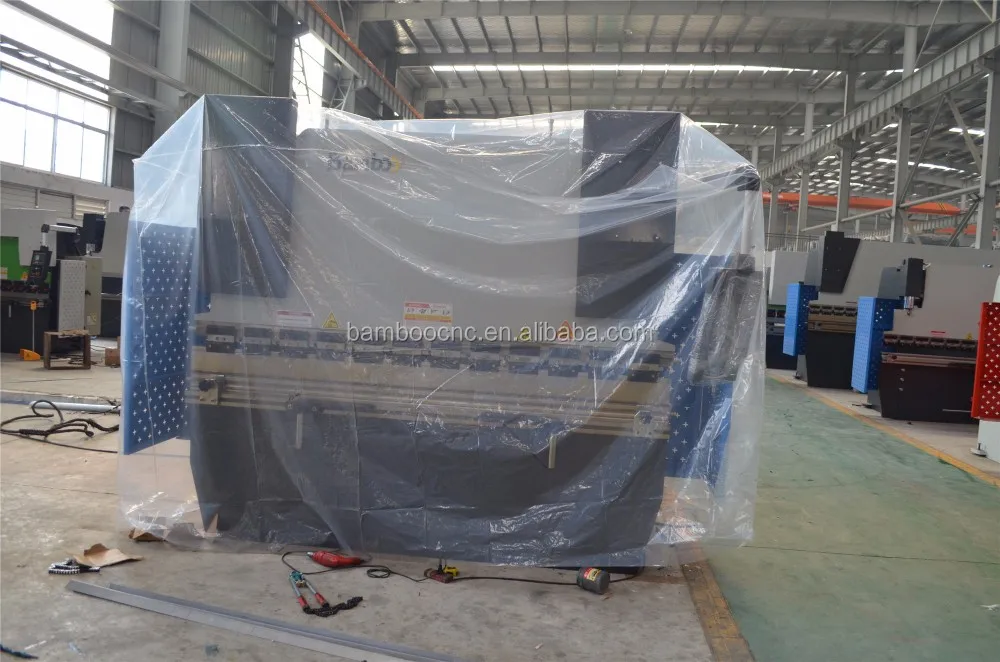

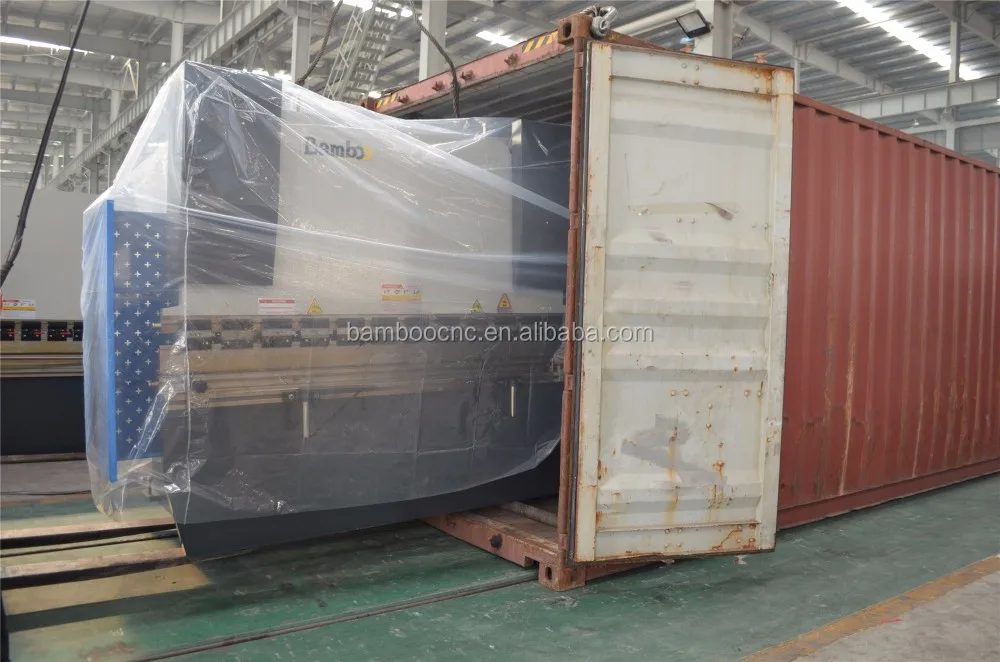

Press Brake Loading

●We fixed our machine in container by steel wire and all of the machine is by plastic film;
●For small equipment we use wooden package to protect it
●We use 40HQ/OT or 20 GP to load protect

Why Choose US
Q1:How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly
Q2:How about the machine warranty?Is the whole machine?
A:We canoffer 4 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free

Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:30-35days.
Q5:What kind of Service  does your company support?

A:Engineers Available to Service Machinery Overseas
