modbus touch screen hmi plc control

FOB Reference Price:Get Latest Price
$50.00 - $128.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 11 - 30 >30
Est. Time(days) 7 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
coolmay
Model Number:
mt6100
Product:
hmi
name:
touch panel
size:
10.2inch
resolution:
1024*600
panel:
resistive
weight:
0.7kg
com port:
rs232 rs485
ethernet:
yes
Packaging & Delivery
Lead Time :
Quantity(Sets) 1 - 10 11 - 30 >30
Est. Time(days) 7 10 To be negotiated
Product Description

Individual HMI

1. HMI two different series , MT60** series and MT90** series.

2. Default with rs232 and rs485 com port

3. Coolmay own developed programming software, many programming demo could be found on software library.

4. Support to communicate with different brands plc, vfd etc.

5. Optional to add ethernet port.

6. Customized Service Supported!

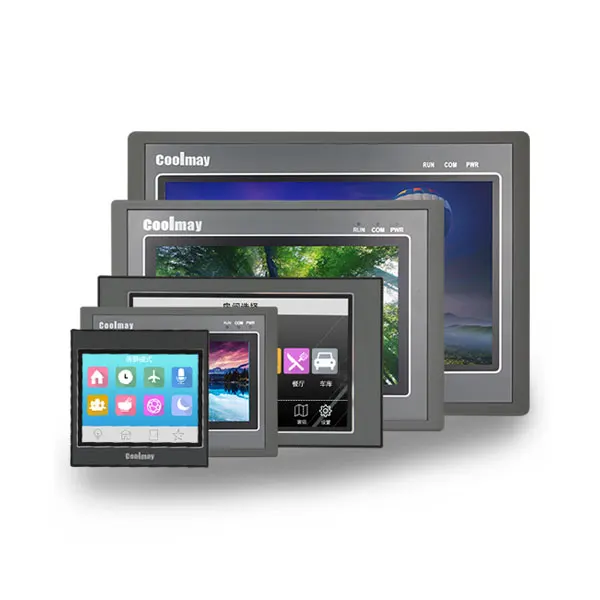

Model
MT6037H
MT6043H
MT6050H
MT6070H
MT6100HA
MT6150HA

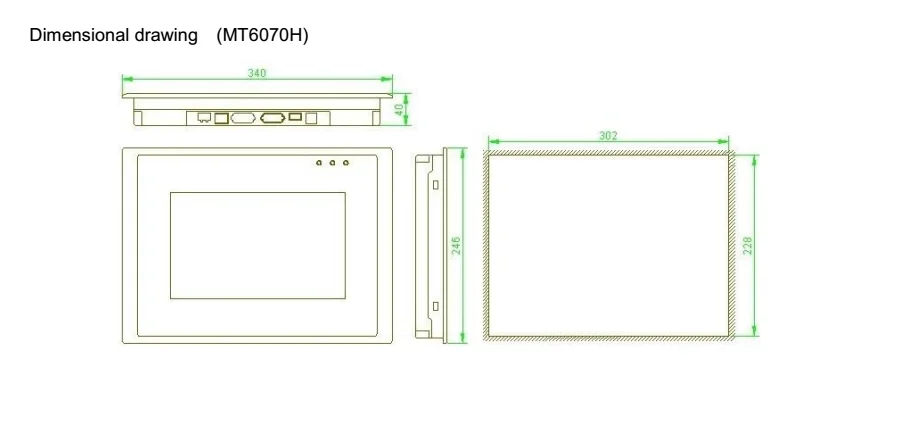

Dimension
88*88*25mm
134*102*30mm
146*88*25mm
212*148*40mm
275*194*36mm
365*290*36mm
Cutout size
72*72mm
119*93mm
135*72mm
194*138mm
261*180mm
350*280mm
Display size
73*56mm
97*56mm
108*65mm
154*87mm
222*125mm
304*228mm
Weight(kg)
About 0.3 kg
About 0.33 kg
About 0.33 kg
About 0.54 kg
About 0.7kg
About 3.5 kg
Display
3.5" TFT
4.3" TFT
 5" TFT
7" TFT
10.1" TFT
15.0" TFT
Resolution(pix els)
320*240
 480*272
 800*480
800*480
 1024*600
1024*768
Brightness
300cd/m2
450cd/m2
Contrast ratio
400:1
Backlight
LED
Backlight time
60,000 h
Display color
65536 true colors
Touch type
(optional)
4-wire resistive panel
ROM
128MB
RAM
64MB
128MB
CPU
ARM9 core 400MHz
CORTEX A8 720MHz-1GHz
Operating system
WINCE 5.0
WINCE 7.0
USB Host
USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.)
USB DEVICE
Yes (Mini type B male port cable for program download
Yes (Type B male port cable for program download)
Ethernet port
Optional
COM port
1 RS232 and 1 RS485
Protocol
Support MODBUS, free port and common PLC communication Protocol
Calendar
Yes
Input Voltage
Default as DC24±10%V, and DC12V/DC5V can be optional
Consumption
100mA*24V
150mA*24V
150mA*24V
200mA*24V
280mA*24V
500mA*24V
Protection Class
IP65 (front panel)
Temperature
Ambient environment: 0~50℃ | Storage environment: -20~70℃
Humidity
20%~90% RH
Certification
CE
Software
CoolMay HMI programming software Detailed info. refer to CoolMay HMI user manual, CoolMay HMI programming manual

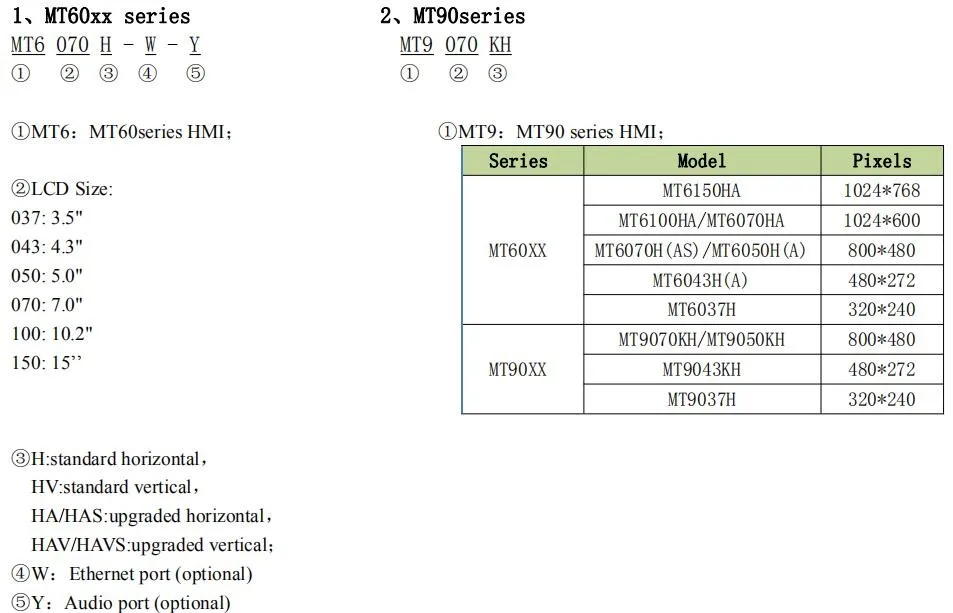

Naming Rule

(reference model)


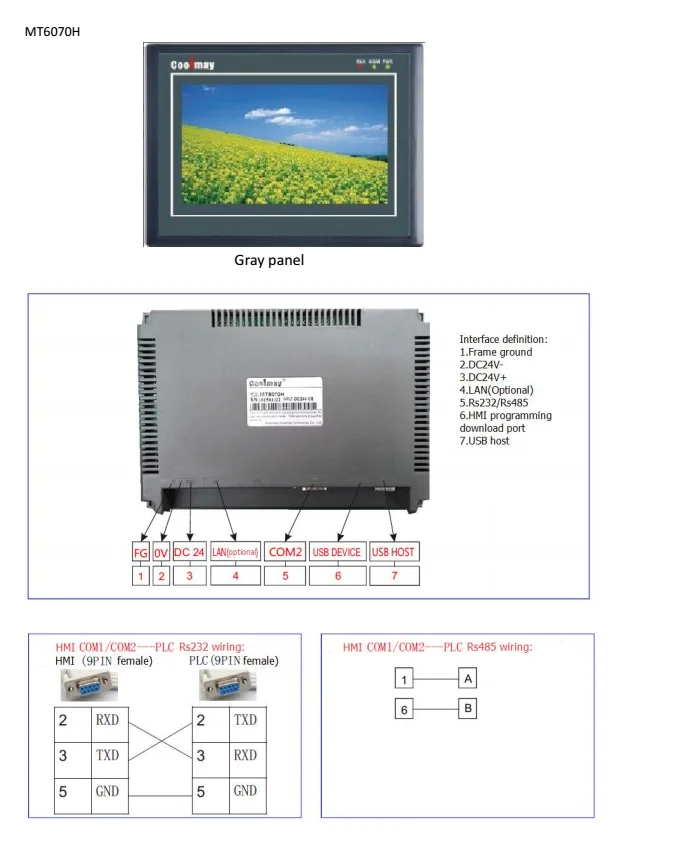

Detailed Images

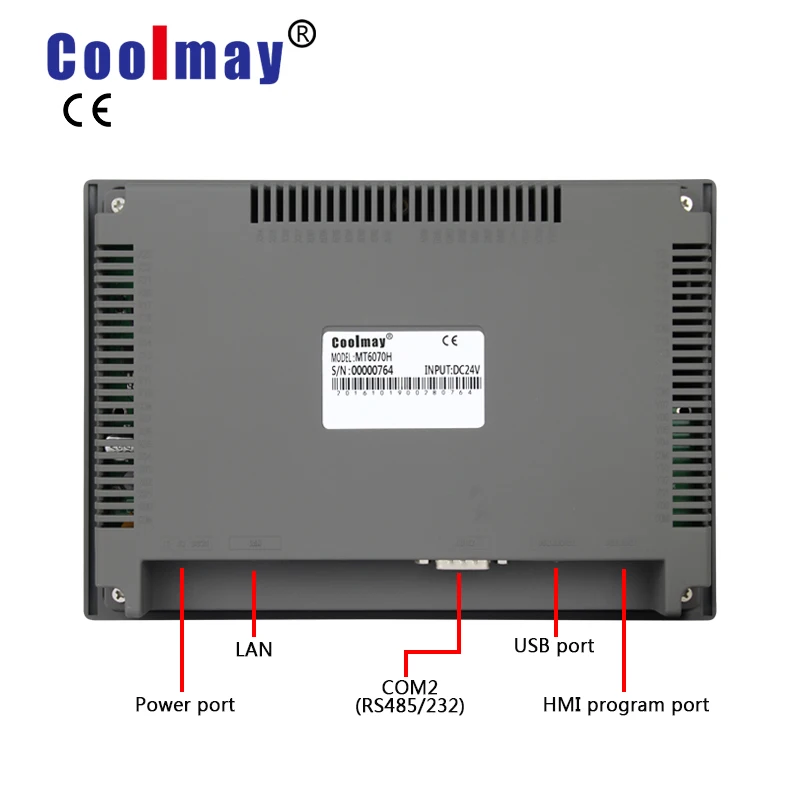

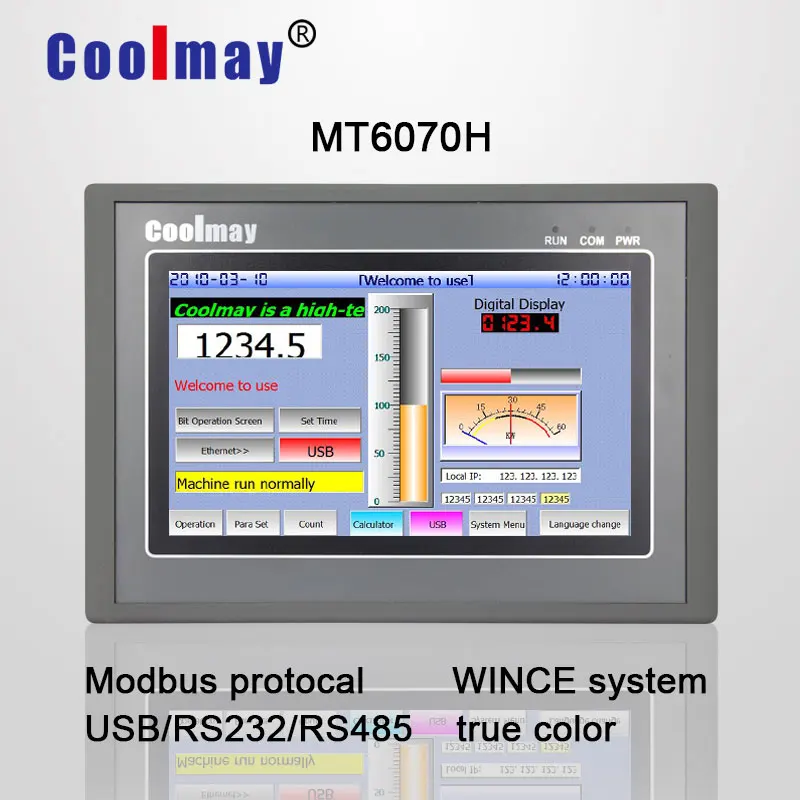

HMI Features .

1) Provide a large number of vector libraries and support self-built gallery

2) High-precision, high-reliability resistive touch panel

3) Supports various formats of static images and GIF animations

4) Support all fonts WINDOWS provided

5) 60,000 TFT true color display

6) Serial communication port: RS232/RS485

7) Vertical display supported

8) Ethernet and audio supported

9) It can be installed in the wall and can be used in smart home.

10) Support recipe storage, import and export data via a pendrive, historical data / curve / alarm storage

11) Optional metal appearance, grey/gold/silver panels optional, black/white bottom shell optional

12) Basic version and upgraded version optional


HMI Hardware

Alarm controller.

Main control box

Industry panel operation .

machine control

HMI/PLC all in one .

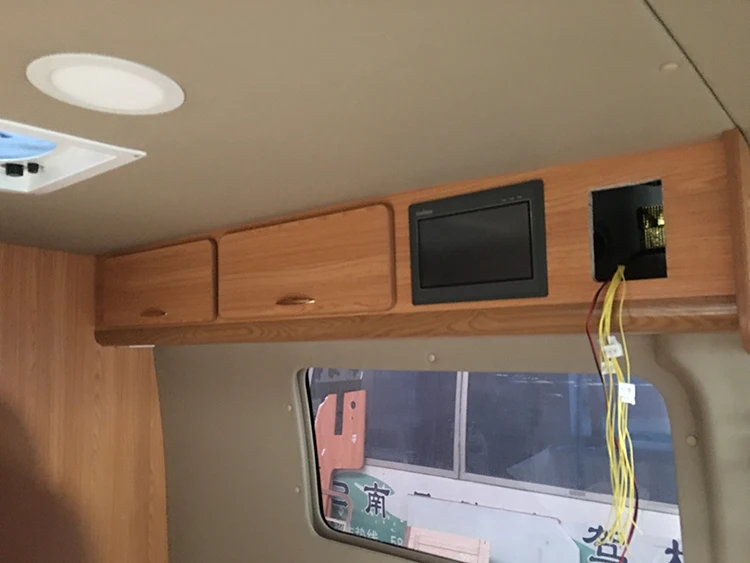

vehicle control panel


Special Customized!

1. Panel Logo cutsomized.

Standard is with coolmay logo, Neutral without any logo could be made without MOQ limits.

If customer's logo, share us the AI format picture and ask qty 200pcs to start, unit price is usd1.5-usd3.5/pc.


2. Software is standard Coolmay style.

Neutral software could also be supported.


3. Other specification like RAM/ROM, Color, Size etc could be customized, contact us for details.

Packing & Delivery

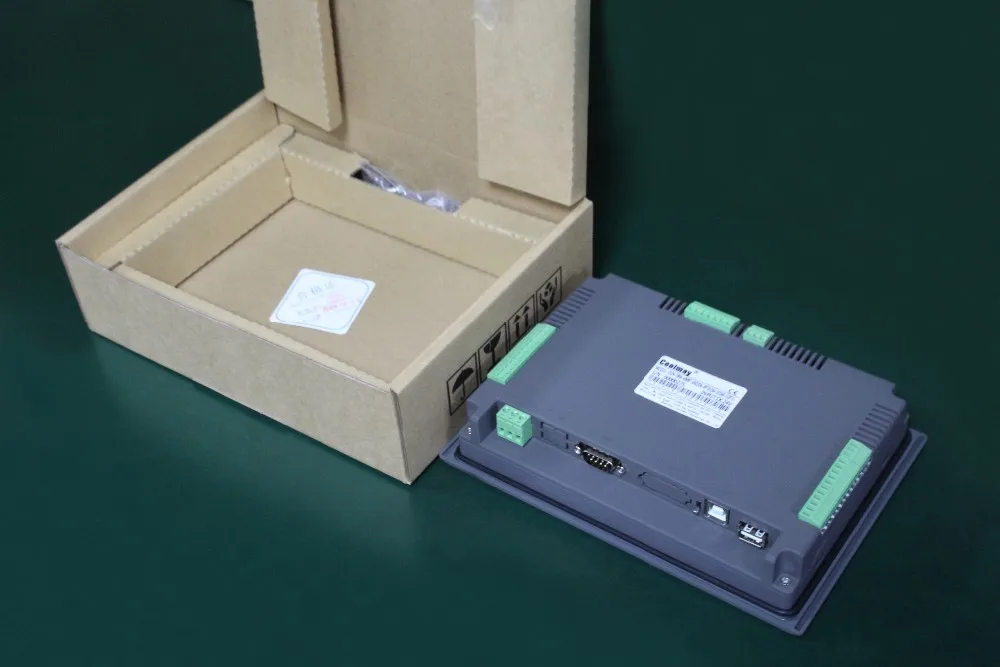

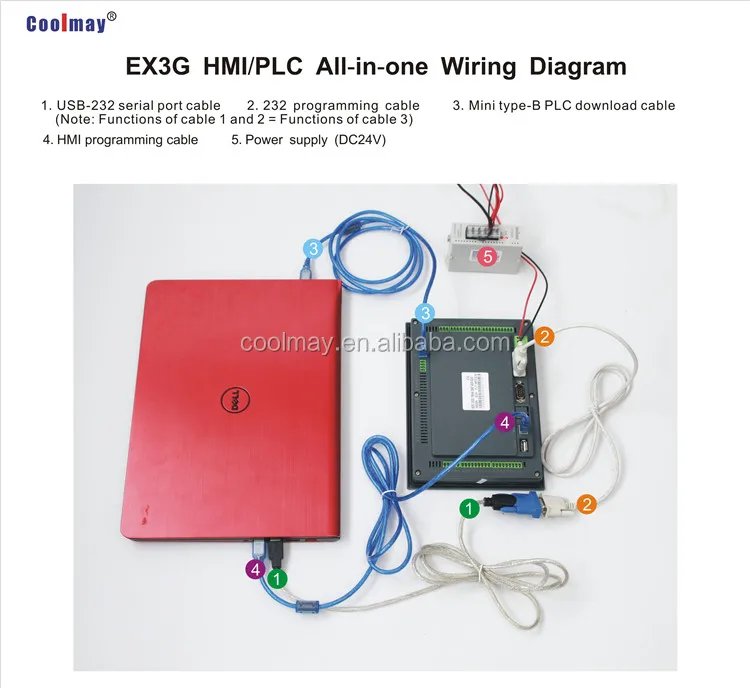

232 Programming cable


USB-232 Cable.


Packing, cable included.



Coolmay Culture.


Coolmay Members

Coolmay Customers

                         CE

Production line

Aging 36h at least
