movable building hydraulic walking hollow brick block machine

Feedback Ratings
  • 1 Sets
    $21,000.00
  • >=2 Sets
    $19,900.00
Model Number:
YM13-10
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Brick Raw Material:
Concrete
Capacity:
22400 pcs/8 hours
Type:
Hollow Block Making Machine
Power:
16kw
Certification:
CE/SGS/ISO9001
Condition:
New
Processing:
Brick Molding Machine
Method:
Hydraulic Pressure
Automatic:
Yes
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YLF MACHINE
Voltage:
adapt to local voltage
Dimension(L*W*H):
3150*1800*2400
Name:
Cement brick moulding machine price
Color:
Optional
Block Type:
Hollow block, Solid block
Weight:
7.8T
Forming style:
Hydraulic Pressure
Forming Cycle:
10-15s
Frequency:
3200Hz
Mixer Model:
JS500
Worker:
1-2 People
Heat Treatment:
Curburizng treatment
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
315X180X240 cm
Single gross weight:
7800.0 kg
Package Type:
LCL or FCL or according to your requirements.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 50 >50
Est. Time(days) 30 To be negotiated

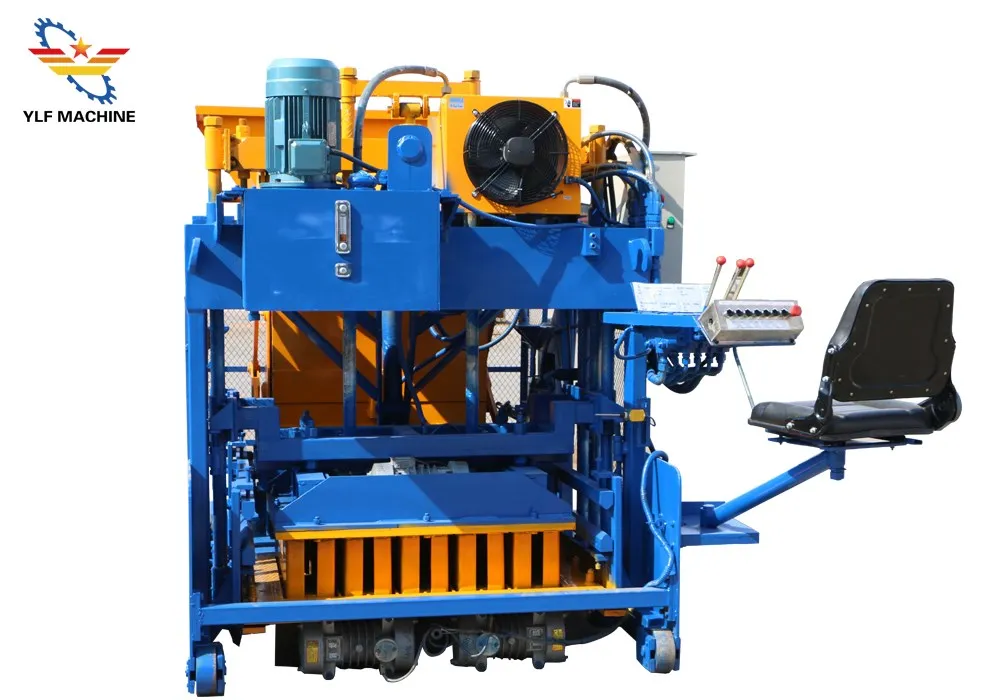

Machine Description

1. Function

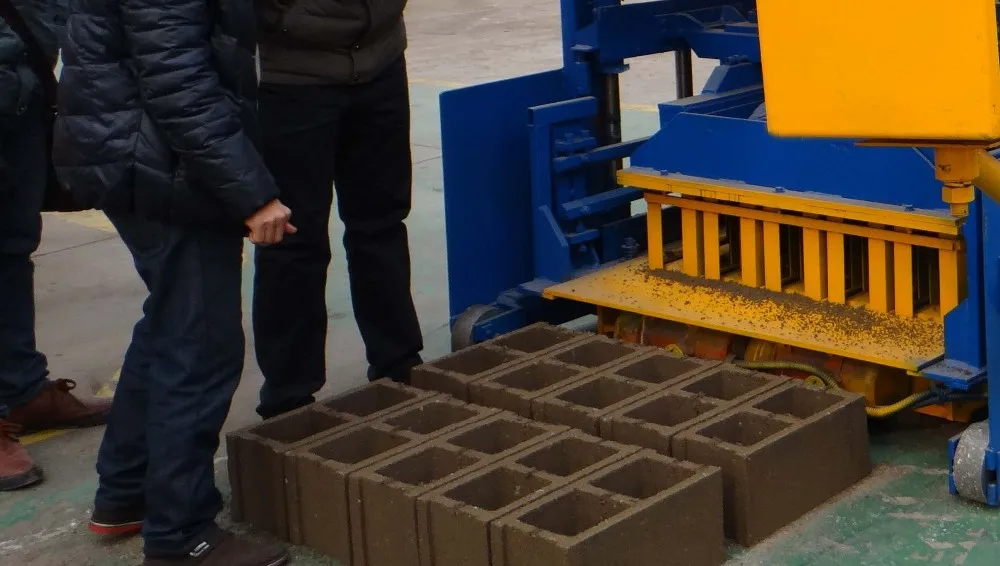

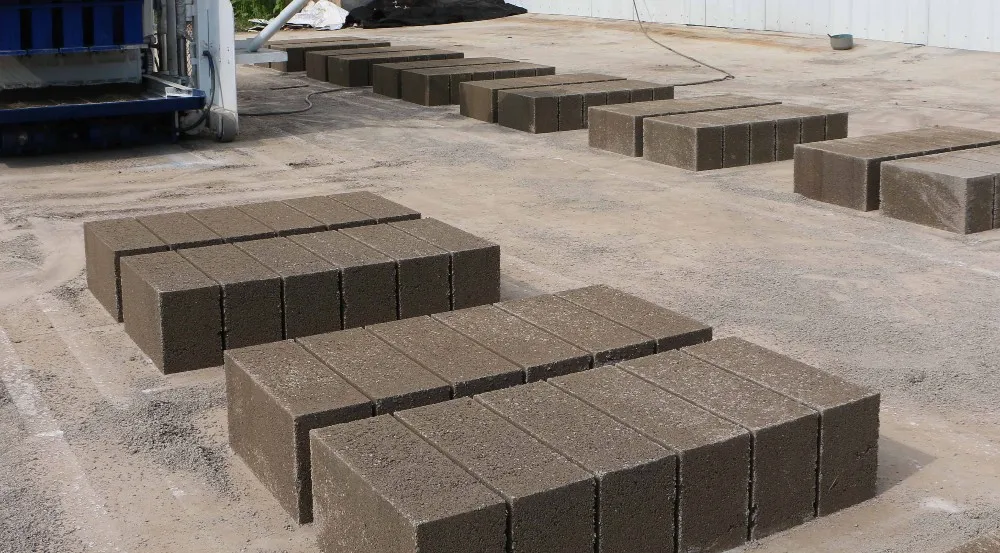

Cement brick moulding machine price can produce different hollow blocks,solid blocks and kerbstone by changing moulds.
2. Advanced technology
This machine adopt hydraulic molding technology, so it can produce stronger, smooth and high quality blocks. And electric walking technology adopted to this machine, so the machine can easily and simply move to convenient place.
3. High quality mould
The brick moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of the brick mould production. So the brick moulds have better performance and longer service time.
4. High capacity
Hydraulic moving cinder fly ash concrete building block making machine can produce 16000-32000 pieces blocks per day according block size.

Technical Parameters
Dimension
3150*1800*2400mm
Forming method
Hydraulic  pressure
Shaping cycle
10-15s
Voltage
Adjustable
Power
16kw
Weight of host machine
7.8T
Vibration frequency
50-70Hz
Applied Products
Hollow blocks, solid blocks, curbstone
Production Capacity
Size(LxWxH)
Pcs/Mould
Pcs/Hour
Pcs/Shift
400x200x200mm
10
1800-2100
14400-16800
400x150x200mm
14
2520-2940
20160-23520
400x100x200mm
20
3600-4200
28800-33600

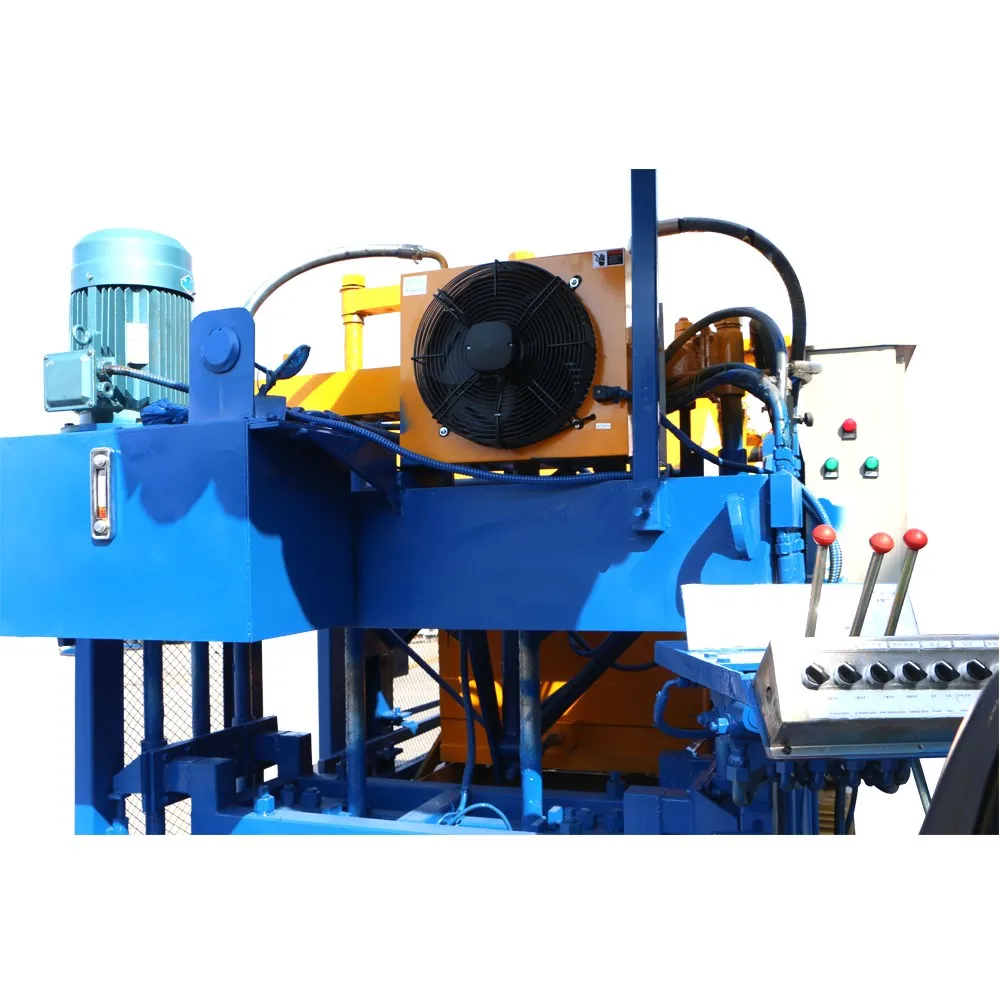

Machine Details



Advanced technology

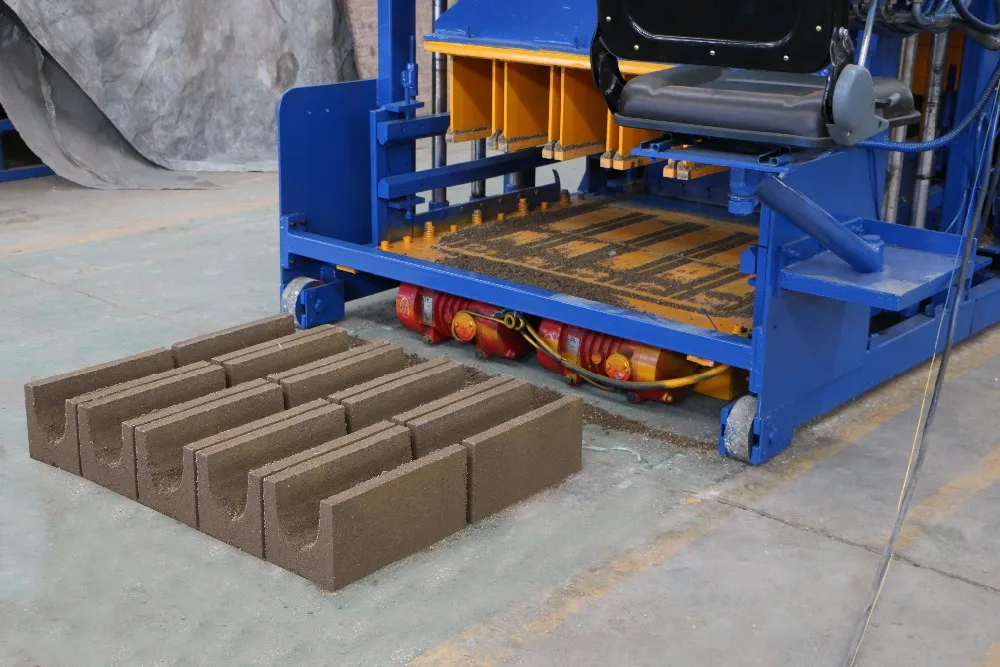

Vibration moulding technology and hydraulic pressure technology are adopted to assure the bricks produced have better quality, larger density and higher strength.

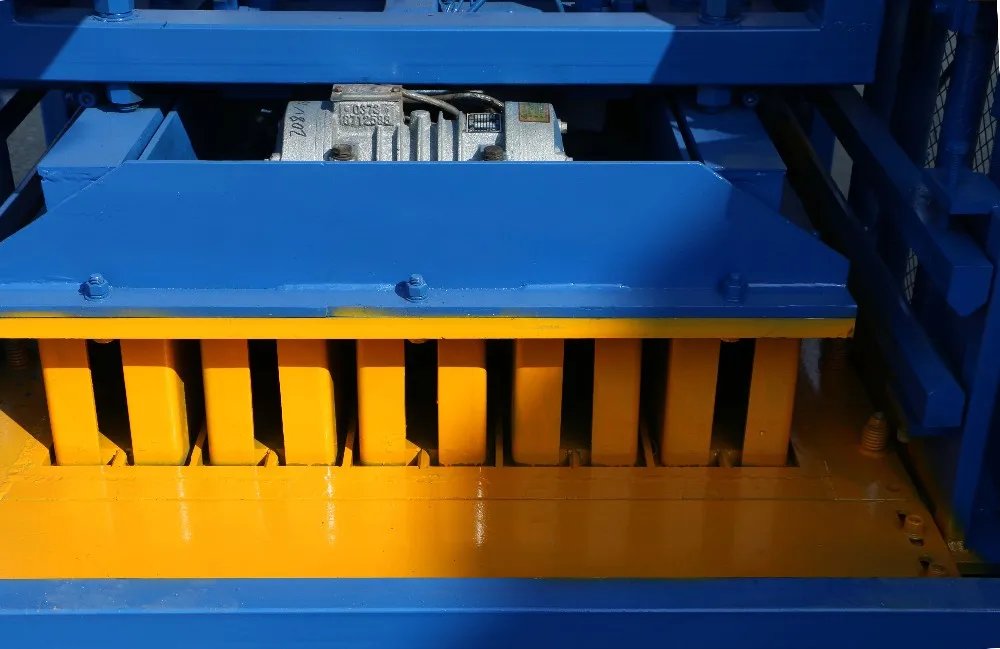

Mould

Adopt precise line cutting technology and carburizing treatment technology prolong the mould life and increase the precision of the brick moulds, so the brick moulds have better performance.

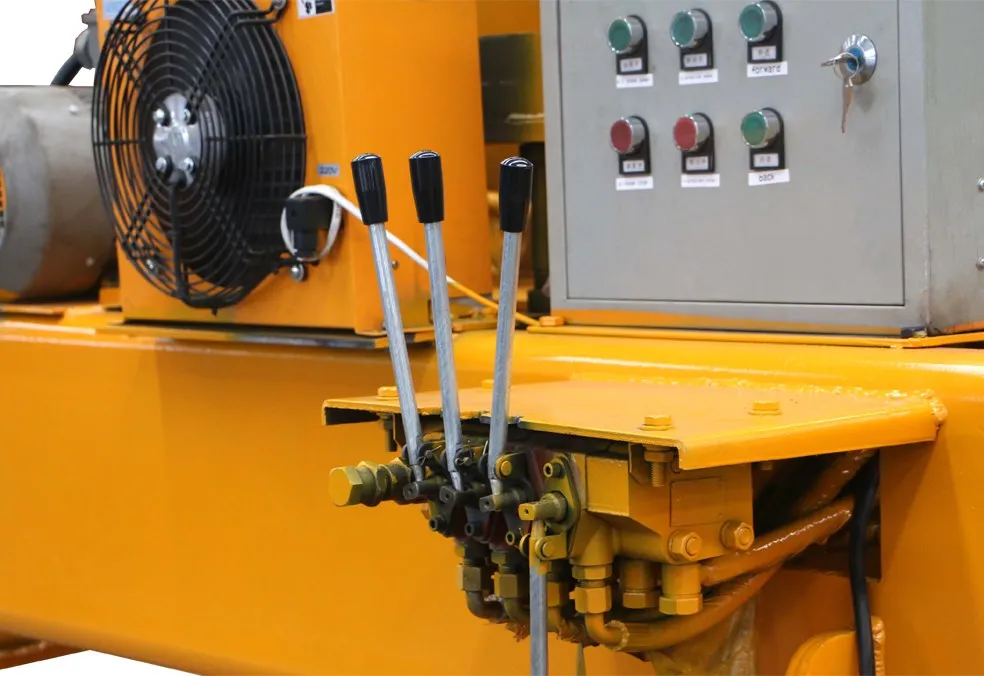

Control system

Control the movement of brick machine, pull-push of mould and block forming by operating lever and pressing bbutton of the control box.

Supporting Facility

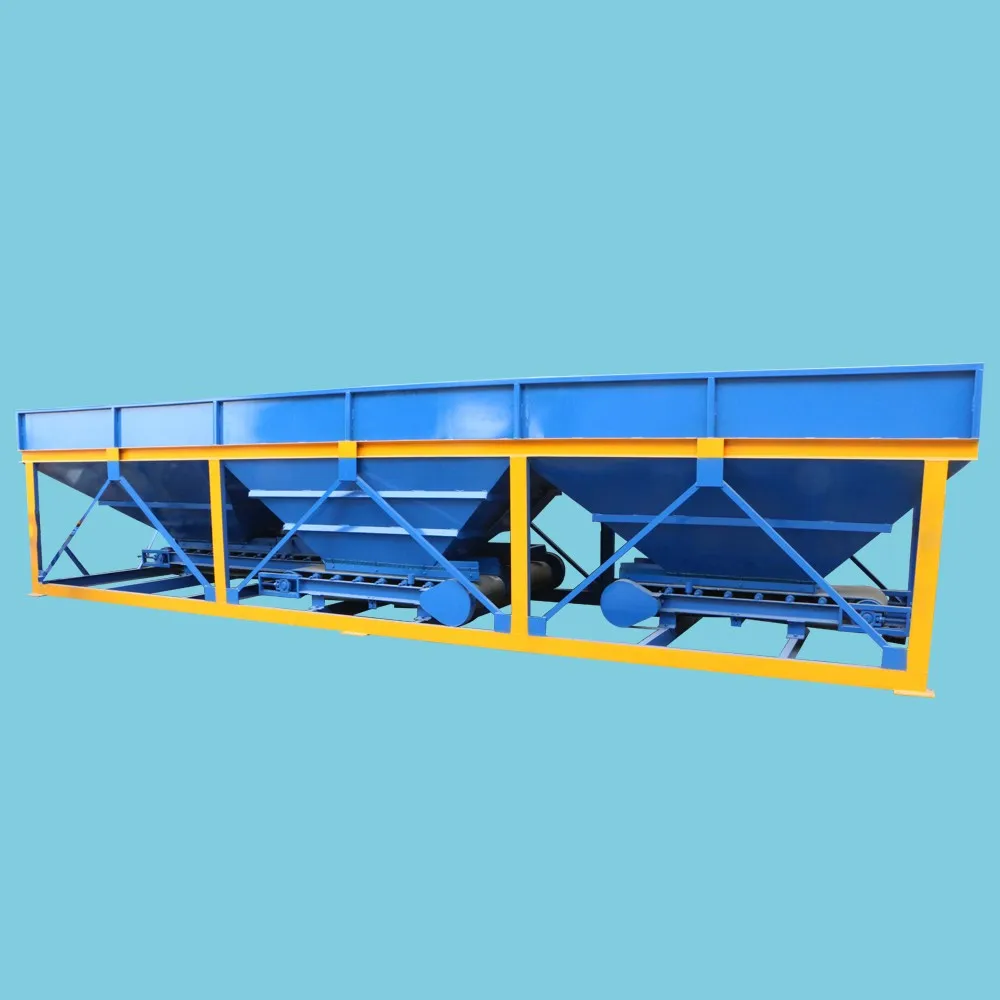

Product name
Batching machine
Overall size
900x200x3500mm
Power
16KW
Measuring hopper capacity
1200L
Batching precision
+ 1%
Batching circle
40s
Storage hopper capacity
3x3㎡
Production capacity
60㎡/h

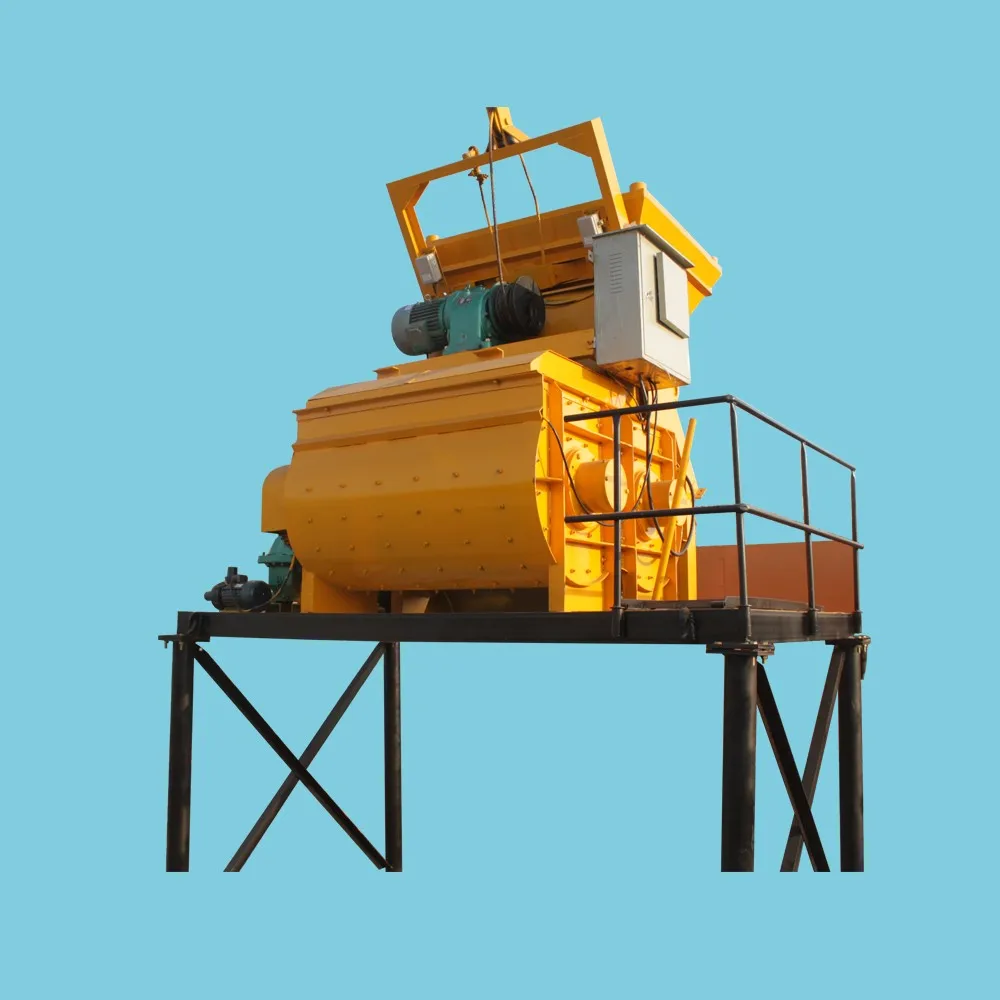

Production name
Pan mixer JS750
Overall size
4951x3650x6225mm
Total power
38.6KW
Feeding capacity
1200L
Output capacity
750L
Production capacity
37.5㎡/h
Total weight
5.5T
Voltage
Adjustable
Related Products
Packing and Service
We will package the products according to the size, shape and your specific requirements, and deliver the machine to you in the best and fastest way.

Pre-Sales Service

We will stricly test and inspect the machine before shipment, and make sure that the product has no quality problem and then pack it to customer.

After-Sales Service

Training how to instal the machine, training how to use the machine.Engineers available to service machinery overseas.

Factory and Customer
YLF Machine established in July 2002. Located in Linyi City, Shandong Province, China, as one of the biggest construction material machine provider in Shandong, registered capital of 104.1 milion RMB, total assets of 724 million RMB, covers area of more than 2,000,000 square meters, more than 2,000 employees. We have built long term cooperative relations with domestic famous scientific, colleges and universities. Owning a research and developement team of 66 people, more than 40,000 square meters of technical research center and a variety of complete facilities.

With broad domestic and internationl sales network and good after-sales servie, YLF brand machines sell well in whole national wide and exported  to more than 100 countries and regions all over the world, gained our reputation in both domestic and international market. Sincerely welcome you to visit our company and investigate on site. Looking forward to establish long-term trade relations of cooperation. Mutual reciprocity and mutual benefit is our goal, and together we will build a brighter future!

FAQ and Contact Us

FAQ

1. Q: What kinds of the brick making machines can be choosed for customers?
    A: We have full-automatic, semi-automatic, manual, mobile, egg laying, paver machine for your choice.
2. Q: What kind of payment terms do we accept?
    A:T/T, L/C, Paypal, Western Union are commom for us. Other ways are ok by negotiation.
3. Q:How about your Production time?
    A:Normally 20-25 days after your deposit.
4. Q:Can I vivst your factory?
    A:Yes. Many domestic and international costomers visit our factory every year.
5. Q:How long is the warranty of your equipment? Do you supply spare parts?
    A:Our warranty period is one year generally. We can supply spare parts.
6. Q:Do you provide after-sale service?
    A:Yes, We have a professional after-sale service team to promptly and thoroughly solve your problems.
