naipu WQCast iron sewage pump or cutting ZJQwear-resistant alloy slurry pump

$3,212.00 / Set | 1 Set (Min. Order)
Type:
Sump Pumps SEWAGE PUMPS Effluent Pumps Grinder Pumps Dewatering Pumps Trash Pumps Self-Priming Sewage & Trash Pumps Centrifugal Pumps Booster Pumps WELL PUMPS Circulating Pumps Turbine Pumps Positive displacement pumps Jet Pumps DIAPHRAGM PUMPS CHEMICAL PUMPS Drum & Barrel Pumps Fuel & Oil Transfer Pumps HVAC Condensate Removal Pumps Fountain & Pond Pumps Pool & Tub Pumps Marine & RV Pumps
Maximum Head:
70m
Maximum Flow Rate:
120l/s
$3,212.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
naipu
Model Number:
NP-WQ NP- QG NP-ZJQ
Place of Origin:
China
Application:
Automotive Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
Horsepower:
According to site needs
Pressure:
According to site needs
Structure:
Single-stage Pump
Outlet Size:
According to site needs
Voltage:
According to site needs
Power:
According to site needs
Certification:
ce, ISO
Material:
Iron
Standard or Nonstandard:
Standanrd
Warranty:
1 Year Warranty(except Wearing Parts)
Color:
Blue

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
15.000 kg
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Cast iron material: used to transport sewage, liquid containing a small amount of impurities, with stirring function, with cutting function.

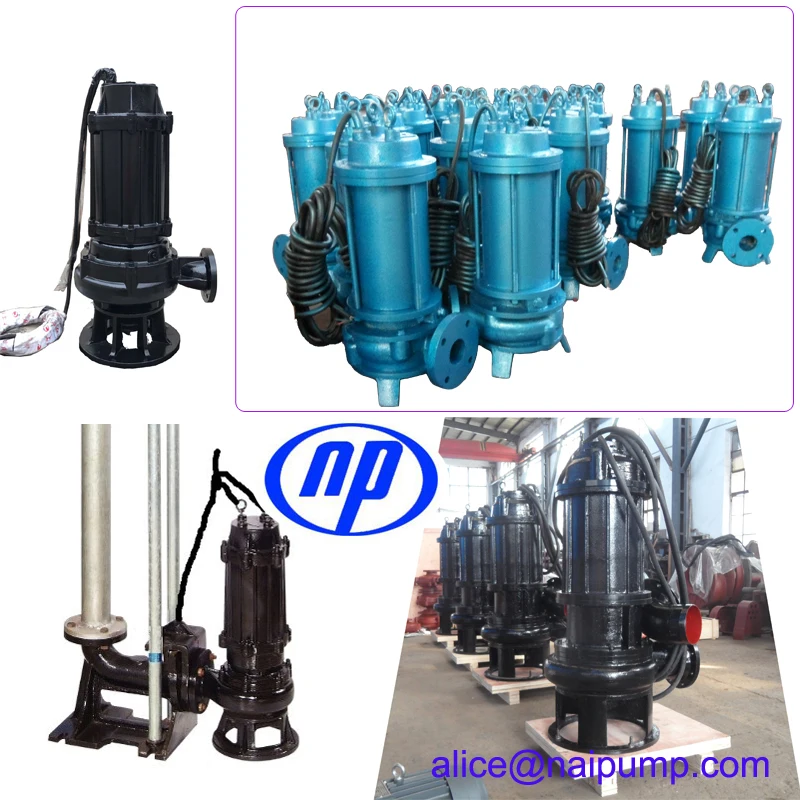

Name: NP- Submersible Sewage Slurry Pump
Pump Type: Centrifugal

Drvie Type: DC
Power: Motor/ Diesel
Discharge Size: 40-500 mm
Capacity: 5-5500 m3/hr
Head: 2-100 m
Naipu® NP-WQ series of submersible sewage pumps are designed with varies of installation experience and improved in water flow stream line, motor cooling system, Protections, control and sealing to suit for multipurpose applications and installations.

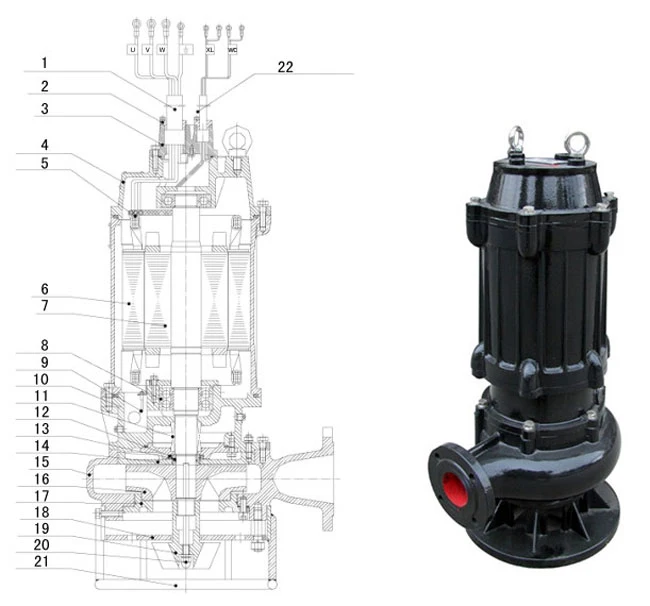

Main Part Number At The Drawing


1. Pump casing
2. Impeller
3. Oil chamber
4. Bearing seal

5. Bearing
6. Pump,motor shaft
7. Motor





High chromium material: used for river dredging, river, lake and sea dredging, simple operation.

Name: NP-ZJQ Submersible Slurry Pump
Pump Type: Submersible centrifugal slurry pumps
Power: Motor
Discharge Size: 80mm-400mm

Capacity: 25m3/h-2000m3/h
Head: 12m-60m
Naipu® NP-ZJQ submersible Slurry motor pump is a kind of hydraulic mechanism which motor connects directly with pump.the pump adopts excellent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The hydraulic parts are wear-resistant. The pump is yet completed with control unit. The pump set consists of main impeller and vice impeller. The main impeller is used for absorbing and delivering solid-liquid mixture, the vice impeller is used for spraying or stirring solid-liquid mixture to help the impeller delivering.

NP-ZJQ Submersible Slurry Pump Configuration Drawing

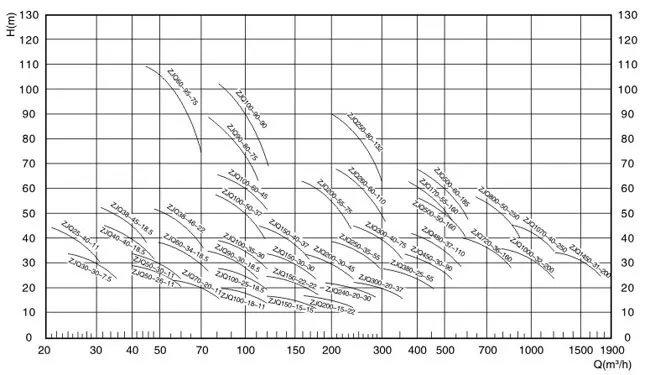

NP-ZJQ SUBMERSIBLE SLURRY PUMPS SELECTION CHART
Company Information

Naipu Main Products

We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08. R12.r  26. R33. R38. R  55.S03.S12.S31.S21.S51.S52 U01 and etc). Wear resistant metal material( a 05.A07.A33. a 49. A61 and etc) .Corrosion Resistant stainless steel material (201.304.316. 316lL and etc). fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
