new product looking for distributor dry ice making blaster cleaner blasting machine dry ice cleaning machine

FOB Reference Price:Get Latest Price
$5,000.00 - $13,000.00 / Sets | 1 Set/Sets (Min. Order)
Industry Used:
Electronic Industry Pharmaceutical Cleaning Food Processing
Model Number:
TZ-550 TZ-750 TZ-XH3
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
taizy
Power(W):
0.55kw
Dimension(L*W*H):
550*400*1000mm
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Application:
Metal Rust Removal
Product name:
dry ice manufacturing machinery
Name:
dry ice cleaning machine
Condition:
New
Fuel:
Electric
Certification:
ce
Use:
Descaling / Stripping
Cleaning Type:
High Pressure Cleaner
Material:
Metal / Coil
Machine Type:
Other
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard wooden packing
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Product Description

Product Application

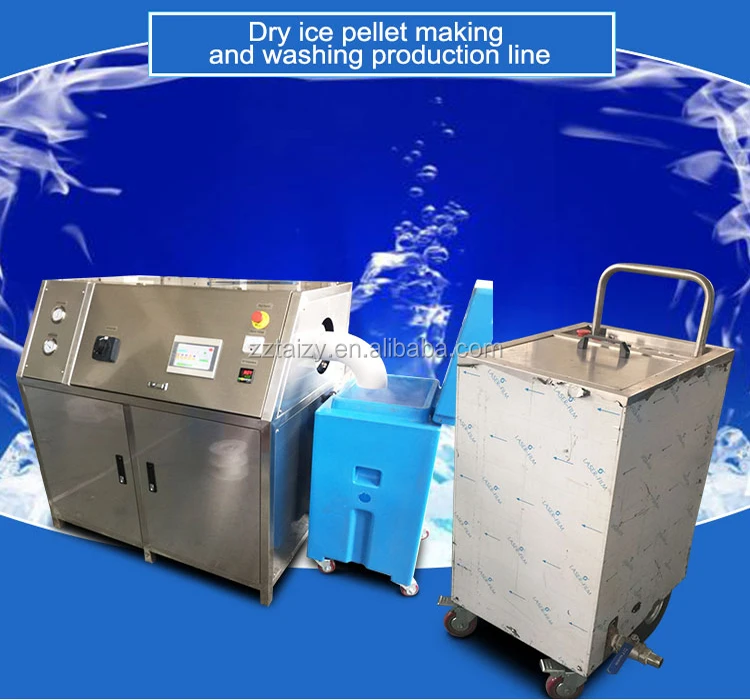

Dry ice cleaning equipment can generally be divided into two parts:

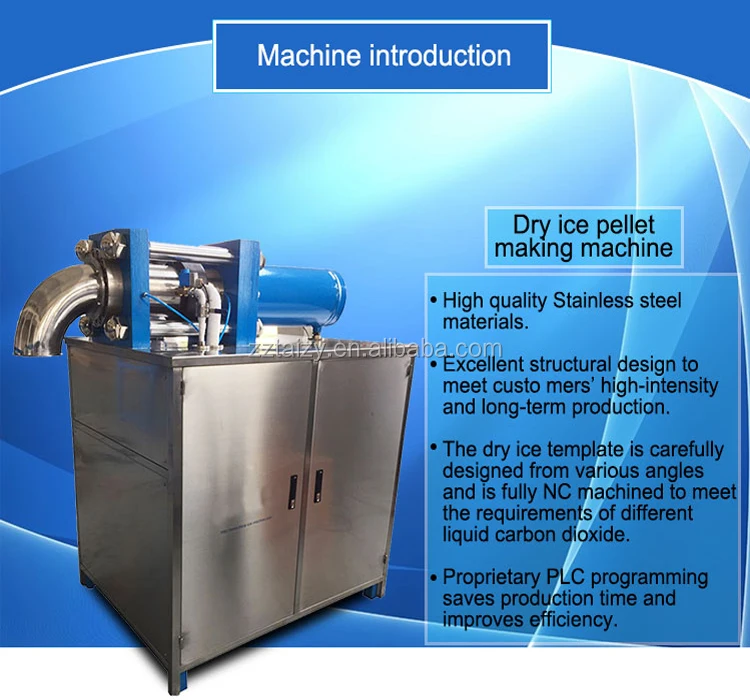

1.) Dry ice pellet machine. The liquid CO2 is made into dry ice particles of a certain size, which are usually high density dry ice particles having a diameter of 3 mm and a length of 2.5 mm to 10 mm.
2.) Dry ice pressure washer. The equipment generally requires a clean compressed air source of 4.0 bar or more and 3 m3/min or more, and the high-density dry ice particles charged into the washing machine are driven by compressed air, and are mixed with a specially designed spray gun system along with compressed air. Accelerate and spray onto the surface of the object being cleaned.

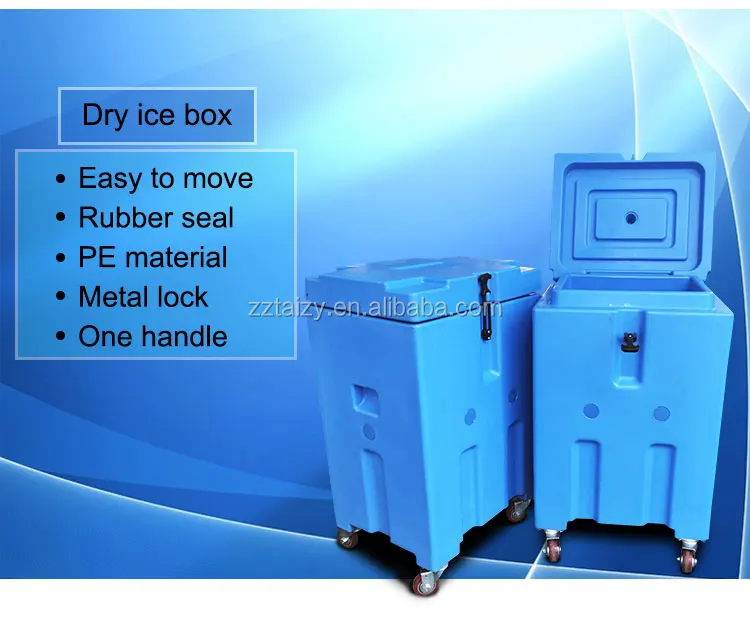

According to your needs: 1 purchase of dry ice washing machine. The purchased dry ice granules are placed in a dry ice washing machine for cleaning. 2 Purchase dry ice granulator and dry ice cleaner, but use them separately. The dry ice pellets produced by the dry ice pellet machine are stored in a special sealed container, transported to the construction site, and loaded into a dry ice washing machine for cleaning. 3 The dry ice granulator and the dry ice washing machine are matched into one system.

Working principle

The dry ice cleaning machine uses compressed air as the power to accelerate the high-density dry ice particles of extremely low temperature -78 °C to a speed close to the speed of sound and hit the surface dirt to be cleaned, causing the surface dirt to suddenly drop to cause surface embrittlement and bursting, while dry ice particles After drilling into the crack of the dirt, it quickly sublimates into a gas, and its volume instantly expands nearly 800 times, thereby bringing the dirt away from the surface of the object.

Model
TZ-550
TZ-750
TZ-HX3
size(mm)
550*400*1000
580*460*1100
700*400*500
weight(kg)
110
150
60
power(kw)
0.55
0.75
0.35
voltage(v)
220
220
220
gas supply(Mpa)
0.4-1.0
0.4-1.0
0.4-1.0
air consumption(m³/min)
2-4
3-6
2-4
Ice consumption(kg/min)
0.1-2.5
 0.1-3.5
0-0.6
volume(L)
18
28
8
Import pipe(m)
9
9
9
Export pipe(m)
7
7
6

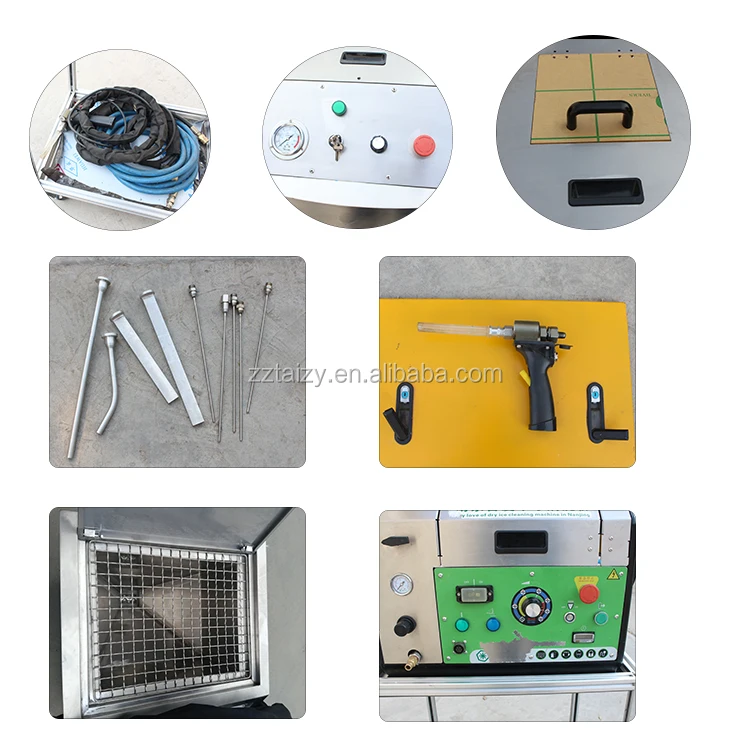

Detailed Images

Application:

 It is especially suitable for tire mold cleaning, polyurethane mold, automotive interior parts mold, plastic mold cleaning, petrochemical heating furnace tube argon cleaning, casting sand mold coating cleaning, food baking equipment, hotel kitchenware tar cleaning, Transformer and power transmission substation equipment cleaning, cleaning by acid-base contaminated equipment, various equipment renovation and complex shape equipment surface dirt cleaning, especially suitable for water and sand washing.
It is also widely used in the mold industry cleaning, petrochemical power, food and pharmaceutical industry, printing industry, automotive and marine industry, electronics and nuclear industry, beauty industry, food industry, refrigeration transportation, entertainment, fire protection and so on.

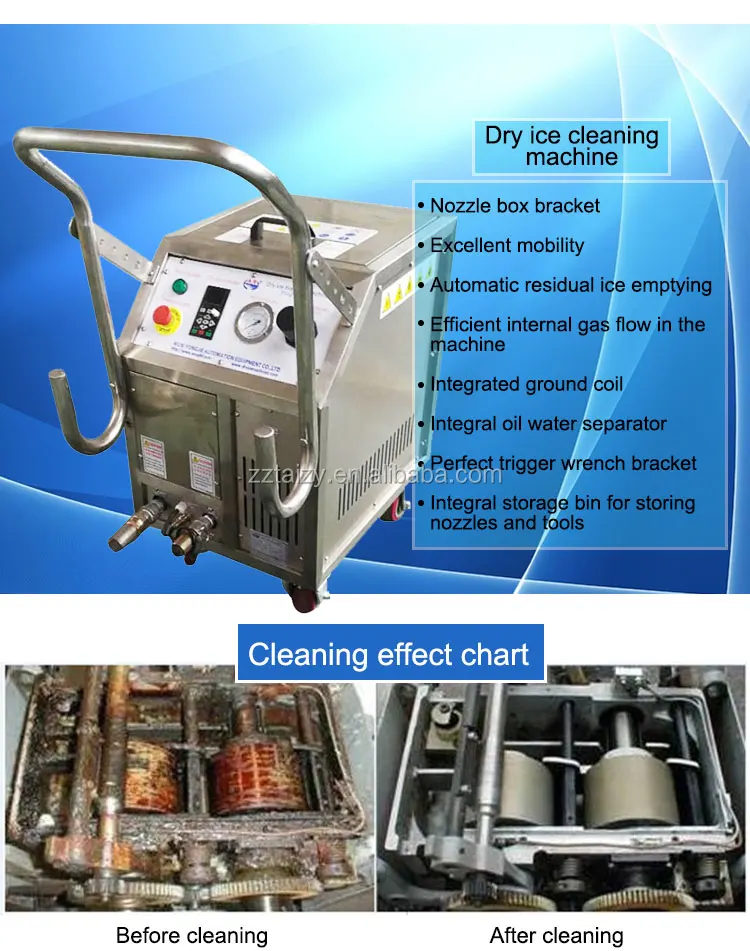

Features

The dry ice cleaning method not only saves man-hours, but also greatly reduces the downtime. Compared with the old sandblasting, there is no fear of wear and tear, and the time for mold reassembly can be eliminated. Dry ice cleaning removes the release layer and residual material from the mold, and the accumulated dirt is easily removed when the mold is at a high temperature and in the line. This type of cleaning can reduce the downtime due to cleaning by 80%-95%. Since the cleaning process is not worn, the size of the precision mold is not destroyed. In addition, the "micropores" can be opened and cleaned, thus eliminating the need to manually drill through the vents.

1) The whole machine adopts SUS304 material to be more beautiful and durable;
2) Control the consumption of ice more easily and reliably through frequency conversion speed regulation;
3) Various types of spray guns are selected to suit different cleaning occasions;
4) Adjustable speed pneumatic vibrator makes the ice supply more uniform and smooth;

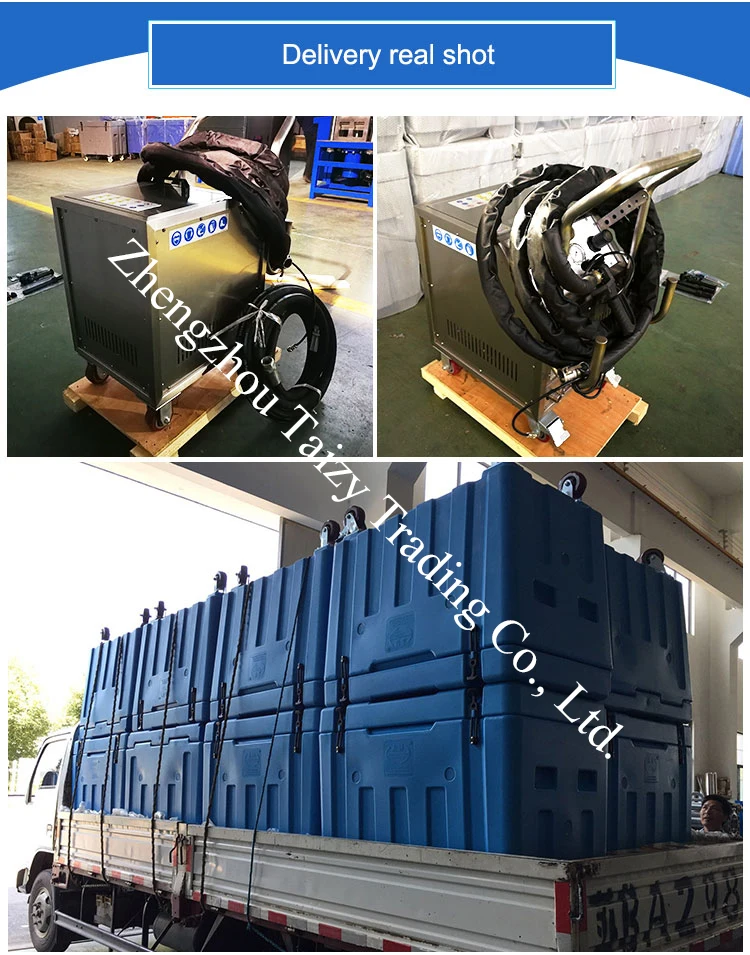

Packing & Delivery
Packaging
Size
550 (L) * 400 (W) * 1000 (D)
Weight
110kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

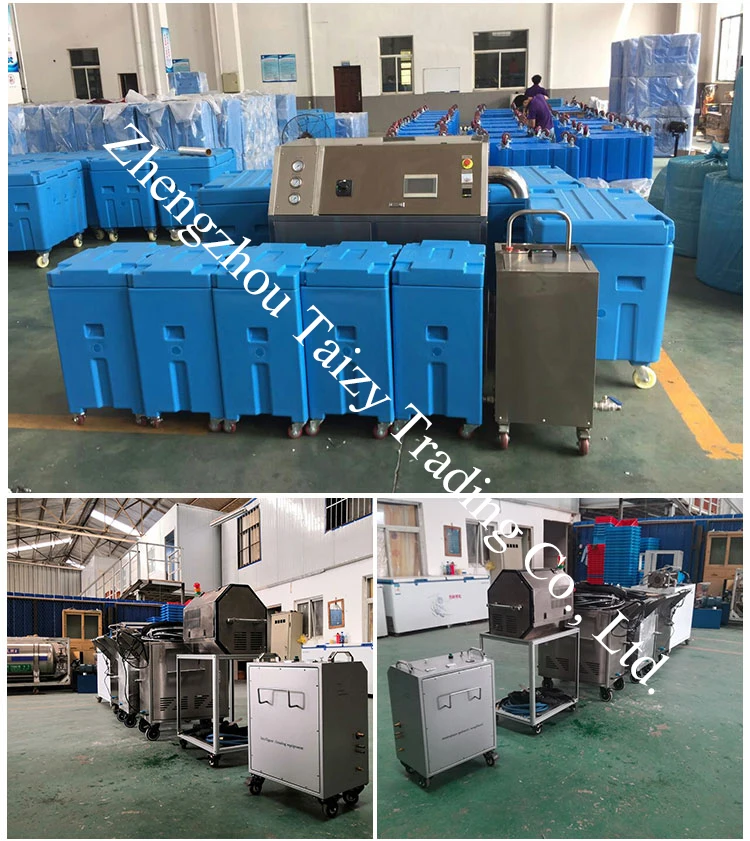

Our Company

Taizy company is specialized in producing, selling and serving food processing production lines.
Our company's main machinery such as: potato chips,banana chips,peanuts, walnuts, almonds, cashew nuts and pine nuts production line; macadamia nuts, chestnuts, pistachios, ginkgo, acorns, cocoa beans, castor beans, sesame processing machine; various nuts butter making machines, nuts roasting machines, vegetable and fruit machine,washing machine,frying machine,oil press machines, packaging machines, etc.
Customer satisfaction is our ultimate goal.
Looking forward to establishing cooperation with you.

FAQ.

1. Are you manufacturer?
Yes, we are. Welcome to visit our factory.

2. Can you change the machine voltage as our request?
Yes, we can.

3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.

4. Warranty time of your machine?
1 year except for consumable spare parts.

5. How about delivery time of your machine?
Generally it needs 5-15 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.

Our Service.

1. Sales service:
1) Reliable quality
2) Fast and timely delivery
3) Standard export packaging

2. After sales service:
1) Assist in setting up factories
2) Installation and technical training
3) Consumables are free or big discounts

3. Other services:
1) Factory construction consultation
2) Knowledge and technology sharing
3) Business development advice
