no need welding prefabricated wooden house prefab

  • 1 - 99 Square Meters
    $70.00
  • 100 - 499 Square Meters
    $60.00
  • >=500 Square Meters
    $40.00
Material:
Steel
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
CDPH, CDPH
Model Number:
ZM, M wooden house prefab
Use:
Carport, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Warehouse, Workshop,Plant
ISO Quality Certification:
ISO9001:2008
ISO Environment Certification:
ISO14001:2004
Size:
customized
wall and roof:
sandwich panel/steel sheet/brick
Structure:
galvanized steel
Delivery time:
20 days
Package:
bulk package
Port:
Tianjin(Xingang)
Supply Ability
Supply Ability:
200000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Wooden house prefab with bulk packing.
Port
XINGANG(TIANJIN)
Product Description

The detailed information as follows:


No
Sort
Name
Specification
1


Specification
Length
No limited
2
Width
12m, 15m, 18m
3
Wall Height
4000mm-7000mm
4
Roof slope
1:5
5












Standard accessory
Master beam
2-M300 steel, T=3.0mm, Material: Q345, galvanized
6
Column
2-M300 steel, T=3.0mm, Material: Q345, galvanized
7
Roof Purline
C-170 steel, T=2.3mm, Material:Q235, galvanized
8
Wall Purline
C-170 steel, T=2.3mm, Material:Q235, galvanized
9
Compressed part
Decorate and connect the wall, roof
10
Bolt
For connection the beam, column and purline
11
Chemical Bolt
For connection the column and foundation
12
Wall board
75mm EPS panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.
13
Roof board
75mm EPS corrugated panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/•k.
14
Door
SIP door, in size of 4000mm*4000mm
15
Window (W-1)
PVC, white color, with dimension 1200*1200mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.
16


Option
Decorative floor
Ceramic tile floor
17
Elevated ceiling
Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen
18
Drainage system
Provided plan, design and construction
19
Electric system
Provided plan, design and construction
20


Technical parameter
Live load
0.3KN/distance between columns :6m,0.50KN/distance between columns :4m
21
Wind pressure
0.35KN/ distance between columns :6m,0.50KN/distance between columns :4m
22
Fire proof
B2 grade
23
Resistant temperature
-20 to 50
24
Earthquake resistant
7 fission activate.
Products
Detailed Images

No need welding prefabricated wooden house prefab

The detail information is as follows:

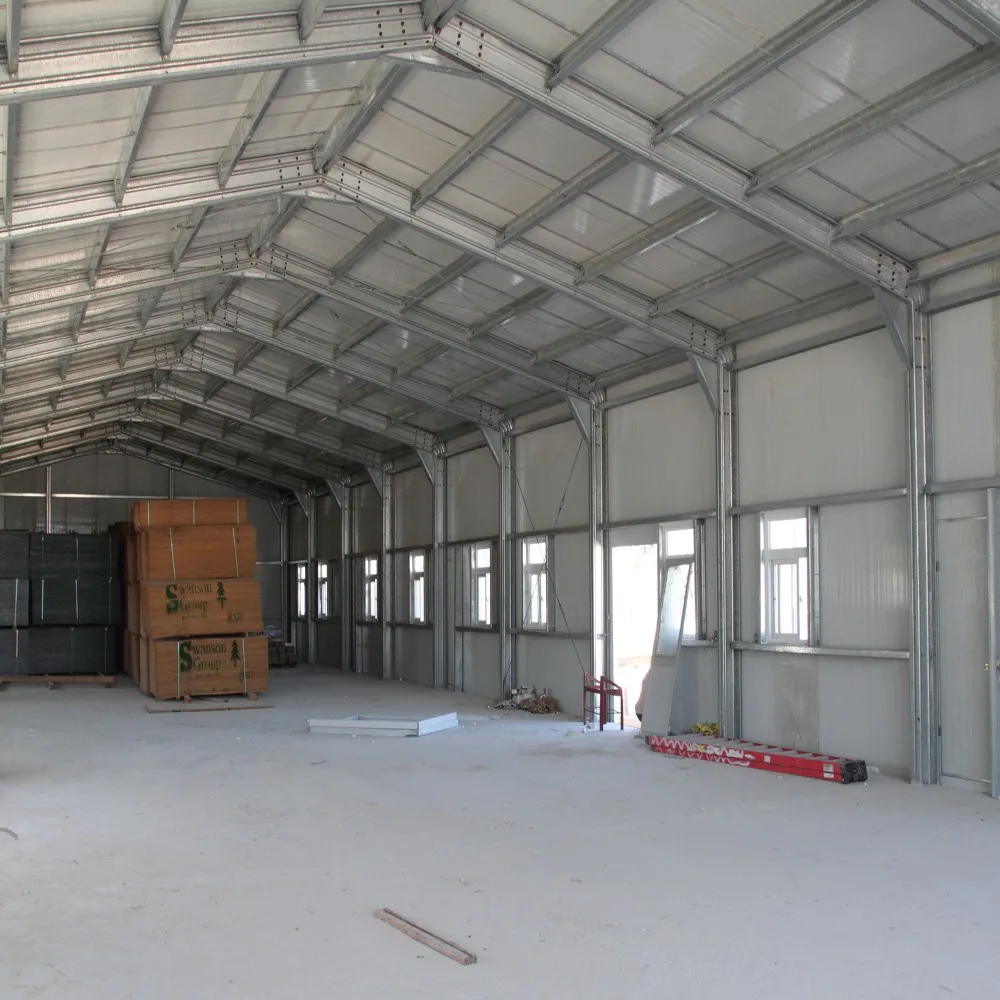

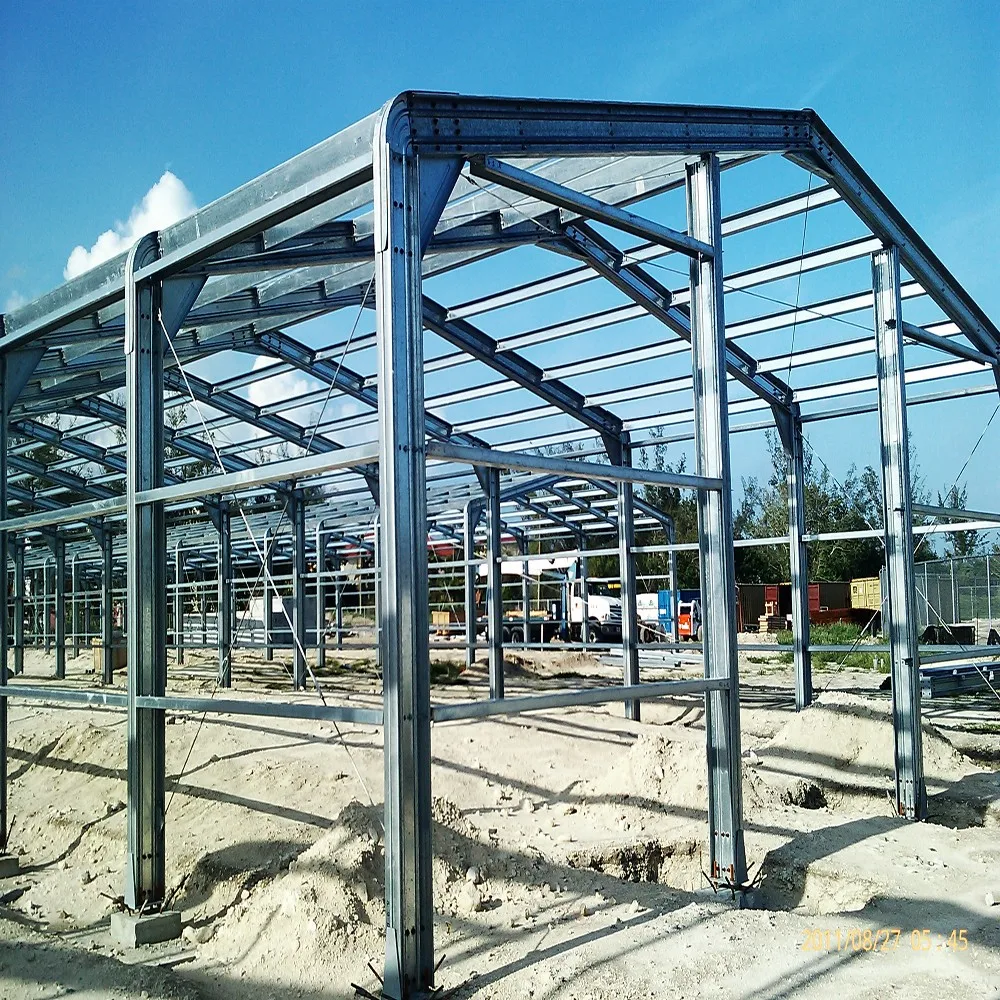

1.M style prefab building is a flexible modular building with galvanized light steel.
2.The size and layout can be designed as per customers’ requirements and local climate, and the biggest span should be no more than 18m.
3.When delivery, it is knock-down to save space.
4.Based on bolts connection without welding work,
it could be assembled and disassembled easily and eight common workers can finish 1000 m2 within 14 days according to instruction and CD.
No need welding prefabricated wooden house prefab building


Packing & Delivery



Packaging Details  :    Wooden house prefab with bulk packing.

Delivery Time :      within 18 days after receiving the 30% advance payment


CDPH--


Beijing Chengdong International Modular Housing Co.,Ltd
Manufacturer,Design,manufacture, market and construct.
500workers, 100,000sqm factory 16 year international experience, projects in about 90 countries.ISO9001, ISO14001, QHSMS18001, SGS, BV.Serves   CREC,CWYCY,Larsen&Toubro etc.


Our Company

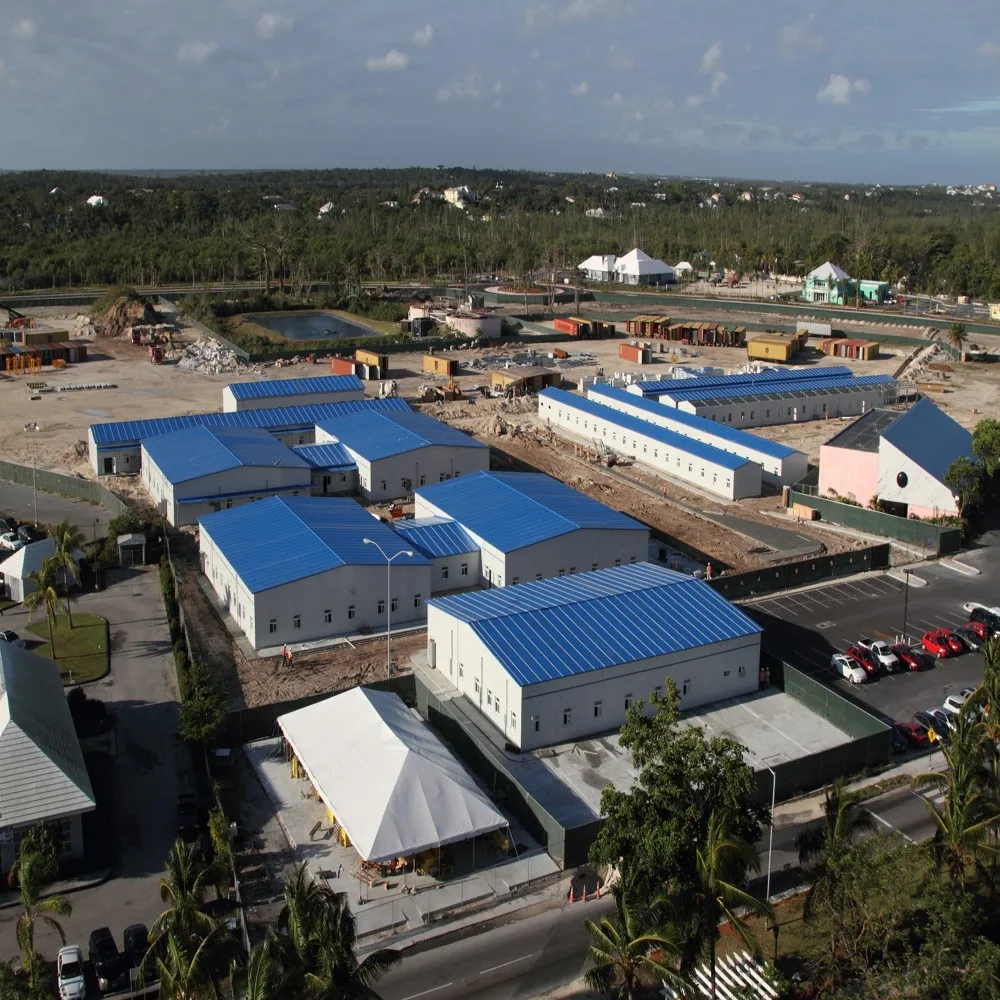

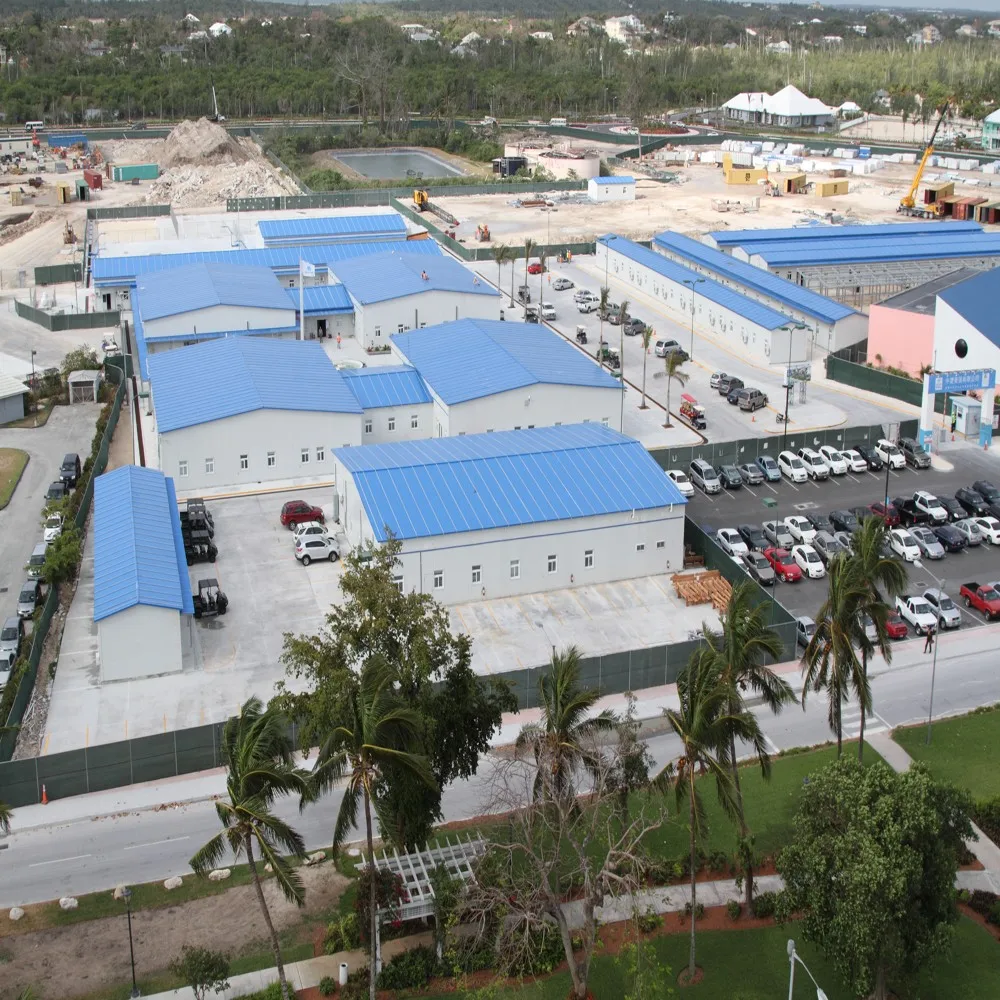

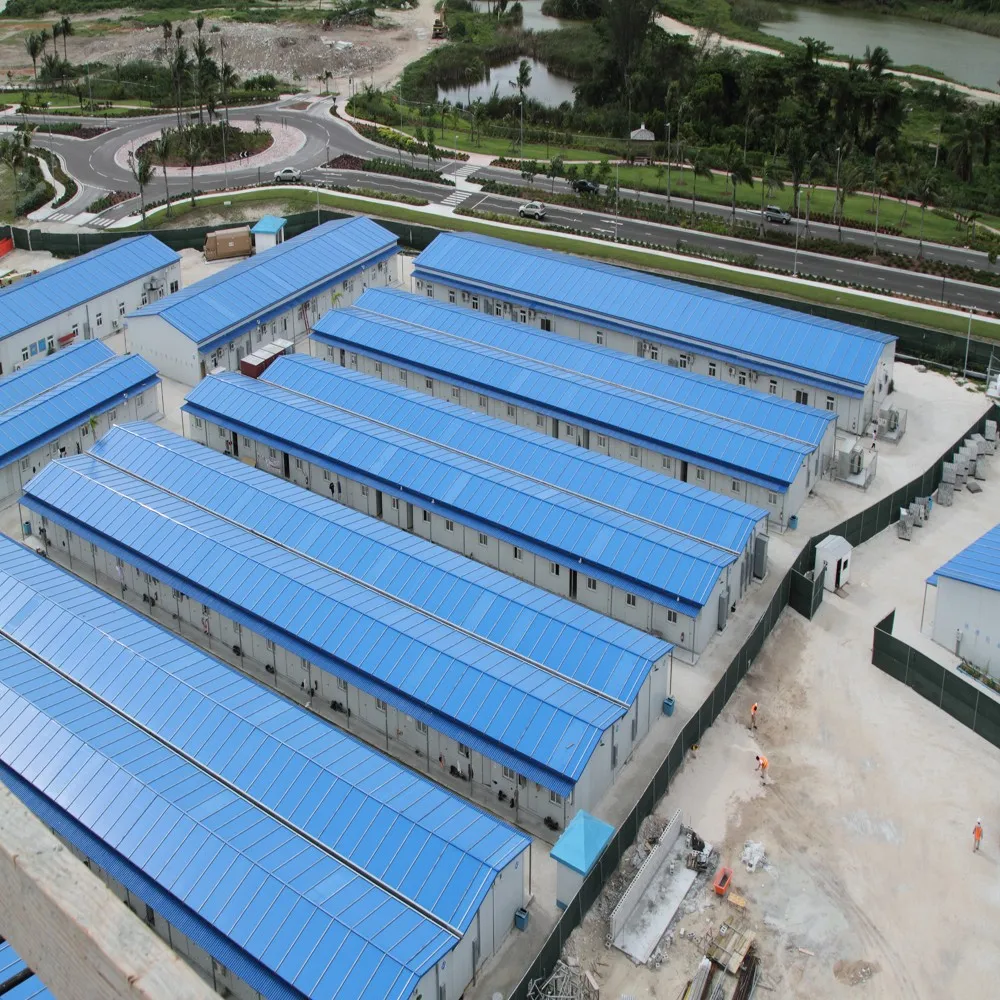

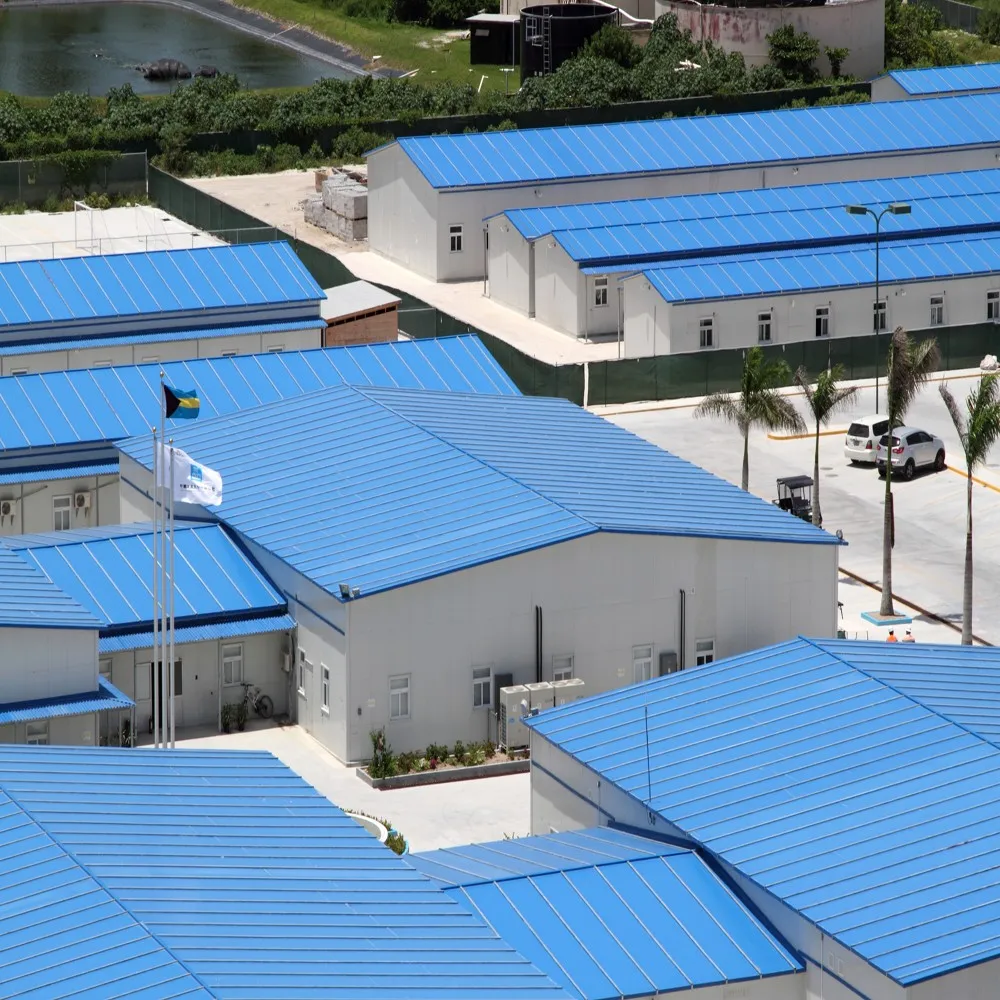

CDPH Beijing Chengdong International Modular Housing Corporation is aspecialized in Designing,Manufacturing, Marketing and Construction of prefabricated houses.Establish in 1998, Beijing Chengdong forges ahead, continues to make breakthroughs and has now successfully provided thousands of camp construction in more than 100countries,including camp planning,building design ,house industrial production,transportation,on-site installation,interior decoration,camp facilities,etc.
