numeric keypad practice Vending Machine Backlight Keypad 12 Metal Stainless Steel Access Control Keypad

FOB Reference Price:Get Latest Price
$14.00 - $19.00 / Units | 100 Unit/Units access control keypad (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Telecommunication Equipment, ATM,KIOSK,Telephone
Keypad Button Material:
Stainless Steel
Matrix Keypad
Pin Header,XH plug,USB,PS2,RS232
Levels of Protection:
Vandal Resistence:
Backlit Color:
Blue as regular and can be customized
Button Life:
1 million times
Supply Ability
Supply Ability:
2000 Unit/Units per Day access control keypad
Packaging & Delivery
Packaging Details
Access keypad Packing:60pcs/ctn
Carton Demension: 370*330*120mm
Lead Time :
25 days after payment received
numeric keypad practice Vending Machine Backlight Keypad 12 Metal Stainless Steel Access Control Keypad
Product Description

Quick Details:

1.  12  Keys stainless steel keypad, Dot  matrix keypad .

2.  carbon -on-gold key switch technology .

3.  rear mounting/bracket mounting


1. 12keys IP65 dynamic compact format vandal proof ,Industrial numeric keypad with industrial PCB electronics .

2.  Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise .

3.  Ease of installation and maintenance.

4.This keypad is usually for access control,door access,cabinet door lock.

5.Backlit Color can be customized as per customer's requirement.Blue,red,green,white etc.

Special Features:

1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

2.  This keypad with  willful destruction, vandal-proof, against corrosion, weather-proof especially under

extreme climatic conditions, water proof/dirt proof, operation under hostile environments.


A. unsupervised or semi-supervised positions of varied access  control systems,security system , household  applications.




12 Keys

Switching Material

Carbon-on-gold key switch technology PCB

Actuation Force

0.6 N+/0.1N(pressure point)

Frame/Keys Materials

ABS Plastic


93.0mm*93.0mm(L x W)


250g approx

LED color

Customized/Blue LED regular

Key Size


Rubber Life

More than 500000 cycles



Power Supply Voltage


Current Rating

Appox. 45mA

Power Comsumption

Under 300mW for operation,under 200mW for non-operation

Contact Resistence

200 Ohms(Max)

Electrical Lifetime

>5 years


Male pin out connector


All Windows,Linux,Unix,Mac OSX


Environment Adaptability

Operating Temperature

-20  to + 75

Storage Temperature

-3 5  to + 85

Operating RH

30-90% RH

Atmospheric Pressure




Protection Level

IP67(Front Panel)

Vandal Resistant

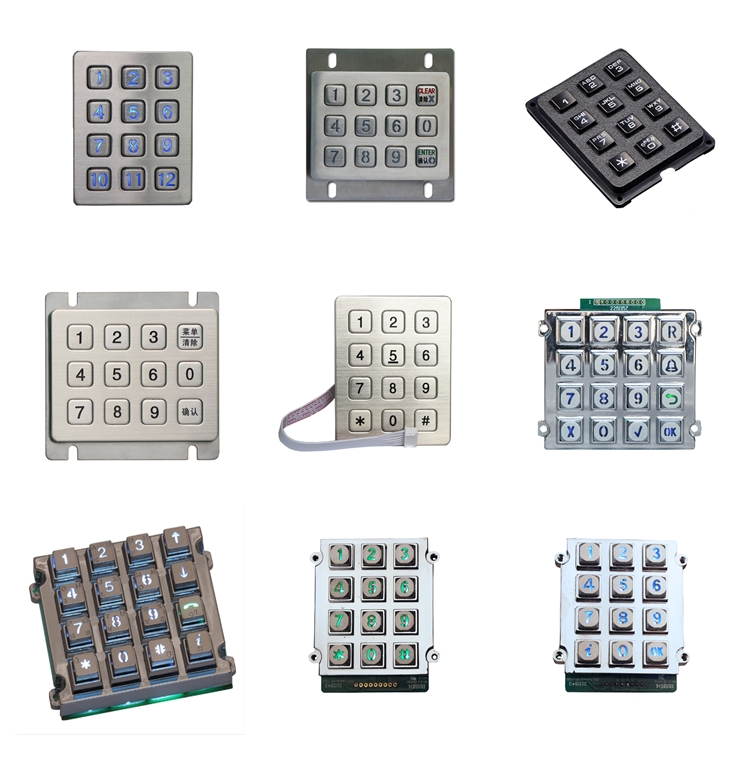

Product Picture

1.Keypad Applications

2.Customized Keypad references as for Backlighting Keypad


3.Keypad Choosing Connection Interfaces

Packing Display



Application Area

Just Some Application Area we serve:

Detension Centers Halfway Houses
Hospitals Jails|Inmate
Correctional facilities Drug and Alcohol Rehabilitations
Prisons Transitional Housing
Behavioral health facilities salvation Army
Re-entry facilities Substance Abuse Rehabilitations
Train Stations Government Facilities
Mining Area Oil and Marine


Company Information

Company Profile

Yuyao Xianglong Communication Industrial Co., Ltd. was founded in 2005, located in Yuyao City, Zhejiang Province, Xiao Dong Industrial Park, is a production and sales of outdoor phone accessories and machine-based manufacturing company. Building area of 5,000 square meters, mold development,rubber molding,injection molding, assembly as one of the modes of production. Advanced machinery and equipment, modern production line, the parts per day to 2,000 sets.
     Founded five years, the main industry to the public telephone accessories. 90% of the parts of the public telephone accessories by the company on their own production. Overall competitiveness and value for money in a leading position in the industry. With the continuous enhancement of competitiveness. From 2007 to mold development, injection molding,rubber products, industrial phone. Formed by phone accessories division, ODM processing division, Division of Industrial Phones three common development mode. Special phone accessories and the whole a better competitive situation.
     In order to better grasp the dynamic of a seller is market, in order to better service customers at home and abroad. The company set up agents in Thailand in 2006. Understand and master the latest product information. At present, the customer back to a single rate of more than 95% products are mainly exported to North America, Western Europe, Southeast Asia and other regions, with the company is business development and competitiveness constantly enhance. The company is business has developed to globalization.
     The spirit of the principle of "quality first, reputation first", comprehensively improving production and quality management. From product design, raw material procurement, production and test all aspects in accordance with the ISO9001: 2008 standards to ensure products of good quality; rely on sophisticated production equipment and an outstanding technical backbone and sales force, the initiative to understand customer needs, the constant breakthroughs in production, design technology, develop new products based on domestic and world.
     We sincerely hope that the the Xianglong products to the vast number of old and new customers more cost-effective and competitive industrial communication accessories and machine. The Xianglong together with our customers, describe the field of industrial communication for a better tomorrow!


Factory Show:


Our Team:


Contact US

Attn:Spring Ding








1. Q: How long is the warranty period?
A:  12  months .

2. Q: How to pay?
A:  TT&Western Union&Paypal

3. Q: How to pay the deposit?
A:  Small order,100% Payment in advance.
    For much bigger order,50% deposit advance,50% balance before shipping.

4. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeated tests before delivery.And representative inspector will be welcomed.

5. Q: How is the shipping?
A:  1000 pcs or more within 30 days and samples will be shipped within 2-5 days.

6. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.

7. Q: When will I get my products after delivery?
A: It varies from different places. We will recommend the best and fastest shipping for you.

8. Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery.

9.Q:  Do you accept customized keypad  ?
A: Yes, OEM and ODM are available for us, Our R&D team work in this field since 2005.
