pHG-1911X digital aquarium ph orp meter price precautions

  • 1-5 Pieces
    $675.00
  • 6-9 Pieces
    $615.00
  • >=10 Pieces
    $585.00
Measurement Range:
0-14pH
Accuracy:
1%FS
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Samples: $700.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $700.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
eit02(@)sh-eit.com
Place of Origin:
Shanghai, China
Brand Name:
EIT
Model Number:
pHG-1911x
Wahtsapp:
86-15300527126
Representative:
eit02(@)sh-eit.com
Measuring range:
0-14pH
OEM Service:
Yes
Dimension:
144*144*107mm
Communication:
RS485(Optional)
Power:
220VAC/24VDC
Hole size:
138*138mm
Installation:
Flushbonading type
Working condition:
0-60℃,related humidity<85%(without condensation)

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X25X15 cm
Single gross weight:
4.0 kg
Package Type:
Standard Cartoon Box/wooden case
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(days) 3 To be negotiated
Product Description

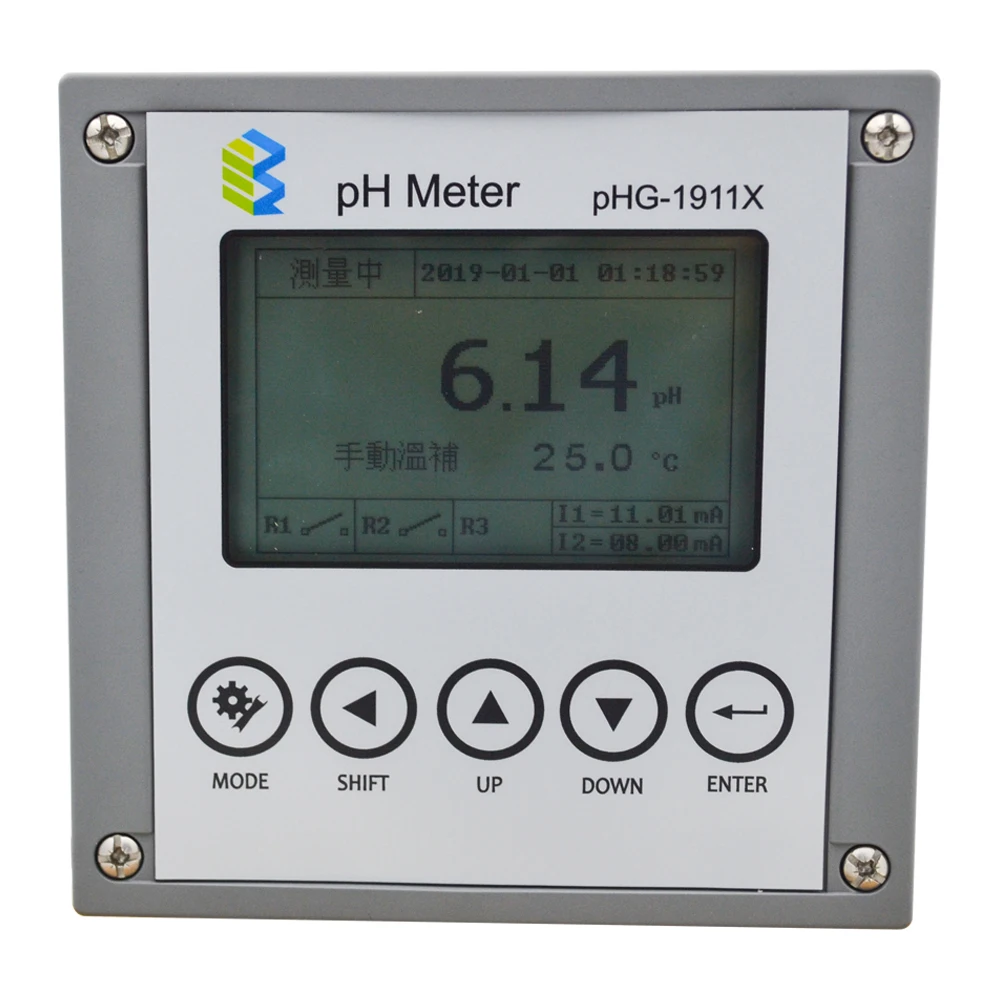

pHG-1911X

Instruments are used in industrial measuring of the temperature and PH/ORP, such as waste water treatment, environmental monitoring, fermentation, pharmacy, food process agriculture production, etc.

Technical specifications

Functions

pH

ORP

Measuring range

-2.00pH to +16.00 pH

-2000mV to +2000mV

Resolution

0.01pH

1mV

Accuracy

±0.01pH

±1mV

Temp. compensation

Pt 1000/NTC10K

Temp. range

-10.0 to +130.0℃

Temp. compensation range

-10.0 to +130.0℃

Temp. resolution

0.1℃

Temp. accuracy

±0.2℃

Ambient temperature range

0 to +70℃

Storage temp.

-20 to +70℃

Input impedance

>1012Ω

Display

Back light, dot matrix

pH/ORP current output1

Isolated, 4 to 20mA output , max. load 500Ω

Temp. current output 2

Isolated, 4 to 20mA output , max. load 500Ω

Current output accuracy

±0.05 mA

RS485

Mod bus RTU protocol

Baud rate

9600/19200/38400

Maximum relay contacts capacity

5A/250VAC,5A/30VDC

Cleaning setting

ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours

One multi function relay

clean/period alarm/error alarm

Relay delay

0-120 seconds

Data logging capacity

500,000

Language selection

English/traditional Chinese/simplified Chinese

Waterproof grade

IP65

Power supply

From 90 to 260 VAC, power consumption < 5 watts

Installation

panel/wall/pipe installation

Weight

0.85Kg


Recommend Products
Main controller parameters of wastewater pool spa digital electronic ph orp meter
Model pHG-2081XpHG-1912BTpHG-1901
Measuring Range0.00~14.00pH
Temperation compensation0-150 ℃0-99 ℃
Accuracy1% FS
Resolution0.01pHm0.1C,0.1mV0.05pH,0.3 ℃
CommunicationRS485(optional)
Output0~10mA,4-20mA(double output for option)0~10mA,4-20mA4-20mA
Alarm relaytwo relay output
Power220V,24V(85~265V)220V220V(110V)
Protection gradeIP65IP65IP54
Dimension146*146*150mm220*190*130mm96*96*135mm
Hole size138*138mm/92*92mm
Installationwall/panel mountedwall mountedpanel mounted
Working conditionambient:0~60C,relative humidity<90%

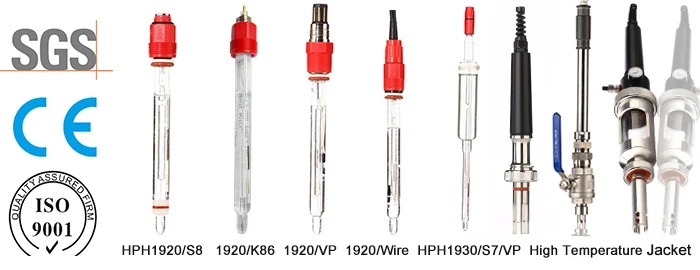

Pricision and long working life,it's special used for high temperature resistant gel and high temperature solid dielectric dual sensor, it's suitable for demanding online measurement. it's widely used for fermentation tank, biotechnology,pharmaceutical industry,food and beverage technology,starch paste etc.
ModelHPH1920/S8HPH1920/K8SHPH1920/VPHPH1920/5MHPH1930
Range0.00-14.00 pH
Temp0-130 ℃
Cable connectionAS9AK9VPWith CableS7/VP
Demiension12*120/150/225/325mm

12mm*120/150/

200/250/450mm

TempensationNoNoYesYesYes/No
Why Choose Us
FAQ

Q: Are you original factory?
A: Yes, we are. Instant video verify was supported.



Q:What’s your company location, Could I visit you?
A: Shanghai City, China. Close away from PVG&SHA airport. Also close away from Hongqiao fast train station. Sincerely invite you to visit our factory.



Q: Do you provide FREE samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.



Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping . We have the certification of ISO,CE we could send the certification test of our company to you.



Q: What is your terms of payment ?
A: We could accept TAO, T/T, Paypal, WU ,Credit Assurance



Q: What is the warranty for your product ?
A: Warranty: 1 year, Lifetime maintenance

Contact
Kaylee  | Sales Representative | Whatsapp:+86 15300527126
Shanghai Boqu Environmental Technology Co.,Ltd
Email:eit02(@)sh-eit.com | Http://www.sh-eit.com
Tel:  +86 021 20966895 | Ext. :8020
Add: Building 5 NO.333 1st Haiyang Avenue Pudong New District Shanghai City P.R.China.Zip:201306
