Continuous production line, full automatic, energy saving
Bleaching earth consumption:
screw oil press, combined oil press
Palm Fruit, Palm Kernel
Making Edible Oil
3 Set/Sets per Month palm fruit oil extraction machine
Packaging & Delivery
Plywood, international standard trade packing palm oil mill plant, palm oil storage tank, palm oil processing machine malaysia
Shanghai, Wuhan, Qingdao
1 - 1
To be negotiated
This palm oil plant is fully automatic. It requires less workers and improves the working efficiency.
1.Some of our technology adopts Germany standard, and some equipment parts are imported 2.Our stainless steel and carbon steel are all purchased directly from the steel factor with high quality control.so we can guarantee the quality. 3.All of our welding technicians have the employment certificates and with many many years experience. 4.We provide installation ,commissioning, training and other oversea services.

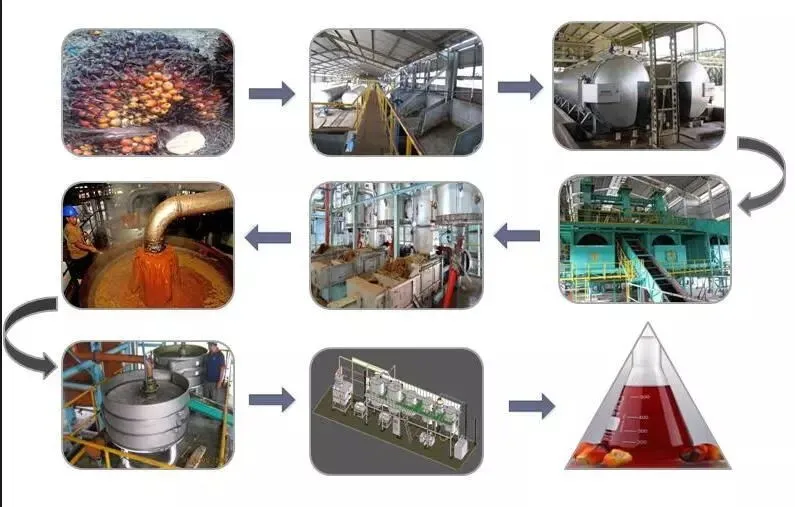

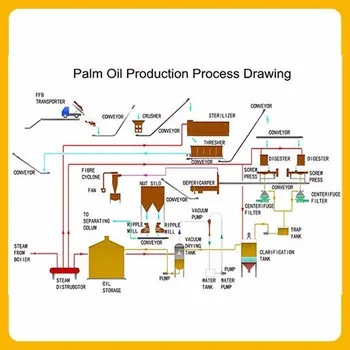

A. Palm oil processing line pressing workshop introduction 1. Raw materials storage section 2. Sterilizing section 3. Threshing section 4. Pressing section 5.Clarification section 6.Finished oil storage and transportation section 7. Fiber separation section 8. Kernel recovery section 9.Steam-supply section 10.Power-supply section 11.Raw water treatment section 12. Sewage treatment section
(1)Raw materials receiving: Fresh palm fruit bunch will be loaded on a slope. Under the slope, there are some cages to receive the palm fruits. (2)Sterilizing: fresh palm fruits bunch are airtight sterilized in sterilizer. The purpose to prevent enzymes broken down, avoiding FFA content in oil further increase. (3)Threshing: The purpose of threshing is the oil palm fruits separated from the fruit bunch through strong vibration. (4)Pressing: Oil palm fruit pressed is divided into two parts: oil, water, solid impurities mixture and the press cake (fiber and nuclear). Oil, water, solid impurities mixture by the crude oil gutter inflow to oil purificationsection; press cake by breaking screw conveyor into the fiber- recovery section.
B.Palm oil processing line refining workshop introduction
1.Degumming and Deacidification Section 2.Decolorizing Section 3.Deodorization Section
(1)Degumming: This is the most important section of hydrate de-gumming, manage the adding water (there is a little P-acid in the water) amount, temperature and add water speed, usually water adding amount is about 3 times of phospholipid content, that is 3-10% oil weight, water temp needs to be higher than oil temp.
(2)Deacidification:This part adopt alkali refining method, that is use alkalis like (NaOH) to neutral the free fatty acid in oil, during this process it will produce soapstock , then separated from the oil by setting several hours. NAOH solution, not only neutral free fatty acid, also can act with other matters like protein, mucus, phospholipid, pigment. After settling, release the soapstock from the tank bottom. Adding hot water to rinse, remove off the leftover lye , soap and some unhydrated phospholipid in the oil. Finally pumping out soapstock from the tank bottom .
(3)Decolorization: In normal situation , there is pigment in the crude oil , we need to using the active clay to absorb the pigment away , after 20 mins , we use the vibrating filter to filter the waste clay away . If you want to get light color oil , you need to add more active clay . That is mean , the customer can accord to his requirement to control the oil color. This process is carried out under the vacuum condition.

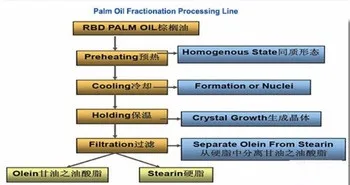

C. Palm oil processing line fractionation workshop introduction 1.Palm oil filtration 2.Cooling and crystallization 3.Palm oil fractionation

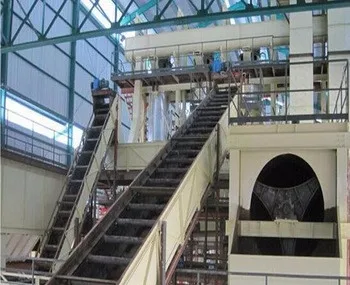

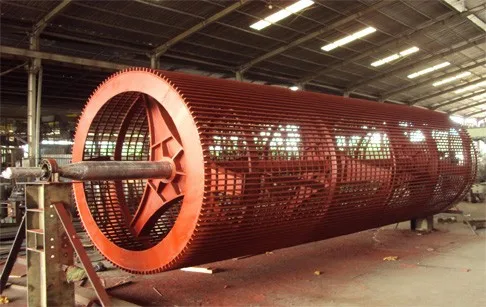

palm oil processing plant Threshing System The purpose of threshing is to separate the oil palm from the fruit by vigorous vibrations, and the decorticating equipment is a drum-type fruit removal machine. Separation of the oil palm into the press section. Empty fruit strings are discharged from the other end of the drum to the yard, or shipped out of the factory area for recycling of palm orchard coverings or on-site burning as fertilizer applied to the farmland.

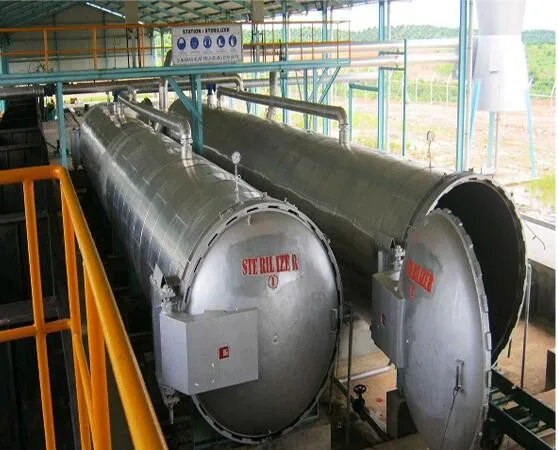

palm oil processing plant Sterilizing Station Fresh palm fruit string into the kill fermenter, sealed fermentation. Fermentative purpose in order to prevent enzyme decomposition, so as to avoid further increase in the content of free fatty acids in oil; facilitate mechanical threshing; pretreatment of peel, preparation for subsequent processing; Preconditioning kernel, reducing kernel damage.
palm oil processing plant Pressing System Oil palm before pressing to be cooking, will kill leavening,The reheated fruit softens the flesh and destroys the flesh Cell structure. Cook into the continuous screw press squeeze.After the oil palm oil is squeezed into two parts: oil, water, A mixture of solid impurities and press cake (fiber and core).Oil, water, a mixture of solid impurities through the hair tank into the oil Chemical sector; pressed cake through the broken screwdriver into the fiber recovery section.
palm oil processing plant Clarification System Machine pressed oil diluted with water after sedimentation, filtration, fiber material removed from the oil, and then for continuous settlement, divided into two parts: oil and sediment. The oil is separated by centrifugation and is pumped into a storage tank for storage under vacuum. After the oil sediment is filtered and the oil is separated, the oil is subjected to secondary sedimentation, the oil-oil mixture is clarified and separated, the oil sketched is subjected to secondary sedimentation, Into the sewage treatment tank.

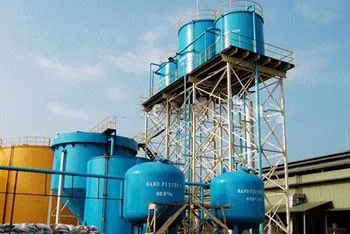

palm oil processing plant Water System Only the after treated supply water can meet the sanitary requirement. Especially, the furnace supply water should be softened first, After anion and cation exchange resin treatment, meet the requirements of the boiler water, then be treated by deaerator for removing oxygen. At last, pump it into temporary tank for storage.
Palm FFB Pressing Line
Palm Kernel Pressing Line

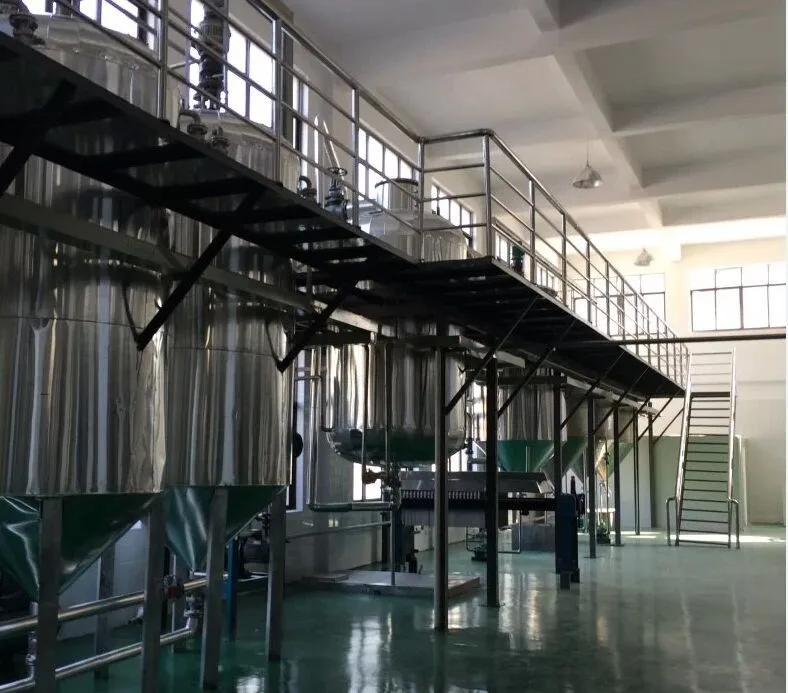

Crude Oil Refining and Fractionation
Packing & Delivery
Packed by the protect film inner, water repellent plastic outside. The wood packing is necessary if send by less than a container. it will fixed by steel rope in the container. Make sure it is in good condition when arrived destination. Shipping : 30 days after receiving your deposit or L/C .

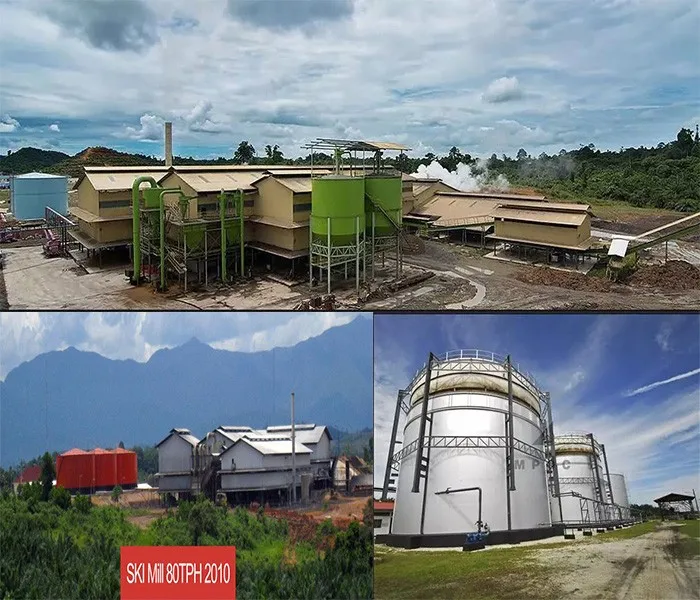

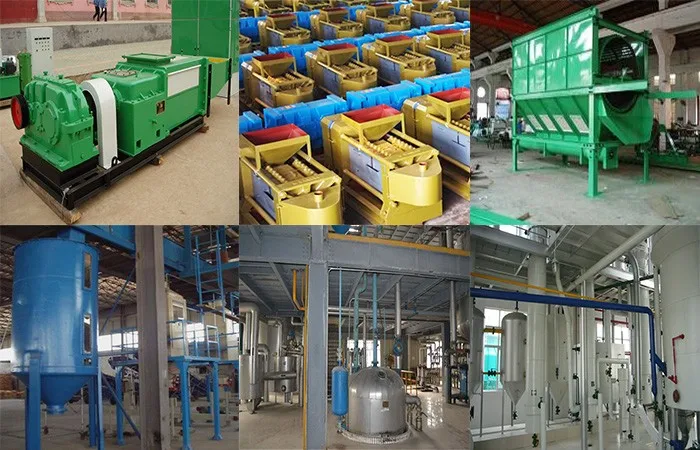

Wuhan Kinetic is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions. With more than 30 years of experience on oil making machine, we provide a comprehensive range of products We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication. The following pictures show our factory and customers in our workshop.
Pre-sales service 1.Quick response 2.Detailed quotation 3.Professional production and transportation solution After-sales service 1.Warranty policy one year from shipment 2. We will send you the replacement after received the broken part 3. Evaluate the customs risk and choose safest shipping company before shipping. 4. Follow status up time by time until the goods arrived.
Q1: What is the Warranty for the machines? A1: 1 year for free.
Q2: What is the Material? A2: Stainless steel and carbon steel.
Q3: When can I get the price? A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount? A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation? A5: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil? A6: Yes, but we recommend no more than 3 different types.
Q7: Why need extraction? A7: If only pressed, oil residue inside cake is very high at lease 6%. But after extraction, the oil residue will be less than 1%, which greatly increases the oil yield. Q8: Vegetable oil plants require how large of a workspace? A8: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q9: How long will it take to receive my products? A9: As a general rule, it will take one Month for us to produce.
Q10: Do you offer oversea installation? A10: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
