pionjar 120 jack hammer YN27C internal combustion rock drill for sale

$419.00 / Piece | 1 Piece (Min. Order)
Model Number:
YN27C
$419.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
LH
Usage:
to drill rock
Voltage:
gasoline rock drill
Power(W):
gasoline rock drill
Dimension(L*W*H):
746*315*229mm
Weight:
27KG, 27kg
Certification:
CE,ISO,SGS
Warranty:
2 years
name:
YN27C gasoline diesel petrol rock drill
overall dimension:
746*315*229mm
engine:
single cylinder, air cooled two strokes
displacement of engine:
185cm^3
carburetor:
hand needle valve, no floating type
Drilling speed:
more than 2450r/min
Max drilling depth:
6M
Fuel consumption:
1.2L/min
Tank capacity:
more than 1:14L
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
73X50X38 cm
Single gross weight:
40.0 kg
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Product Description

Introduction
The internal combustion rock drill type YN27 is a very efficient hand held drill machine bulit up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used for breaking, percussive drilling, tamping besides rock.

Advantages
•Needless to replace the internals of the engine head, just handle the handle to operate it.
•Easy to operate. More time-saving and effortless. Drilling faster and more efficient.
•Have reached the Tip-top level of the same field now, and allow to be replaced with the same kind of the domestic products.
•Available for drilling, splitting breaking, ramming, shovelling. And widely used in mining,road-construction, quarrying and national defense construction, etc.

Model
YN27C
Weight
27kg
overall dimension
810*380*280mm
engine
single cylinder, air cooled two strokes
Cylinder diameter*stroke piston
58*70mm
Rotating speed of engine
more than 2450r/min
displacement of engine
185cm^3
carburetor
hand needle valve, no floating type
Ignition system
controllable silicon contactless system
Drilling speed
more than 2450r/min
Max drilling depth
6M
Fuel consumption
1.2L/min
Tank capacity
more than 1:14L
Gasoline and lubricating oil blending ratio
9:1
end of drill rod dimensions
hexagonal 22*108mm
Rotating speed of drill rod
more than 200r/min
Clearance of spark plug
0.5-0.7mm
Customers Visiting

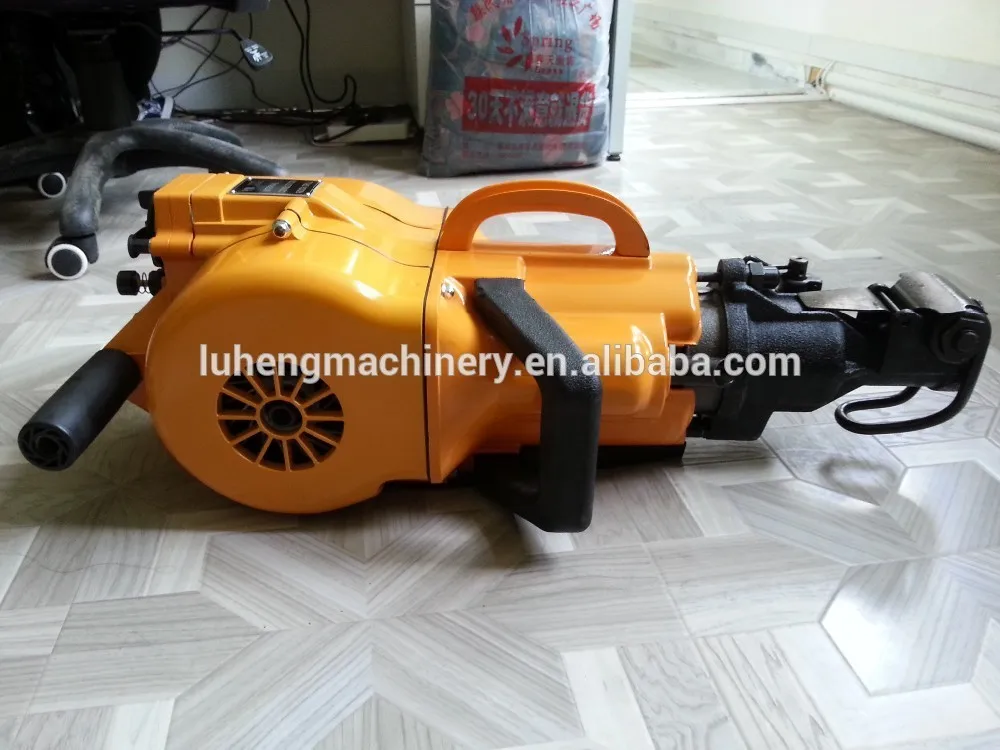

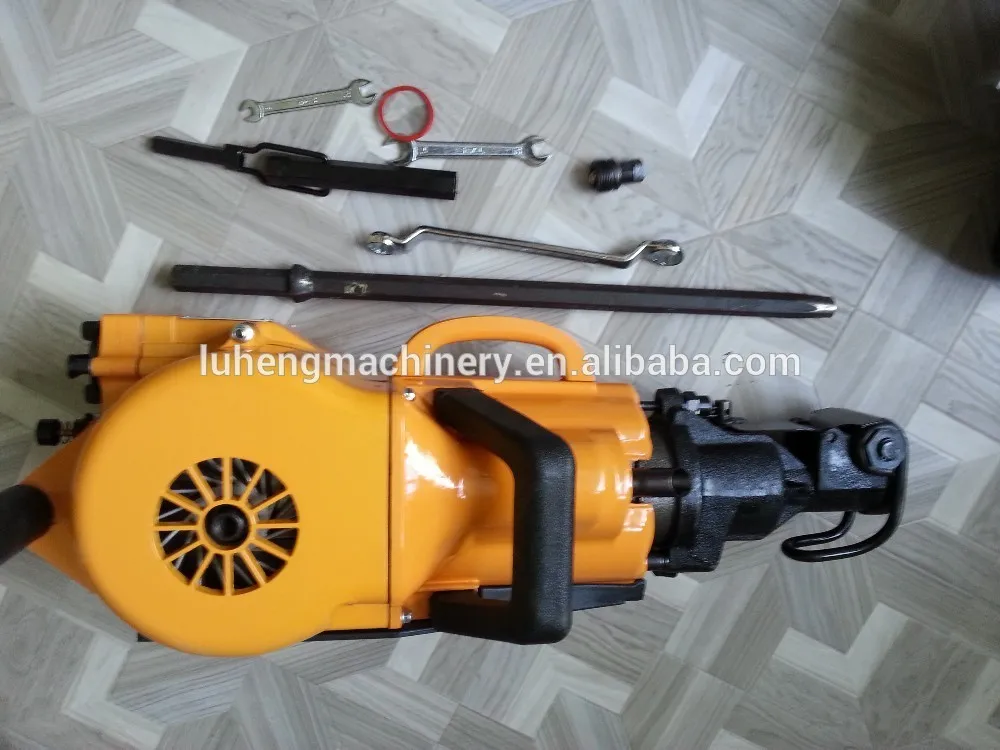

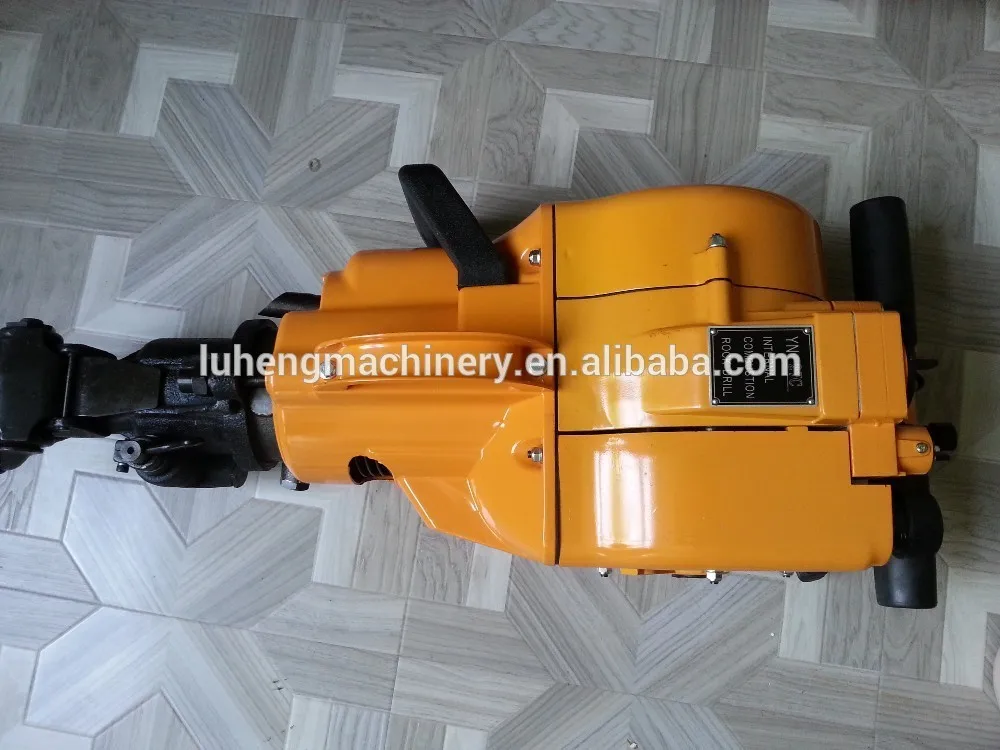

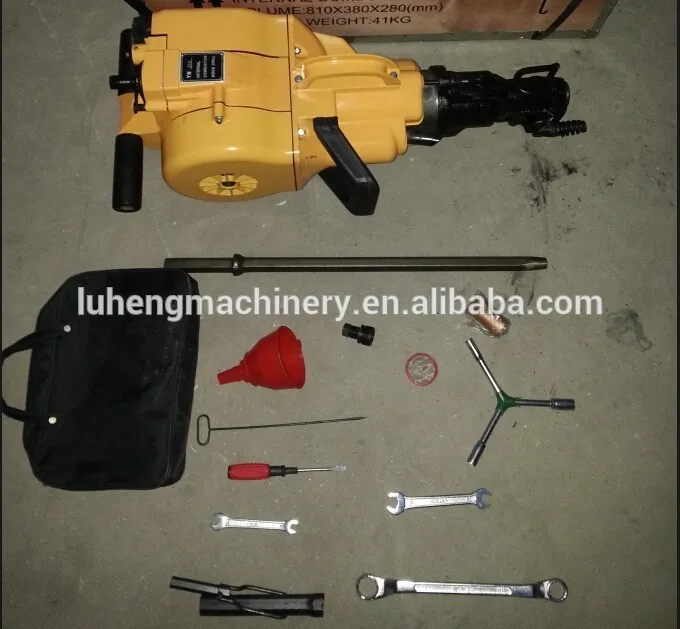

Detailed Images

Machine Parts

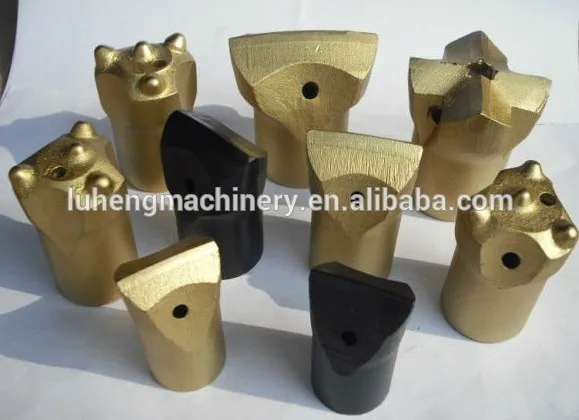

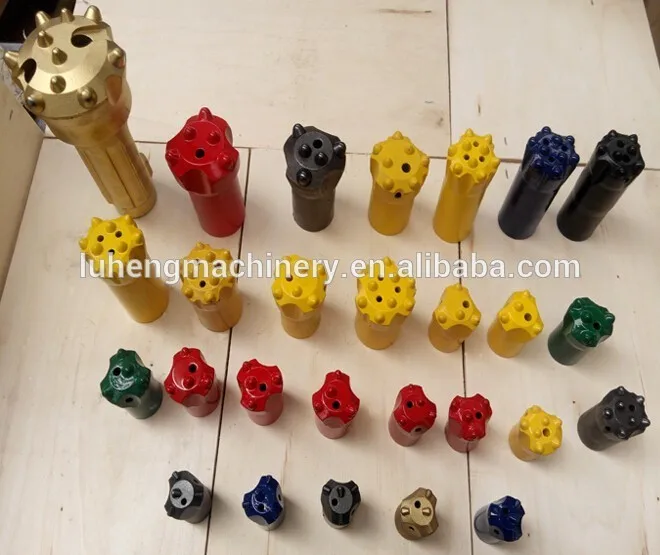

Name: drill bit
Brand: HWLH
Original: Made in China
Size:28mm,32mm, 34mm,36mm, 38mm,40mm, 42mm or customized according to your need
Ralted name :Tapered chisel bits/ Tapered cross bits/Tapered button bits,

Main Features

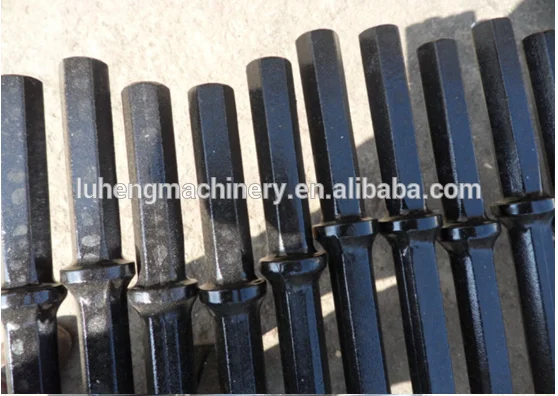

Name: B22 Drill rod
Brand: HWLH
Original: Made in China
B22 drill rod,the length can be customized

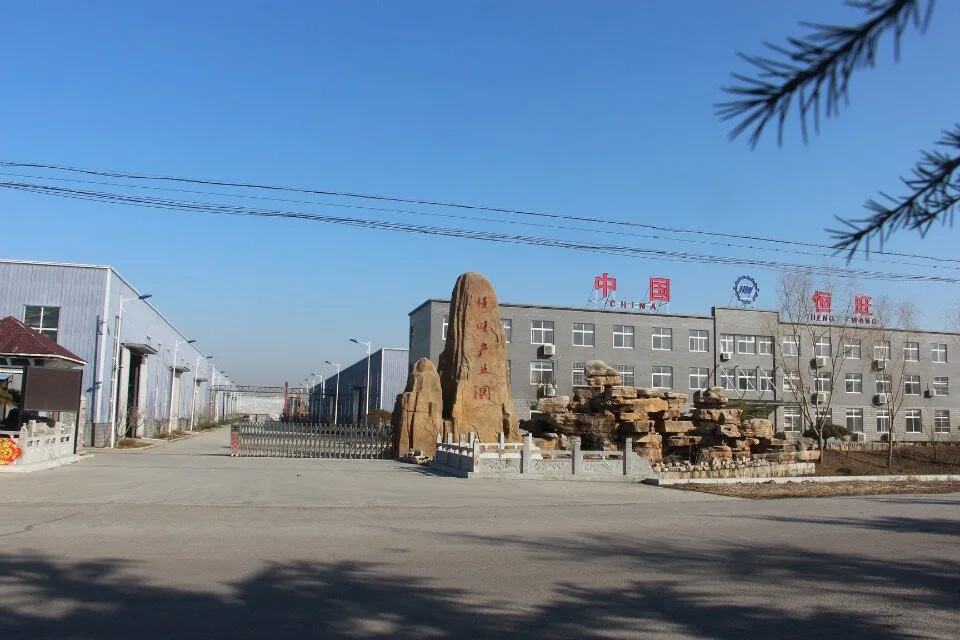

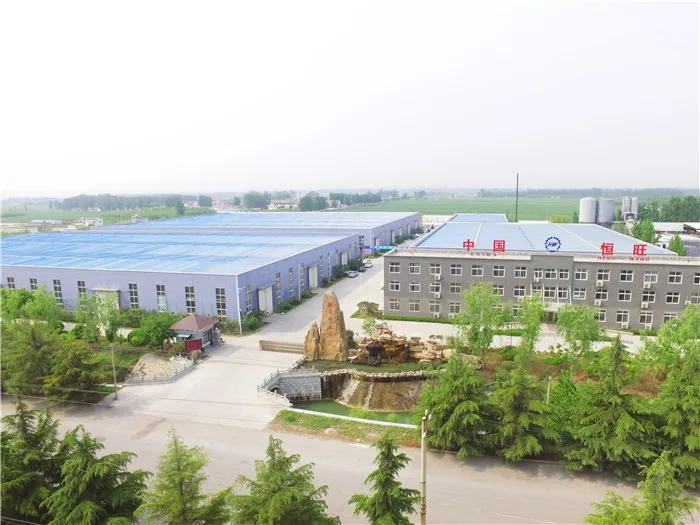

Our Company
Packing & Delivery
Packaging
Size
810*380*280mm
Weight
40KGS



Packaging Details



Standard export wooden case
