pool solar panel epdm frame

FOB Reference Price:Get Latest Price
$140.00 - $180.00 / Sets | 1 Set/Sets for pool solar panel epdm frame (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SKI SOLAR/OEM
Model Number:
SKI-CF
Type:
Manifold Collector, Craft Paper
Application:
Water Heater, Home or Project
Pipe Material:
Copper
Product name:
Flat Plate solar heating system;Flat Plate solar heating system
Tank Capacity:
100-500L
Absorber material:
Black chrome or Blue Tinox
Border:
Aluminium alloy
Tube material:
Copper
Size:
2000x1000x80
Weight:
35kg
Backsheet material:
Aluminium alloy
Supply Ability
Supply Ability:
5000 Set/Sets per Month pool solar panel epdm frame
Packaging & Delivery
Packaging Details
Export packing for pool solar panel epdm frame
Port
Shanghai

pool solar panel epdm frame

Product Description





What is the flat plate solar collector?



Flat Plate Solar collectors contain an insulated layer and weatherproof box. The box contains a dark absorber plate, covered by one or more transparent or translucent glass. Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated. The flat plate solar collector is with high efficiency and reliable utilization. It is widely used at split pressurized solar water heater. The collector can be installed on roof or wall and it is harmonious with the building.

What is the specification of the flat plate solar collector?




Specifications of flat plate:

Dimension L*W*T

2000mmX1000mmX80mm

Gross area

2.00m²

Aperture area

1.84m²

Absorber area

1.73m²

Cover

Tempered Glass

Cover transmission

89%

Net weight

35kg

Surface treatment

chrome plating

Absorber material

TP2 copper

Insulation

Rock wool, glass fiber cotton (black backing)  polyurethane compound

Insulation thickness

Back:45mm; Side:20mm

Border

Aluminum alloy



Water Tank Specifications:

Tank Capacity

Solar Collector

Electrical backup

Electrical backup

100l

2m²



1.5kw



2-3

200L

2m² or 4





1.5kw



3-4

300l 4

2.5kw



5-6

400L 8

2.5kw



8-10



What is the technology of this flat plate solar collector?



 Design Advantages:

 High efficiency:S-type tube structure initiated in China,the low-flow instant efficiency can up to 81.1%

 High safety:yphoon,hail,snow,heavy rain resisted design

  Pressurized operation:working pressure 0.75 Mpa,test pressure 1.2 Mpa

  Anti-low-temperature:can still work properly under -40°c



How to use this flat plate solar collector?



What is the details of this flat plate solar collector?



Projects of this flat plate solar collector







Quality control

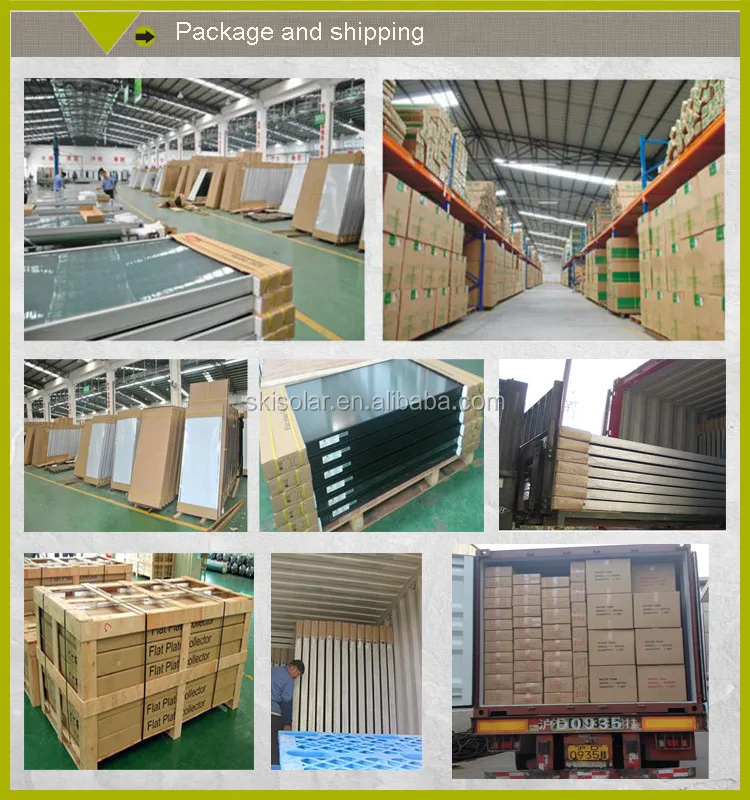

Packaging & Shipping









Package and shipping of this flat plate solar collector






Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 7-10 days for samples; 15-25 days for batch goods.
Payment Terms
1. Payment: T/T30% deposits70% balance against copy of original BL.
2. MOQ: 1pcs
3. Warranty : 5 years for water tank, 3 years for the collector



Company Information

Changzhou SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer  in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China.
It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.







Certifications





FAQ



1- What is your Delivery Time?
   LCL order:7-10days.
   Full container order:15-20days.
2- What is your Guarantee Time?
    3years; Provide you with some accessories,
3- Can you accept OEM and ODM ?
    YES, printing your LOGO on the package.
4- What is your payment term?
    We accept T/T or L/C.
5-What is your MOQ?
   1 sets
6-How do you pack?
   LCL order in plywood case
   Full container order in high quality export carton
7-What is your FOB port?
   Shanghai port.
8.-What is your monthly production capacity?
   1000 sets
9-What is your shipping term?
   By sea/Air/Rail/Truck
10-Do you any additional services?
   YES!
   We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings,  screws etc.
   And we can offer logo design, Products Advertising Design etc services free.
