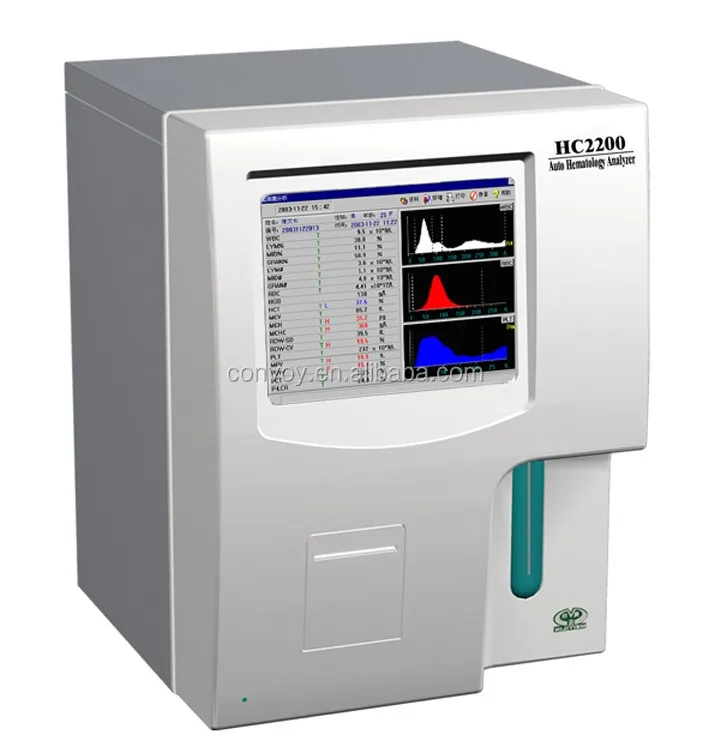

portable fully automatic 3 part hematology analyzer blood cell counter price

FOB Reference Price:Get Latest Price
$1,800.00 - $2,500.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 7 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Blood Analysis System
Brand Name:
Convoy
Model Number:
HC2200
Place of Origin:
Shandong, China (Mainland)
Instrument classification:
Class II
Product name:
fully automatic 3 part hematology analyzer blood cell counter price
Function:
blood analyzer system
Certificate:
CE ISO
Language:
Enlglish
Warranty:
1 Year
Display:
LCD displaying
Throughput:
60tests/hr
Power Supply:
AC110V/220V 50/60Hz
Dimensions:
235*370*545mm
Weight:
25kg
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
We use export-specific packaging wooden box packaging to ensure that the first phase is intact during transportation.
Port
Qingdao port
Lead Time :
Quantity(Units) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 7 15 30 To be negotiated
Product Description

Performance:

1.How It Works: Electrical impedance method, cyanide methemoglobin method and non-cyanide SFT method

2.Test Parameters: WBC three categories, 23 parameters(including color histograms of WBC, RBC, PLT)

3.Specimen Amount: Whole blood: 9.6μL; peripheral blood (direct detection):

9.6μL; peripheral blood (pre-dilution mode): 20μL

4.Test Speed: Single-channel: 30 samples/h, dual-channel: 60 samples/h.

May be continuous 24 hours a day, with automatic sleep and wake functions 5.Results Storage: The device saves 1.2 million copies of the results with all three histograms automatically

6.Quality Control Methods: L-J graph, X, SD, CV%

7.Automatic detection reagent margin, closed reagent tube

8.Calibration: Manual calibration and automatic calibration

9.Reference Value Setting: 8 settings groups with adult male, adult female, child, newborn, general all purpose and 3 groups of custom settings

10.Information: The device supports a variety of multiple patient information fast English input, including 12 kinds of information such as name, department and censorship.

11.Operation: Chinese Windows color operating system, graphical buttons, supporting mouse operation

12.Display: True color LCD with 8.4-inch large screen

13.Interface: A parallel printer interface, a VGA display interface, two RS-232 interfaces, two USB interfaces and two PS / 2 interfaces

14.Report Printing: Built-in high thermal printing, optional six reporting formats in English, and an optional external printer

15.Working Environment: Working temperature of 15-35℃, and can be used in high altitude environment

16.Power supply: AC 220V 50HZ


Principle
Electrical impedance for counting and SFT method for hemoglobin
Parameters

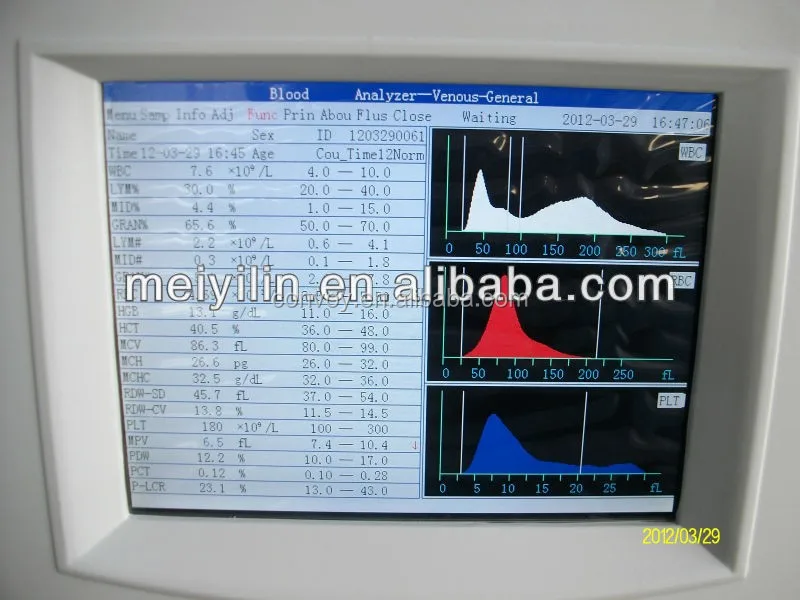

WBC,LYM#,MID#,GRA#,LYM%,MID%,GRA%,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-CV,RDW-SD,PLT,MPV,PDW,PCT.P-LCR and 3 Histograms for WBC,RBC and PLT.
Throughput
Up to 60 samples per hour
Sample Volume
 Whole blood: 9.6μL; peripheral blood (direct detection): 9.6μL; peripheral blood (pre-dilution mode): 20μL

Aperture Diameter
WBC:80μm RBC:50μm
Alarms
Error message
Display
8.4'' large color LCD

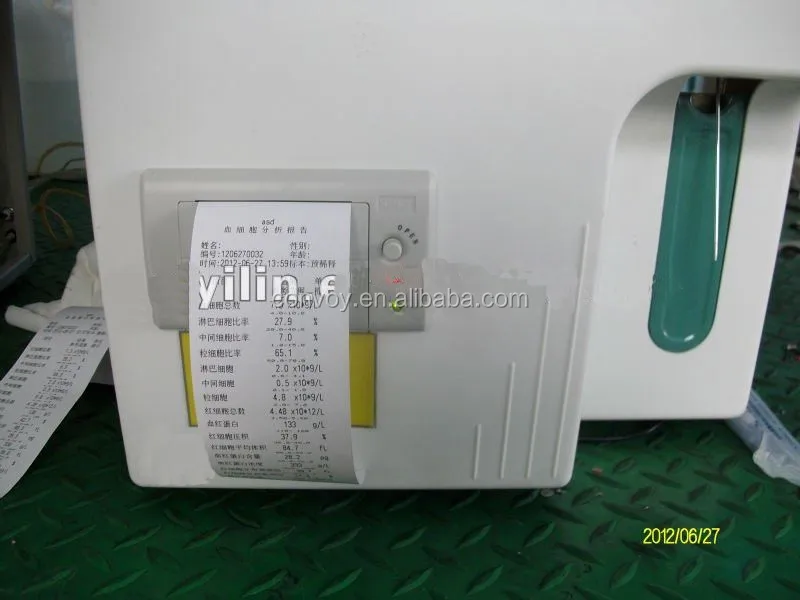

Printout
Built-in thermal printer,various print-out formats;external printer optional
Input
Mouse and keyboard,connected by USB port.
Interface
A parallel printer interface, a VGA display interface, two RS-232 interfaces, two USB interfaces and two PS / 2 interfaces
Storage
10,000 sample results including histograms,available to increase storage by expanding memory card.
Working onditions
Temperature:15-35℃,Humidity:≦80% Atmospheric pressure:70Kpa-106Kpa
Power supply
AC220±22V,50±1HZ
Dimension
325*370*545mm(L*W*H)
Weight
16kg(net),25kg(gross)
Detailed Images

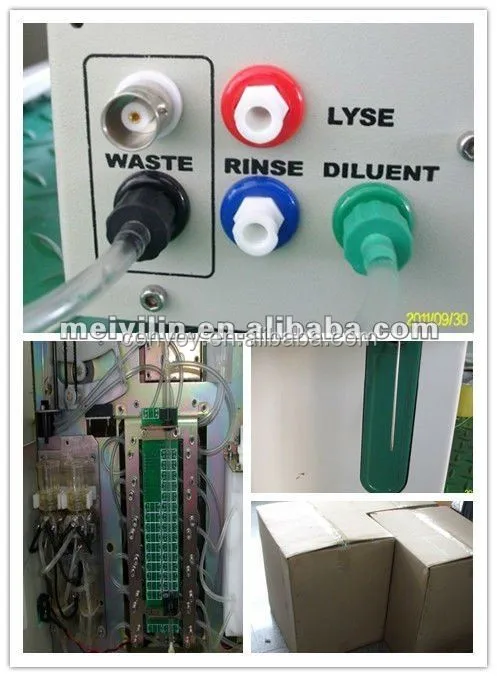

Back Of The Analyzer

On the back of the instrument is the reagent keyboard and USB interface

Side Of The Analyzer

On the side of the instrument are some components such as the solenoid valve circuit board are measured.

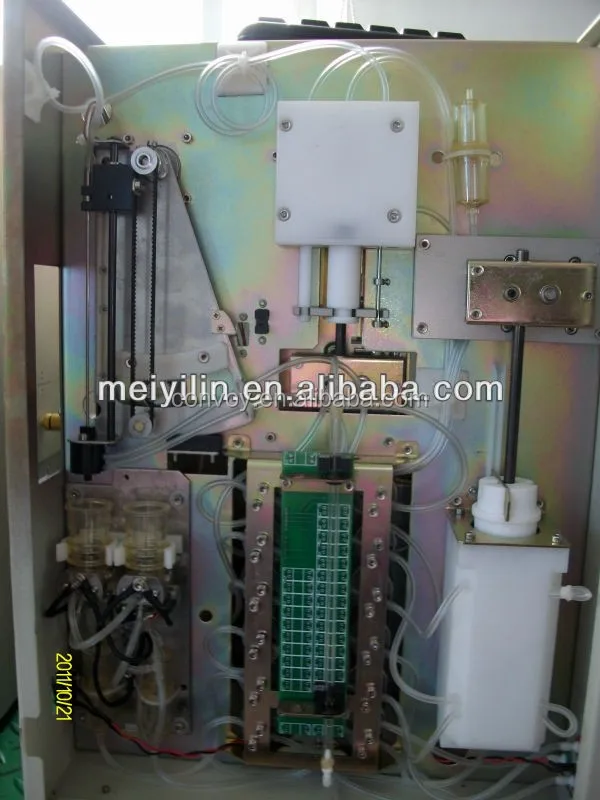

Inside Of The Analyzer

The motor sensor circuit and other components of the instrument are distributed inside the machine.

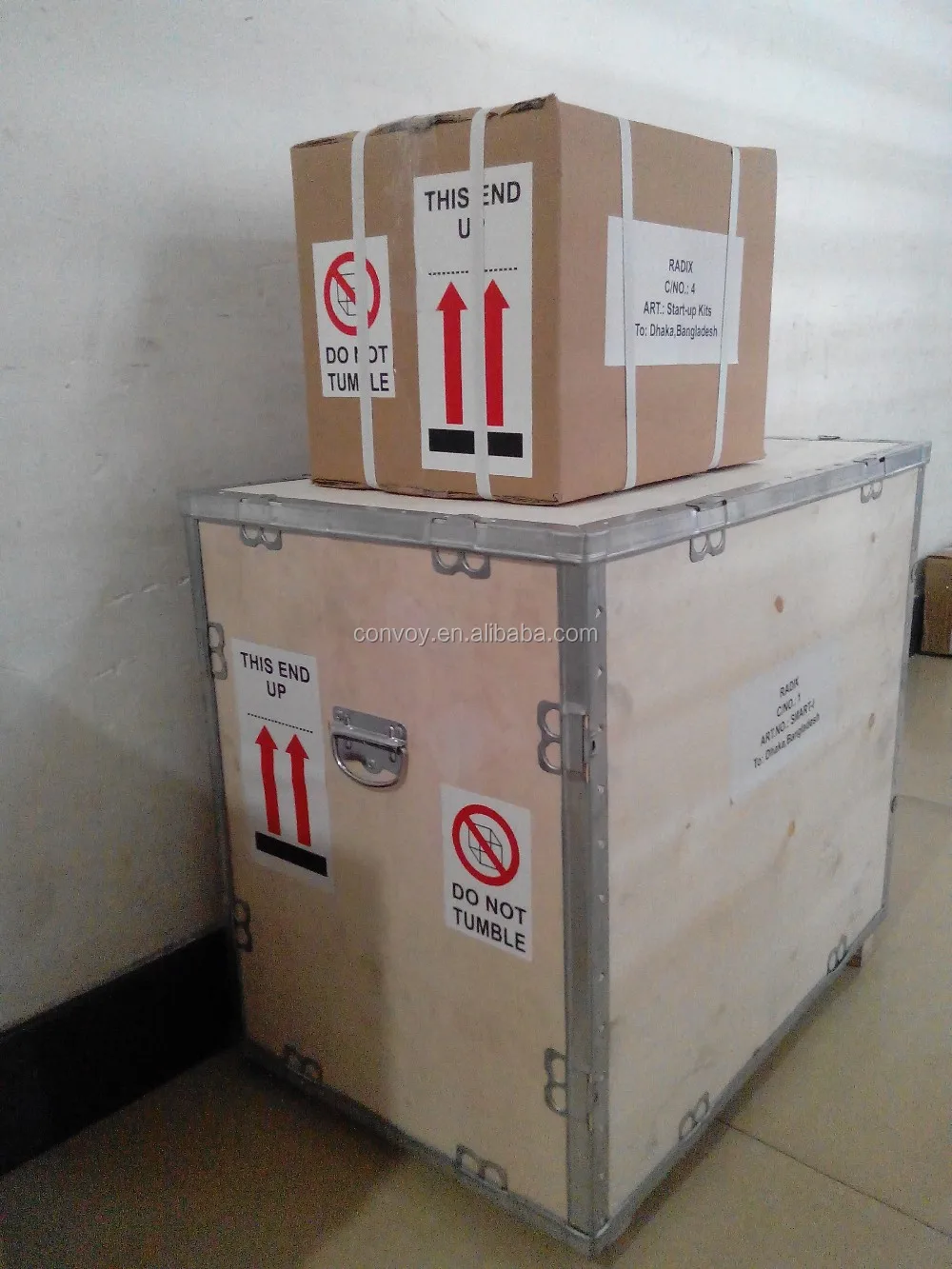

Packing&Delivery

We use export-specific packaging wooden box packaging to ensure that the first phase is intact during transportation.

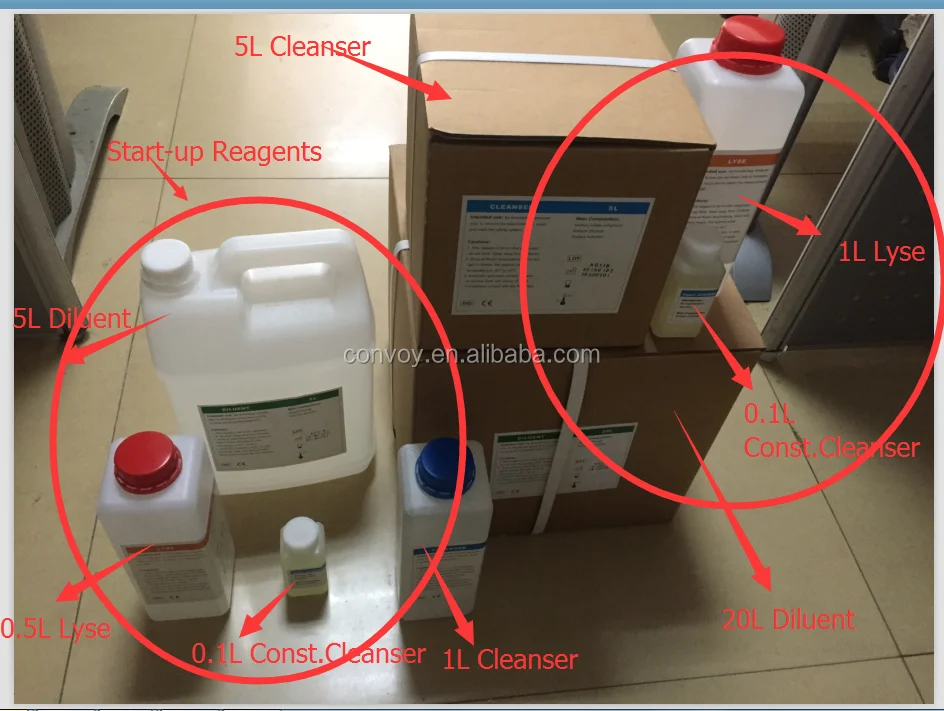

The packaging process is as follows, and every detail is subtle and appropriate. All the random accessories will be packed into wooden boxes, including instructions, liquid pipes, cables, etc., to ensure that you can use them when you open the box.

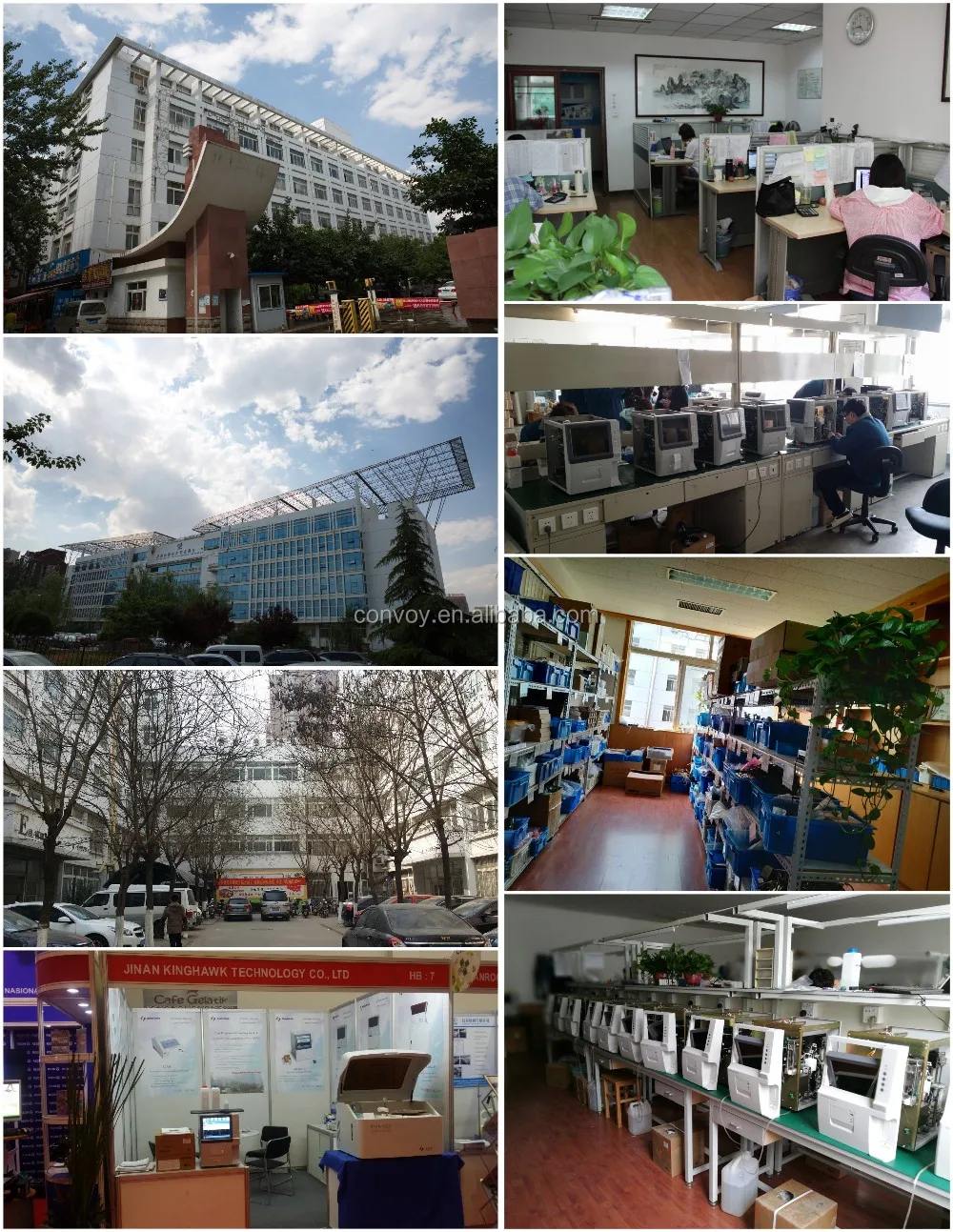

Our Company

Convoy is the largest professional medical & health products exporter in Jinan, China.Main products include Hematology Analyzer Chemistry Analyzer, Coagulometer, Electrolyte Analyzer and related Reagents, Controls, Calibrators. These products are widely used in hospital clinics, disease control centers, blood banks, veterinary clinics, scientific research center and college laboratories, etc.

Convoy team devote themselves to providing reliable diagnostics of excellent quality at competitive price. With our network of global partners, we try to fulfill customer and market needs to improve health services all over the world. "Lead in China, Service in Globe" is our consistent goal and pursuit.

Certifications
Why Choose Convoy


High Competitive Price we will supply the best price if we can to be long time partner

Excellent Quality - Quality is life toconvoy.So we have taken a number of strict QC steps to ensure that our product

range meets suitable quality standard.

Training & Backup for equipment and installation. We have qualified technical engineers to support customer all the time.

OEM service available, We provide custom machine colors, company name, logo and package.


Ordering:

Convoy offers easy and secure online ordering.

We also can be contacted via TM.Details contact information please refer CONTACT US on whatapp/wechat/Mob:+8618668911156

Payment

Convoy Medical will calculate the goods and shipping charges and send to you before we process the order.

Customer can arrange payment by T/T, LC, Western union etc. International credit cards are not accepted.

Shipping

Convoy Medical ships by sea, by air and courier, All in stock items will be shipped within 72 hours from receipt of payment.

Warranty

Our warranty for main unit is 12 months after purchase.

Any quality related problem happen during warranty time, we can exchange or repair for free.
