prefab light gauge steel wooden design bungalow house Beach resort water proof, termite proof, cyclone proof

FOB Reference Price:Get Latest Price
$220.00 - $360.00 / Square Meters | 60 Square Meter/Square Meters (Min. Order)
Material:
Light Gauge Steel
Lead Time:
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 100 Square Meters)
Customized packaging (Min. Order: 100 Square Meters)

More

Graphic customization (Min. Order: 100 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DeepBlue
Model Number:
DPBL-D-02
Use:
Hotel, House, Office, Shop, Villa
Main structure:
Light Gauge Steel
Wall material:
ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material:
glass wool EPS/XPS/PU sandwich panel
Ceiling material:
MGO board/gypsum board
Floor/foundation material:
laminate flooring/wooden/PVC carpet
Door:
steel security door/WPC or wooden door
Window:
aluminum alloy/PVC
roofing:
EPS sandwich panel/steel roofing/asphalt shingle
Other fittings:
toilet,washbasin,shower,kitchen etc.
Life time:
100 years for structure
Supply Ability
Supply Ability:
150000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
Light gauge steel in bulk;
Decorate panel material in pallet;
Other fittings all in boxes;
Loaded by 40' HQ and 20' GP sea container.
Port
NINGBO, CHINA
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 45 To be negotiated
ProductSpecification
No.
Item
Material
Specification
1
Foundation
Fixing to foundation
Chemical bolt
2
Structure
Steel frame wall
0.75/0.95/1.15mm steel wall
Roof truss
0.75/0.95/1.15mm steel truss
Joist (chassis)
0.75/0.95/1.15mm steel joist
3
Roofing system
Batten
35mm batten
Vapor barrier
Normal vapor barrier
Tile
Optional
Insulation
Glasswool
4
Ceiling system
Batten
22mm batten
Ceiling
Gypsum/MGO board, etc.
Insulation
Glasswool
5
Exterior wall
Ext. wall cladding
Optional
Vapor barrier
Normal vapor barrier
Insulation
Glasswool
6
Interior wall
Lining
Optional
Insulation
Glasswool
7
Floor system
Underneath of floor
CFC/ALC board, etc.
Flooring
Optional
Insulation
Glasswool
8
Kitchen
(if in plan)
Kitchen cabinet
Optional
Counter top
Optional
Sink
Optional
9
Bathroom
(if in plan)
Toilet
Optional
Washbasin
Optional
Shower
Optional
10
Doors and windows
Exterior door
Optional
Interior door
Optional
Window
Optional

Light Gauge Steel Structure
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

Design code

1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

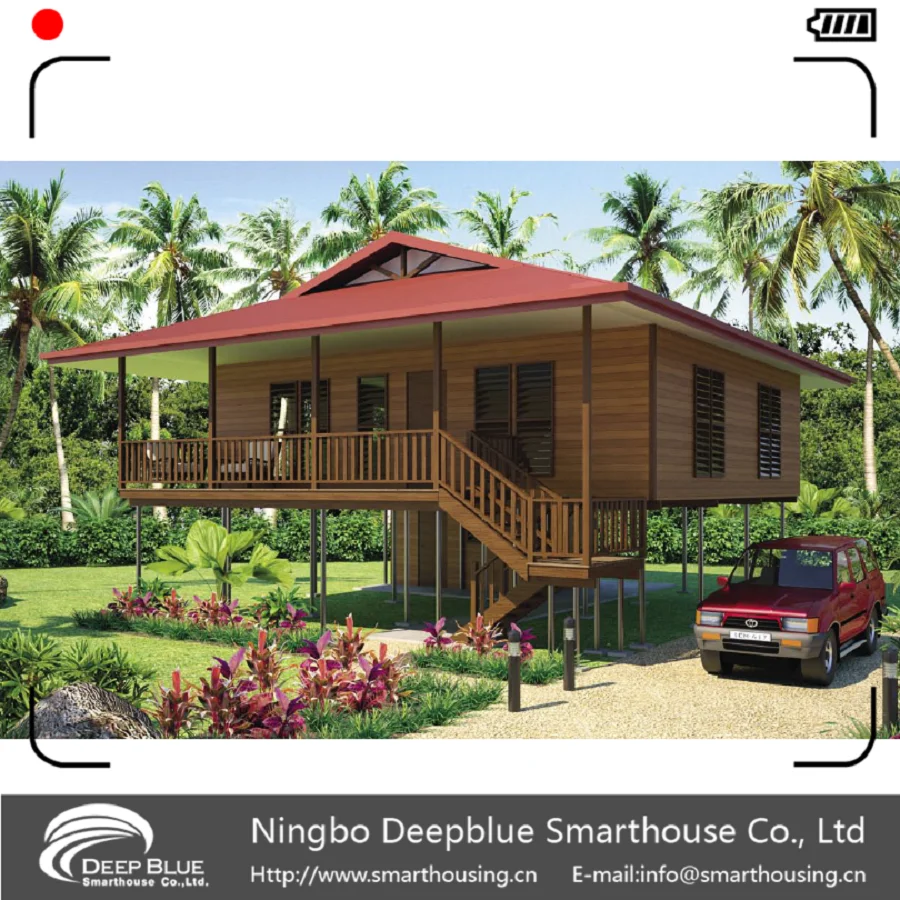

Product Reference
Our Company

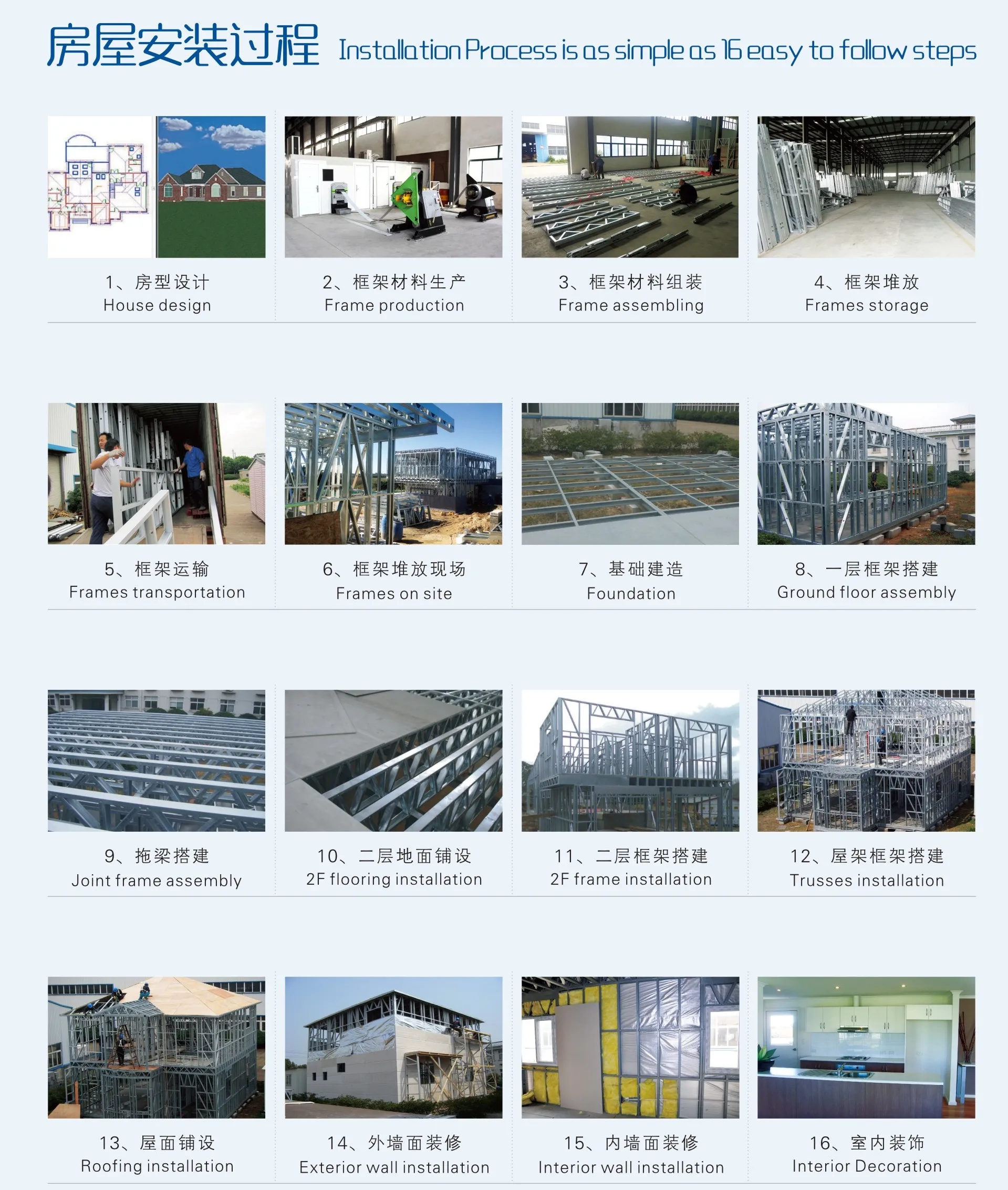

Installation Process
Our service
