press brake and bending machine for metal sheet WC67Y 80T2500

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WC67Y 80T2500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KLT
Voltage:
220V/380V
Dimension(L*W*H):
3050mm*1500mm*2190mm
Certification:
ISO, CE
Warranty:
2 Years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Competitive Price
Product name:
press brake and bending machine for metal sheet WC67Y 80T2500
Color:
customized
Type:
Digital display synchronous control, Shearing Machines
Control system:
Estun or Delam
Application:
sheet bending
Bending material:
iron or stainless steel or aluminium
Name:
press brake and bending machine for metal sheet WC67Y 80T2500
Nominal pressure:
80T
throat depth:
250
Worktable length:
2500mm
Rated Power:
7.5 KW
Weight:
6000KG
Supply Ability
Supply Ability:
30 Set/Sets per Month press brake and bending machine for metal sheet WC67Y 80T2500
Packaging & Delivery
Packaging Details
steel tray case for press brake and bending machine for metal sheet WC67Y 80T2500
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Product Description

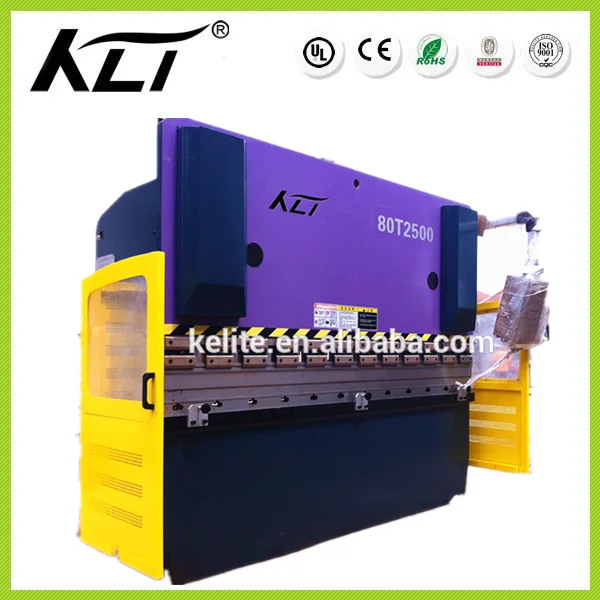

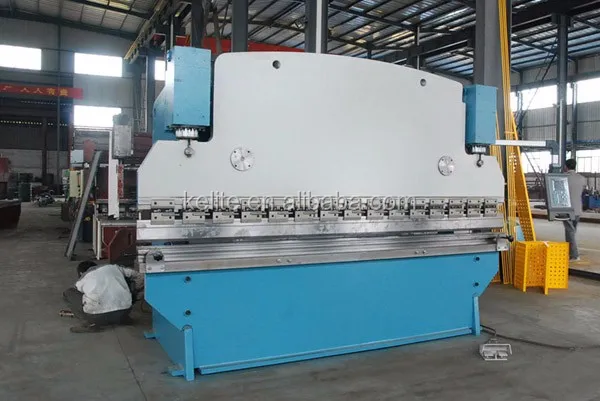

press brake and bending machine for metal sheet WC67Y 80T2500

Model
WC67Y 80T2500
Dimensions
3050mm*1500mm*2190mm
Features
1. The forced synchronous of machine are controlled by crankshaft.
2. The back gauge is driven by normal motor and inverter. The transmission is controlled by normal guide screw. Direction guiding is controlled by polished rod.
3. Clamping device of top mould is mechnical clamp. It is optional to choose the fast speed clamping device.
4. Low mould is choosed multiple "V" mould. Customers can choose different ringent designed multiple "V" mould
5. Generally speaking, digital display synchronous hydraulic press brake is economic, high usement machine. But the precision is low and the low mould need to be adjusted by manual
Certificate
CE, ISO9001:2008
Packing details
steel tray case
MOQ
1 set
Warranty
2 years
Payment
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Bramd
KLT
Specifications  for press brake and bending machine for metal sheet WC67Y 80T2500
Item
Unit
Parameters
Model
/
WC67Y 80T2500
Nominal Force
KN
800
Lenghth of working table
mm
2500
Distance of upright column
mm
2080
Slider stroke
mm
100
Opening height
mm
350
Throat depth
mm
250
Back gauge stroke
mm
600
Slider adjusting range
mm
50
Times of stroke
times
≥8
Overall Size
F.B.
mm
1500
L.R.
mm
3050
Height above floor
mm
2190
Motor Power
KW
5.5
Gross weight
T
6


Detailed Images

Machine Parts

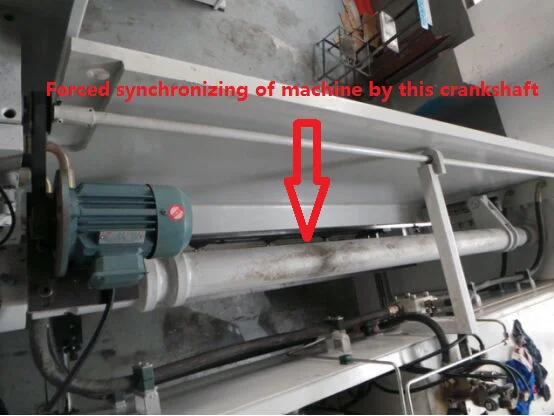

Name: Crankshaft

Brand: KLT

Original: China


Machine Parts

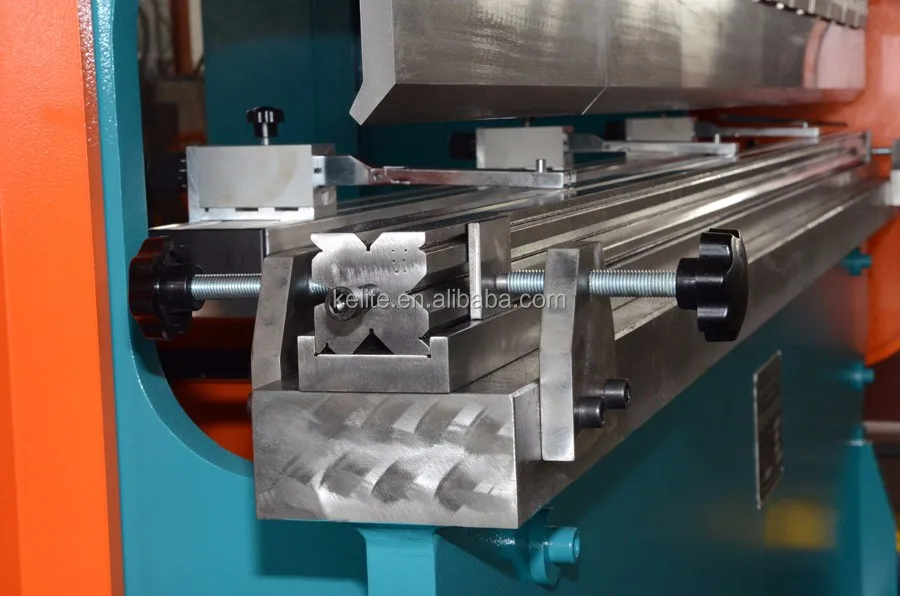

Name: Multiple "V" low mould
Brand: KLT
Original: China
This is a standard one, customers can choose by themselves

Machine Parts

Name: Servo motor and driver and emergency button
Brand: Panasonic/Yaskawa
Original: Japan

Machine Parts

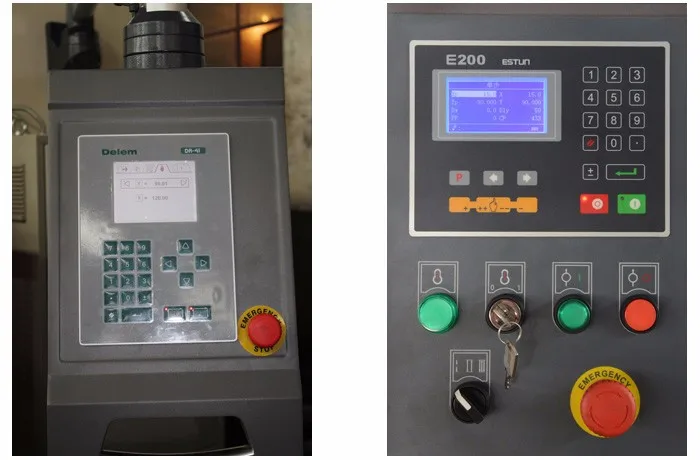

Name: Control system
Brand: ESTUN/Delam
Original: China/Holland
The model of ESTUN control system is E10 or E21. The model of Delem control system is DA41. Customers can choose control systems by themselves.

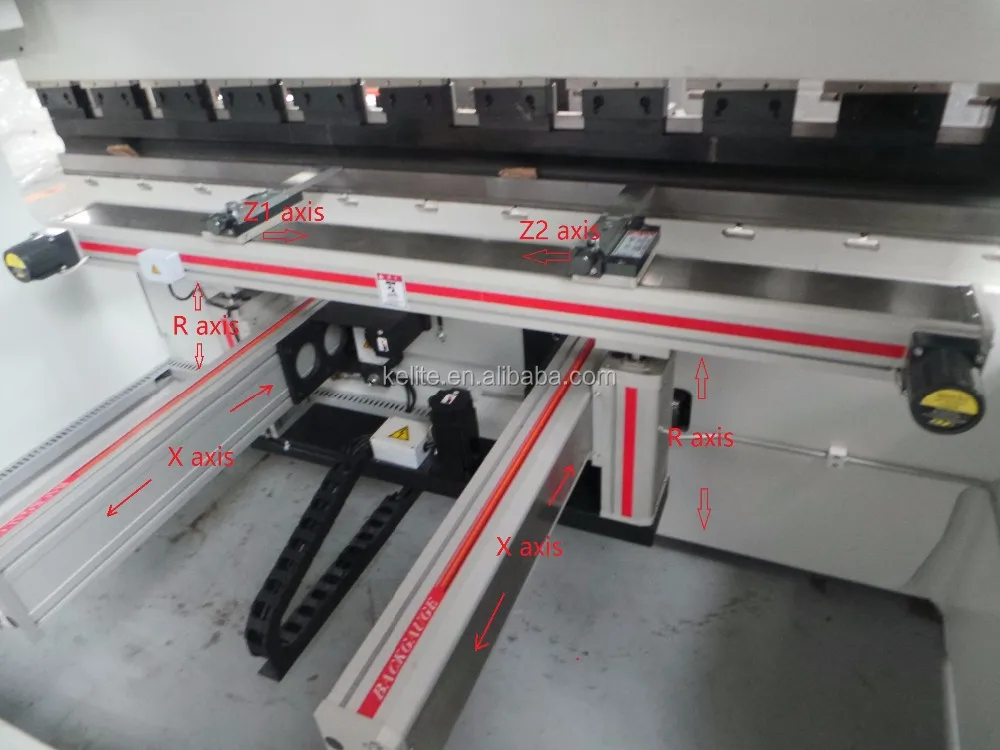

Optional axes

Machine Parts

Name: Location prop

Brand: KLT
Original: China


Machine Parts

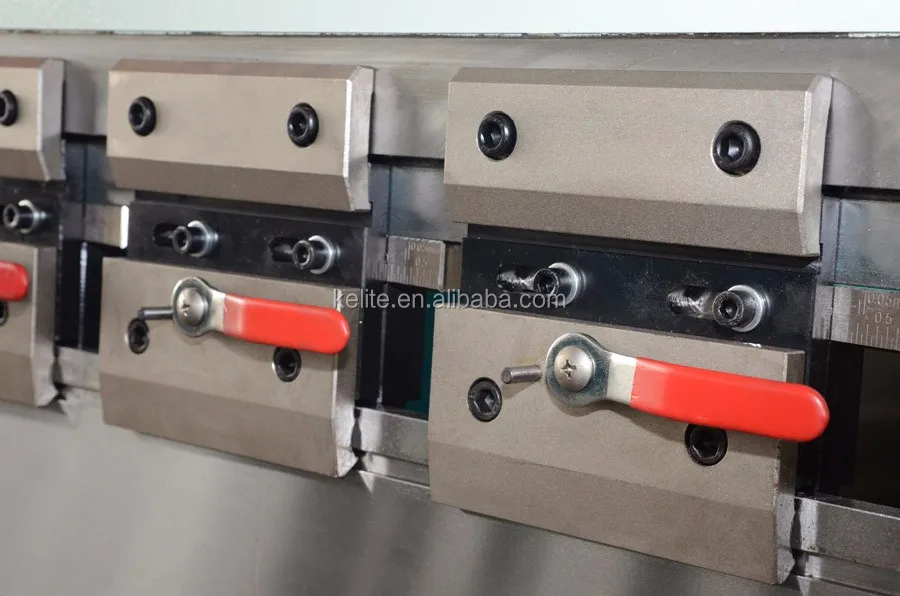

Name:Manual adjusting clamping device

Brand: KLT
Original: China

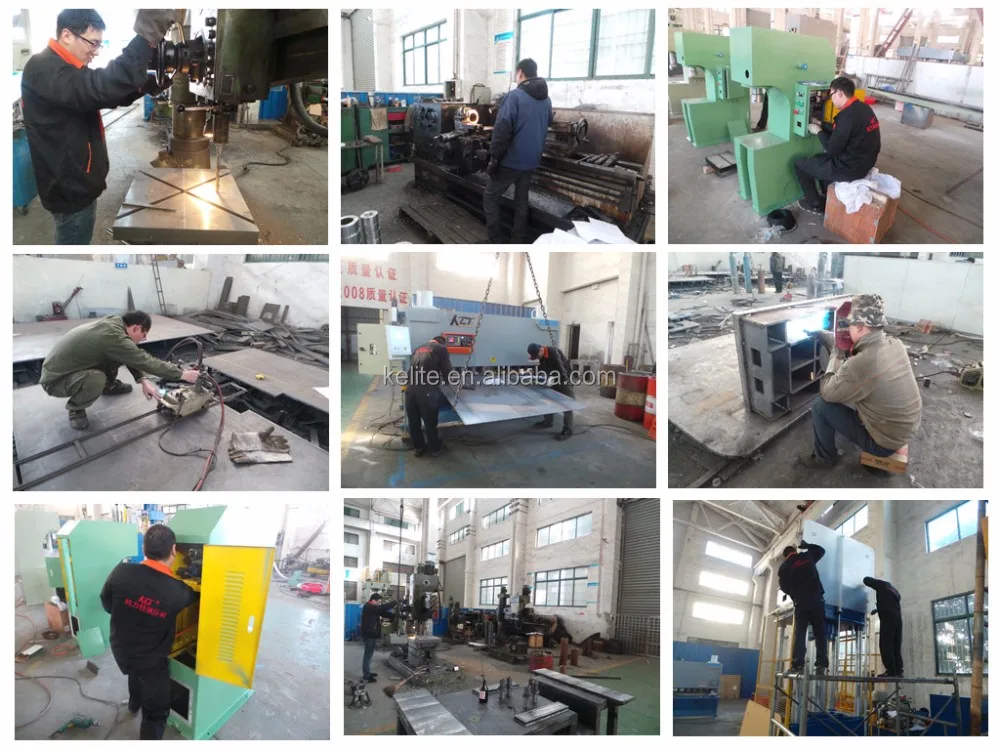

Product producing process:

Our Company

Wuxi KLT precision hydraulic machinery factory located in Jiangsu province China, closed to Shanghai city and transportation is very convient. Our factory took the lead in passed authentication of the ISO9001:2008 quality management system and CE certificate. A factory specialized in the production of hydraulic press brake and shearing machine. All along, the company products with exquisite design, reaonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to the United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.

Advantage:

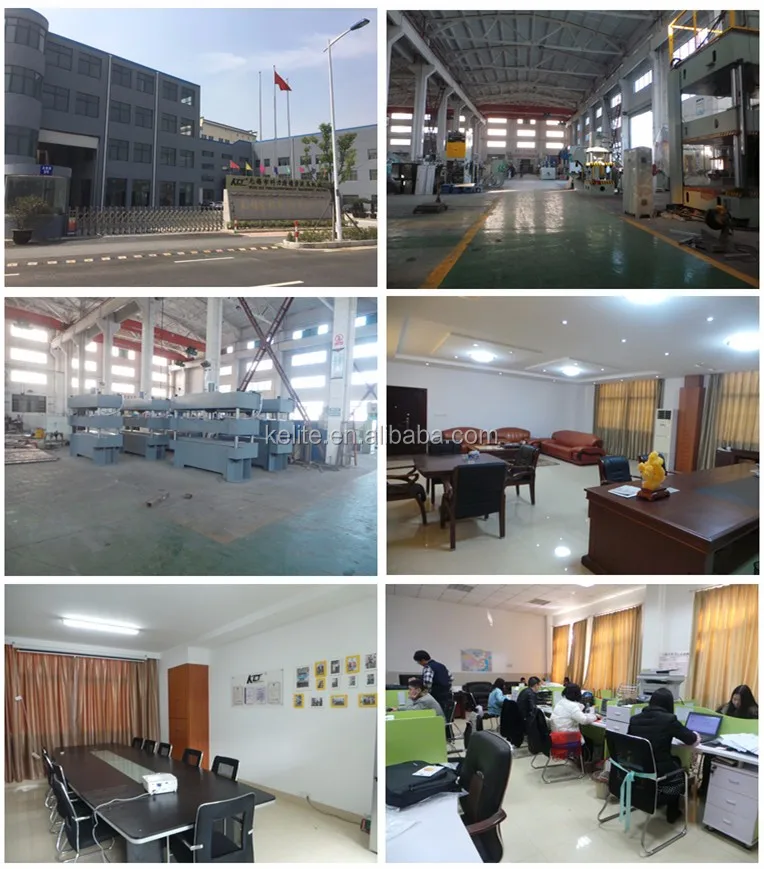

Working environment:

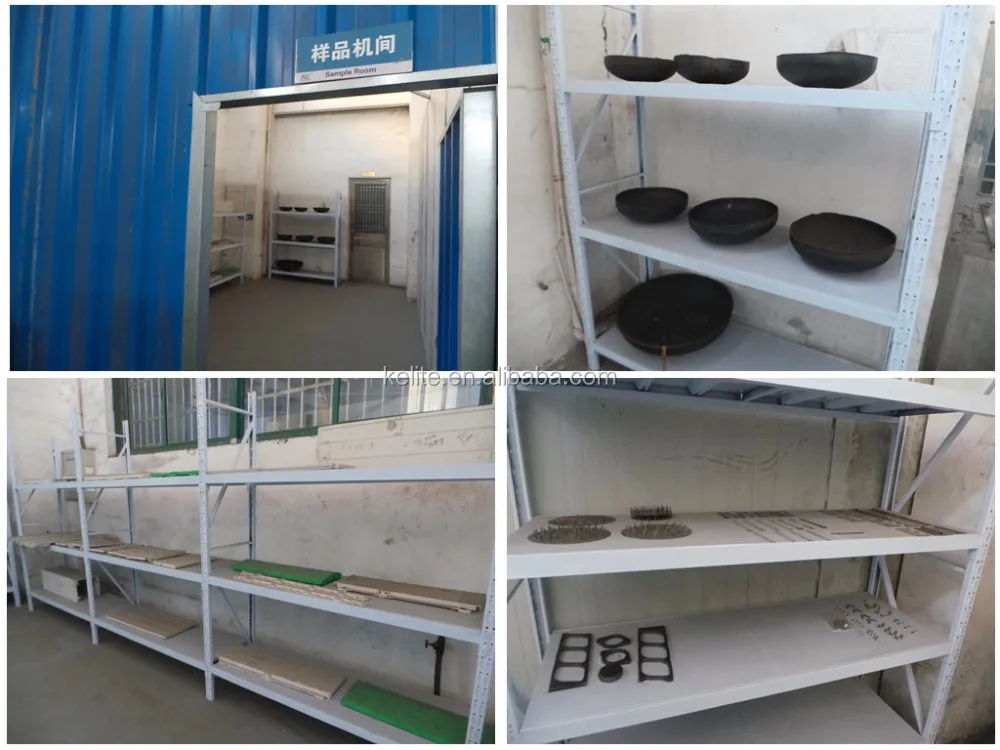

Sample room show:

Exhibition show:

Customers' show:

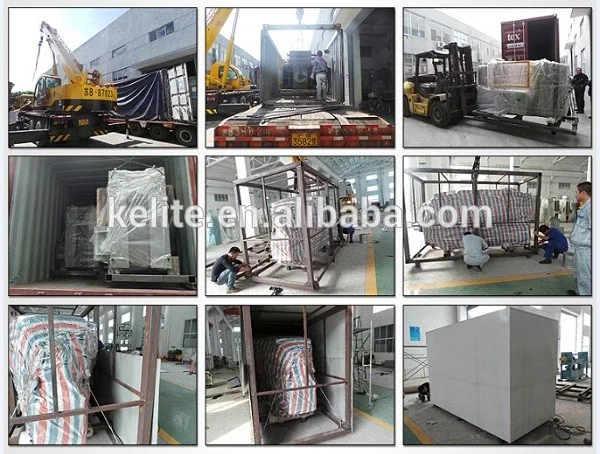

Packing & Delivery

Packing type: Steel tray case

Delivery: 15-40 days after receiving deposit

Certifications
Our Service
FAQ

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.

Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.

Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.

Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
