PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical

No reviews yet
Shanghai Printyoung International Industry Co., Ltd. Custom manufacturer 17 yrs CN
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical
PRY-YC-850 Automatic Four and Six Corner Box ALL-IN-ONE Inspection Machine Gluing Machine for Folder Glue 180-450g/m Mechanical

Service

Free replacement parts
View details

Key attributes

Industry-specific attributes

voltage
380 V

Other attributes

packaging type
Cartons
packaging material
paper
automatic grade
Semi-automatic
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Gear, Pump
application
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
driven type
Mechanical
place of origin
Zhejiang, China
brand name
PRINTYOUNG
dimension(l*w*h)
17 * 2.7 * 1.6 m
key selling points
High-accuracy
Modal
PRY-YC-850
Max. Format Size
850 * 600 mm
Inspection Size
Max : 600 * 600 mm , Min : 100 * 100 mm
Paperweight
180 ~ 450 gsm
Max. Feeding Speed
350 m/min
Max. Inspection Speed
240 m/min
Dimension
17 * 2.7 * 1.6 m
Gross Weight
9.5 T
Power Need
22 kw
Min. Spot Defect Size
0.1 mm2 , Contrast > 15

Packaging and delivery

Selling units
Single item
Single package size
1700X270X160 cm
Single gross weight
9500.000 kg
Show more

Lead time

Quantity (sets) 1 - 100 > 100
Lead time (days) 40 To be negotiated

Customization options

Product descriptions from the supplier

Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

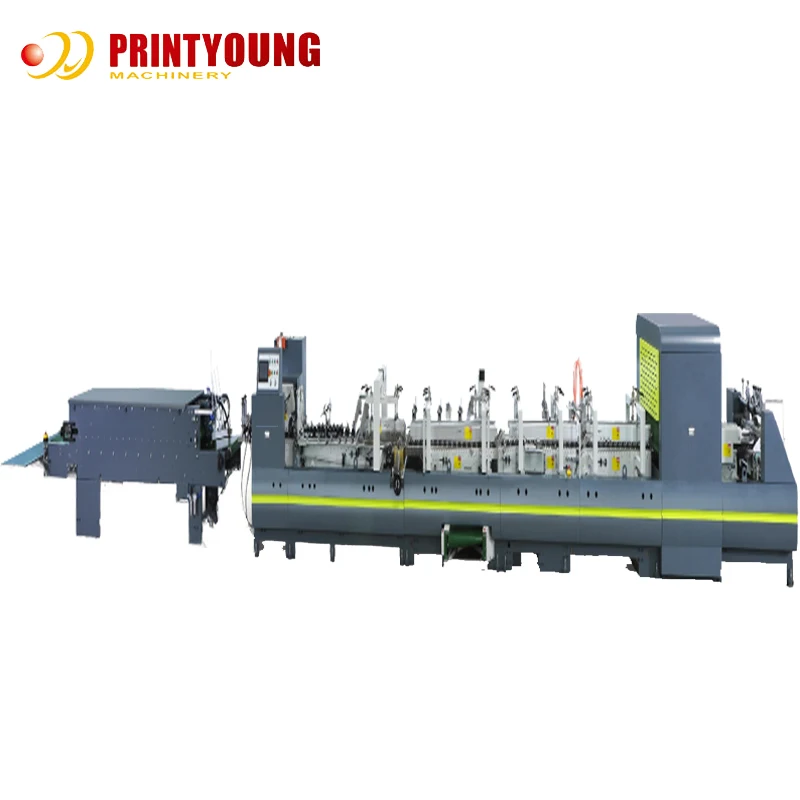

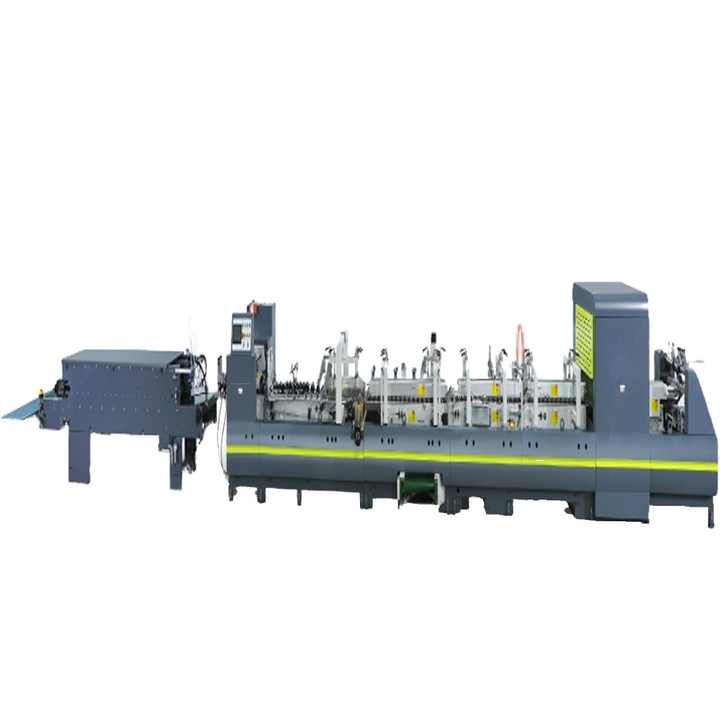

PRY-YC-850 All-In-One Inspection Machine for Folder Gluer

Features

*Paste box and inspect quality at the same time,increasing qualified rate of delivery and shortening process flow.
*Feed paper with the printing surface facing down,to avoid the second time scratch.
*Easy to install and connect to existing folder gluer machine without any modification,or used as inspection machine alone.
*Inspect bath the front and back sides for printing defects,dis-cutting devaluation,drug code and etc comprehensively.Designed with intelligence,it only takes 2 hours for the operator to fully control the inspection system.
*It takes only 5 minutes to create a new job.
*Inspect with stability to make machine vision extremely close to human eyes,efficiently avoiding the waste and saving cost.
Technical Parameters
PRY-YC-850 All-In-One Inspection Machine for Folder gluer
Modal
PRY-YC-650
PRY-YC-850
PRY-YC-1100
Max. Format Size
650 x 500 mm
850 x 600 mm
1100 x 500 mm
Max. Inspection Size
450 x 450 mm
600 x 600 mm
800 x 800 mm
Min. Inspection Size
100 x 100 mm
100 x 100 mm
100 x 100 mm
Paper Weight
180 ~ 450 g/m2
180 ~ 450 g/m2
180 ~ 450 g/m2
Max. Feeding Speed
350 m/min
350 m/min
350 m/min
Max. Inspection Speed
240 m/min
240 m/min
240 m/min
Dimension
15 x 2.5 x 1.6 m
17 x 2.7 x 1.6 m
17.5 x 2.9 x 1.6 m
Gross Weight
8.5 T
9.5 T
10.5 T
 Power Need
20 kw
22 kw
24 kw
 Min. Spot Defect Size
0 ~ 1 mm2 (Contrast > 15)
Min. Linear Defect Size
0.15 * 5 mm (Contrast > 15)
Color Difference Accuracy
A Es3
Overprint Devaluation
± 0 ~ 15 mm
Die-cutting Devaluation
± 0.3 mm
Drug Code Inspection
Code Repeated,Code Missing,Code Mistake
Appearance Inspection
Printing Missing,Break,Spot,Printing Misplace,Smear
Collection for Good Sheets
 In Fish-Scale Way
 Collection for
Defected Sheets

In Fish-Scale Way
Configuration

Btrombone

Single and easy。eration for upper/down expansion adjustment,Is fhight twin board moveable for piling belt is fine adjustable on height according to pile demand,improving the production efficiency.Conveying belt coordinate with main motor at AUTO model,equipped with counter and ejector.

Folding Unit

Independent frame and fixed folding bar for stable farming box.Left Aight folding belt is separately fine adjustable for belt speed, improving the folding accuracy.Special belt expansion function for convenient belt adjustment,no necessary to increase this belt tension again.

Folding-Back Unit

Longer throe-board type,the first raiding line with 180° and the third folding line with 135*,easy open box. Segment type upper board with special design is able to regulate in e）Q3ansion and contraction, assistant tar special shape box.

Gluing Unit

A user-friendly interface system with a colour touchscreen simplifies the operation process.The operator can easily and automatically control paper sizes,overlapping and machine speeds.

Register

Independent part could guide the paper box to a parallel handrail hat allows a perfect blank alignment
1) Correct the deviation
2)Facilitate the subsequent accurate folding of the paper cassette
3)Perfect folding quality inroughout the machine

Feeding Unit

Independent motor for drive,frequency inverter for adjusting speed,coordinating in proportion with main motor speed,to efficiently control the paper space.Pneumatic raising or Ailling far the feeding paper gauge holder and left fright side gauge,convenient for prompt regulation.The vibration motor mounted on paper supporting holder-for feeding paper smoothly.

Applications

It suitable for post press processing,widely used in cartons,cardboard boxes,gift boxes,food boxes,medicine boxes,etc.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.
We have agents in South Africa,Morocco and Italy.
