quality protection electric pedal cargo tricycle, cheap motorized tricycle bike, cheap tricycle

FOB Reference Price:Get Latest Price
$1,510.00 - $3,720.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LK270
Report Suspicious Activity
Overview
Quick Details
Use For:
Cargo
Driving Type:
Electric
Body Type:
Open
Certification:
ce
Power:
> 800W
Voltage:
72V
Brand Name:
Lianke
Place of Origin:
Henan, China (Mainland)
Size:
3600*1200*1400mm
Loading Capacity:
2 Ton
Net Weight:
1000 kg
Lifting Motor Power:
1000 w
Drive Motor Power:
2000 w
Cargo Box Sizes:
1800*1200*500 mm
Thickness of Cargo Box:
3-5 mm
Work Platform Height:
720 mm
Front Tire:
4.50-14
Rear Tire:
6.00-16
Operating Speed:
15-25 Km/h
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
As your requirement.
Or in SKD / CKD and container packaging from Qingdao.
Port
Qingdao
Product Descriptions

quality protection electric pedal cargo tricycle, cheap motorized tricycle bike, cheap tricycle

Product Application

The electric mini dumper is our main products, using electric as power source in mining, sanitation and cleaning. It is also widely used in mine, concentrator, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest, farm and so on. It is loved and received very well in current market.

Product Video
1. LK270 2 ton electric dumper load cargo tested on road-- https://youtu.be/4PJZz-Cg0nA
2. LK270 electric dumper load 2 ton video-- https://youtu.be/573lT4GERgk

3. Our South African customer test drive video-- https://youtu.be/11XyRH97j8Q

The parameters are in the below chart, the red parts belong to LK270 2 ton electric 3 wheel dumper.

Item
Main technical parameters
LK135
LK270
LK540
Weight
Loading Capacity
1 ton
2 ton
3 ton
Net Weight
500 kg
1000 kg
1600 kg
Battery
Voltage
12V*4
12V*6
12V*6
Charging Time
First is 12h, normal 6-8h
Working Time
10-12 h
Motor
Lifting Motor Power
1000 w
1000 w
1000 w
Driving Motor Power
1000 w
3000 w
5500 w
Sizes
Overall Sizes
2900*1000*1100 mm
3330*1200*1330 mm
3600*1300*1500 mm
Cargo Box Sizes
1450*900*400    mm
1800*1200*560 mm
2000*1300*600 mm
Thickness of Cargo box
3 mm/ 5 mm
3 mm/ 5 mm
3 mm/ 5 mm
Tire
Front Tire
4.00-12
4.50-14
5.00-14
Rear Tire
4.50-14
6.00-16
6.50-16
Others
Max Grade Ability
25 degrees
35 degrees
35 degrees
Maximum Tilt Angle of cargo box
45 degrees
Operating Speed
less than 30 km/h
Material
National standard square steel
Detailed Images

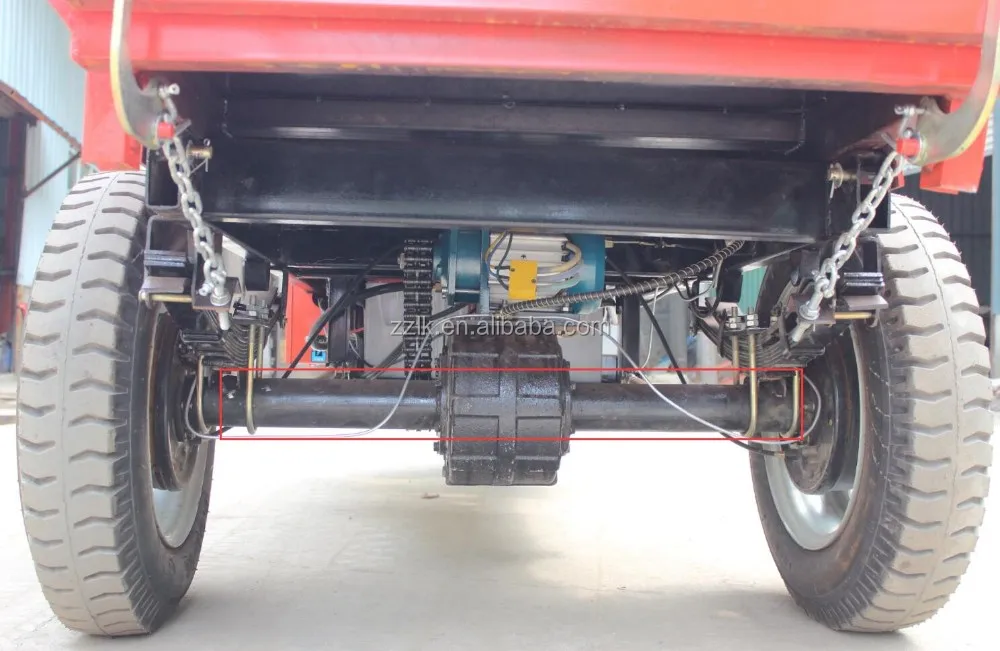

Integrated rear axle and brake

From the above figure we can roughly see  the vehicle chassis structure, especially the integrated rear axle, ensureing that the vehicle has a strong enough bearing capacity. In addition, this model is used hydraulic brake, brake performance is good. Pedal throttle, the vehicle is not the front brake, only the rear brake.

Double steel spring

The advantages of the leaf spring is simple structure, reliable, low cost, easy maintenance. It is both a flexible element of the suspension and a guide for the suspension. It is hinged at one end with the frame, which can convey various forces and moments and determine the trajectory of the wheel. At the same time, it itself has a certain role in the role of friction damping.

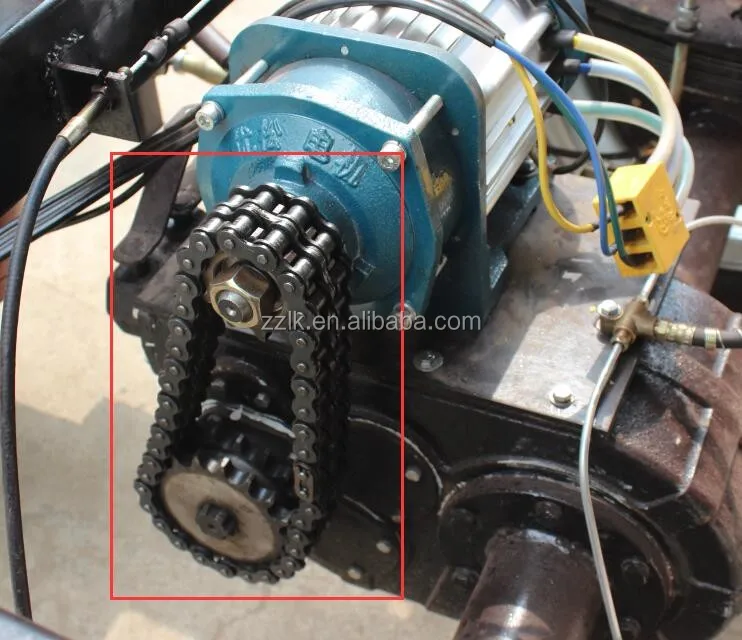

Double row chain

It has the advantages of simple structure, convenient assembly and disassembly, compact size, light weight, certain compensation ability, low installation accuracy, reliable work, long life and low cost. So it is very easy to have the daily maintenance.

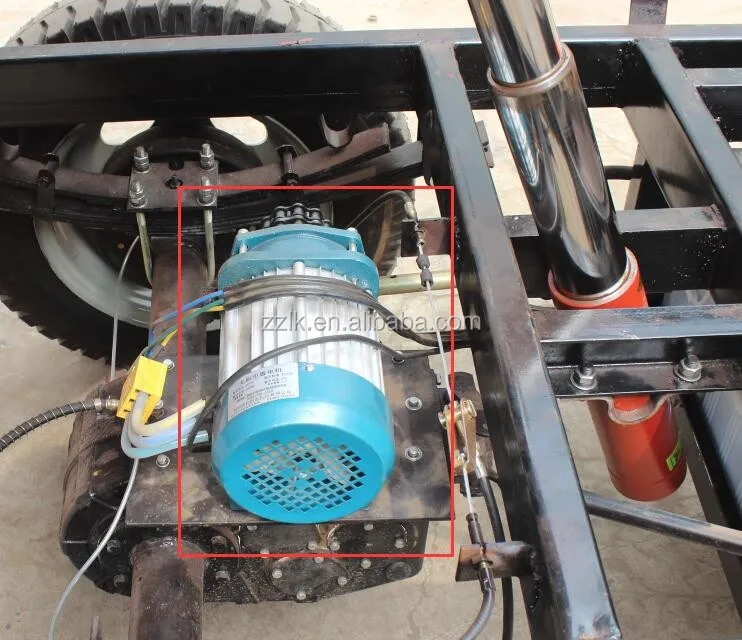

Walking motor

The walking motor is used 3000W brushless motor. There is a fan inside for cooling. It has the advantages of low noise and smooth operation. And it has a long life and low maintenance costs.

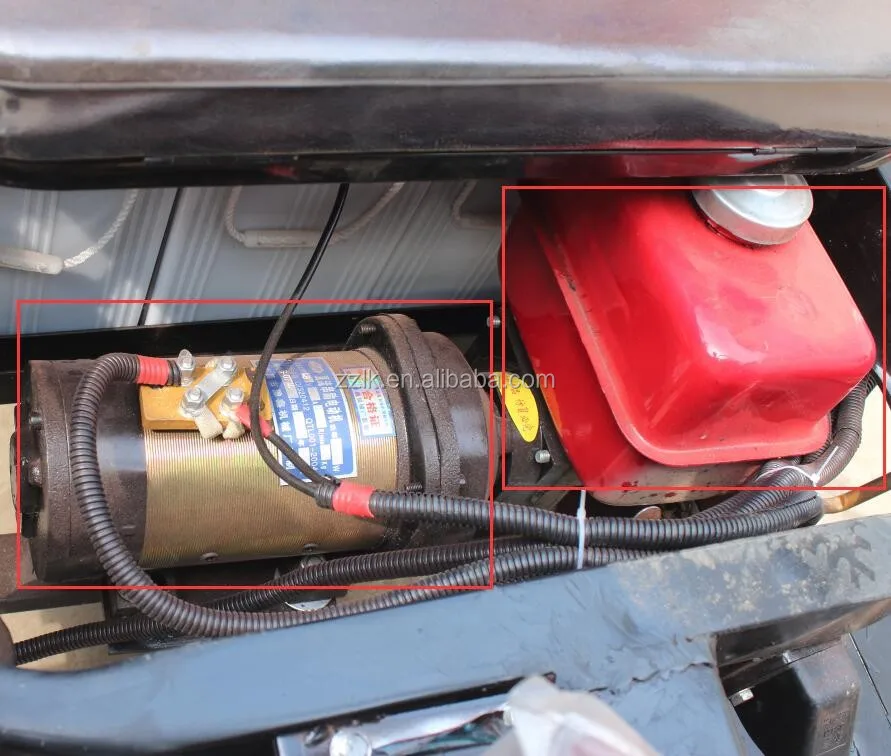

Lift motor

The lift motor is a 1000W motor, as is shown on the left side of the figure above. The red box on the right is the hydraulic tank, which works with the lift motor to control the movements of the trunk.

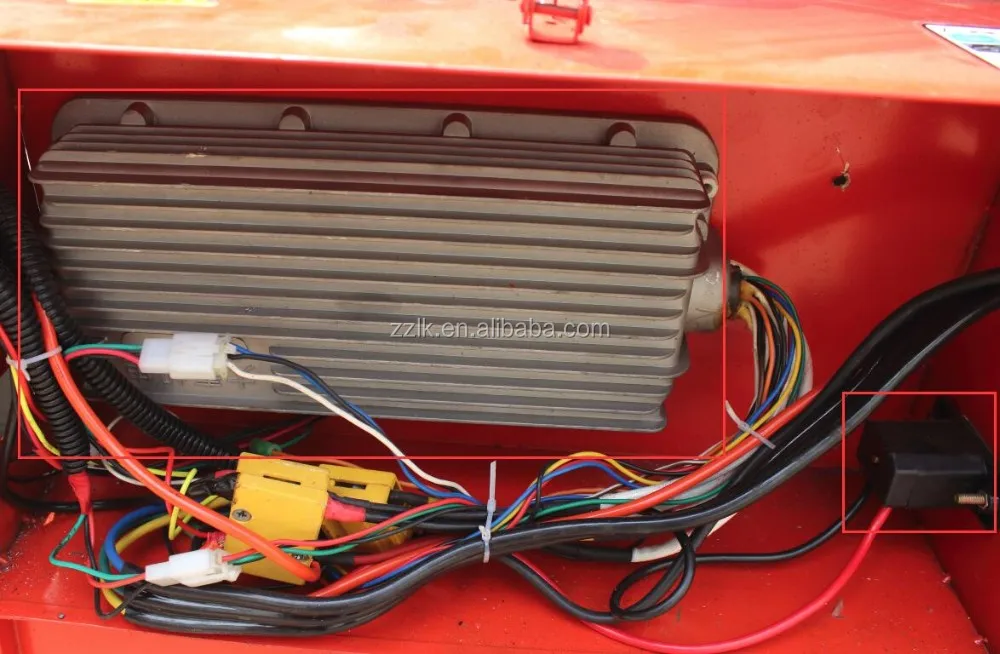

Controller and charging port

As is shown in the figure,the silver box of the left side is the controller, the black box of the lower right in the picture is the battery charging port.

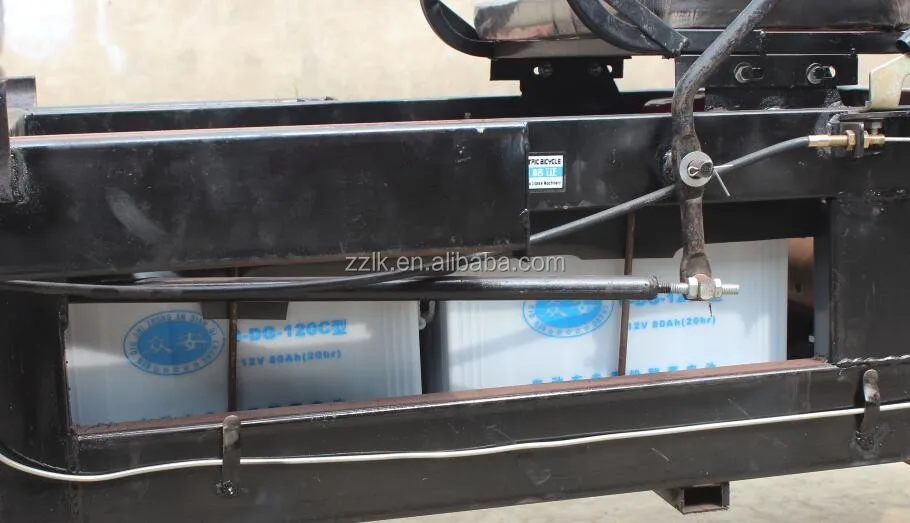

Battery compartment

Under the driver's seat is the battery compartment, which can be placed 6 standard battery, the voltage is 72V.

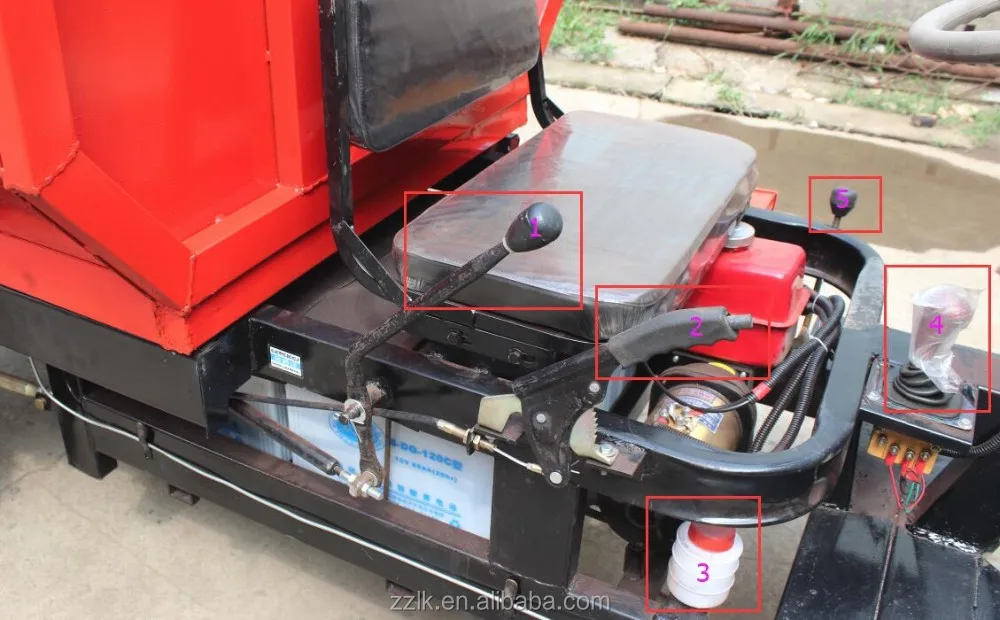

Cockpit description

1. Climbing gear

2. Handbrake

3. Brake tank

4. Forward and reverse gear lever

5. Lift motor switch

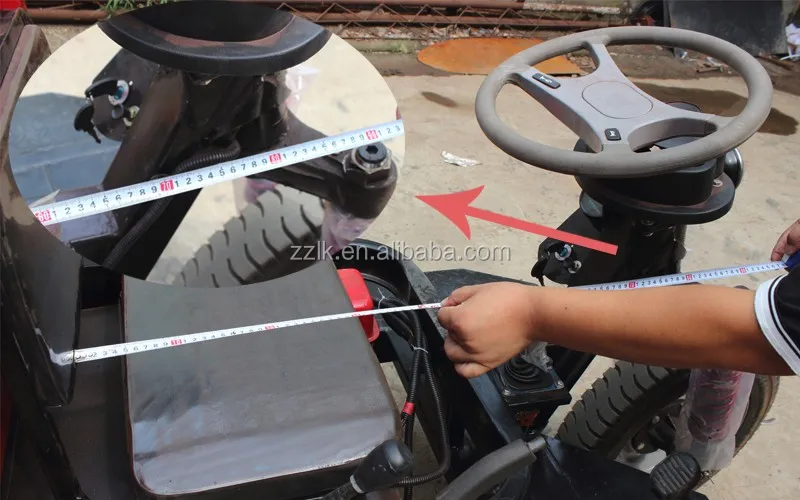

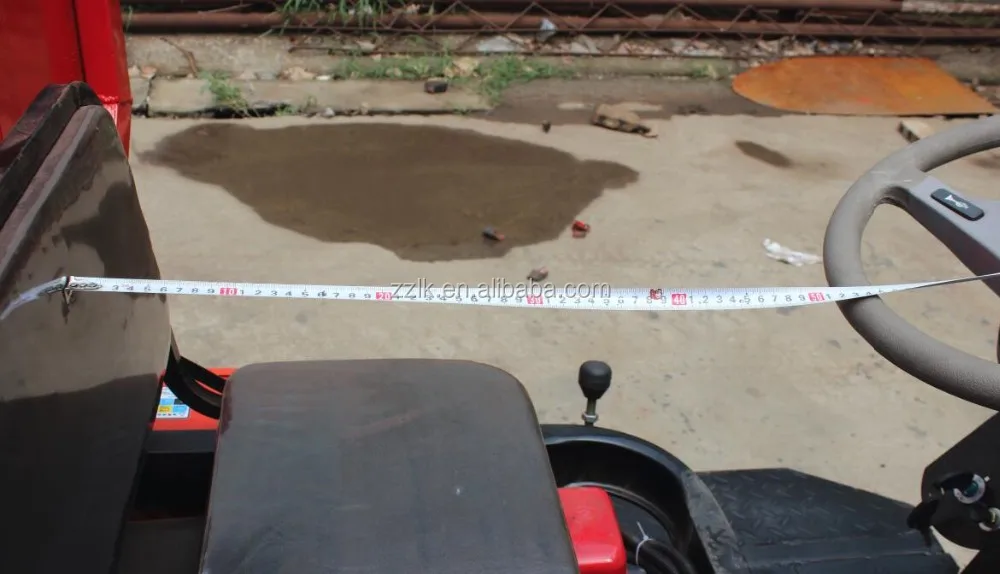

Driver seat space size

1. The size of the steering wheel to the seat back in the left figure is 50cm.

2. In the right figure, the distance from the lower part of the steering wheel to the seat back is 70 cm.

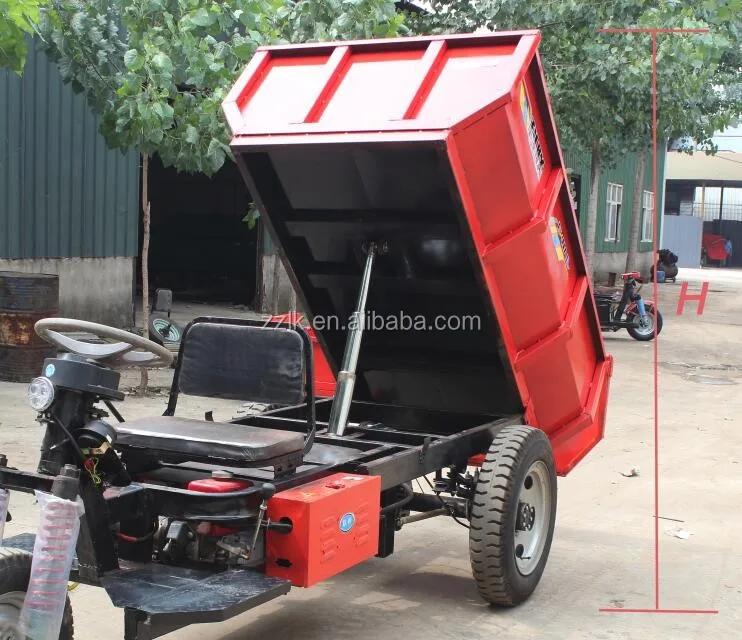

The height of the compartment standing up

When the vehicle is fully erected, its height reached 2.14 meters. During the purchase of vehicles, you need to consider the height of the area that the dumper will be uesd first, and then decide whether to buy this electric dump truck.

Contrast and selection

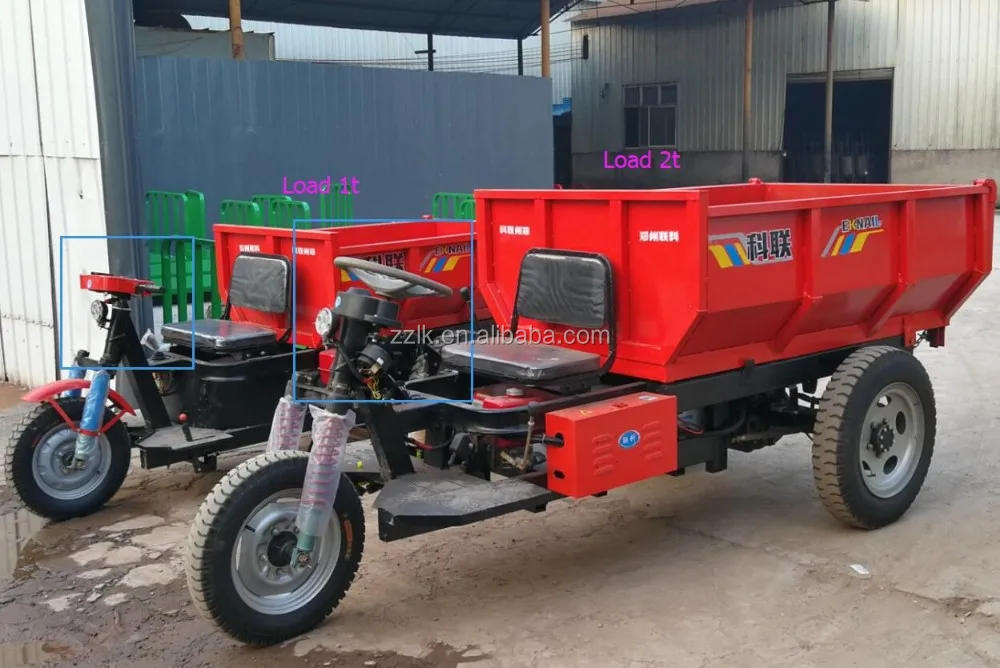

1. The comparison of load 1 ton dumper and load 2 tons dumper.

The difference in the SIZE of the tub is obvious. But you should also be aware of many other differences, such as the Beam Strength, the Thickness of the Cargo Box Plate, Rear Axle, and so on.
So, we can responsibly declare that the loading 1 ton dumper is impossible to be converted into a loading 2 tons dumper. Our products have absolutely reasonable price and product quality is guaranteed.

2. The selection of steering wheel and handle

You can choose which one to use to control the vehicle based on your driving habits, preferences, and body shape. If the driver is fat, you can choose to use the handle to control.

Packing & Delivery

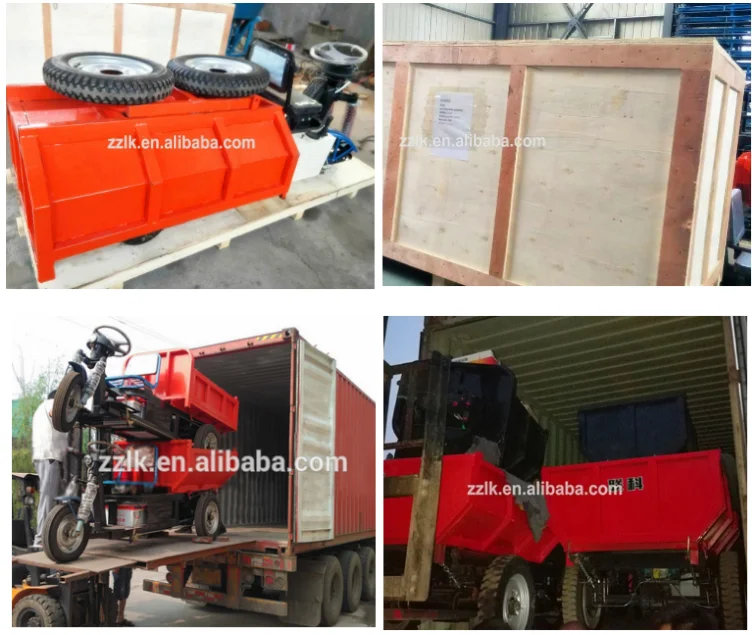

We have two kinds of transport packaging.
1. LCL --Packed with a wooden box or iron frame to prevent damage .
2. FCL--If you have a bulk purchase, we will take FCL transport, and you will get a big discount under this situation and save a lot.

Related Product
LK135 (Load 1 ton)

https://youtu.be/omvRmpjLmYg

LK12 (Load 600KG)

https://youtu.be/vOeJpYfrl40
