quart semi auto pet flat bottle labeling machine suppliers

$2,800.00 / Set | 1 Set (1 lot) (Min. Order)
1 batch = 1 Sets
Power:
330W
Model Number:
TY-805
$2,800.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Bottles
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Type:
Labeling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Guangdong, China
Brand Name:
TransOcean
Voltage:
220V/50HZ
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Weight:
70kg
Automatic Grade:
Semi-Automatic
Certification:
CE Certificate
Driven Type:
Electric
Dimension(L*W*H):
950*780*900mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Labeling speed:
15-30pcs/min
Material:
SUS 304 Stainless Steel
Bottle type:
Round Square Flat Pet Bottle
Label material:
Transparent Label Or Sticker Label
Advantage:
Widely Used
Labeling Accuracy:
±0.5mm
Power Supply:
220V 50hz Single Phase (customized)
Label Roll:
Inner Diameter : 76mm
Operation:
Touch Screen Interface

Packaging & Delivery

Selling Units:
Single item
Single package size:
110X57X104 cm
Single gross weight:
93.000 kg
Package Type:
1) Deduct & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules Into Plywood Cases 6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 15 15 To be negotiated
Video Description
Product Description

TY-805 quart semi auto pet flat bottle labeling machine suppliers

1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2) It applies to flat shape objects, such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on

3) By suction type labeling method. apply to surface labeling.

4) By change the standard labeled mechanism, can be applied to the uneven surface labeling, such as concave plane, circular surface labeling and so on.

5) By change the mold, can labeling irregular production.

6) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.

Parameter
Labeling accuracy
±0.5mm (excluding products, labels, error)
Labeling speed
15-35pcs/min(related to the product and label size)
Apply the product size
Length: 20-200mm
Width: 20-150mm
Thickness: 20-120
(Can be customized)

Apply label size
Length:15-100 mm;
Width: 15-150 mm
(Can be customized)

Applicable to the power supply
220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)
Apply labels inside diameter
76mm
Apply labels outside diameter
240mm
Voltage
220V
Power consumption
330W
Air pressure
0.3---0.6Mpa
Net size (length*width* height)
Machine size: 920*470*500 mm
Packing size: 1090*570*1040mm

Weight
About 90Kg

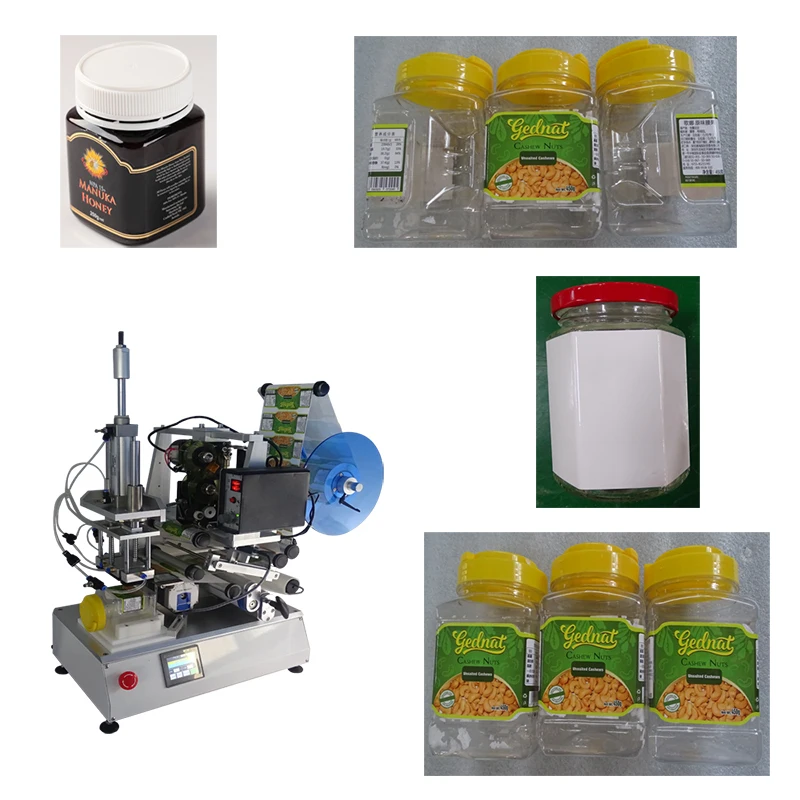

Labeling sample
Detailed Images

labeling head design as 2 parts. for corner labeling.

we can according to customer labeling requirement, design the labeling head as two parts. control it working at the same time. for corner labeling.

Labeling head design as three parts. for three parts labeling.

we can according to customer labeling requirement, design the labeling head as three parts. control it working at the same time. for three parts labeling.

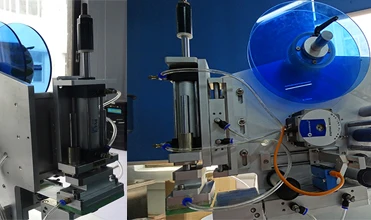

Cylinder strengthening labeled

The cylinder is accurately and quickly covered, ensuring that the labeling effect is not wrinkled, no foaming, etc., and the simulation is more intelligent.

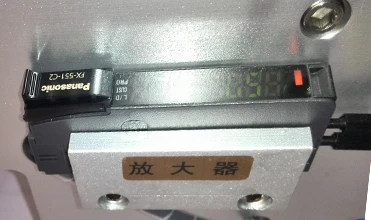

Fiber detector

Guaranteed accuracy and production

Receiving roller

Make the machine easy to operate and greatly improve work

efficiency

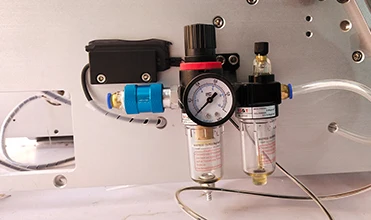

Air pressure indicator,Guarantee of mechanical production safety. It connect electric and air compressor. working pressure: 0.3-0.6 MPA

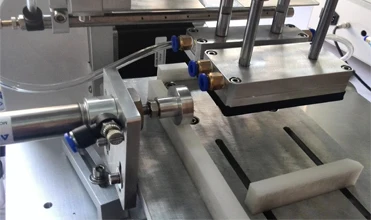

air suction labeling method

By air suction labeling method, to achieve a variety of work piece in the plane surface labeling.

uneven surface labeling

Can be based on different products, by changing the standard mechanism and the mold for put bottle, then can for uneven surface labeling, such as concave plane, circular surface of the shaped products.

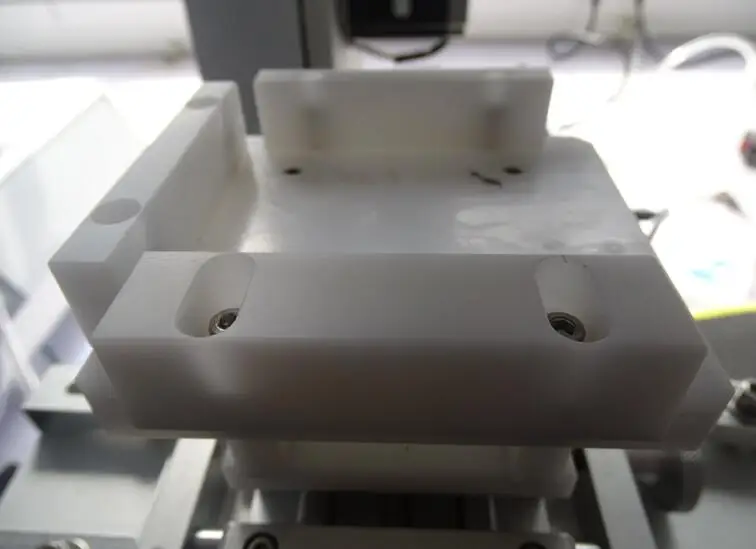

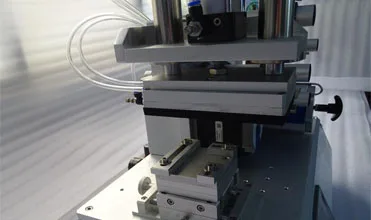

product mold

Each set of machines is free to match a set of molds. The more labeling product you have, the more mold can be do. The price is calculated separately.

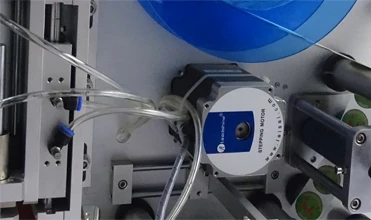

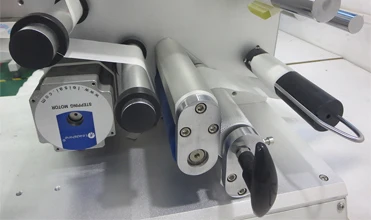

High-power high-speed stepper motor

More output power, more stable operation, no problem with long-term operation

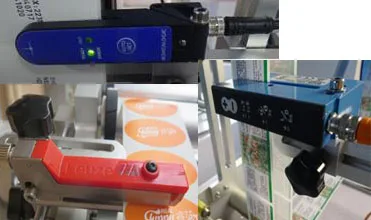

Import label sensor

1. Germany Sick and Italy Data logic of self-adhesive label sensor.

(standard model)

2. Germany Sick and LEUZE sensor not only can use for self-adhesive label, but also can use for transparent label. (price calculated separately).

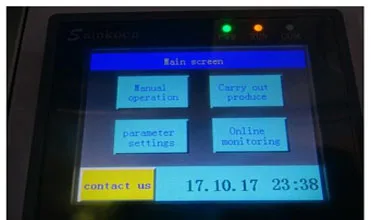

Touch screen in English

Simple operation, PLC control, more stable, do not need high-quality technical workers, easy to get started.

Other languages available: such as: Spanish, Arabic, French. and so on.

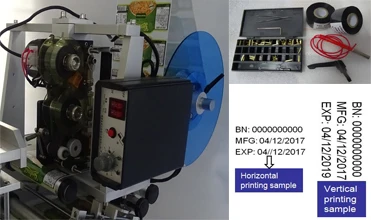

Hot coding machine

1. The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
2. ours coding can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm. the size of each character of text, there are 3 kinds:
length*width*high
2*3*15mm
1.2*3*15mm
1.2*2*15mm
3. Ribbon specifications: 30*100mm-2 rolls
4. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.

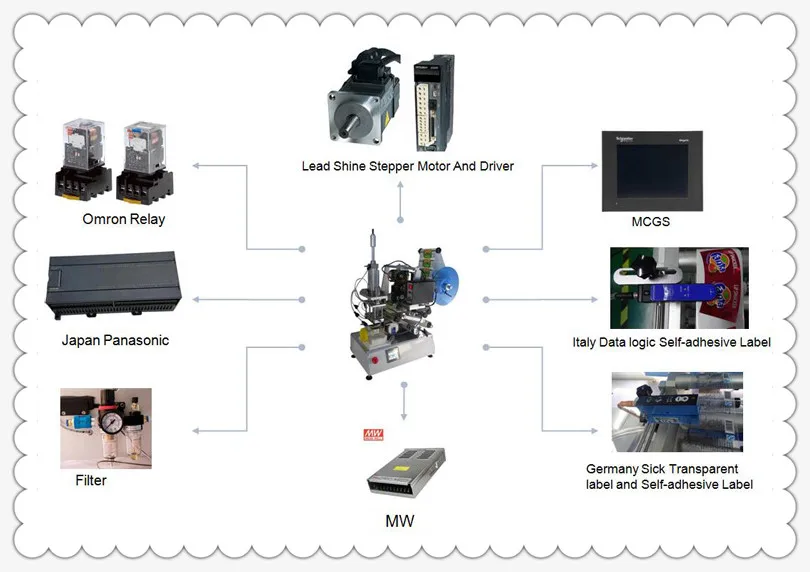

Main electrical configuration
Payment terms and service
Payment terms.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before send out the good or see the scan bill of lading.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Shipping
Packing.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases
if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5 days, standard model with in stock. By Air, by Sea or by Express (DHL etc), Shipment cost will depend on the destination, shipment way and the weight of the goods.
Company Introduction
We are in Guangzhou city China, professional packing machine manufacturer, specialize in:
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.

                                                          Reception
Factory Location Factory Location

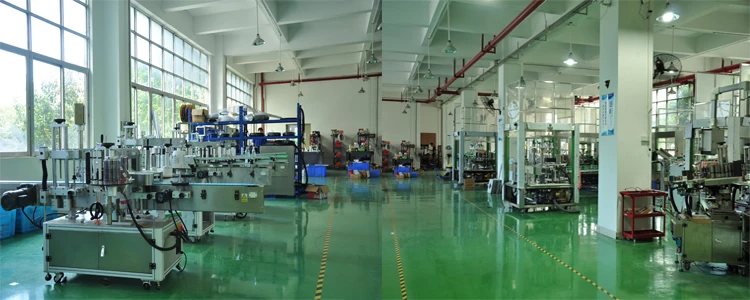

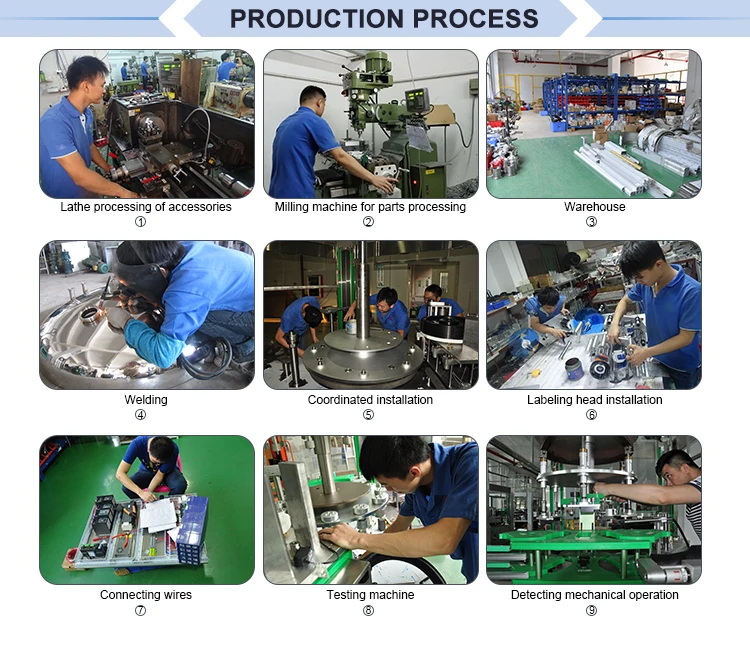

Production Workshop
