red wine filling machine production line for soft drink carbonated beverage

FOB Reference Price:Get Latest Price
$11,000.00 - $65,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1.5KW
Model Number:
DCGF14-12-5
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 2years
Packaging Type:
Case
Packaging Material:
Wood
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Voltage:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
U Tech
Dimension(L*W*H):
2400*1800*2100mm
Weight:
2000kg
Certification:
CE,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
carbonated soft soda drink filling machine
Model:
DCGF14-12-5
Capacity:
2500BPH
Filling range:
200-2000ml
Filling material:
Gas Liquid carbonated drink
Bottle type:
PET Plastic Bottle
Function:
carbonated soft drink filling machine
Material:
SUS304/316
Processing Types:
Gas Drinks
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case for soda drink filling bottling carbonator machine plant cola production line
Port
Shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

soda drink filling bottling carbonator machine plant cola production line

DCGF series carbonated drinks filling line is used to produce PET bottled carbonated drinks within the volume from 200ml-2000ml.different models can satisfy various requirement of output from 1000B/H to 22000B/H.Bottle washing filling,covering are realized by one machine.The whole machine is designed scientifically and reasonably,the appearance is good looking,the maintenance and repair is rather convenient,the hang type bottle opening clipping transport bottle structure makes it more convenient,rapid and labor saving to change type of bottles.The main machine has applied advanced inverter control technique,the key electric parts are all products of world famous brands.

Detail Images

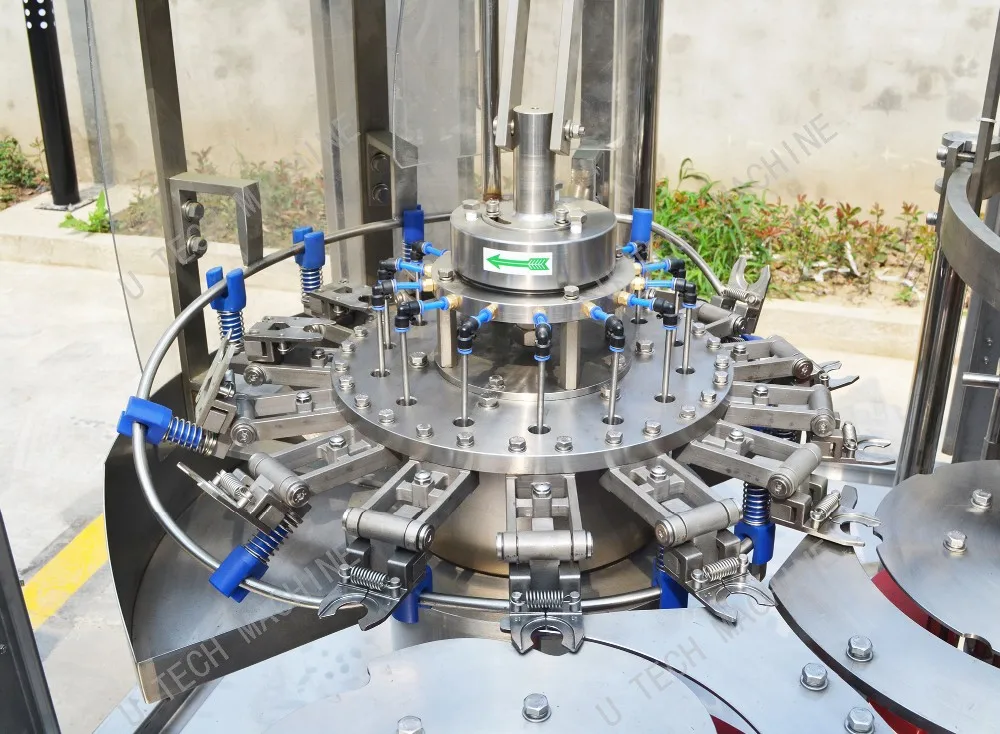

Washing Parts

1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage

2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime

3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

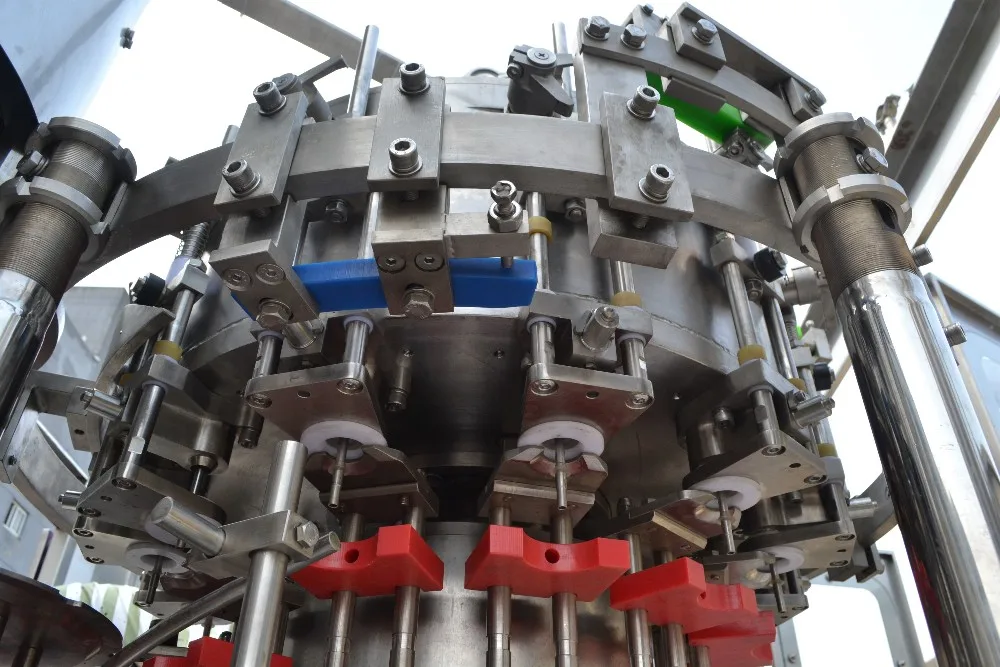

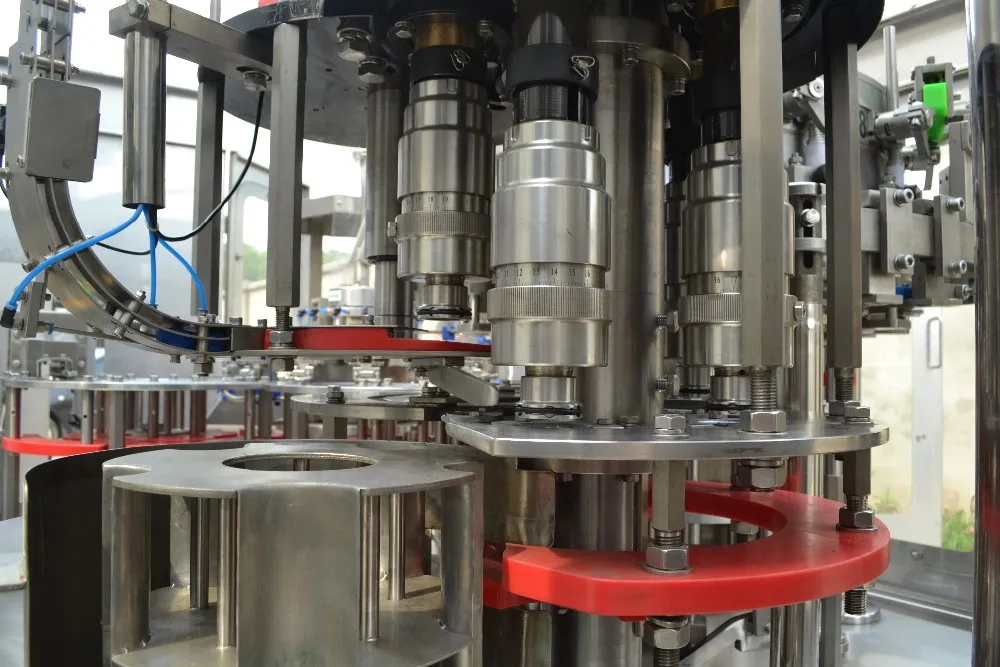

Filling Parts
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Parts

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2%

Features:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
7. Soft Drink Bottling Plant

Parameters:

Model
DCGF14-12-5
Capacity
2500BPH
Suitable bottle size
PET bottle 200-2000ml
Weight
2000kg
Power
1.5KW
Production Line Flow

soda drink filling bottling carbonator machine plant cola production line

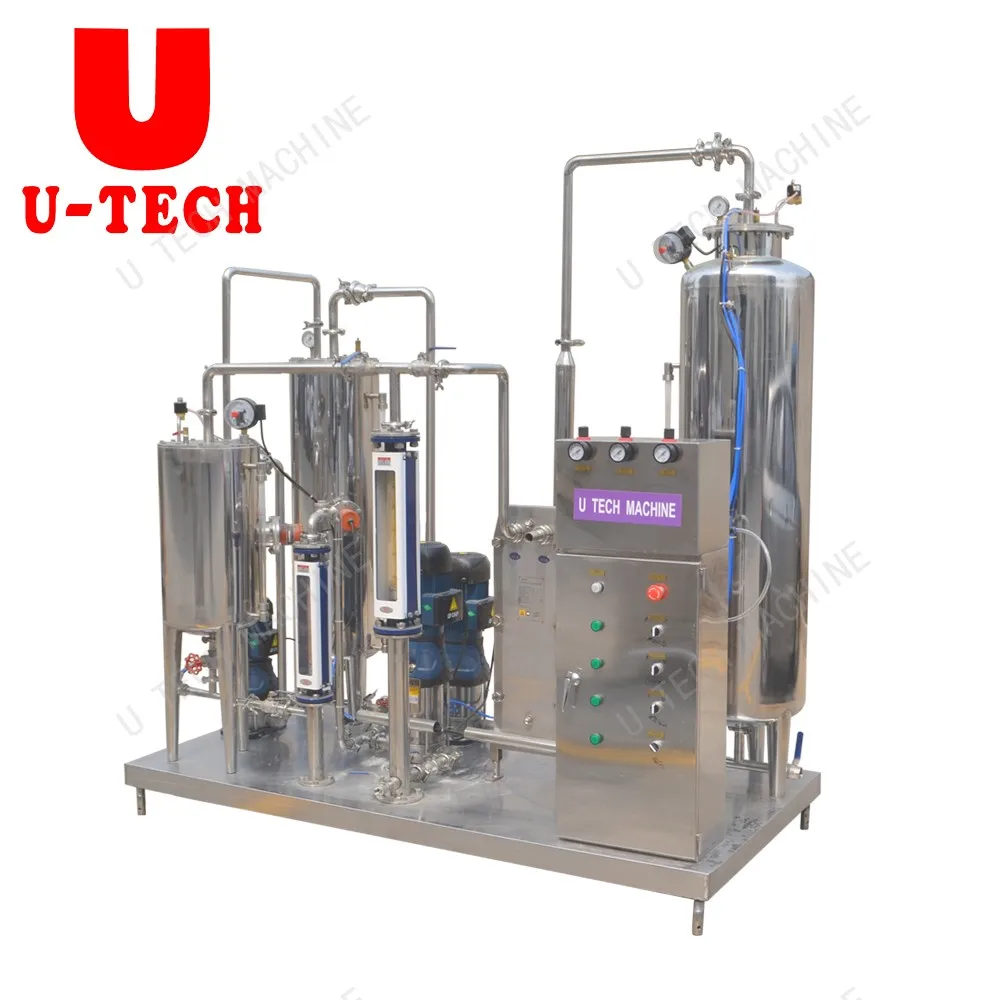

1.QHS Series Drink Mixer

The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry drink,fermented drink and other drinks.
QHS series mixer is designed and made for improving the proportion of water ,syrup and carbon dioxide.It adopts foreign advanced technology-static mixer to lighten water layer,increase carbonizing time,assure mixing result and deoying.

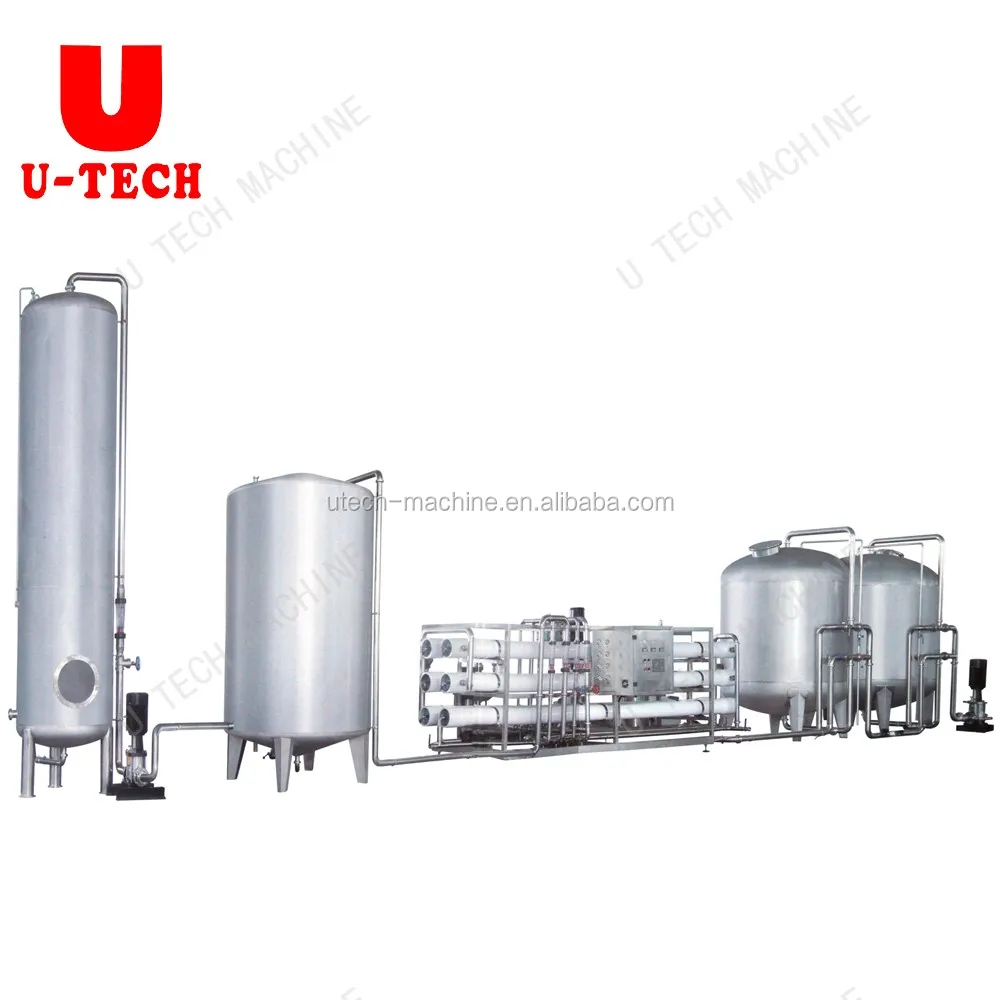

2.Water Treatment System

The company's Water Treatment  System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.

Water Treatment Flow Chart

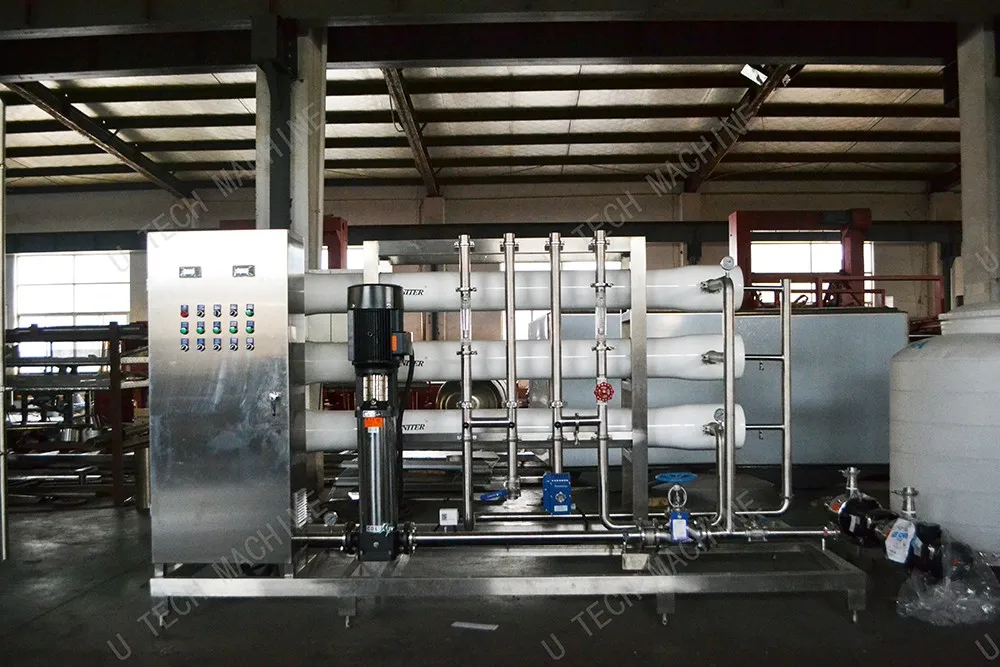

RO Water Purifier

The RO water purifier system adopts the most advanced American RO assembles and with a preset systerm. It enables the water to pass the reverse osmosis film with a diameter of one ten-thousand of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics, pharmacy, electronics and food industries.

3.Automatic Bottle Unscrambler

The machine is used in ordering disordered polyeter bottles, the disordered bottles are carried into the storing bottle Section of the ordering bottle machine, with the help of the pushing force of the rotating disk, the bottle are ordered into Bottle mouth-up-position and are carried into the next process with the air-transfering type conveying bottle system.
High speed operatin, easy to combine with all kinds of filler or filling prodution line.

4.Bottle Blow Molding Machine


Features:
<1>New Auto Preform Unscrambler System
<2>Perfect heating system design decrease power consumption.
<3>Special oven design helps power-saving and easy maintain.
<4>Each lamp position and temperature can be adjusted.
<5>Cycle air cooling system keep the oven temperature constantly.

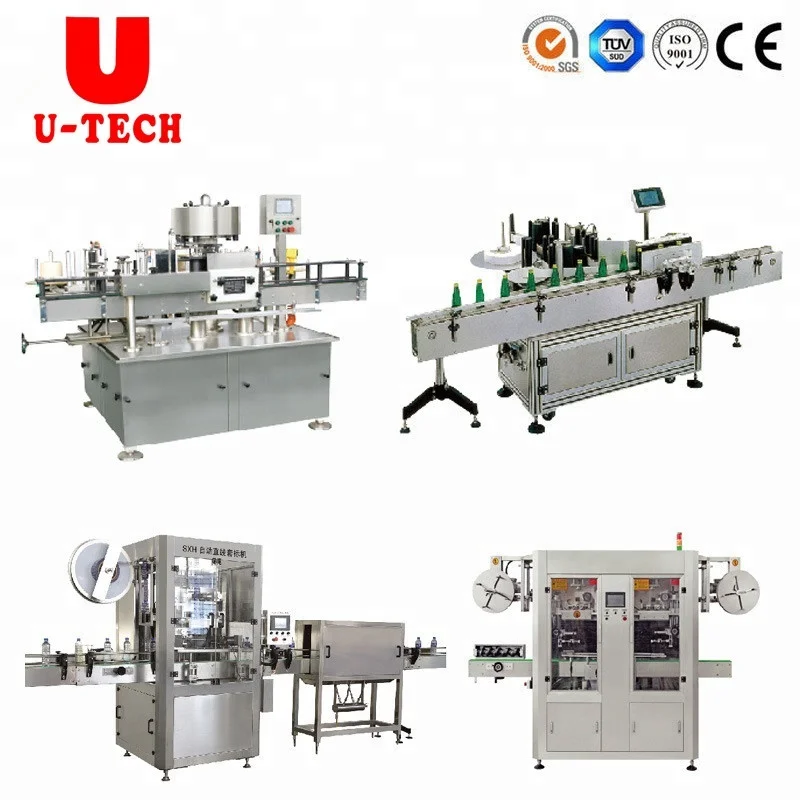

5.Automatic Labeling Machine


It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

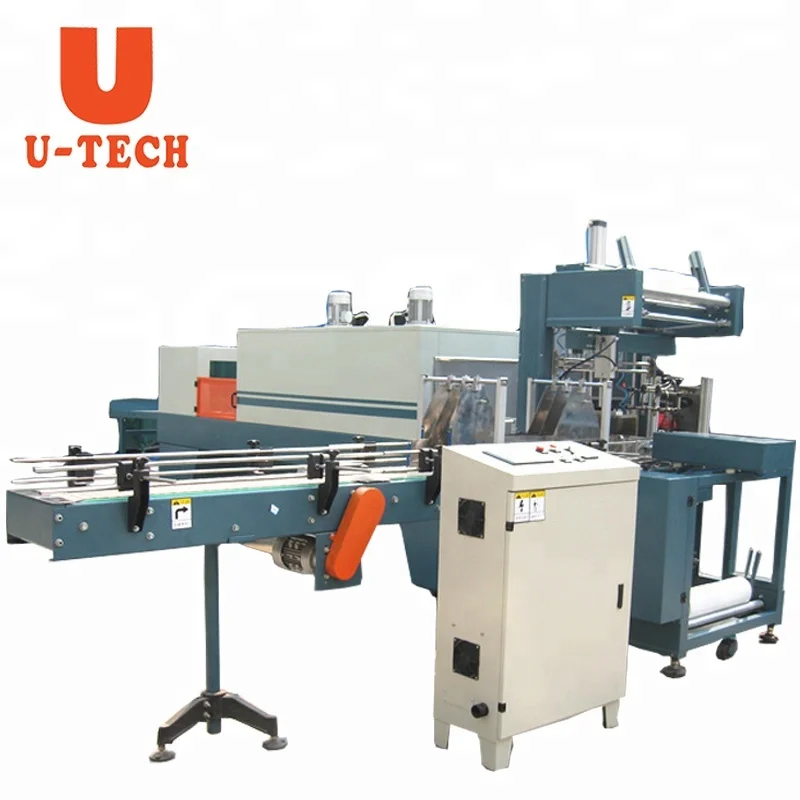

6.PE Film Packing Machine


It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

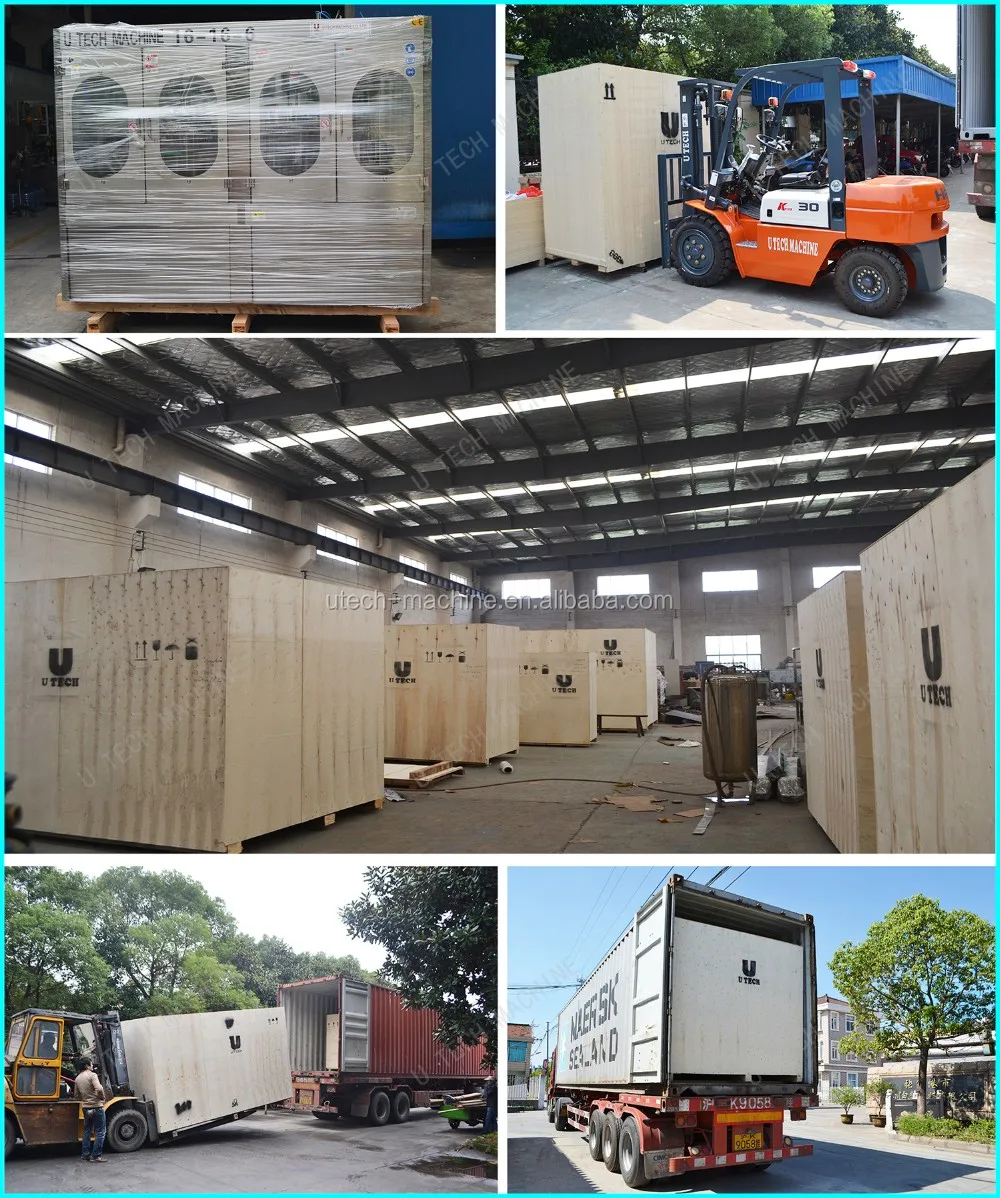

Packaging &Delivery

soda drink filling bottling carbonator machine plant cola production line

Delivery

Packaging Type:

      We usually use wooden case as packaging type.It's suitable for long-distance transport.Other packaging type such as sheet iron case and so on could be offered as customer's demmand.
Transport:
     By sea.



About U Tech

soda drink filling bottling carbonator machine plant cola production line

Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.

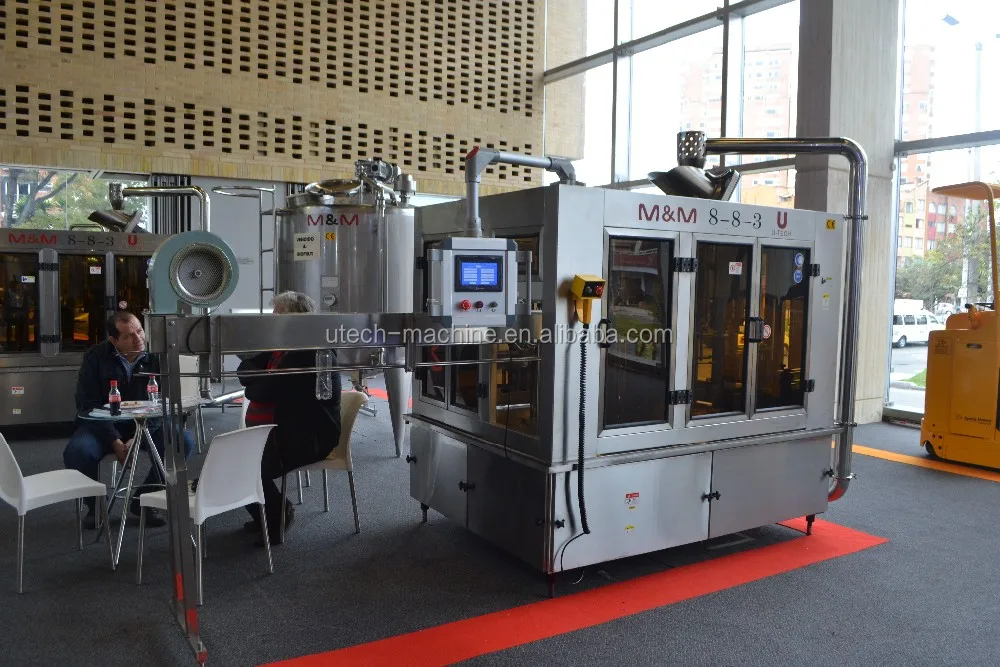

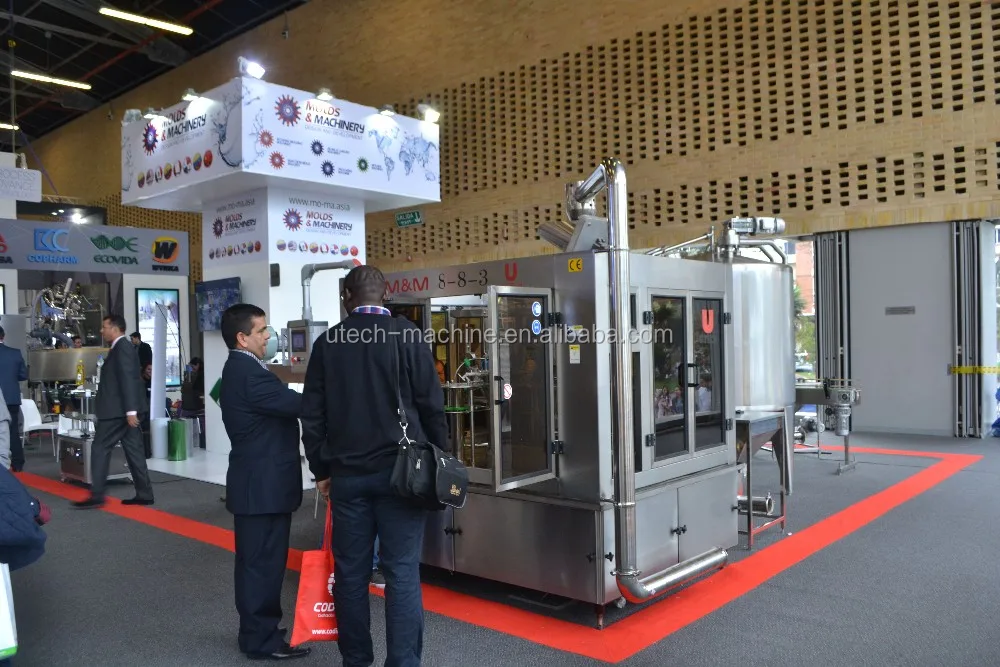

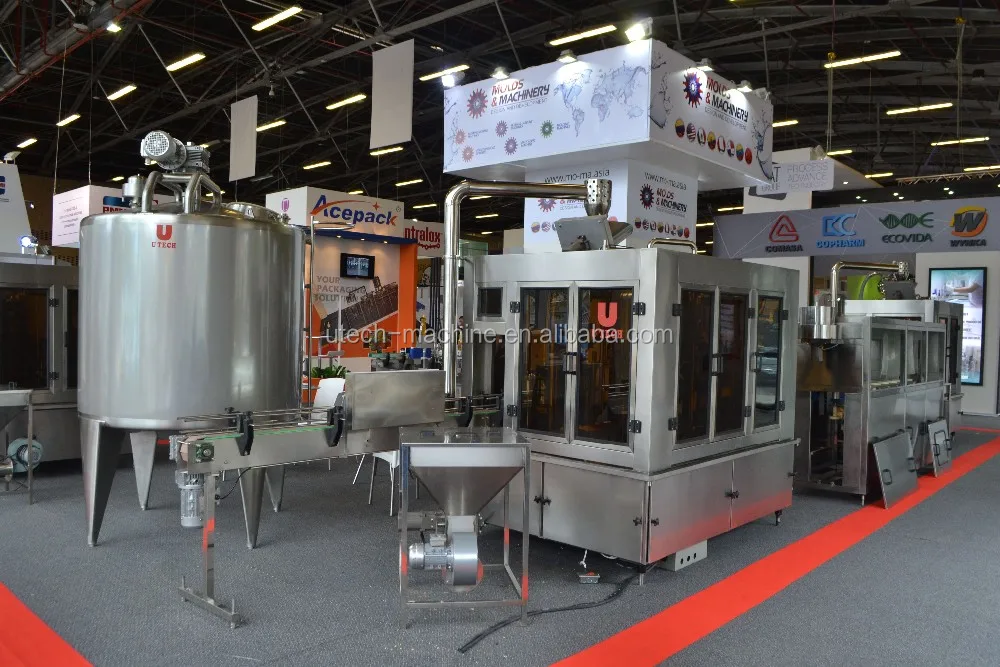

Our Exhibition

Our Customers

Our services

soda drink filling bottling carbonator machine plant cola production line

Before order service
We will according to your requirement make details quotation for you.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.

After order service
We will start to make machine,and take some picture by 10 days of our production process .
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.

After-sales service
We will testing machine ,and take some video and picture to you if u not come to china inspect machine.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 2 years guaranteen.In 2 years you can get all spare parts free from us.we can send you by express.

Certificates
FAQ

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
