resident sectional garage door with EUR CE

FOB Reference Price:Get Latest Price
US $220-600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
finger protection
Open Style:
Surface Finishing:
Security Doors
Door Material:
Product Material:
Screen Netting Material:
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton,plastic foam,air bubble
Ningbo /Shanghai
Lead Time :
7 days

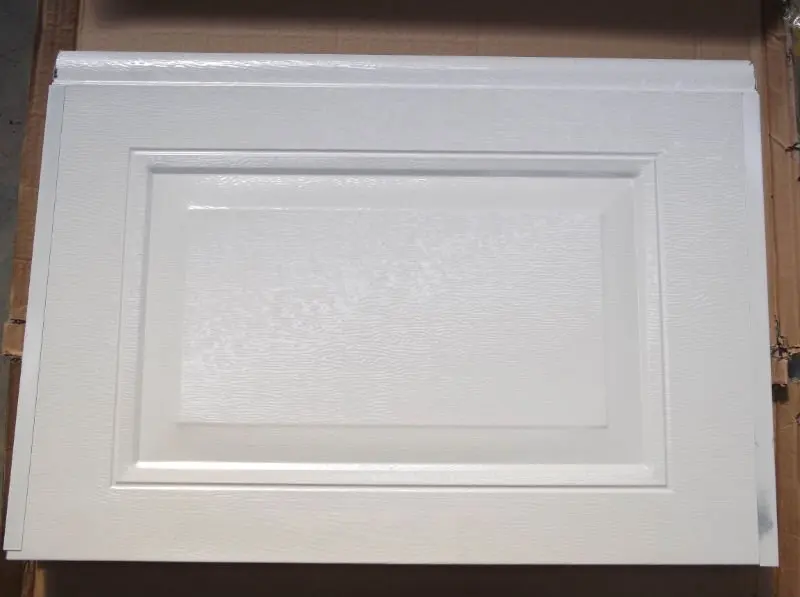

1. Material: adopt high quality galvanized steel, polyester treated appearance has strong anti-erode capacity, High density polyurethane foam increases the panel intensity and flat degree (density≥43kg/cbm)

2. Thickness of door panel: 40mm

3. Max. width: 6,000mm

4. Max. height: 550mm

5. Galvanized steel of door sheet: 0.35mm

6. Size: according to customers' demands

7. Irregular leather grainy delight for feeling

8. Insulating panel tightly make panel be looked beautiful and have totally anti-nipping function

9. Remote control, automatic and manual switch

10. Color: the normal color is white and can be painted any colors as customer's requests

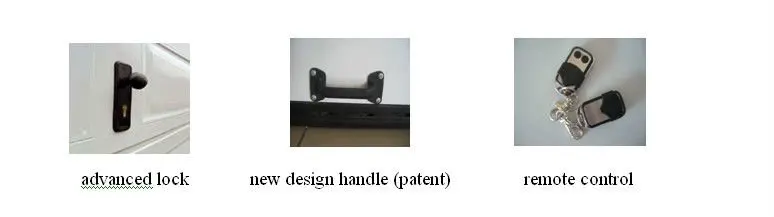

11. Lock: special security lock

12. Opening way: it slide on the ceiling, overhead sliding sectional door

13. Accessories: bracket, hinges, locks, handles roller, spring, rubber seal, and door opener

14. Speed of opening: 0.1-0.2m/s

15. The wind power to resist: 10 degrees

16. The working life: 20,000 times

17. The working temperature: -30oC - 50oC

18. Certificate passed: ISO90012000 ,CE

19. Suitable for residential houses, garages, workshops, warehouse, and commercial shops


Inner packing:  Plastic foam


Outer packing:  Strong carton


Conveyance:  Qty/20' FCL: 50-75 sets

Qty/40' FCL: 100-150 sets

dimensionas customers request
the width of a piece of panelwe can design 42cm-55cm
thickness of galvanized steel0.326mm/0.35mm/0.4mm
colourthe normal colour is white,any colours can be customized
patternellipse,grid and horizontally stripe
grainwood grain,leather grain and smooth panel are optional
panel designfinger protection design
panel thickness40/50mm are optional
high density of polyurethane>43kg/cubic meter
certificate passedISO9001:2000,CE
puller and emergent lockit is a necessary when no electricity
special functionsecurity,thermal-keeping,insulated and keep fingers safety
garage door windowuse ABS material with irregualr wood grain,match organic glass inside
hardwaresfinger protection design,galvanized and be sprayed white powder coating are optional

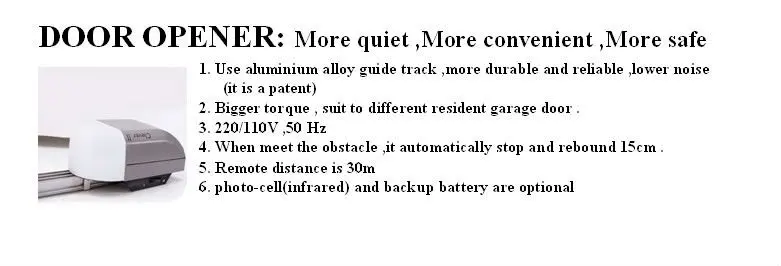

openersuse the alluminium alloy guide track,it will be durable and lower noise when it is working
