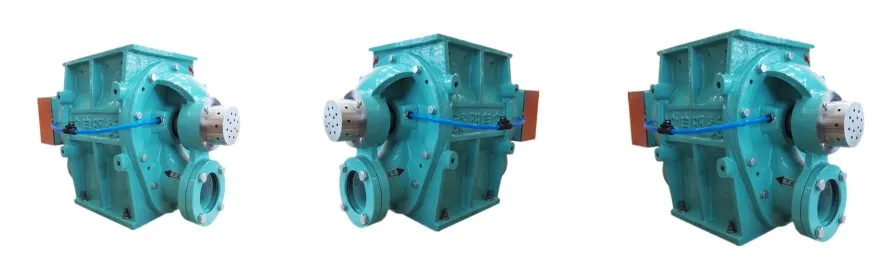

rotary shear valve sanitary stainless steel rotary airlock valve rotary feeder design

FOB Reference Price:Get Latest Price
$1,600.00 - $2,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
ZILI
Model Number:
rotary airlock valve TGFZ-36dd
Application:
General
Material:
cast iron, cast iron\carbon steel/stainless steel
Temperature of Media:
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Pressure:
High Pressure
Power:
Pneumatic, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW
Media:
Pneumatic convey
Port Size:
1/2"
Structure:
casting
Standard or Nonstandard:
Standard
Discount:
10% for new customers
Customers:
Buhler's supplier
Delivery time:
7 days
Size 1:
100 mm to 1200 mm
Size 2:
5" to 30"
Gap between rotor and body:
0.08 mm to 0.25 mm
Bearing:
Option :C&U / SKF / FAG
Seals:
Option : Mental seal / Packing seal
Delivery term:
FOB shanghai/guangzhou or CIF to your port
Supply Ability
Supply Ability:
35 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
shanghai guangzhou qingdao
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Details

Description:

     Rotary airlock feeders have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc.


Usage Scenarios:
Details
Motor
                  Siemens/SEW
Bearing
                  SKF
Pressure
                  <0.8 Bar
Rotor and sharft Material
                   Carbon Steel / CAST IRON
Rotor Speed
                   24~45 RPM
Capacity
                   5.5~140L/Rotation

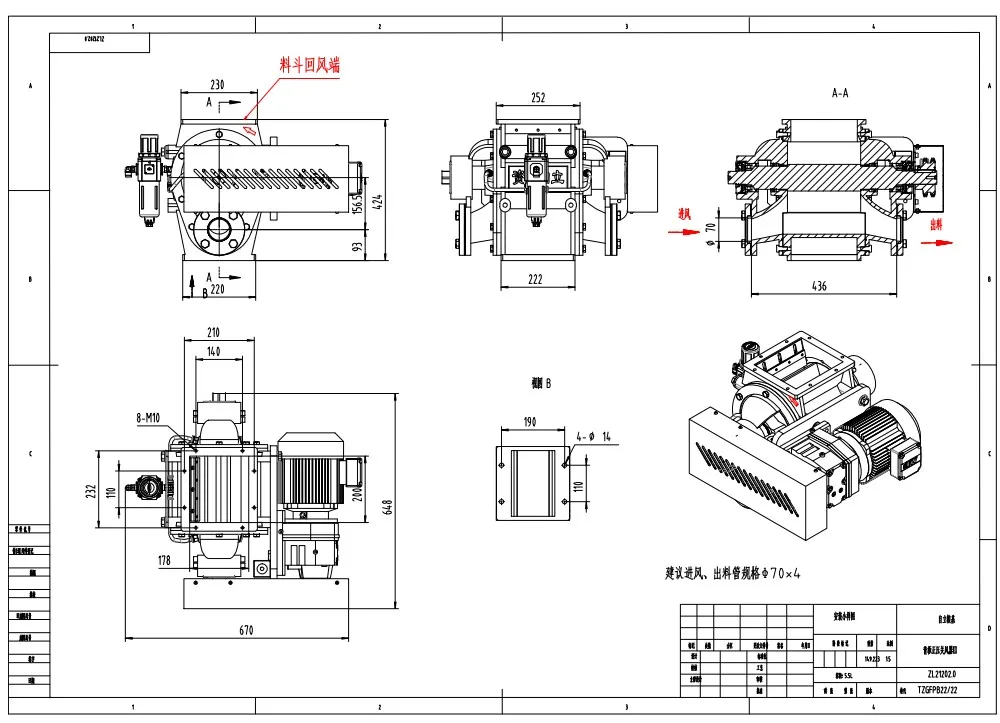

Structure
Seals type
Structure

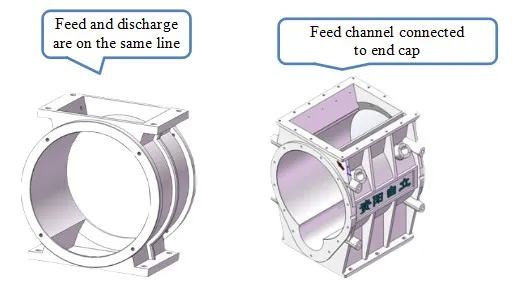

Casing
Product advantages:

Shell material:

The product adopts 600-3 ductile iron casting which Combined with resin sand casting process. Its hardness and wear-resisting strength are greatly increased, the friction between the blade and the shell is reduced, the wind closing effect is enhanced, and its "effective service" life is greatly improved.

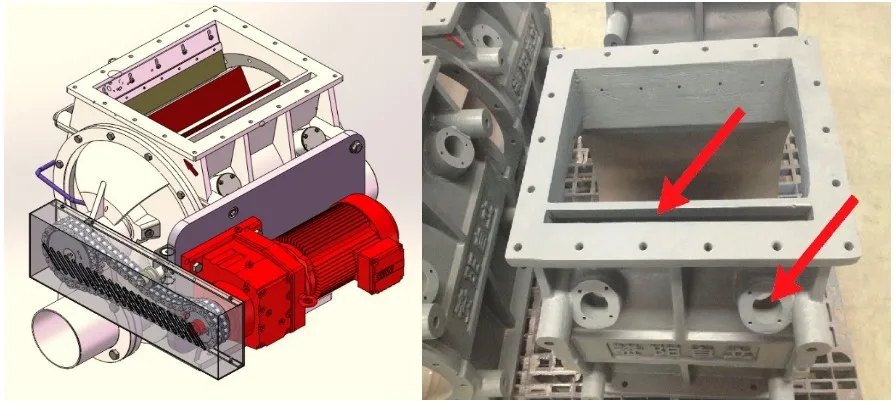

 The air reture passage:

The built-in concealed return air passage and the external return air duct mounting seat are equipped at the same time, which is convenient for flexible use on site according to the different configuration of the feeding hopper.

Inlet and outlet pipe diameter:

the inlet and outlet pipe diameter is large, so that the wind pressure inside the shutter is small, small air explosion, the operation of the equipment is more stable.

Production Capacity

Production calculation:

Output(capacity) calculation: G=0.06VnKp(t/h) in which the V stands for Volume N: rotating speed (r/min) P: volumetric weight K: full coefficient Granule size:0.6-0.8; powder is 0.4-0.6(working pressure 25-100KPa)

Conclusion:

1. The production capacity increases with the increase of the impeller speed within a certain range.

2. After exceeding the critical speed, it will decrease correspondingly with the increase of the impeller speed.

Conclusion:

1. The abrasion increases with the increase of impeller speed.

2.The higher the sspeed, the greater the abrasion.



Products Application

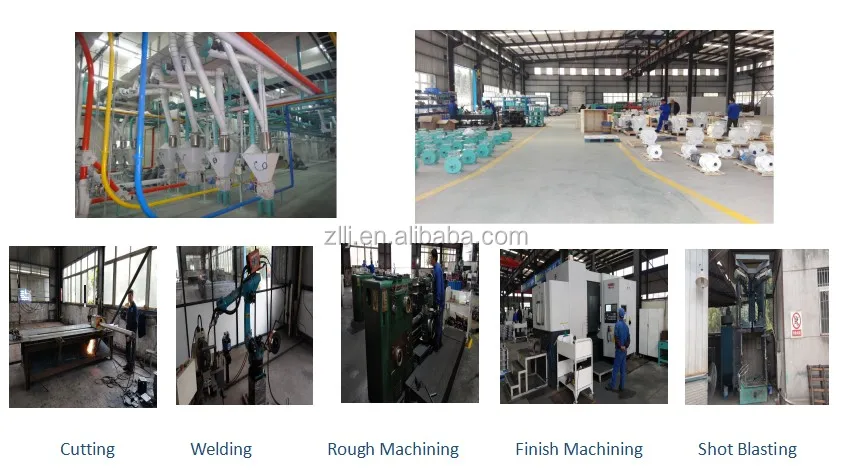

Company Introduction


Sichuan Ziyang Self-reliance Grain Oil Machinery Co., LTD. specializes in designing, manufacturing, and distributing high-quality Rotary Airlock valves used in pneumatic conveying systems for application in bulk solids handling in the Plastics, Chemical, Food, Pharmaceutical and Detergent industries.



Since 1957, located in Ziyang city, Sichuan province, China.Long-term supplied to Buhler China and COFCO, our Rotary Airlock valves achieved more than 70% market in same products in China.



At the same time, our TXFLF series Plug Diverter praised by users also.Please contact us with all of your bulk material handling applications, and let us put our expertise to work for you.

Business Type
Manufacturer, Trading Company
Location
Sichuan, China (Mainland)
Main Products
Rotary Valve, 3 Way Diverter Valve
Ownership
Private Owner
Year Established
2002
Main Markets
Domestic Market 80.00%
Eastern Asia 4.00%
North America 3.00%
Total Annual Revenue
confidential
Product Certifications(1)
 CE
Related Products

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral wood boxes . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of delivery?

A: L/C, FOB, CFR, CIF.

Q3. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.
