rotary valve for silo cast rotary valve chain feeder valve

FOB Reference Price:Get Latest Price
$1,600.00 - $2,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
ZILI
Model Number:
rotary airlock valve TGFZ
Application:
General
Material:
cast iron, cast iron\carbon steel/stainless steel
Temperature of Media:
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Pressure:
High Pressure
Power:
Pneumatic, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW
Media:
Pneumatic convey
Port Size:
1/2"
Structure:
casting
Standard or Nonstandard:
Standard
Discount:
10% for new customers
Customers:
Buhler's supplier
Delivery time:
7 days
Size 1:
100 mm to 1200 mm
Size 2:
5" to 30"
Gap between rotor and body:
0.08 mm to 0.25 mm
Bearing:
Option :C&U / SKF / FAG
Seals:
Option : Mental seal / Packing seal
Delivery term:
FOB shanghai/guangzhou or CIF to your port
Supply Ability
Supply Ability:
35 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
shanghai guangzhou qingdao
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Details
Description:


     Rotary airlock feeders have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc.


Usage Scenarios:
Details
Motor
                  Siemens/SEW
Bearing
                  SKF
Connection Mode
                   GB1.0Mpa
Rotor and sharft Material
                   Carbon Steel / CAST IRON
Rotor Speed
                   24~45 RPM
Capacity
                   2~140L/Rotation

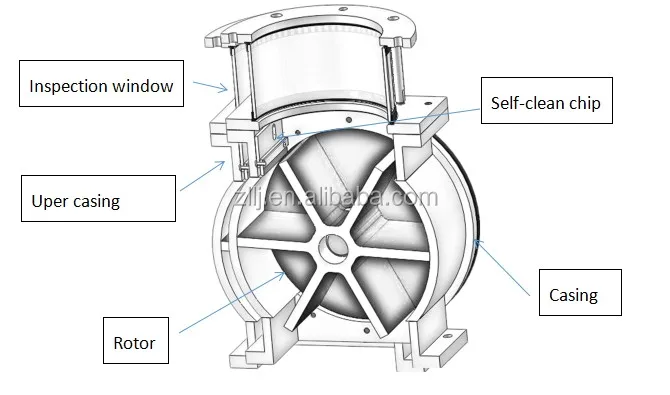

Structure

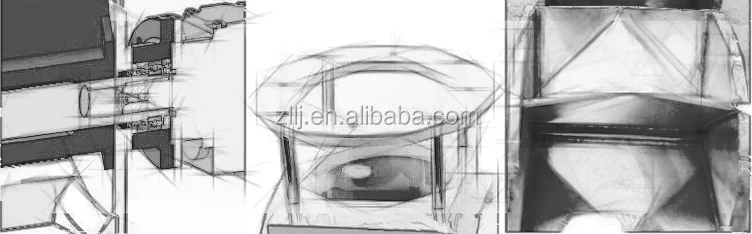

Sealing

Teflon seal and mechanical seal.Protect bearing for damaging and help with sealings.

inspection Windows

Observation window material USES PC material, tall transparent, tall tenacity, not easy ageing and broken, its intensity is far higher than PE material, wear well.The rubber ring is made of food grade silica gel.

Anti-jam Rotor

Anti-Jam Rotor help rotary valve without jam ,especially when bulk material going through.

Low leakage:

The bearing is externally designed to increase the detection hole.It can effectively protect the bearing, which is convenient and quick to maintain, and the running cost and after-sales maintenance cost are extremely low.



Casing

Cast casing is strong with QT600 standard raw material .High quality make sure rotary valve have long working life



Closed end Rotor

Closed end rotor can protect rotary valve body and make air leakage as small as new.

The U-shaped design of the blade duces the accumulation of material.

Production Capacity
Production calculation:

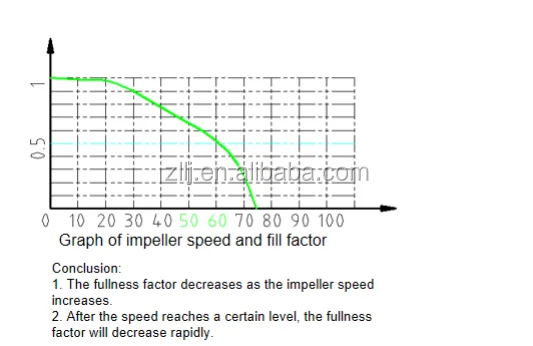

Output(capacity) calculation: G=0.06VnKp(t/h) in which the V stands for Volume N: rotating speed (r/min) P: volumetric weight K: full coefficient Granule size:0.6-0.8; powder is 0.4-0.6(working pressure 25-100KPa)

Company Introduction

Sichuan Ziyang Self-reliance Grain Oil Machinery Co., LTD. specializes in designing, manufacturing, and distributing high-quality Rotary Airlock valves used in pneumatic conveying systems for application in bulk solids handling in the Plastics, Chemical, Food, Pharmaceutical and Detergent industries, since 1957, located in Ziyang city, Sichuan province, China.Long-term supplied to Buhler China and COFCO, our Rotary Airlock valves achieved more than 70% market in same products in China.At the same time, our TXFLF series Plug Diverter praised by users also.Please contact us with all of your bulk material handling applications, and let us put our expertise to work for you.

Business Type
Manufacturer, Trading Company
Location
Sichuan, China (Mainland)
Main Products
Rotary Valve, 3 Way Diverter Valve
Ownership
Private Owner
Year Established
2002
Main Markets
Domestic Market 80.00%
Eastern Asia 4.00%
North America 3.00%
Total Annual Revenue
confidential
Product Certifications(1)
 CE
Products Application
Related Products

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral wood boxes . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of delivery?

A: L/C, FOB, CFR, CIF.

Q3. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.
