router wifi mt7621 module

FOB Reference Price:Get Latest Price
US $13-18 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
Oolite V8.0(mt7621A)
chipset:
MT7621A
CPU frequency:
880MHz
Gigabit Switch:
5 ports
RAM:
256/512 Mbytes
Voltage:
3.3V
Size:
50mm(Length)*50mm(Width)(Tolerance:±0.2mm)
HW Crypto:
Deliver 400~500 Mbps IPSec throughput
DDR2/3:
ODT off, Self-refresh mode
RGMII iNIC Driver:
Linux 2.4/2.6
Firmware:
Linux 2.6 SDK, OpenWRT
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Product Description

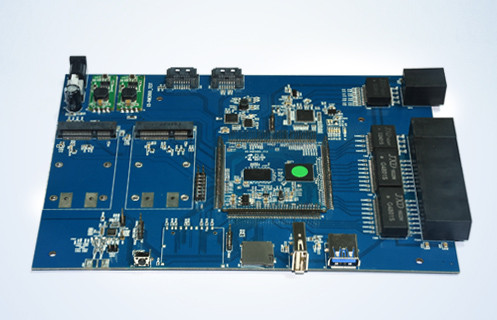

The OoliteV8.0 module use the MT7621A chipset. The MT7621A integrates a dual-core MIPS- 1004Kc (880MHz),HNAT/HQoS/ Samba/VPN accelerators,5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.

Products Details

1. Features

>> Embedded MIPS1004Kc (880 MHz) with 32 KB ICache and 32 KB D-Cache for each core
>> 16-bit DDR2/3 512 Mbytes
>> SPI, NAND Flash, SDXC, eMMC(4 bits)
>> 1x USB 3.0, 2x USB 2.0, 3x PCIe host
>> 5-port 10/100/1000 SW/PHY and one RGMII
>> I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO,PCIe host x 3
>> Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC
>> HW storage accelerator
>> HW NAT - 2Gbps wired speed - L2 bridge - IPv4 routing, NAT, NAPT
      IPv6 routing, DS-Lite, 6RD, 6to4 HW QoS 16 hardware queues to guarantee the
      min/max bandwidth of each flow. -Seamlessly co-work with HW NAT engine. - 2Gbps wired speed.

      HW Crypto Deliver   400~500 Mbps IPSec throughputFirmware:
>> Linux 2.6 SDK, or OPENWRT
>> One RGMII/MII interface
>> VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)

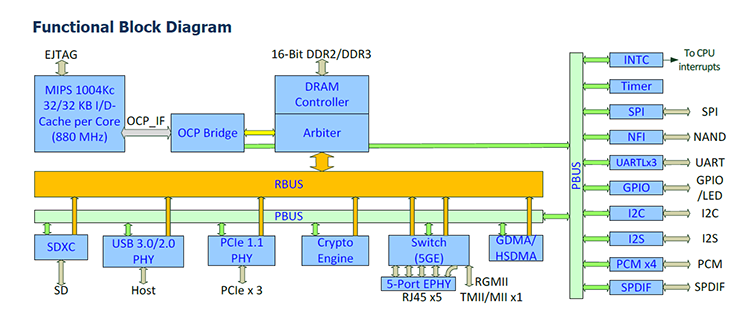

2. Functional Block Diagram

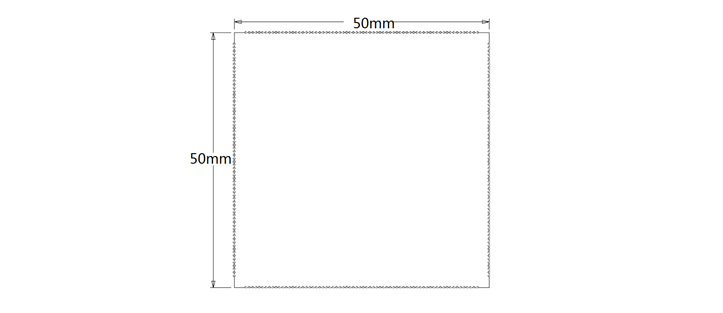

3. MECHANICAL

Dimensions
 (mm)
Length
Width
Height
50
(Tolerance:±0.2mm)
50
(Tolerance:±0.2mm)
4
(Tolerance:±0.2mm)

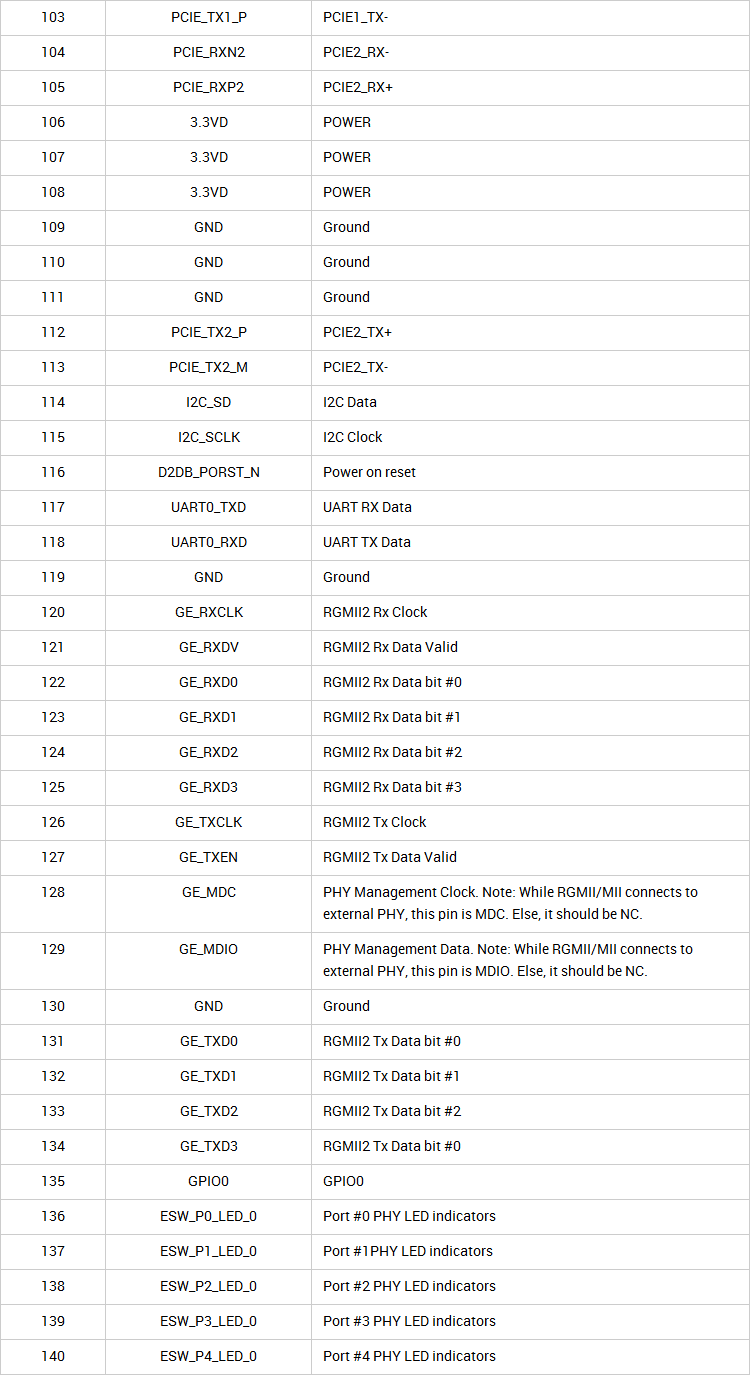

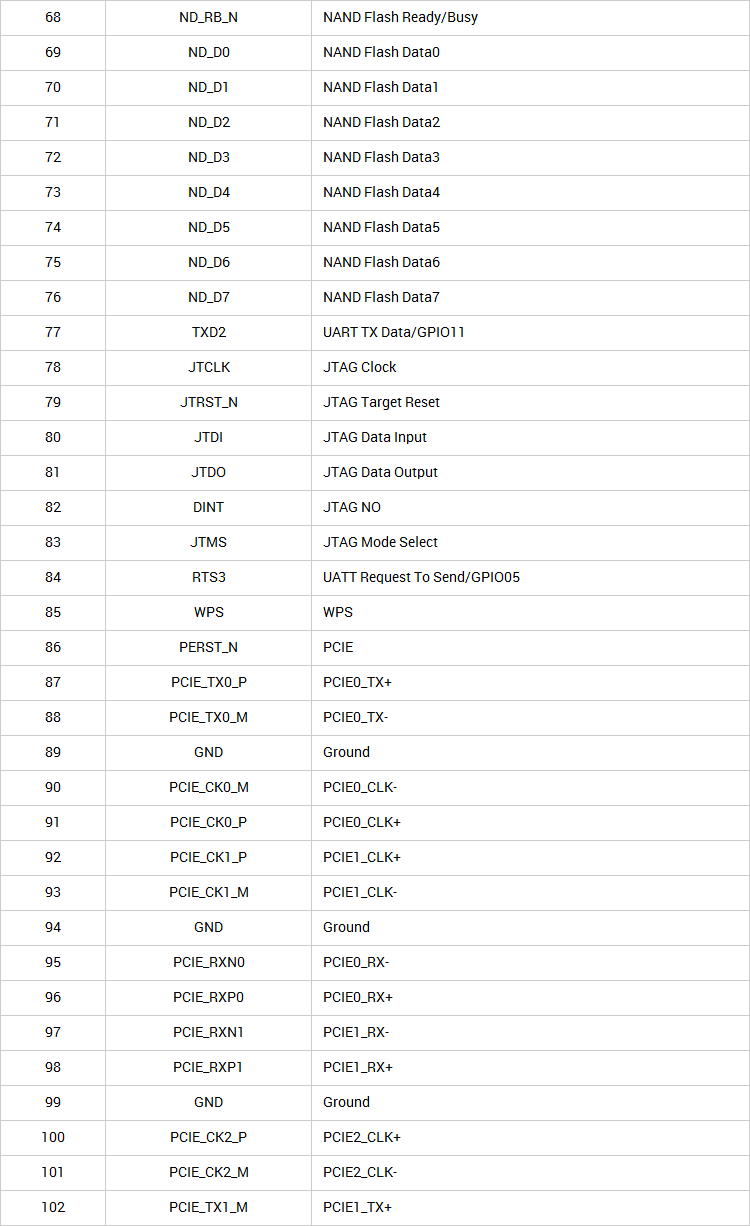

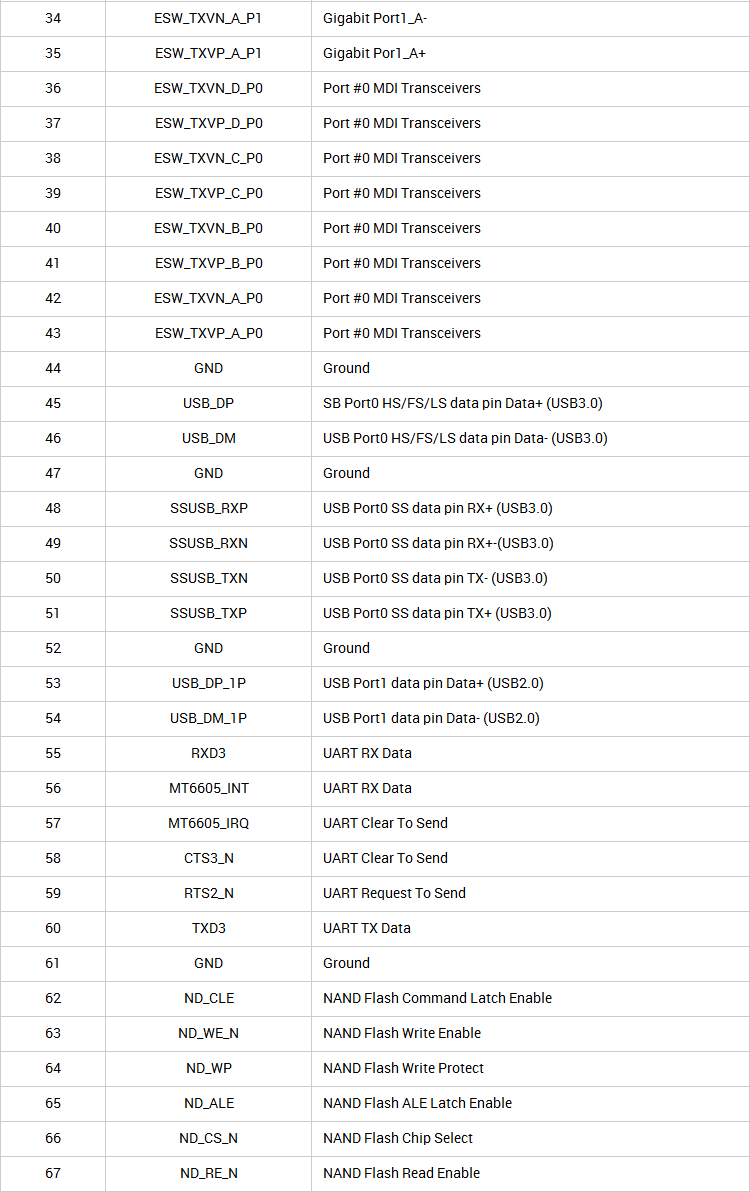

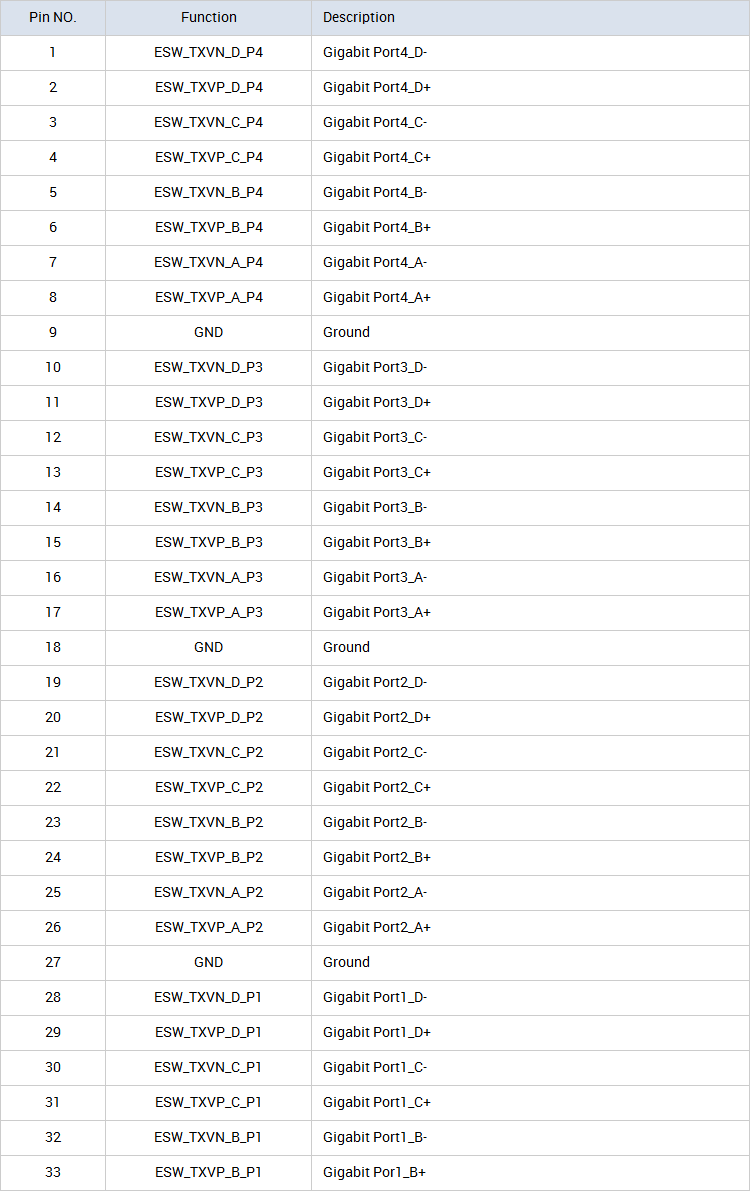

4. PINS DESCRIPTION
