sailflo 12v 24v dc 6LPM submersible pump/solar borehole water pumps

FOB Reference Price:Get Latest Price
US $56-78 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Sailflo
Model Number:
HY1240-30
Theory:
Reciprocating Pump
Structure:
Positive Displacement 3 Chamber Diaphragm Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
solar power
Pressure:
High Pressure
Application:
Submersible
Product name:
submersible pump
Body Material:
Stainless Steel Fastener
Voltage:
12v/24v
Principle:
Run dry without damage
Pump Design:
Positive Displacement 3 Chamber Diaphragm Pump
Motor::
Permanent Magnet Thermally Protected
Flow:
360 LPH
Internal Bypass::
105-110 PSI Max. (7.2-7.5 BARS)
SupplyAbility
SupplyAbility:
2000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Single package size: 37X15X14 CM
Single gross weight: 3.2 KG
Port
Xiamen port
Lead Time :
Shipped in 3 days after payment

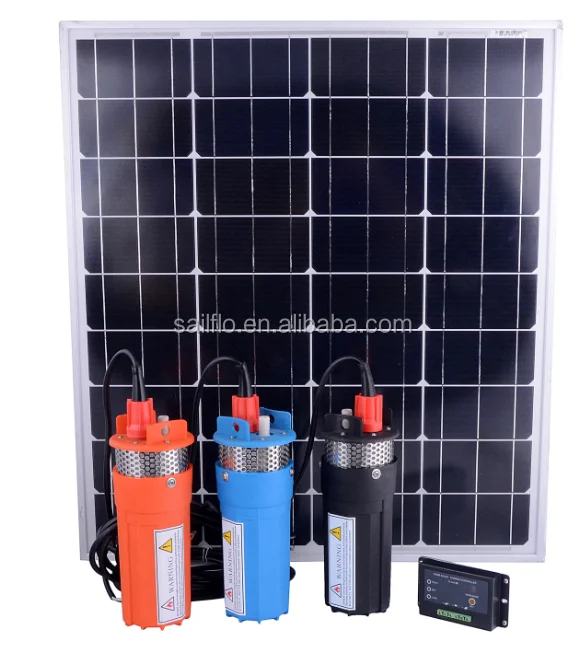

sailflo 12v 24v dc 6LPM submersible pump/solar borehole water pumps





Specifications: pump included:



The solution to your remote water pumping needs.
This pump is rugged.durable and builtto last.
This pump delivers a steady 95GPH(360LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins

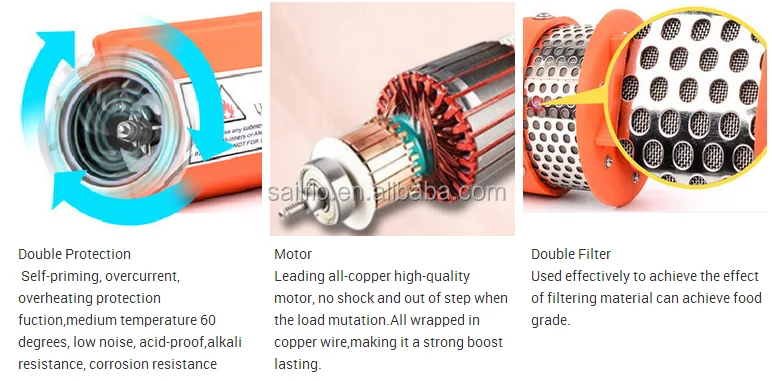

Features:

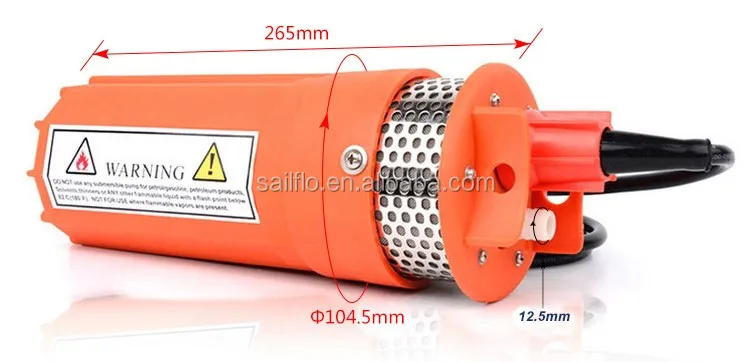

1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected

9. Wire Length:3M

Technical Data:

Pump DesignPositive Displacement 3 Chamber Diaphragm Pump
MotorPermanent Magnet, Thermally Protected
Voltage24VDC Nominal
Amps4.0A Maximum
Internal Bypass105-110PSI Max.(7.2-7.5 Bars)
Maximum Lift230 feet Maximum (70 Meters)
Maximum Submersion100 Feet Maximum (30 meters)
Outlet Port1/2'' (12.7mm) Barbed Fitting
Inlet:50Mesh Stainless Seel Screen
MaterialsHigh Strength Engineered Plastics,Stainless Steel Fasteners
Typical ApplicationsPotable Water Well Pump

   Model

  Volt

   (V)

   Flow rate

     (LPM)

 Max.Lift

  (M)

Max.Submersible

          (M)

Amps

  (A)

Packing Size

   (mm)

N.W/G.W

  ( kgs)

HY1240-30   12    6.0   70        30   4.0  355*130*1102.9/3.0
HY2440-30   24    6.0   70         30   8.0    355*130*1102.9/3.0















1. Q: Are you a manufacturer or trading company?

    A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.

2. Q:What's your products MOQ?

    A: Different model has different MOQ, pls check with salesman.

3. Q: How can I get some samples?

   A: Usually we can’t offer free sample, pls pay the sample and express fee, the      sample costing can be             deducted in your first large order.

Q:  What's your delivery time?

    A:  1.The samples can be sent to you within 3-5days.

         2.The batch order can be shipped to you within 5-15days after order confirmation

5 : Q:What's your warranty & after service policy?

     A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts                     free to you

6  Q: How many qty so I can get your OEM service with myself brand name?

    A:  Different Models have different MOQ requirement, pls consult our salesman.

7  Q: What's the payment can you accept?

     A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
