semi-auto lifting container spreader

FOB Reference Price:Get Latest Price
$5,000.00 - $10,000.00 / Sets | 1 Set/Sets semi-auto lifting container spreader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GLK
Model Number:
GLB
Material:
Steel
Color:
Requirement
Type:
container spreader
Delivery time:
Within 30 Days
Warranty:
1 Year
Application:
Portal crane gantry crane plant crane
Rated lifting load:
35-40t
Condition:
100%new
Packing:
container
Name:
semi-auto lifting container spreader
Supply Ability
Supply Ability:
5000 Set/Sets per Year semi-auto lifting container spreader
Packaging & Delivery
Packaging Details
container packing
Port
shanghai port
Lead Time :
Shipped in 30 days after payment
Product Description

semi-auto lifting container spreader

The New type spreader adopts I type, which has advantages of less lifting points spacing,less lifting height and high stiffness.

This kind of spreader is suitable to be used on ports and site which have less containers, And it is suitable to lift 20ft to 45ft containers.It can be used portal crane and stacker crane.

Semi automatic container spreader is fixed on crane by hook.The twisting block is controlled by lifting wire rope,There is no need for crane operator to articulated/decoupling.Easy installation and save more transformation time from the hook to container, can work without electric and no need to update crane control circuit.

For operation with ISO standard 20' container
For operation with ISO standard 40' container
Rated lifting load
35t
Rated lifting load
40t
Slef-weight
2t
Slef-weight
3.5t
Allowable load eccentricity
10%
Allowable load eccentricity
10%
Spring stroke
100mm
Spring stroke
100mm
Ambient temperature
-20℃~+45℃
Ambient temperature
-20℃~+45℃
Twistlock mode
ISO floating twistlock,driven by a automatic spring
Twistlock mode
ISO floating twistlock,driven by a automatic spring
Flippers device
NO power,fixed flippers
Flippers device
NO power,fixed flippers
Application
Portal crane,gantry crane,crane in the plant
Application
Portal crane,gantry crane,crane in the plant
Certifications

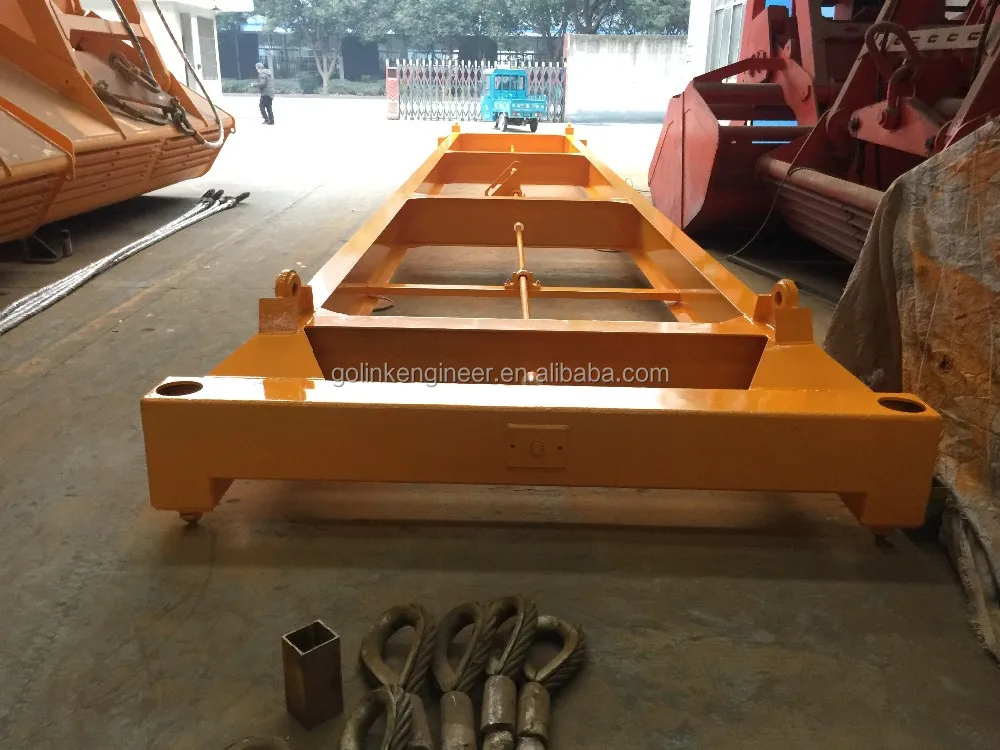

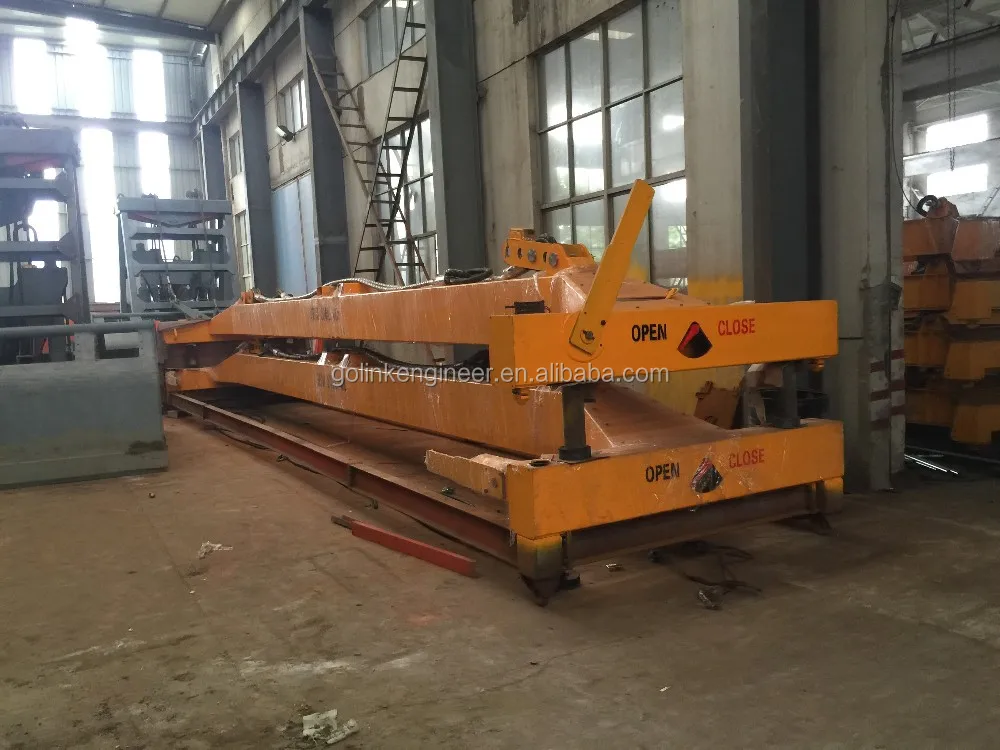

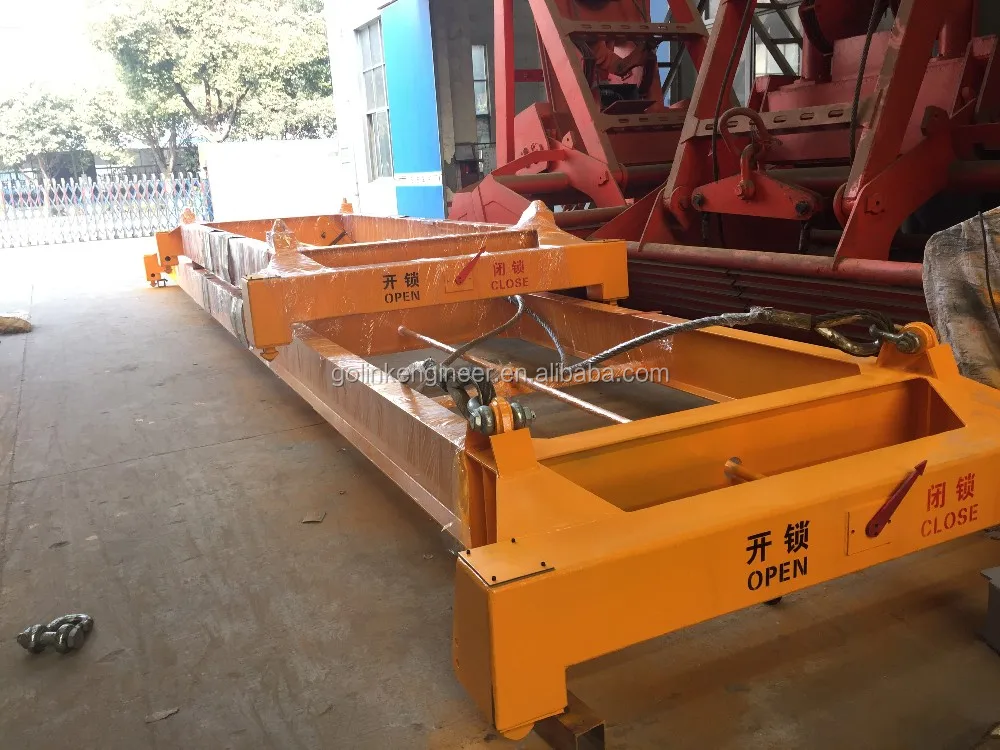

Detailed Images




Machine Parts

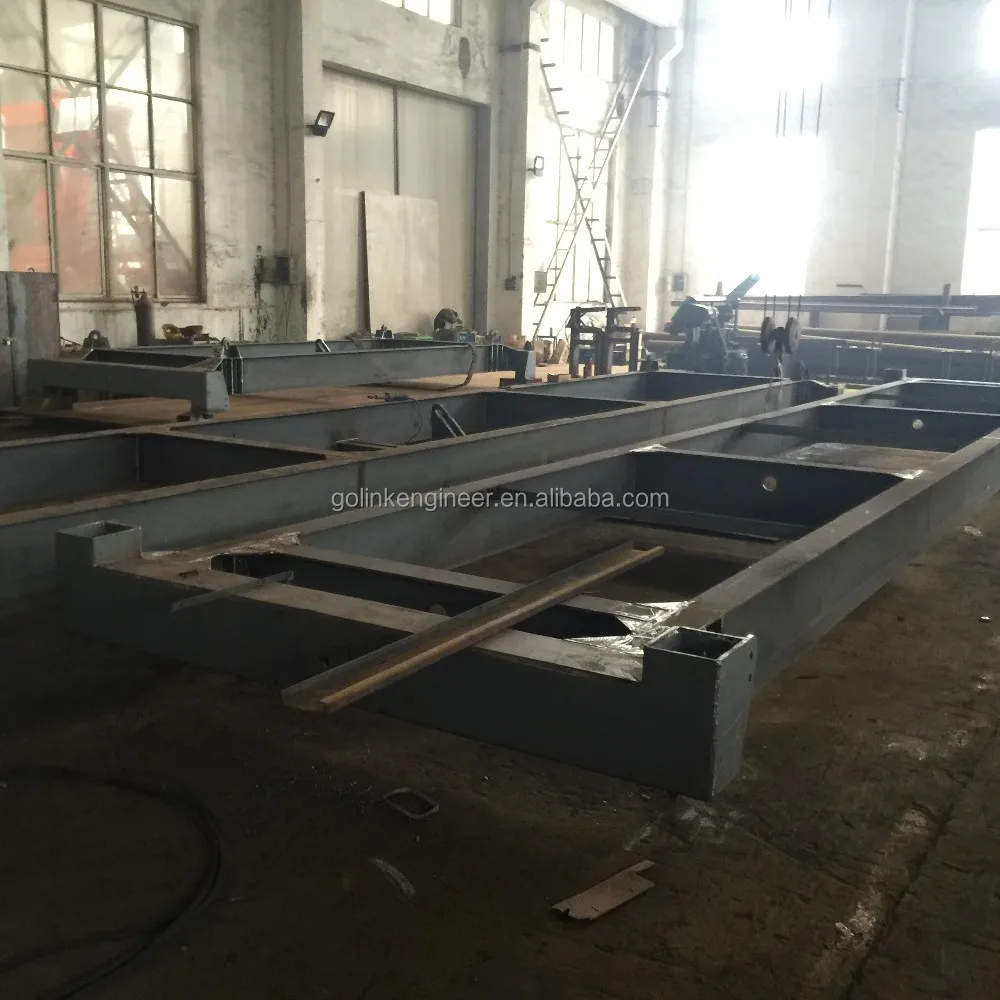

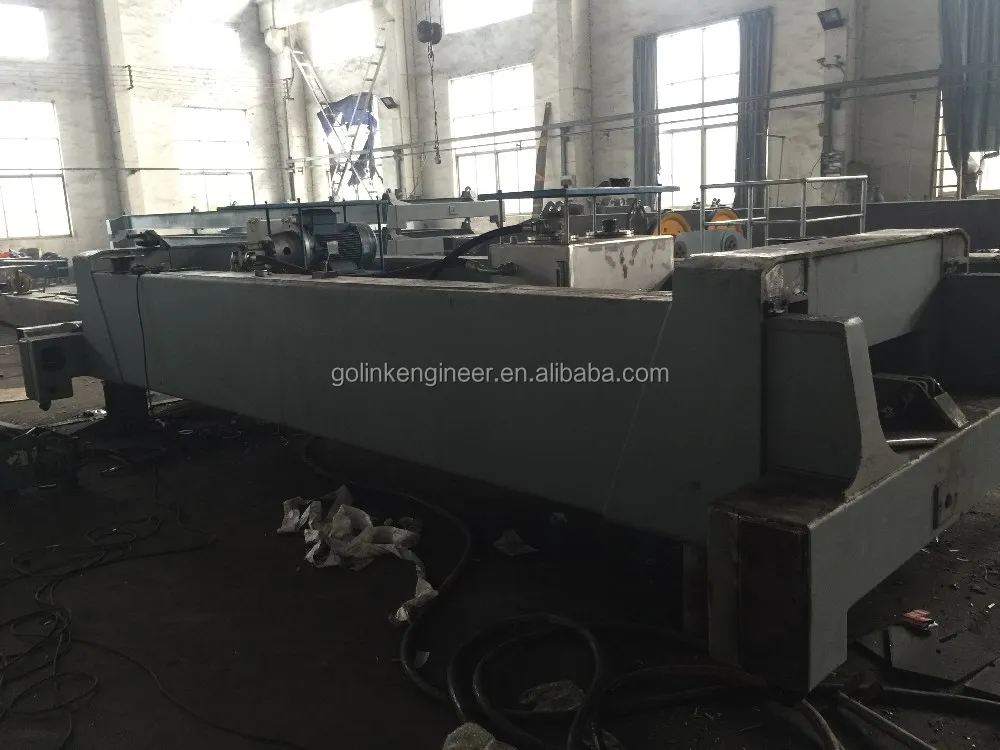

Name: Welding






Main Features

Name: Welding






Machine Parts

Name: Testing






Main Features

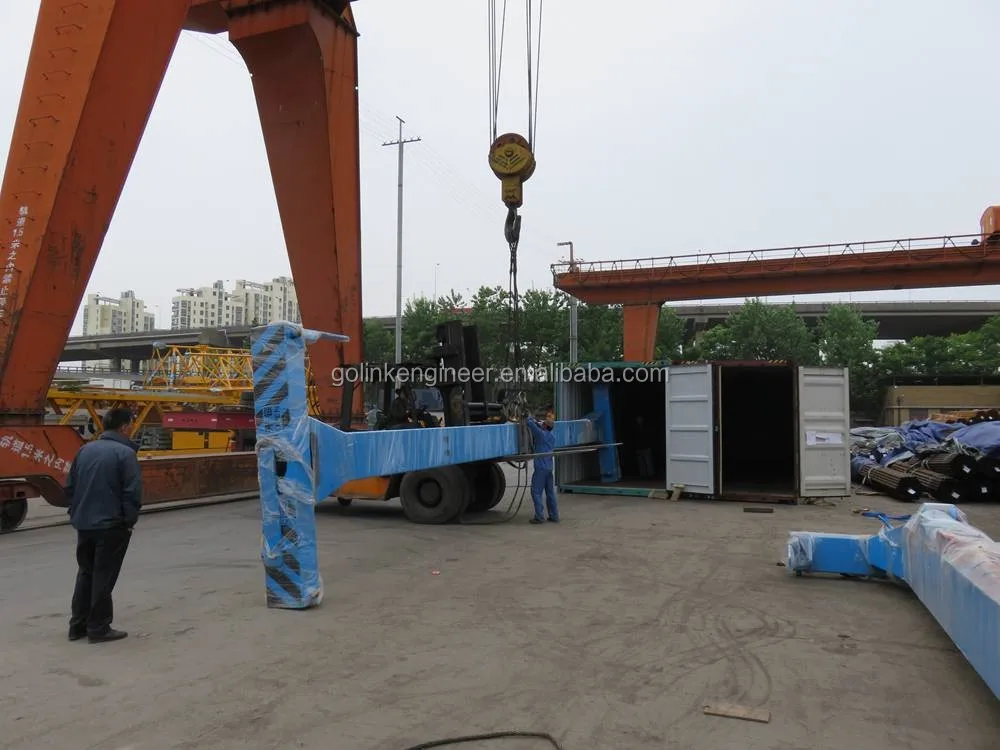

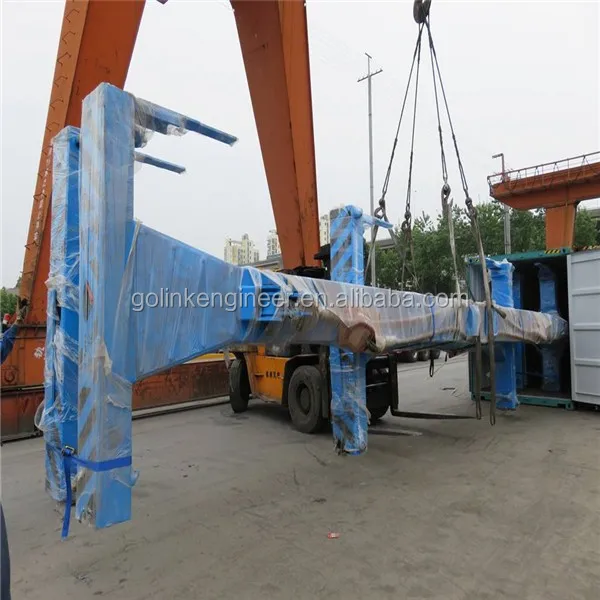

Name:Packing

Packing & Delivery
