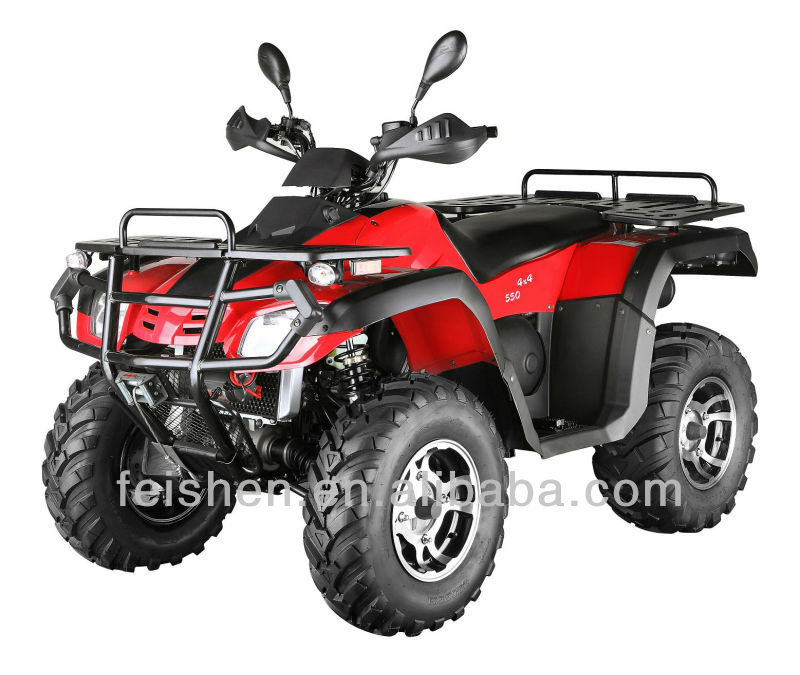

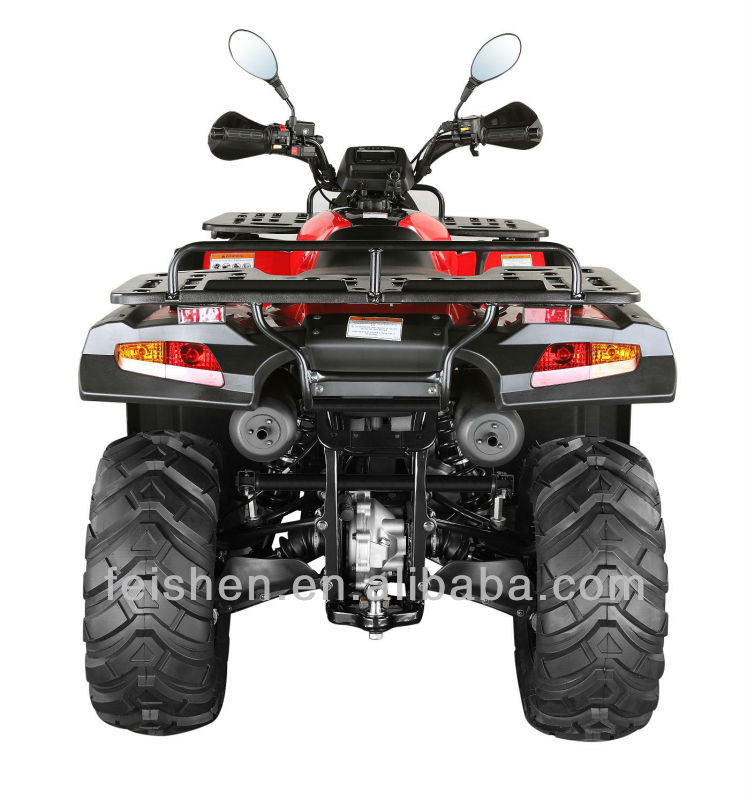

shaft drive 600CC ATV quad bike atv 4x4 china import atv (FA-K550)

FOB Reference Price:Get Latest Price
US $2,800-3,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Transmission Type:
Manual
Transmission System:
Shaft Drive
Certification:
EPA
Brand Name:
BUYANG
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
FA-K550
ENGINE TYPE:
4 Stroke,V-Twin Cylinder, SOHC,EFI
ENGINE COOLING:
Liquid-Cooled
MAX.POWER(KW/rpm):
26.5KW/7000rpm
STANDARD POWER:
25KW/6500rpm
MAX.TORQUE(N.m/rpm):
45N.m/5500rpm
MAX.SPEED:
≥90Km/h
FUEL CAPACITY:
12L
MAX.LOAD(kgs):
204kg
NET WEIGHT(kgs):
285kgs
GROUND CLEARANCE:
300mm
Supply Ability
Supply Ability:
300 Unit/Units per Day
Packaging & Delivery
Packaging Details
STEEL FRAME + CARTON
Port
FOB NINGBO
Lead Time :
30 DAYS

shaft drive 600CC ATV quad bike  atv 4x4 china import atv (FA-K550)

1









 FA-K550 (EEC&EPA APPROVAL)
ENGINE TYPE4 Stroke,V-Twin Cylinder, SOHC,EFI
ENGINE COOLINGLiquid-Cooled
MAX.POWER(KW/rpm)26.5KW/7000rpm
STANDARD POWER25KW/6500rpm
MAX.TORQUE(N.m/rpm)45N.m/5500rpm
MAX.SPEED90Km/h
BORE STROKE72.5mm x 66.8mm
DISPLACEMENT552ml
COMPRESSION RATIO10.3:1
FUEL SUPPLY SYSTEMECU
LUBRICATIONSeparated & Pressure
AIR FILTER TYPEDry Air-Cleaner Net
SPARK PLUGDR8EA
STARTINGElectric Start & Pull Start
STARTING PROCEDURETurn lgnition
GEARSHIFTManual
TRANSMISSIONCVT (H/L/N/R)
BRAKE FRONTDisc Brake
BRAKE REARDisc Brake
BRAKE DISTANCE7m/30km/h
FRONT SUSPENSIONMacphersan Independent
REAR SUSPENSIONDouble Wishbone
SHOCK ABSORBER(F/R)Spring and Damp Shock Absorbor
BATTERY12V/18AH
ENGINE OIL1.5L
TRANSMISSION OIL0.8L
REAR OIL0.3L
FUEL93# Unleaded Gasoline
FUEL CAPACITY12L
TURNING RADIUS3280mm
MAX.LOAD(kgs)204kg
FRONT TIRE25x8-12
REAR TIRE25x10-12
OVERALL2016x1180x1237mm
PACKING SIZE2310x1320x870mm
WHEELBASE(mm)1271mm
SEAT HEIGHT(mm)895mm
GROUND CLEARANCE300mm
NET WEIGHT(kgs)285kgs
COLOR Red, Blue, Orange, Black, Army Green, Camo
LOADING QUANTITY8pcs/20'GP, 18pcs/40'GP, 27pcs/40'HQ
