small 220v lab dosing peristaltic hose pump with liquid flow range 0.0015-380 ml/min

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Horsepower:
<22 W
Maximum Flow Rate:
380ml/min
Maximum Head:
5-10m
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chuangrui
Model Number:
BT100M/YZ1515x
Structure:
220v Peristaltic pump
Usage:
peristlatic hose pump
Application:
laboratory
Power:
Electric, AC220 /ac110v
Fuel:
Electric
Pressure:
Low Pressure
Theory:
small Peristaltic pump
Product name:
small 220v lab dosing peristaltic hose pump
Display:
4-digit LED
Pump head:
YZ1515x, DG series
Rotating speed:
0.1-100 rpm,reversible
Flow range:
0.0015-380 ml/min
Tubing:
Silicone tubing, Tygon tubing
channel:
1/2/4
External control:
0-5V,0-10V,4-20mA
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.1 set of peristaltic tubing pump/carton
2.Carton with plastic foam, make sure the lab peristaltic pump is safe during shipping.
Port
Tianjin ,Beijing ,Guangzhou ,Shanghai etc...
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 15 To be negotiated
Video Description
Product Description

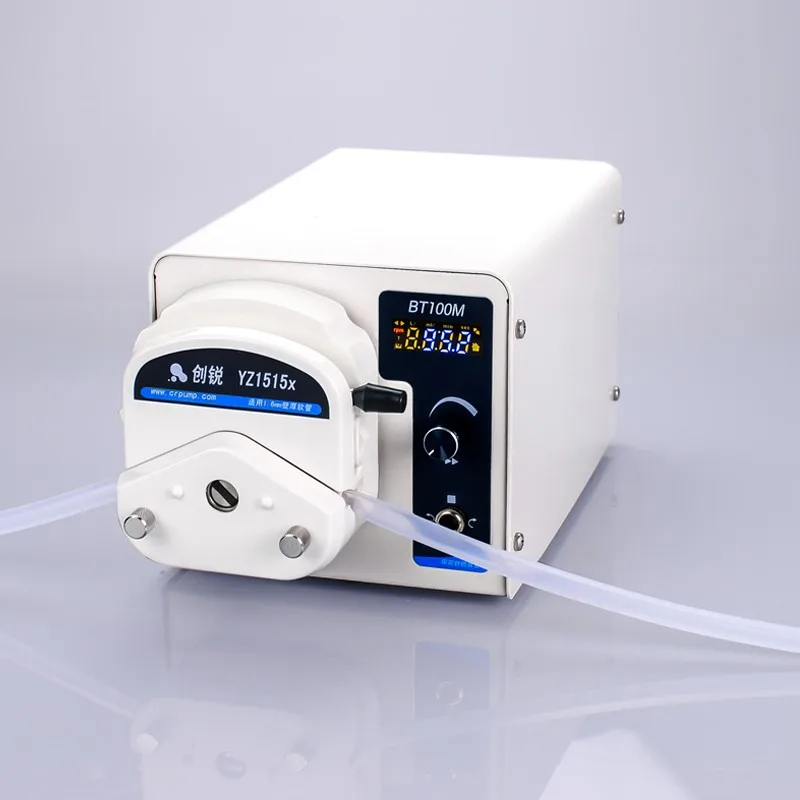

small 220v lab dosing peristaltic hose pump with liquid flow range 0.0015-380 ml/min


Model :BT100M
Pump head :YZ1515x DG series optional
Speed :0.1-100 rpm adjustable
Flowrate : 0.0015-380 ml/min
Foot pedal :Yes
External Control : optional
Power supply :220v standard  110v optional


This  LAB peristaltic pump can be installed several kinds of peristaltic pump heads , such as YZ1515x, YZ2515x, DG-1 and DG-2, with flow rate from 0.0015~380mL/min. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.

4-LED display

Speed and flowrate 2 way display

Non-pollution

No need cleaning

 Low shear force

Maintenance convenient

Specifications
Chuangrui basic type lab peristaltic pump  Speed 0.1- 100 rpm reversible

Model "  BT100M/YZ1515x can run with 7 different size tube .

flow  range   0.007-380 ml/min

Model " BT100M/YZ2515x can run with 2 different size tube .
flow range 0.17-290 ml/min

Model " BT100M/DG head with 6 rollers can run with 5 different size tube .
flow range 0.002-36.6ml/min

Model " BT100M/DG head with10 rollers can run with 5 different size tube .
flow range 0.0015-17.8 ml/min

Tube For pump head MODEL ; YZ1515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate ml/min
13#
0.8
1.6
4
0.007-7
14#
1.6
1.6
4.8
0.027-27
19#
2.4
1.6
5.6
0.051-51
16#
3.1
1.6
6.3
0.082-82
25#
4.8
1.6
8
0.17-170
17#
6.4
1.6
9.6
0.29-290
18#
7.9
1.6
11.1
0.38-380
Tube for peristaltic pump head   YZ2515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
15#
4.8
2.4
9.6
0.17-710
24#
6.4
2.4
11.2
0.29-290
Tube for peristaltic pump head  DG head with 6 rollers
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
0.5*0.8
0.5
0.8
2.4
0.002-2
1*1
1
1
3
0.006-6
2*1
2
1
4
0.019-19
2.4*0.8
2.4
0.8
4
0.0245-24.5
3*1
3
1
5
0.0366-36.6
Tube for peristaltic pump head DG head with 10 rollers
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
0.5*0.8
0.5
0.8
2.4
0.0015-1.5
1*1
1
1
3
0.004-4
2*1
2
1
4
0.013-13
2.4*0.8
2.4
0.8
4
0.0178-17.8
