small diameter outdoor distribution optic fiber cable

FOB Reference Price:Get Latest Price
$0.20 - $0.38 / Kilometers | 2000 Kilometer/Kilometers (Min. Order)
Lead Time:
Quantity(Kilometers) 1 - 100000 >100000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 10000 Kilometers)
Customized packaging (Min. Order: 10000 Kilometers)

More

Graphic customization (Min. Order: 10000 Kilometers) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
YRT
Model Number:
GYTA
Product name:
Outdoor Fiber Optical Cable
Color:
Black
Certification:
ISO9001
Length:
0.5m/1m/2m/5m/customized
Fiber Type:
G652D/G657A
Packing:
Wooden Drum
Type:
Singlemode
Warranty:
2 Years
Application:
FTTH FTTB FTTX Network
Wavelength:
1310/1550nm
Supply Ability
Supply Ability:
3000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
Wooden drum/Carton
Port
Shanghai/Qingdao
Lead Time :
Quantity(Kilometers) 1 - 100000 >100000
Est. Time(days) 5 To be negotiated
Product Description

Stranded loose tube Non-amored Cable(GYTA)

GYTA53 The fibers,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene (PE)for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes(and fillers) are stranded around the strength member into a compound to protect it from water ingress.Then,the cable is completed with a PE sheath.

Detailed Images

Specification

Fiber Type
Fober
core
Dimension
(mm)
Weight
(kg/km)
Tensile strength
(N)
Crush strength
(N/100mm)
Tube count
Temperature
(℃)
Long
term
Short
term
Long
term
Short
term
GYTA53-2~36Xn
2~36
13
199
1000
3000
1000
3000
6
-40~+70




GYTA53-38~72Xn
38~72
15
244
1000
3000
1000
3000
6
GYTA-74~96Xn
74~96
16.8
290
1000
3000
1000
3000
8
GYTA-98~120Xn
98~120
17.8
333
1000
3000
1000
3000
10

Application

Duct/Aerial

Feature

1.Excellent mechanical and temperature performance;

2.High strength and hydrolysis resistance loose tube;

3.Special compact structure design prevent loose tubes from shrinking.

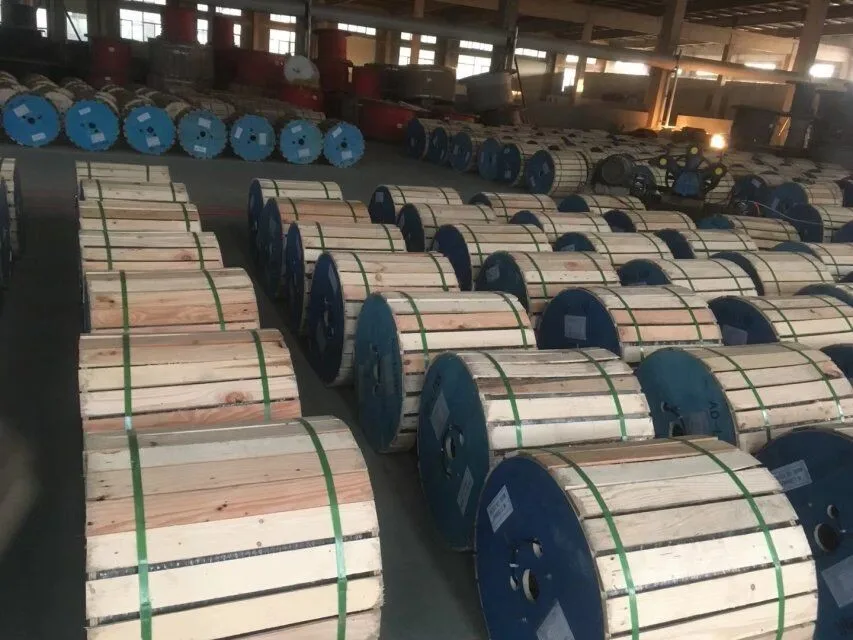

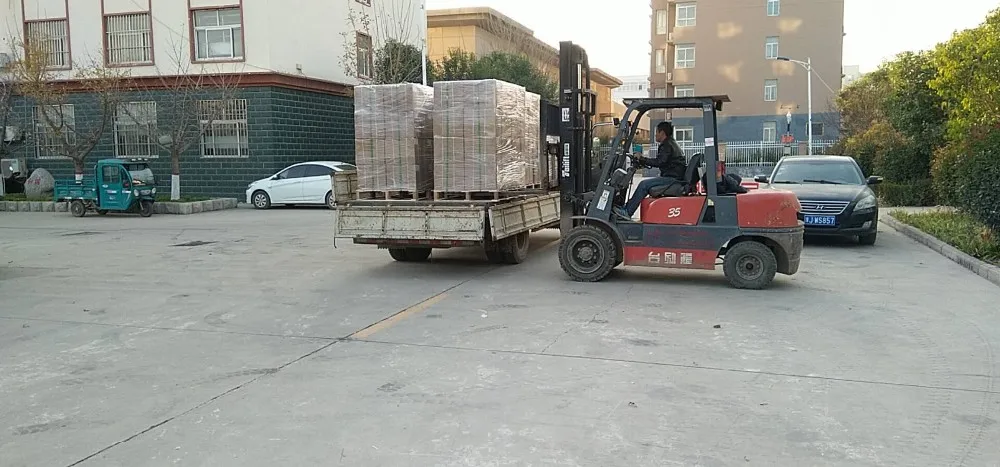

Packing & Delivery

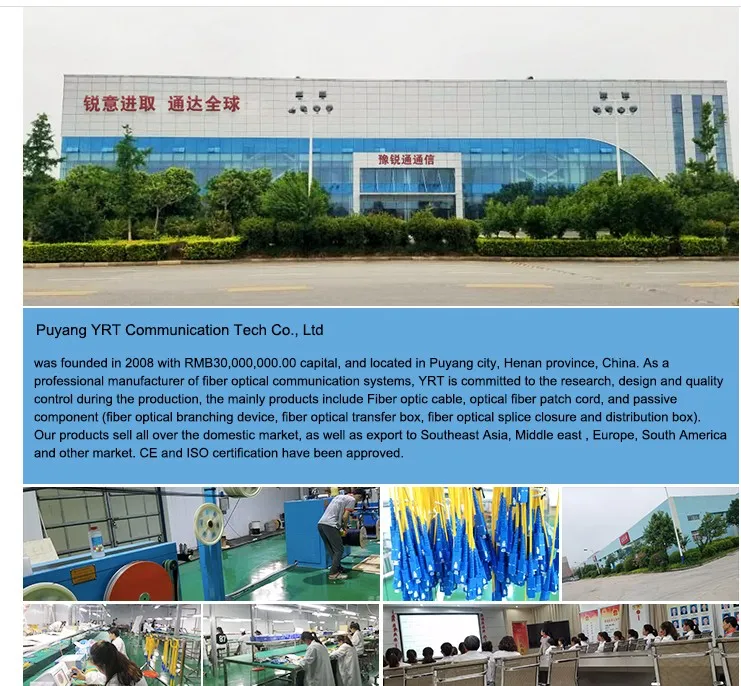

Our Company

Product certification

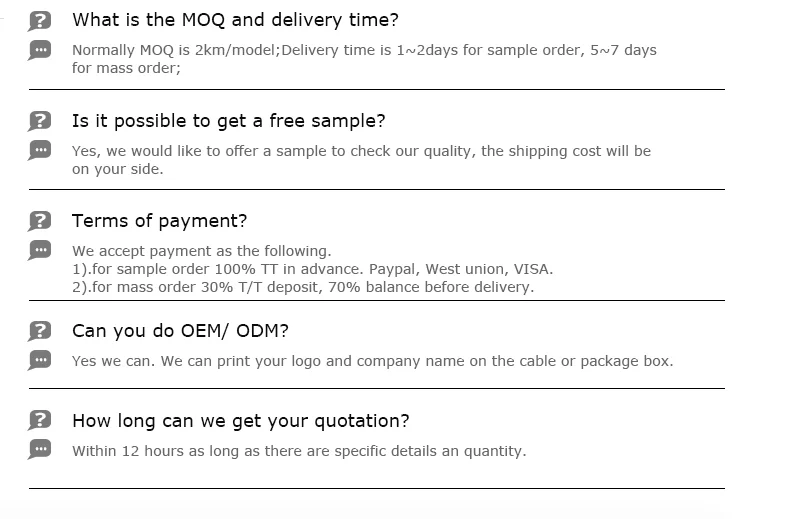

FAQ
Contact us
