small garden tractor loader LG916 model 1.6ton wheel loader

  • 5-9 Units
    $21,000.00
  • >=10 Units
    $20,500.00
Rated Load:
1.6ton
Model Number:
LG916
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
To be negotiated
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
5560x2084x2925mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Condition:
New
Brand Name:
Shandong brand
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
ISO
Operating weight:
5000KG
Engine model:
YN36(II2893)
Max. dumping height:
2450mm
Main pump type:
gearbox
Bucket capacity:
0.8m3
Gradeability:
30%
Overall dimension:
5560x2084x2925mm
Optional parts:
bucket can be customized
Loader type:
small garden tractor loader

Packaging & Delivery

Selling Units:
Single item
Single package size:
5560X2084X2925 cm
Single gross weight:
5000.0 kg
Package Type:
Nude packing
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

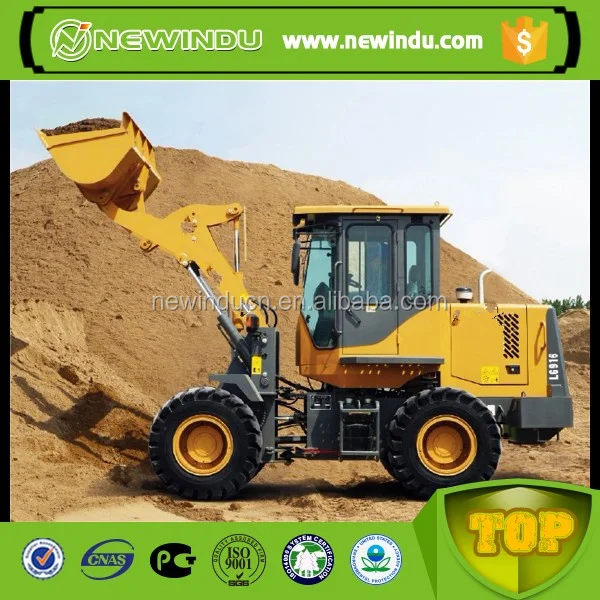

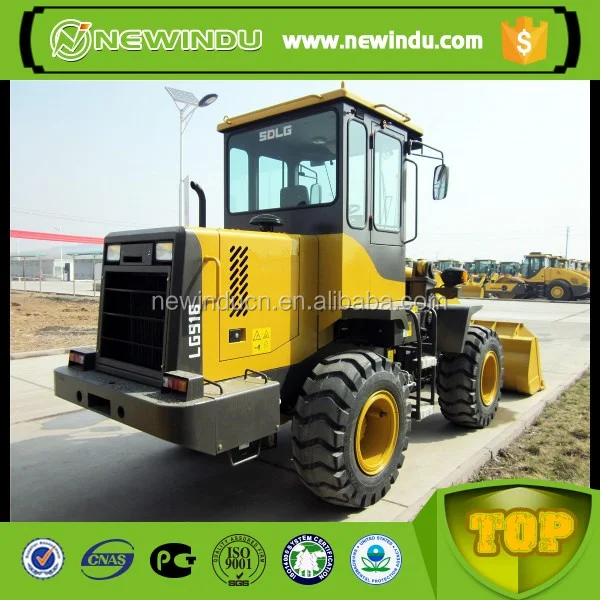

LG916 Small wheel loader with 1.6ton loading capacity/0.8cbm bucket



LG916 Wheel loader is a high-end product mainly for loading and unloading loose material. The entire machine is compact,flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms,timber yard and municipal construction.



ItemSpecificationItemSpecification
Overall dimensionMax.torque220N.m
LxWxH5560x2084x2925mmEmission standardGB2089-2007 China Phase II
Wheelbase2235mmTransmission system
Min.ground clearance330mmTorque converterSingle-stage 3-element single-turbine hydraulic torque converter
Max.dumping height2450mmTransmission typeFixed shaft shaft electro-hydraulic shift
Lifting height3080mmGears Forward 2 reverse 2
Dumping distance870mmSpeed at forward gear I11.3km/h
Max.gradeability28°Speed at forward gear II28.0km/h
Dumping angle45°Speed at reverse gear I11.1km/h
Bucket rollback at ground level40.8°Speed at reverse gear II27.4km/h
Overall width(outside of rear wheel)1990mmHydraulic system of working device
Wheel tread1580mmTypeMechanical control
Steering angle35°Total time≤8.0s
Horizontal crossing radius5065mmBrake system
Min.turning radius4452mmService brake typeAir over hydraulic
Overall parameterParking brake typeManual internal expanding shoe brake
Bucket capacity0.8m³Steering system
Rated load1600kgTypeLoad-sensing fully hydraulic hinghed steering
Operating wight5000kgSystem Pressure16MPa
Max.tractive force≥45kNFill capacity
Max.breakout force44kNFuel90L
Tipping load≥32kNHydraulic oil66L
EngineEngine7L
ModelYN36(II2893)Transmission20L
TypeInline,water-cooled,four-strokeDrive Axle2x8L
Rated power/speed48kw/2400r/minBrake system4L
Engine displacement3612mL







Except this brand, we also have other famous Chinese brands wheel loader, tell me your requirements and we will  recommend suitable models and brands for your selecction.
As a professional exporter of all kinds of construction machinery with over 10 years experience, we will try our best to make you feel satisfied.



Our products cover:
1. Hoisting machinery ( truck cranes, mobile cranes, crawler cranes, tower cranes, etc. )
2. Earth-moving machinery ( wheel loaders, excavators, bulldozers, backhoe loaders, etc. )
3. Road construction machinery ( road rollers, graders, cold milling machines, etc. )
4. Drilling machinery ( rotary drilling machine, road heater,etc.)
5. Special vehicle ( dump truck, tractors, forklift, reach stackers, etc.)
6. All kinds of spare parts.
