SMT Fully Automatic Solder Paste Stencil Printer ETA P4034 / 1200 / 6050

FOB Reference Price:Get Latest Price
$5,500.00 - $5,800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETA
Model Number:
P4034
Name:
full-auto stencil Printer
Usage:
solder paste print
Application:
smt stencil printer
Dimension:
1220mm(L) x 1410mm(W) x 1550(H)mm
Power Supply:
220v 50/60HZ
Applicable Components:
0402~5050
Warranty:
1 year
Product name:
full-auto printer
Weight:
option
Item:
stencil printer
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
shenzhen
Lead Time :
20 DAYS
Product Description

SMT Fully Automatic Solder Paste Stencil Printer ETA P4034 / 1200 / 6050

Introduction of Smt Stencil Machine:

ETA Smt Stencil Machine can cater for PCB size up to 410mm x 310mm come with many high performance and useful features such as APC (Automatic Pressure Check); Swappable Monitor Position; 2D inspection Function as standard.

Main Features of Smt Stencil Machine:

■ Suspended print head with programmable pressure automatic adjustment system
a) Programmable pressure automatic adjustment system support visible pressure values of front and rear squeegees and ensures accurate pressure control.
b) Pressures of front and rear squeegees are separately adjusted, to compensate pressure imbalance caused by fatigue deformation of squeegee to prevent from different printing quality in front and rear.
■ Standard stainless steel squeegee, unique design to improve the lifespan of squeegee blade.
■ ETA Vision alignment system
■ Table X/Y/θ automatic calibration system.
■ PCB clamping and support system. .
a) Magnetic pins;
b) PCB flexible side clamping system to ensure no bending and deformation during PCB clamping
c) Strong vacuum suction (optional)
d) Elastic Z-direction pressing tablets (optional)
e) Flexible automatic pins(optional)
■ NC slide way adjustment for conveyor width and speed.
■ Dry-type, wet-type and vacuum-type with arbitrary combination for stencil cleaning system.
■ System Requirements: IPC (Industrial Personal Computer) with Windows XP System
■ Built-in software diagnosis system.
■ Support 2D, SPC software function.
■ Standard SMEMA link port.

Specifications
Smt Stencil Machine
Screen Frames
470×370mm~737×737mm
Squeegee Speed
6~200mm/sec
Squeegee Pressure
0~15kg
Squeegee Angle
60°/55°/45°
Squeegee Type
Stainless steel(standard),plastic
Stencil Separation Speed
0.1~20mm/sec (Programmable)
Cleaning System
Dry 、Wet、Vacuum (Programmable)
Table Adjustment Ranges
X:±10mm;Y:±10mm;θ:±2°
Air Required
4.5~6kg/cm2
Power Input
AC:220±10%,50/60HZ,3KW
Control Method
PC Control
Machine Dimensions
1220(L)×1530(W)×1500(H)mm
Machine Weight
Approx:1200kg
Company information


 ETA is the leading SMT factory solution provider in China ,offering professional SMT factory building advice and service.We have 22 years experience about SMT factories,offering full solution for global clients with our advantaged sources in China. Our core technology team members are all from Foxconn,Huawei,Siemens and other companies,we not only provide a full set of equipments,we also provide full smt technical support and services,Besides we give customers more reasonable and professional suggestions.We have already helped many customers to establish factories in LED, TV, Phone, DVB, EMS and other filed around the world ,we are worthy of trust!

Main Products:SMT LED Pick and Place Machine,SMT LED Reflow Oven,SMT LED Stencil Printer,SMT Production Line,LED Assembly Line,SMT LED Machine.

Successful Experience:
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.

Certifications

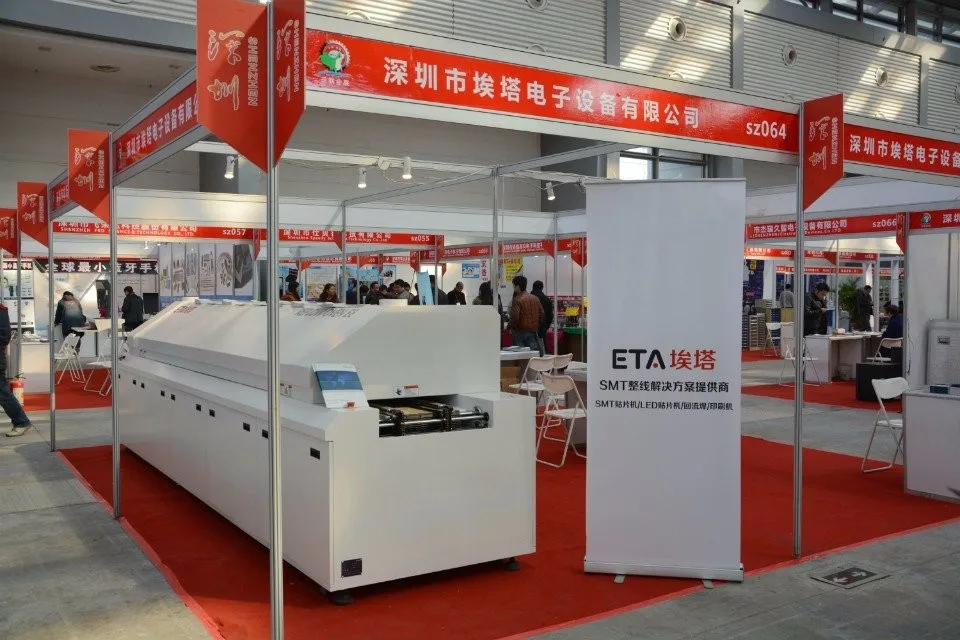

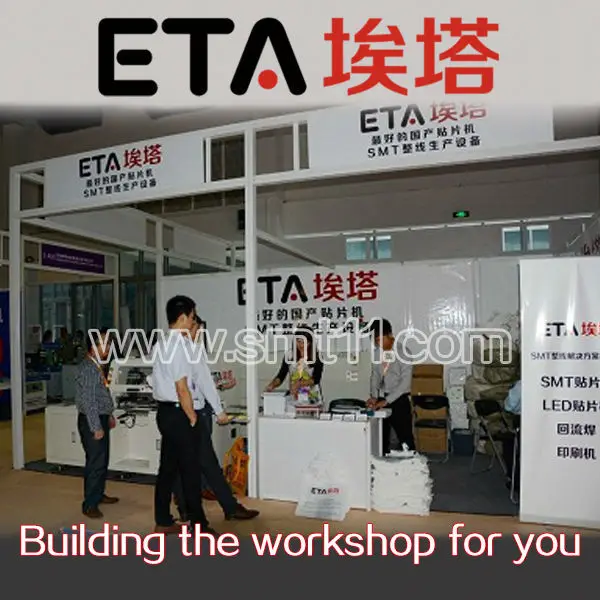

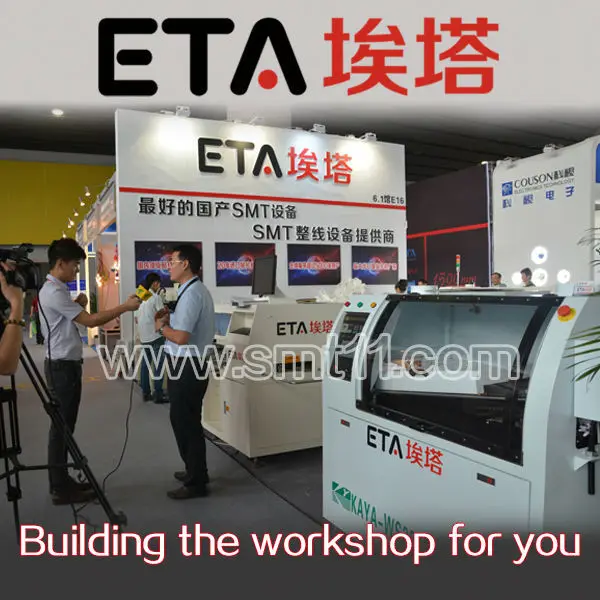

Exhibition
