solar inverter with solar charger

Feedback Ratings
US $170.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
SV2400
Output Power:
1 - 200KW
Output Type:
Single
Size:
288*272*90
Weight:
3.0kg
Input Voltage:
220v/230v/240v
Output Voltage:
220V/230V/240V+/_10%
Type:
DC/AC Inverters
Output Frequency:
50hz+/_1hz
Output Current:
30/50A selectable
Product name:
solar Inverter
Application:
Home
Protection:
Overload
Efficiency:
95%
Peak power:
1440w
Certificate:
RoHS
Warranty:
12 Months
Output waveform:
Modified Sine Wave
Display:
LED+LCD
Control mode:
Vector Control

Packaging & Delivery

Selling Units:
Single item
Single package size:
58X35X24 cm
Single gross weight:
6.0 kg
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 7 To be negotiated

solar inverter with solar charger

  • Inverter

  • Solar inverter

  • Solar Charge Inverter





ModelSV2400   2400va / 1440w
Capacity
INPUT
Voltage220/230/240VAC
Voltage Range162-290VAC or 90-290VAC Selectable
Frequency Range 50Hz
OUTPUT
Voltage Ragulation (Bat Mode) ±10%
Frequency Range (Bat Mode)50Hz ± 1Hz
Transfer timeTypical 20ms
Waveform (Bat Mode)Simulated Sinewave
Peak Efficiency(AC Mode)>95% @ FULL R load
Battery
Battery voltage24VDC
AC Charger
Floating Charge Voltage27.4VDC
Max Charging Current10A/20A Selectable
Solar Charger
Solar Charger Input18-80VDC
Solar Charger Output27.4VDC
Solar Charger Current30A/50A Selectable
Power Saving ModeWhile solar is charging,AC charger stopps automatically to save AC power
Protection
Full protectionOverload,discharge,overcharge,over temperature and shot circut protection
IndicationsColor LED
DisplayIndicating line model,battery mode,input voltage,output voltage,AC charging mode,solar charging mode,load level,battery level,and fault etc.
Physical
Dimension,D*W*H(mm)288*272*90
Net Weight (kgs)3
Environment
Humidity0-90% Relative Humidity (Non-condending)
Operating Temperature0 ℃ to 50 ℃

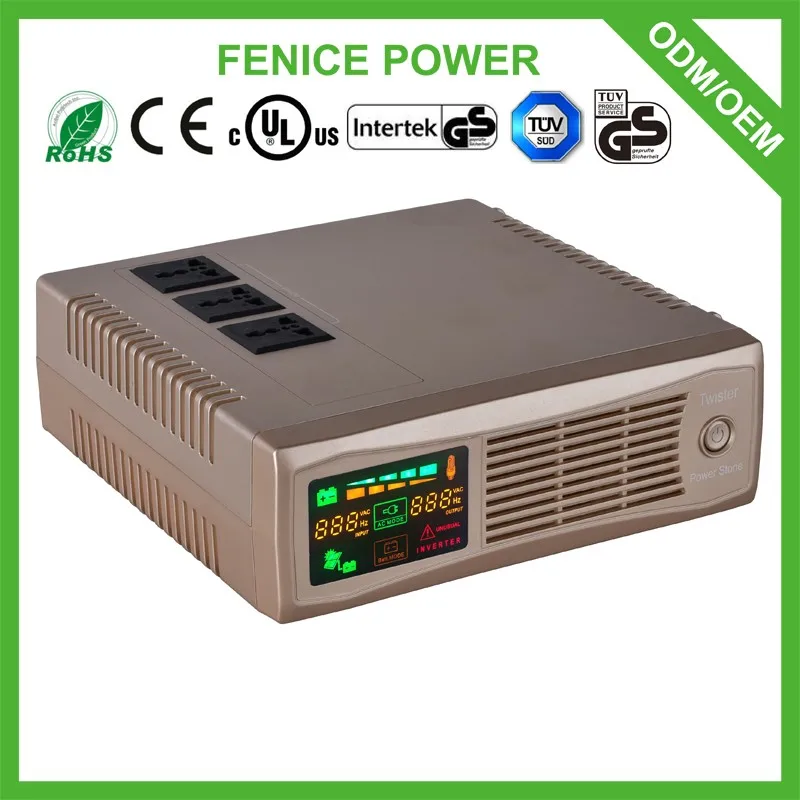

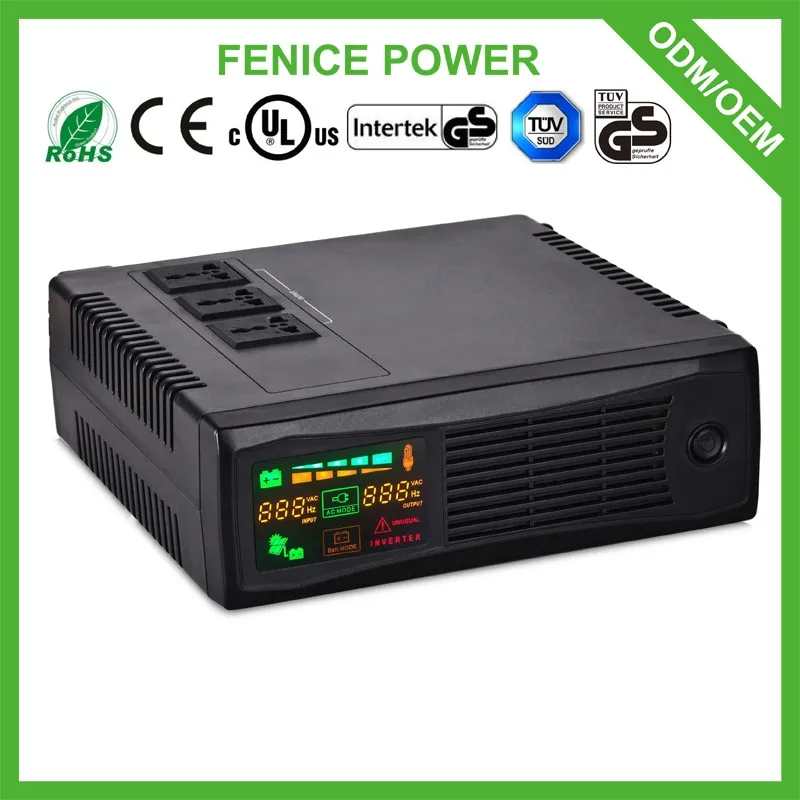

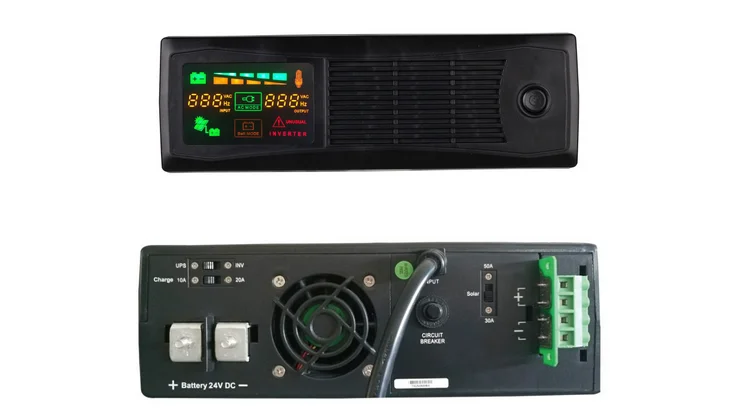

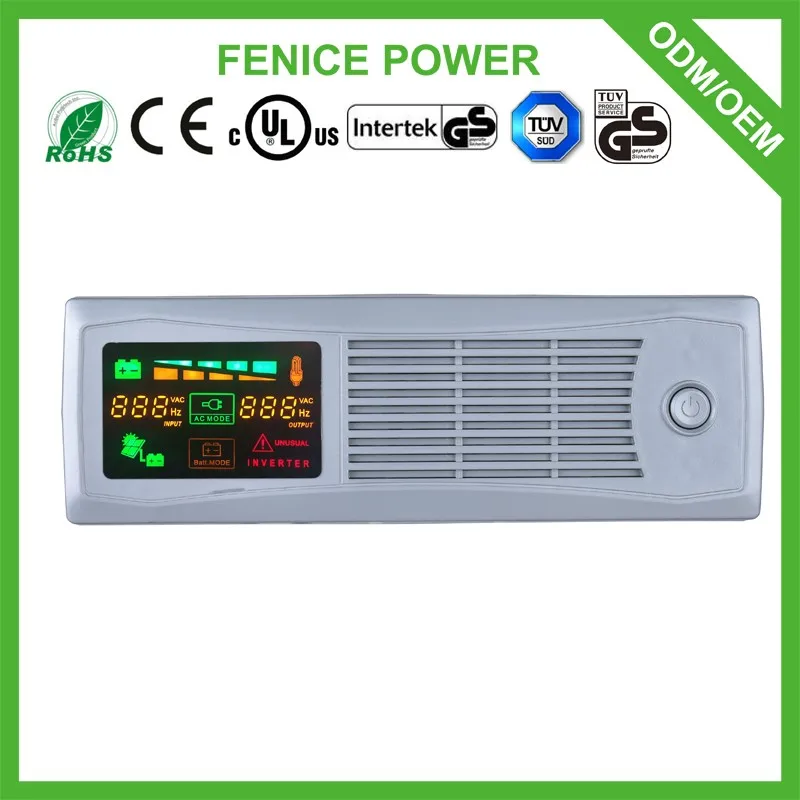

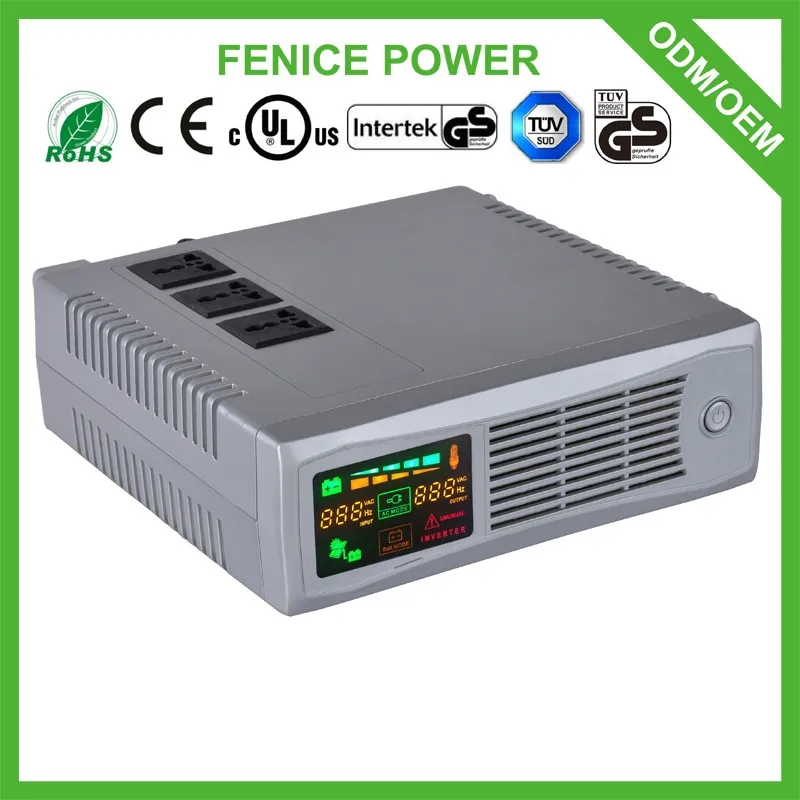

Product Images:



 Built-In MPPT Solar Charge Controller Widely Use 12V Home InverterBuilt-In MPPT Solar Charge Controller Widely Use 12V Home InverterBuilt-In MPPT Solar Charge Controller Widely Use 12V Home InverterBuilt-In MPPT Solar Charge Controller Widely Use 12V Home Inverter



Application Area
paste-pic-dp_uuid_v75cx







Products Recommended





Package Infomation



Model: SV2400
Unit Size : 288 x 272 x 90 mm
Unit weight: 3 kgs
Gift box size : 312 x 128 x 332mm
9pcs / ctn
Carton Size: 1185 x 325 x 350mm
GW/CTN: 33.7kgs
NW/CTN: 32.22kgs
1800pcs / 20ft container
3700pcs / 40ft container



Company Information





About Fenice Power Co.,Ltd.



Fenice Power Co., Ltd. is a professional manufacturer of Standby UPS, Line Interactive UPS, Online UPS, Solar Inverter andHome Power Inverter with over 16 years' experience. Headquartered in Shenzhen, Fenice Power is committed to providing high quality products and services to meet diverse customer requirements. With the customer-oriented spirit, Fenice Power is dedicated to continuously designing, manufacturing, marketing, and introducing a complete line of UPSs, Inverters, and Solar Power products to the demanding power market.





We established a complete quality system ranging from material source, production, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), cUL, FCC, BIS.


We have customers throughout the world including Europe, South America, South Africa, Middle East, India, Turkey, Pakistan, Iran...and so on. We offer wide range quality products from standard specification to customization design. Fenice Power is becoming the most growthful China Power supplier all over the world.



Fenice Power would like to cooperate with you and create a brilliant future based on the constant innovation spirit, uncompromising quality and efficient service.



Main advantages: 4B'
