soybean corn seed cleaner manufacturer

  • 1-4 Sets
    $7,800.00
  • >=5 Sets
    $7,500.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Cleaning Equipment, Double cyclinder grain seed cleaner
Use:
Clean impurities from grain
After-sales Service Provided:
Engineers available to service machinery overseas
Certification:
ISO9001, BV, CE Certificate
Place of Origin:
Shandong, China
Brand Name:
TSE CLEANER MASTER
Model Number:
TCQYS100-200
Condition:
New
Characteristic:
soybean corn seed cleaner
Capacity:
10t/h to 200t/h
Usage:
Separate grain from impurities
Material of main case:
Carbon steel
Motor:
China Famous Brand
Application:
Grain seed cleaner
Function:
Cleaning machine for grain seed
Product name:
factory price grain seed cleaner
Power:
Electrical Motor

Packaging & Delivery

Selling Units:
Single item
Single package size:
593X234X240 cm
Single gross weight:
3300.0 kg
Package Type:
With plastice film
Lead Time :
2
Product Description

Product Application

Grain seed cleaner becomes basic and most favourate cleaning machine in seed and grain agricultural processing line. With high efficiency , easy operation, wide application, it is suitable for processing and cleaning all kinds of grains, seeds, cereals and crops, such as wheat, paddy, rice , maize, pepper, coffee bean peeling, soybean, cocoa bean, oil seeds, etc.
Customized sieve layer amount and various machine combinations allow the grain seed cleaner and to be used for a wide range of applications and increasing grading efficiency.

Specifications

Double drum grain seed cleaner can effectively clean out light impurities, big impurities, fine impurities etc. from grain;
With the inclination angle screen drum and the independent support plus the aspiration device, the grain seed cleaner is featured with steady operation and good cleaning effect.
The capacity range is 30-200t/h,it is applicable to industries of corn deep-processing, oil and fat, feeding stuff and so on.

Model
Capacity(t/h)
Power(kw)
Weight(ton)
TCQYs100/220
30-50
3
1.9
TCQYs100/320
50-80
4
2.5
TCQYs100/420
80-100
5.5
3.3
TCQYs125/420
100-150
7.5
3.6
TCQYs125/520
150-200
7.5
4.4
TCQYs150/520
>200
11
5.5

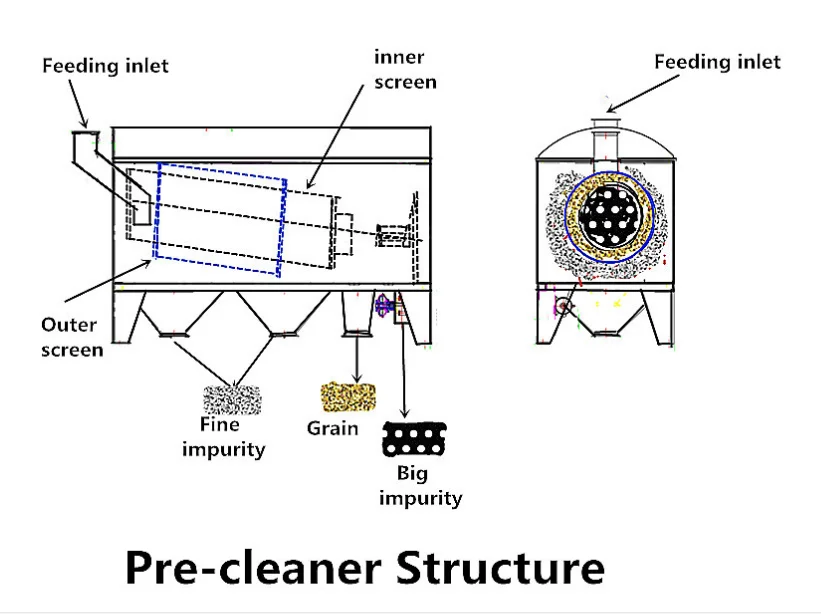

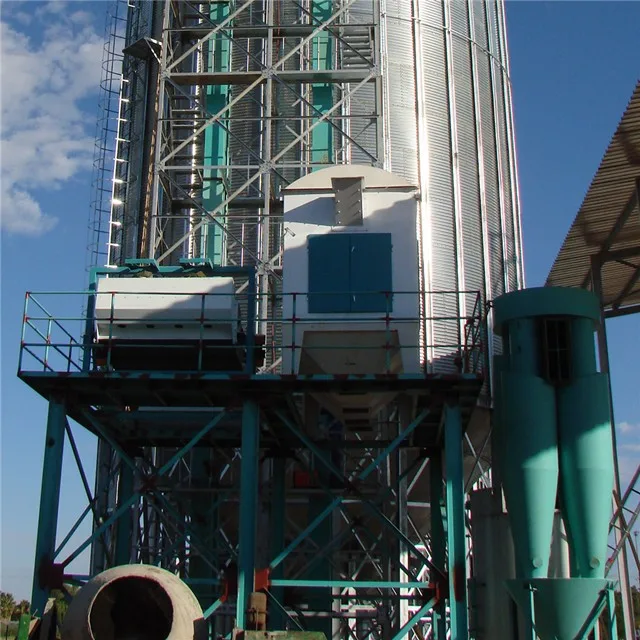

Working principle
Grain seed cleaner

Rotary drum pre cleaner compose of machine frame, inclined drum, gear, support components. it is mainly used to remove the large impurities. When the materials fall into the rotating drum, the materials that smaller than the sieve mesh will fall into the outer cylinder, and large impurities will rotate with drum and gradually expel from the outlet.

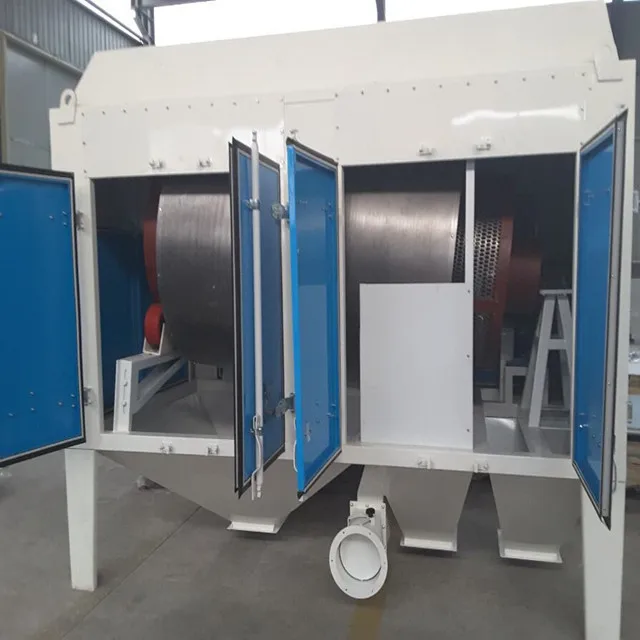

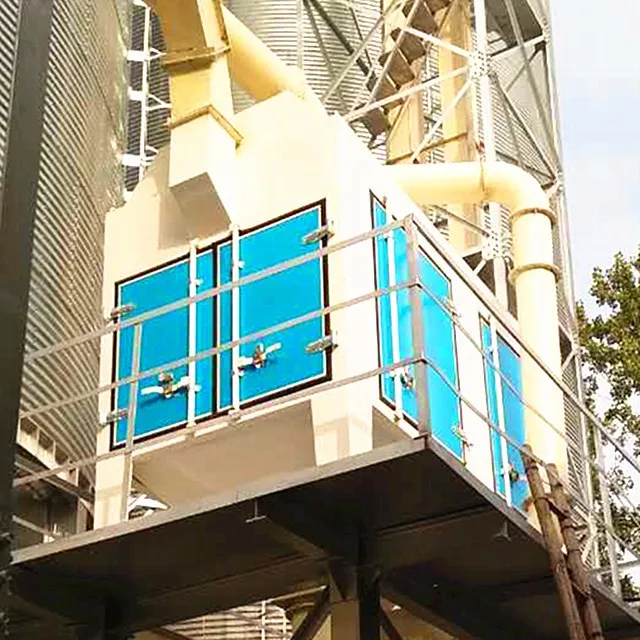

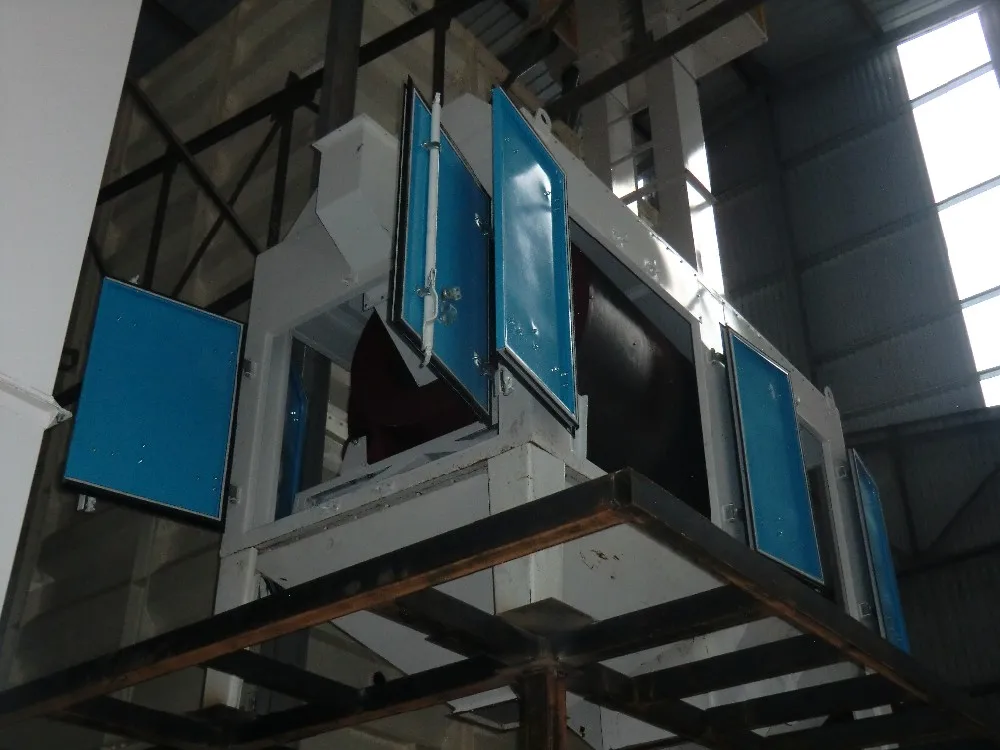

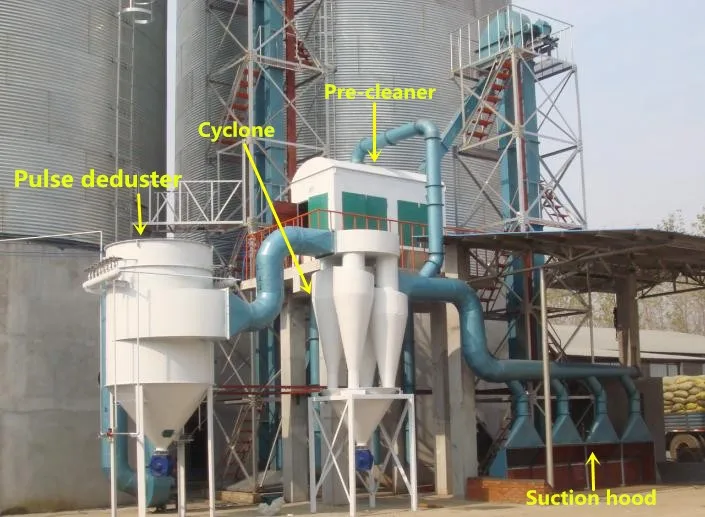

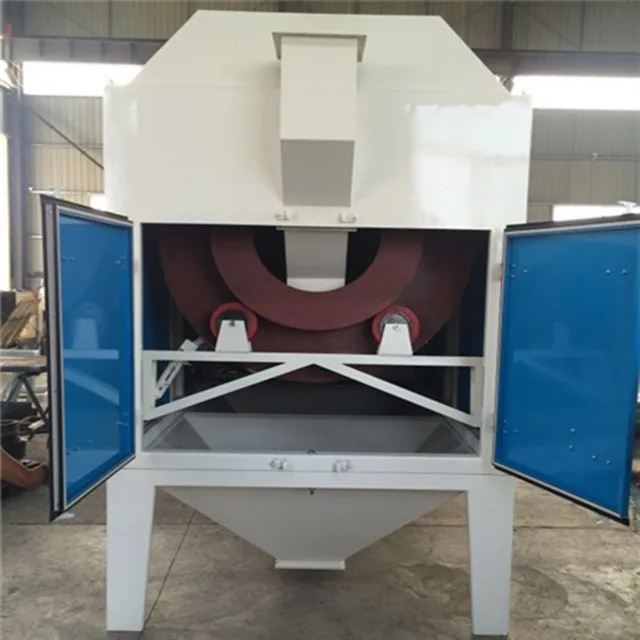

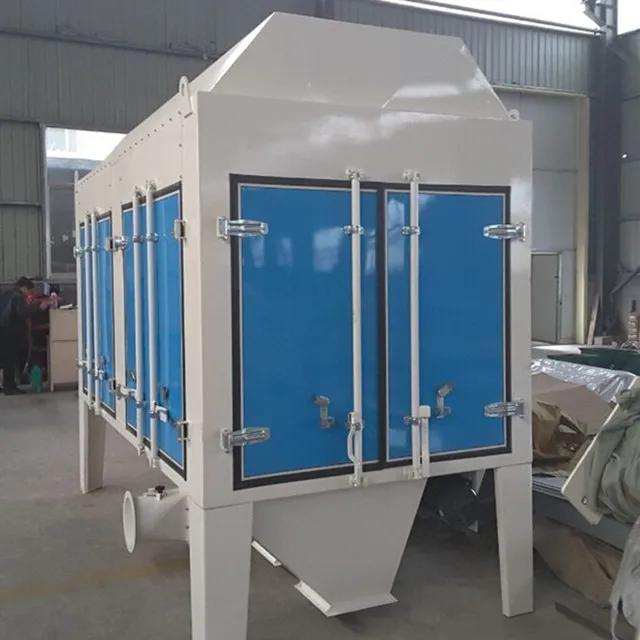

Detailed Images

Grain seed cleaner (also called Grain Pre Cleaner) is the important grain cleaners, it is designed and manufactured by Shelley Engineering for simple, fast removal of light and heavy (rubble) impurities from grain, corn, soybeans, wheat, rice or fuel whose particles sizes and weighs are different than impurity particle, all the grain and the impunity dust are inputed into the rotating screen cylinder,The inner mesh and the out mesh have different diameters, the grains are isolated and flow out through different exit from the dusts in the continuous screening process.

Features

*High capacity for cleaning larger and smaller impurities
*Heavy duty roller support system for high throughput operation
*Adjustable drum angle for flexible process and high efficiency
*Outer screen cleaning mechanism for clog free production
*Reliable roller chain drive mechanism for stable processing
*Dust cover structure on top/ at stream outlet for hooking up into central cleaning system
*Option of portable structure
*Laser cutting applies to sheet metal components for quality and accuracy

Packing & Delivery



If container is too tigher,we will use pe film for packing or pack grain seed cleaner according to customers special request.


593CM * 234CM * 240CM

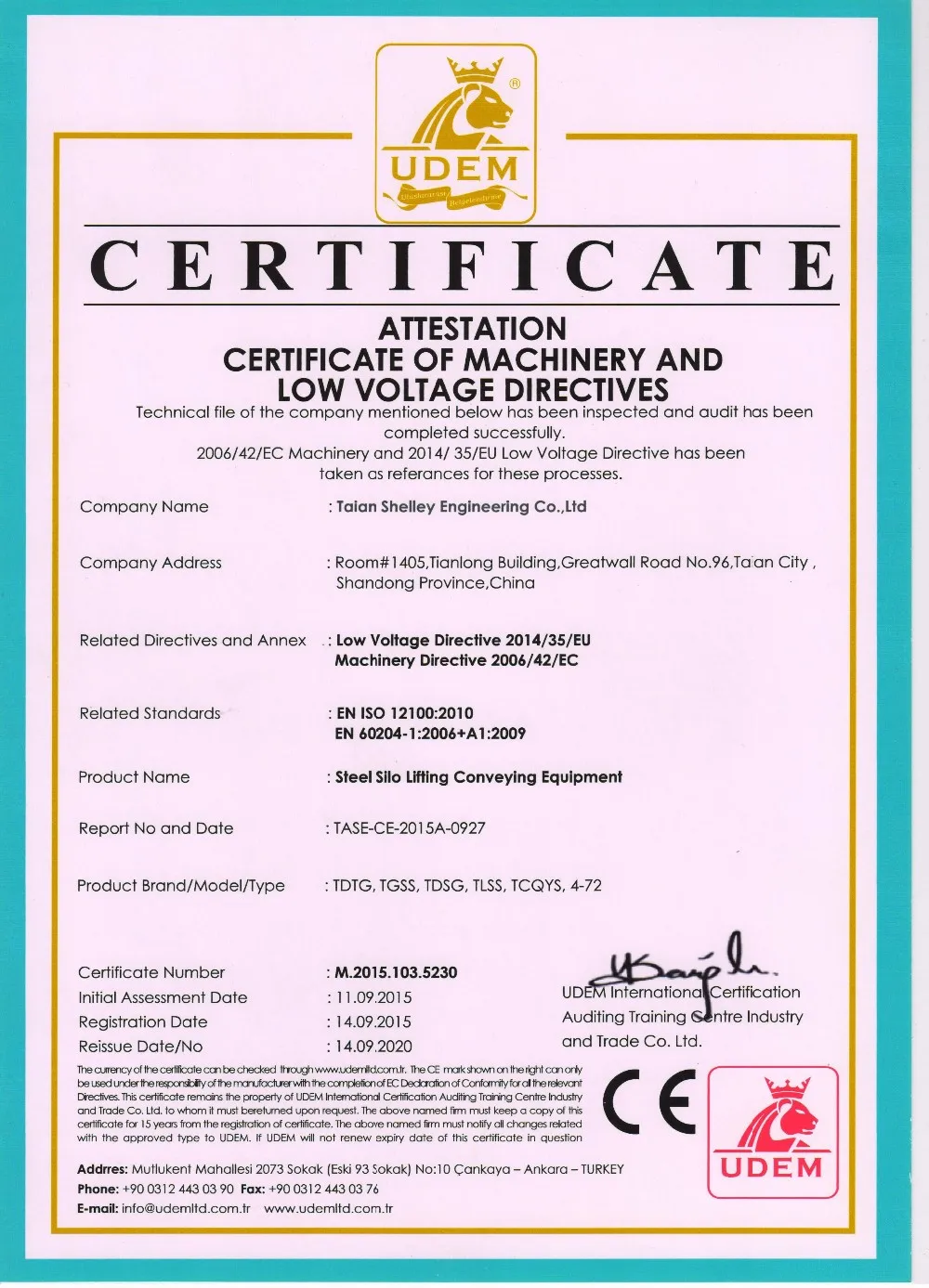

Certifications
