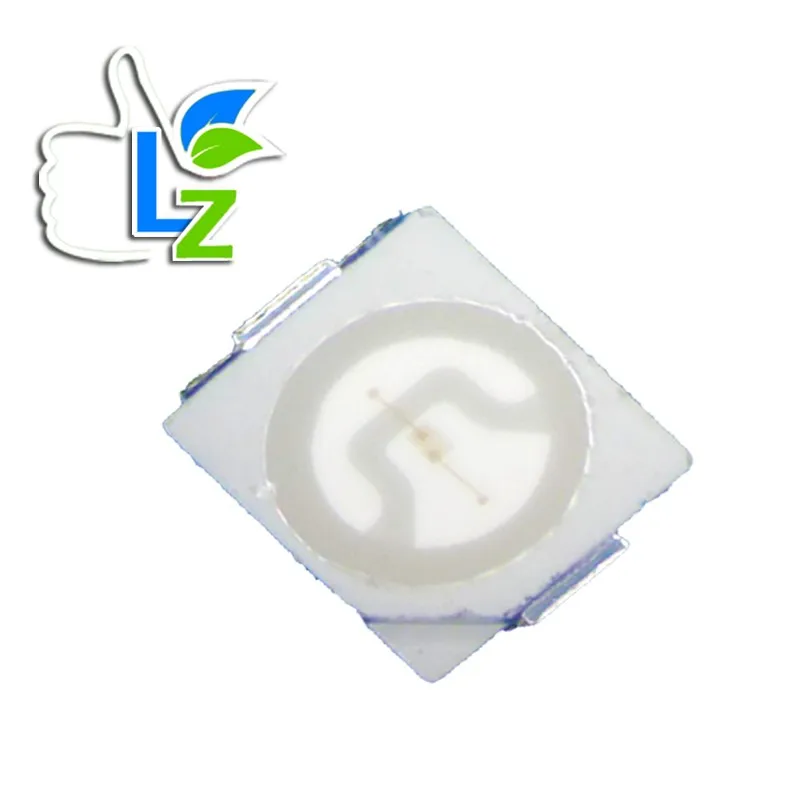

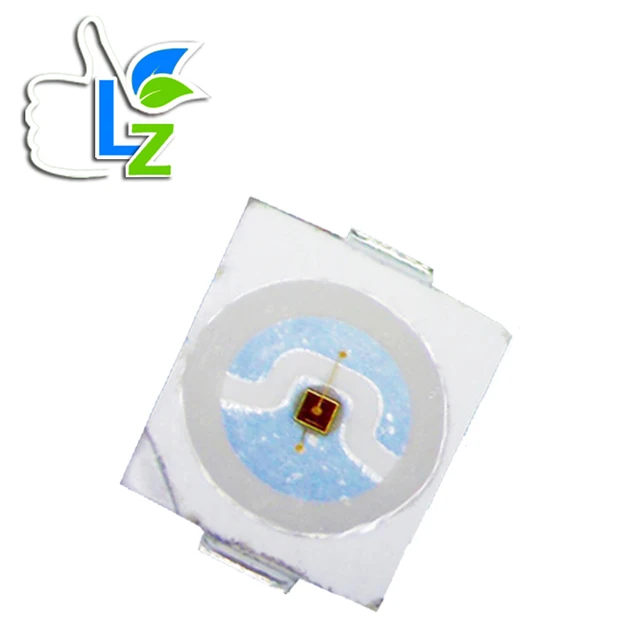

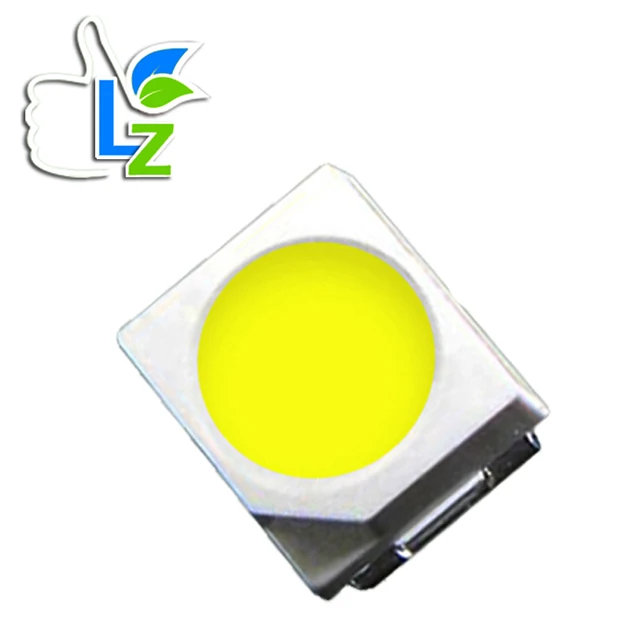

specification 7-9lm 6000K led smd 3528

FOB Reference Price:Get Latest Price
$0.008 - $0.022 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
LZ-3528W60A7-1S
Report Suspicious Activity
Overview
Quick Details
Type:
SMD LED
Chip Material:
InGaN
Emitting Color:
Warm White
Luminous Intensity:
2200-2900mcd
Luminous Flux(lm):
7-9lm
Optical Attenuation(%):
0.0001
Power:
0.06W, 0.06w
Power Dissipation:
0.001
Viewing Angle(°):
120 Degree
Color Rendering Index(Ra):
80
Color Temperature:
2700~20000K
Operating Temperature(℃):
-40 - 85
Storage Temperature(℃):
-40 - 85
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lzan led
Certification:
CE, RoHS
Chip Brand:
Sanan
Chip Size:
8*15mil
Forward Current:
20mA
Voltage:
3.0-3.4V
Lumen:
7-9LM
Material:
Gold Wire Copper stand
Available color:
W/R/G/B/Y/Amber/Purple/Orange
Warranty:
3 Years
Lifespan:
50000 Hours
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Day specification led smd 3528
Packaging & Delivery
Packaging Details
4000pcs per reel
Port
shenzhen
Specification

specification 7-9lm 6000K led smd 3528


Basic Information
Item
LZ-3528W60L7-1S
Power
0.06W
Current
20mA
Voltage
3.0-3.4V
Chip Brand
Sanan 8*15mil
Lumens
7-9lm
Available color
W/R/G/B/Y/Amber/Gold yellow
Warranty
3 years
Product Description

Product Details

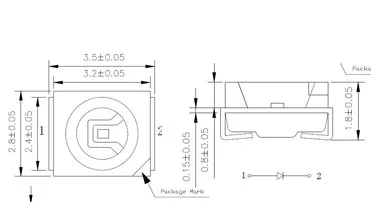

 size:3.5*2.8*1.7mm

 1.High Lumens Output & Low Brightness Decay
 2.Stable Performance & Great CCT Inity.
 3.Wid Color Temperature Range
 4.High CRI More Than 80 available
 5.Gold wire, copper stand
 6.Sanan chip size

Product Material

specification 7-9lm 6000K led smd 3528

1. 99.9% gold wire

2.Taiwan red copper holder good cooling

3.high brightness Sanan led chip

Original factory formal chip more stable

4.High refractive index silicone


Initial Electrical/Optical Characteristics (TA=25±5ºC)  3535 led Amber / SMD3535 / 3535 700mA

specification led smd 3528
Symbol
Item
Units
Min.
Typ.
Max.
VF
Forward Voltage
V
3.0
-
3.4
IF=20mA
IR
Reverse Current
uA
-
-
1
VR=3V
Viewing Angle
º
-
120º
-
IF=20mA
ø
Luminous flux
lm
7
-
9
IF=20mA
TC
Colour Temperature
k
2700
-
3000
IF=20mA
RA
Color Rendering Index
Ra
70
-
75
IF=20mA

Electrical / Optical characteristics   6000K led smd 3528

Absolute Maximum Ratings (TA=25ºC) 3v led diode, 6v led chip, 9v led light,smd 18v led,24v smd led,48v smd led light
IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.
Item
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
20
mA
Pulse Forward Current
IFP
50
mA
Reverse Voltage
VR
3
V
Power Dissipation
PD
100
mW
Operating Temperature
Topr
-40ºC To +85ºC
°C
Storage Temperature
Tstg
-40ºC To +85ºC
°C
Soldering Temperature
Tsld
Reflow Soldering: 260ºC
Hand Soldering : 350ºC
for 10sec.
for 3sec.

LZ-LED is a professional manufacturer for led chip package.

The main product lines:3v/6v/9v/18v smd3030 0.2W 0.5W 1.0W Sanan Epistar 3030 led chip

SMD LED (3528, 2835, 5050, 3030, 5730, 0.06-1W, CRI up to 90, up to 120- 130LM/W)

3v/6v/9v/18v/24v and different color available

High Power LED (1-3W, 360-850nm, CRI up to 95, up to 150LM/W) RGB, R, G, B, Y/Amber)
LED COB/Module (1-200W, CRI up to 90, up to 120-130LM/W)

Ralated smd 3528 led chip led smd 3528

The smd3535 led chip we can offer 1.0w 2.0w 3.0w.
The  3535 led except the white color we can also supply the UV 365-410NM  RED:620-850NM   Yellow/ Orange/blue / green / pink /Amber /Ice blue/ pink purple etc.

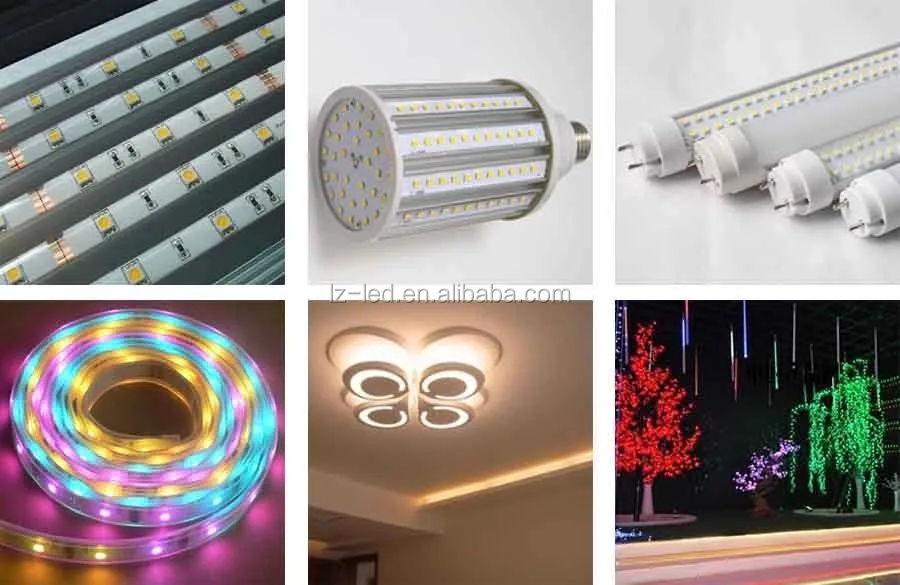

Application

Applications of 3528 SMD LED chip:

All kinds of flashlight.
LED high bay light.
bicycle light ,table lamp.
Marker lights,reading lamps.
Head lamp and hand lamps.
External and internal automotive lighting.
Emergency lighting,signal and symbol luminaire, Ect.

Main Material Supplier

We use the formal Epistar/Bridgelux/Epileds chip, 99.99% gold wire and copper base, Dow Corning glue,US Intermatix
Phosphors. specification 7-9lm 6000K led smd 3528

Our Advantage: 3030 SMD LED

Free samples are availale,3 years guarantee time.
Perfect production line to guarantee perfect quality.
Own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machines, H120 automatic LED light colour scanner make sure the quality.

Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
