square tube round tube steel plate cnc plasma cutting machine cnc plasma cutter 1530 1325

FOB Reference Price:Get Latest Price
$3,000.00 - $7,000.00 / Sets | 1 Set/Sets (Min. Order)
Effective Cutting Range (mm):
0.1-32mm
Model Number:
LXP1530
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Samples - $1.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Motor Type:
Stepper Motor
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
UNICHCNC
Voltage:
380V, 3Phase
Rated Power:
10kw-43kw
Certification:
CE
Weight (KG):
1600
Year:
2019
Warranty:
2 Years
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
Multifunctional
Name:
plasma cutter
Working area:
1500*3000mm
plasma generator:
Huayuan 63A/100A/160A/200A
control system:
3 axis STARTFIRE
Software:
FASTCAM
Working form:
untouched ARC striking
Motor and drive:
Leadshine stepper motor
cutting thickness:
0-12000mm/min
Document transmission form:
USB interface
working voltage:
3-Phase 380V,60Hz/220V,60Hz
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free fumigation wooden box
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Square tube round tube steel plate cnc plasma cutting machine cnc plasma cutter 1530 1325

Hot Sales

Product Description







Samples

Application:

Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and a

variety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,

gold, silver, Titanium and other metal plate and tube.

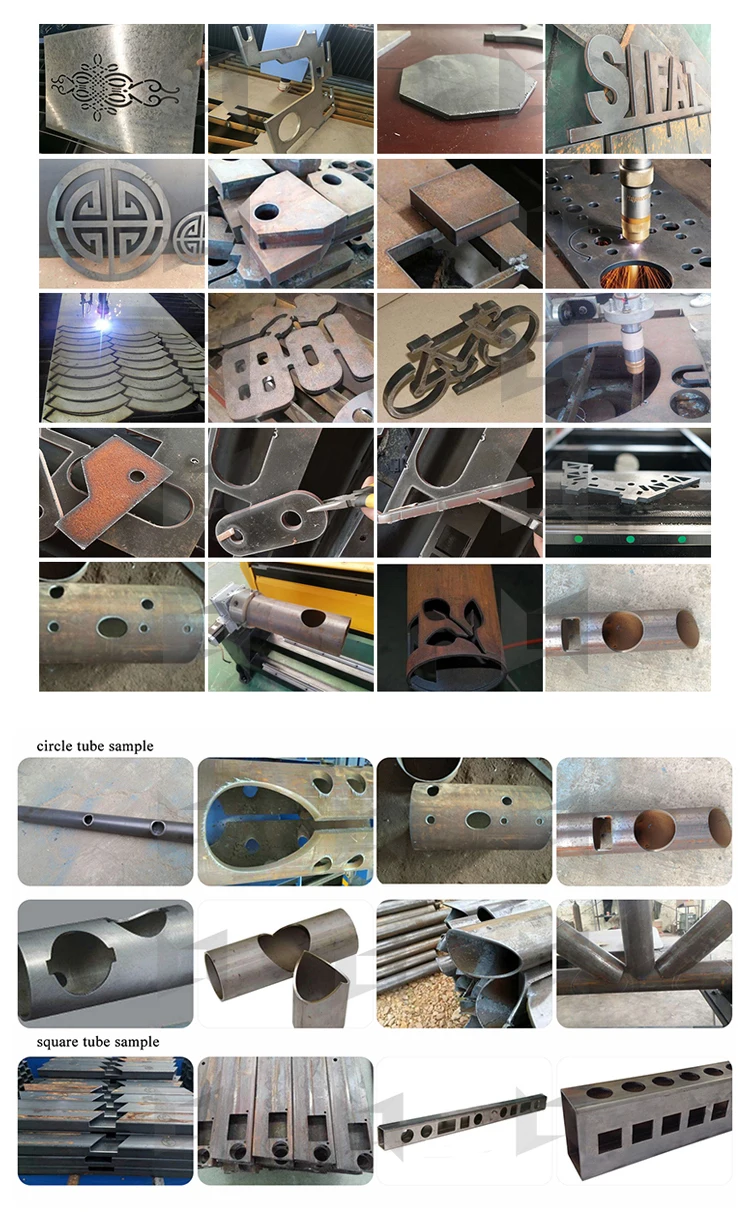

Samples:

Features:

1). The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline.Completely solve the traditional manual processing methods.Improve the efficiency of several times.

4). Cutting mouth is small, tidy,and avoid a second dressing processing.

5). It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

6). High cutting speed, high precision, and low cost.

7). The numerical control system disposes high, the automatic striking arc, the performance is stable.

8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.



Machine Details


No.

Description

LXP1530

(Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560

/LXP2030/LXP2040/LXP2050/LXP2060,

other size can be customized)

1

Working Size

1500*3000mm

(Optional:1000*1500/1200*1200/1300*2500/1500*4000/1500*5000/

1500*6000/2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/

2000*6000mm,other size can be customized)

2

Z Axis Clearance

150mm

(200 And Higher Is Optional)

3

Table Type

Knife table (Teeth table And Water table can be optional)

4

Transmission System

Rack Pinion And Hiwin Linear Rails For X/Y

5

Driving System

Stepper Motor And Drivers(Servp motor is optional)

6

Max. Cutting Speed

12000mm/Min(different configuration and different material and thickness

speed is different)

7

Max. Travelling Speed

30000mm/Min(different configuration speed is different)

8

Working Voltage

380V/3ph(220V/3ph is optional)

9

Plasma Generator

Huayuan China and USA power as your requirements

10

Arc Mode

Non-Contact Arc, Arc   Pressure Adjuster

11

Output Current

63/100/120A/160A/200A China

(45/65/85/105/125/200A USA)

12

Max. Cutting  Thickness

6/15/18/20/30mm

13

Operating System

Starfire Controller/Start Controller/JiaoDa fangling controller

14

Working Material

Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate

and almost all of the metal





Company Information



JINAN UNICH MACHINERY CO.,LTD

Is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, South

east Asia,Europe,Canada, Australia,  Africa etc,more than 120 countries and areas, and supply

OEM service for more than 30 manufactures.


Our Products includes All kind of

1. Plasma cutting machine.

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.

3. Fiber cutting machine.

4. CNC knife cutting machine.

5. Cnc router machine.

6. Co2 laser machine and so on.



We can also customized non-standard assist equipment as your detailed work requirements.

Packaging & Shipping



FAQ

Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1) Max work size:choose most suitable model.

2) Materials and Cutting thickness::choose most suitable power.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.



Q6:Delivery time

A5:General configuration:7 days. Customized:7-10 working days.
