stainless steel Jacketed Fertilizer Mixing Tank with Agitator

FOB Reference Price:Get Latest Price
$1,500.00 - $15,000.00 / Sets | 1 Set/Sets Jacketed Fertilizer Mixing Tank with Agitator (Min. Order)
Model Number:
GMT
Report Suspicious Activity
Overview
Quick Details
Max. Loading Capacity:
5000L
Condition:
New
Mixer Type:
Agitator
Product Type:
Fertilizer
Application:
Liquid, Fertilizer Mixing Tank with Agitator
Additional Capabilities:
high speed mixer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Voltage:
110V~480V
Dimension(L*W*H):
Custom Made
Certification:
ISO9001
Warranty:
12 Months
Name:
Jacketed Fertilizer Mixing Tank with Agitator
Material:
SS304/316
Capacity:
50-5000L
Type:
Jacketed Fertilizer Mixing Tank with Agitator
Jacket:
cooling and heating jacket avaible
Agitator:
paddle, frame, scraper, hom ogenizer etc.
Heating method:
electric/steam
Function:
steel Jacketed Fertilizer Mixing Tank with Agitator
Usage:
industrial Jacketed Fertilizer Mixing Tank with Agitator
After-sales Service Provided:
Overseas service center available
Power(W):
0.75KW~45KW
Supply Ability
Supply Ability:
300 Unit/Units per Quarter Jacketed Fertilizer Mixing Tank with Agitator
Packaging & Delivery
Packaging Details
standard export packing
Jacketed Fertilizer Mixing Tank with Agitator
Port
Ningbo
Product Description

Jacketed Fertilizer Mixing Tank with Agitator


Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Product Name:
Jacketed Fertilizer Mixing Tank with Agitator
Description:
Designed according to ISO9001 standard, widely used for mixing and blending liquid media in the food-processing, cosmetics and pharmaceutical industries etc.
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316
jacket: miller board, hollow jacket or semi-tube, coil pipe jacket
insulation layer: PU foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge
8.sanitary breathing cover
9.Dismountable materials input pipe assembly
10.Ladder
11.Liquid level meter and level controller
12.Eddy-proof board
Capacity:
50L-10000L
Agitator Type:
Anchor, frame, propeller, oar, turbo, homogenizer, impeller etc or without
Mechanical seal:
SIC/SiC/EPDM(Standard)
Layer
Single, double or three layer
Structure:
cylinder,dished head dished bottom,conical head,conical bottom,flat cover, double hinged lid pressure flange cover etc.
Pressure:
Normal pressure or under pressure
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
SIEMENS, ABB, LOCAL etc.
Surface treatment:
Inner polished and outside polished(Inside Ra<0.6 micron,surface mirror plosih Ra<0.9 micron)
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers
Delivery details:
Usually within 3 weeks after receiving T/T down payment
Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60
Detailed Images


1. SS304 and SS316 sanitary stainless steel

2. sanitary polishing, 3A standard
adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.


Dust proof engine base:

inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.

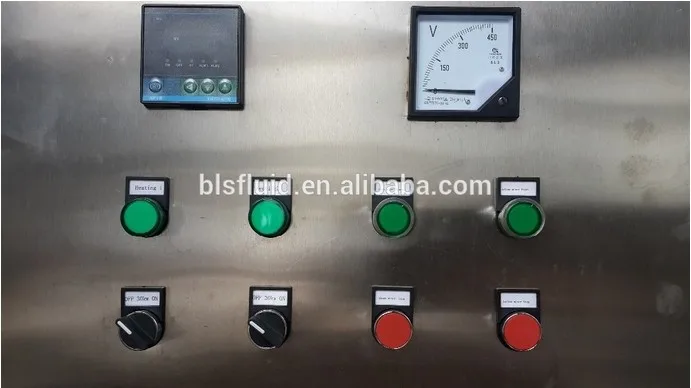

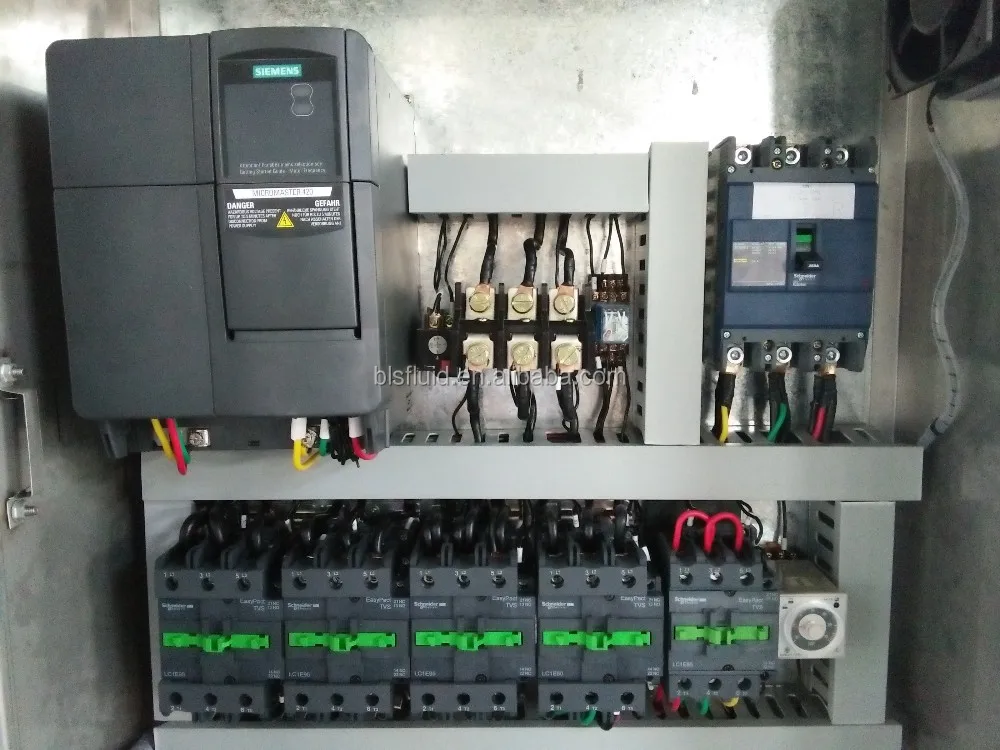

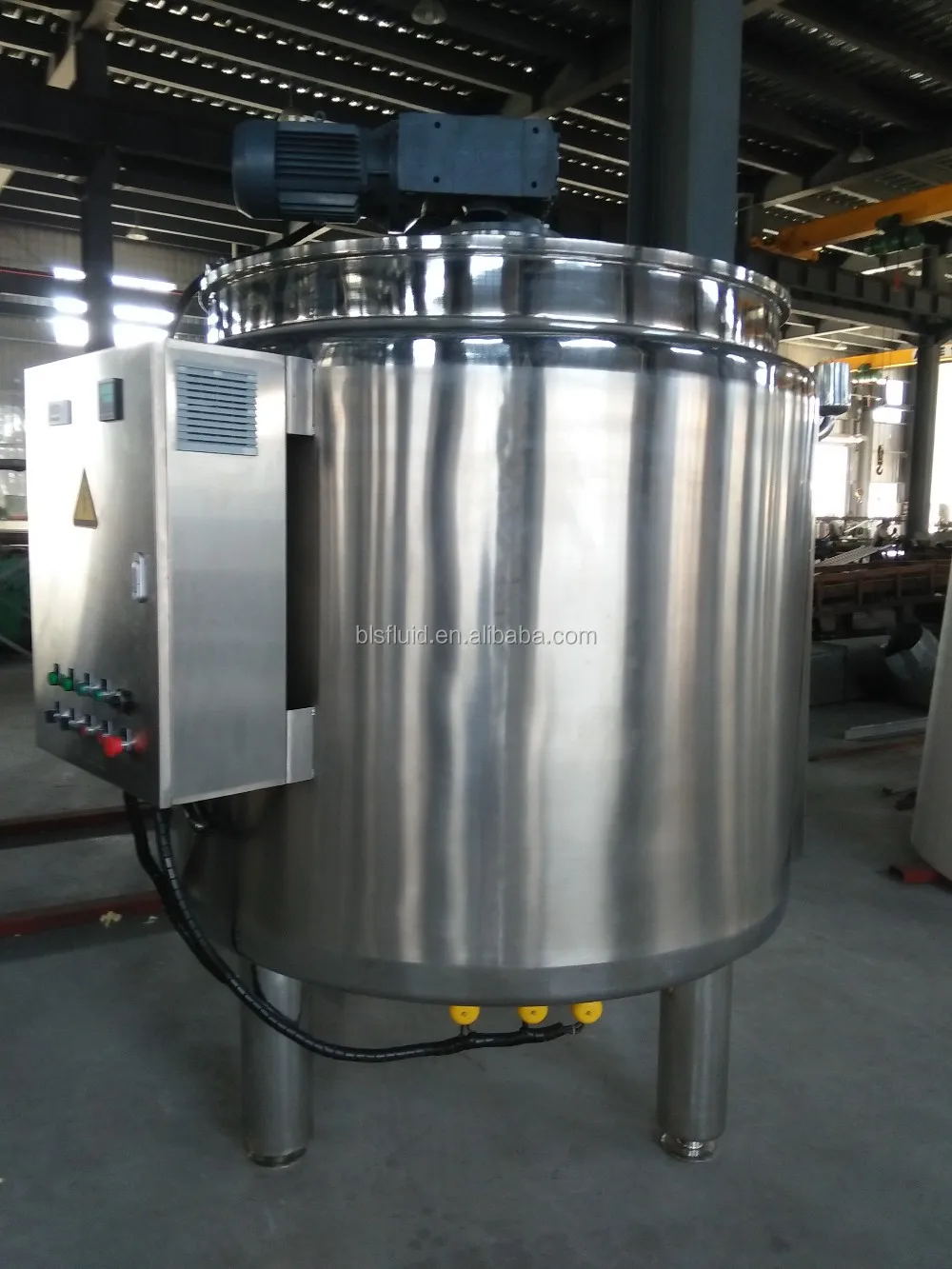

Electric control box:
1. intelligent temperature controller, SS304 box

2. PT100  thermal resistance



3. Electric Components: Germany Schneider

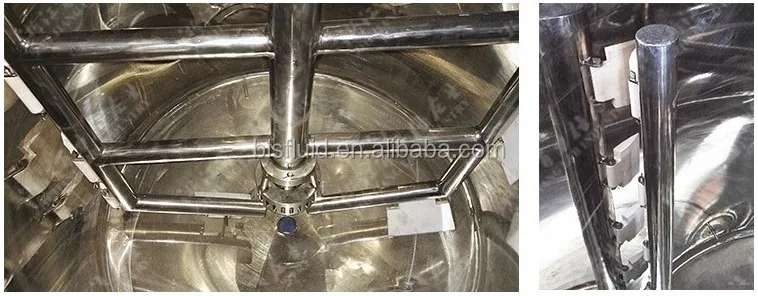

SS agitator:

1. rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.

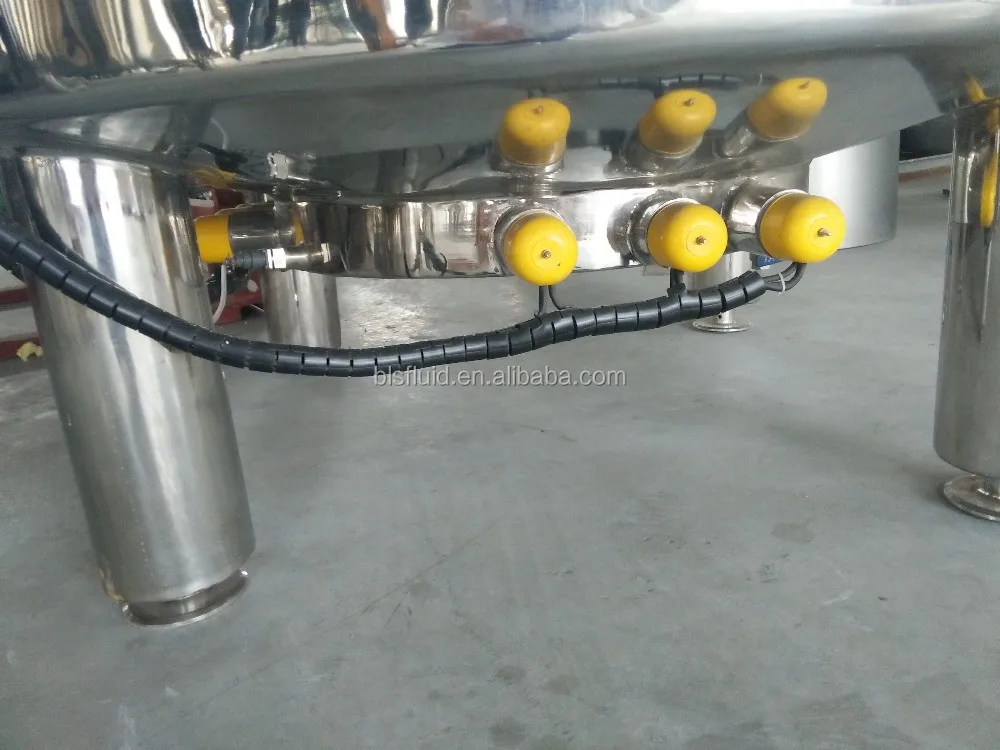

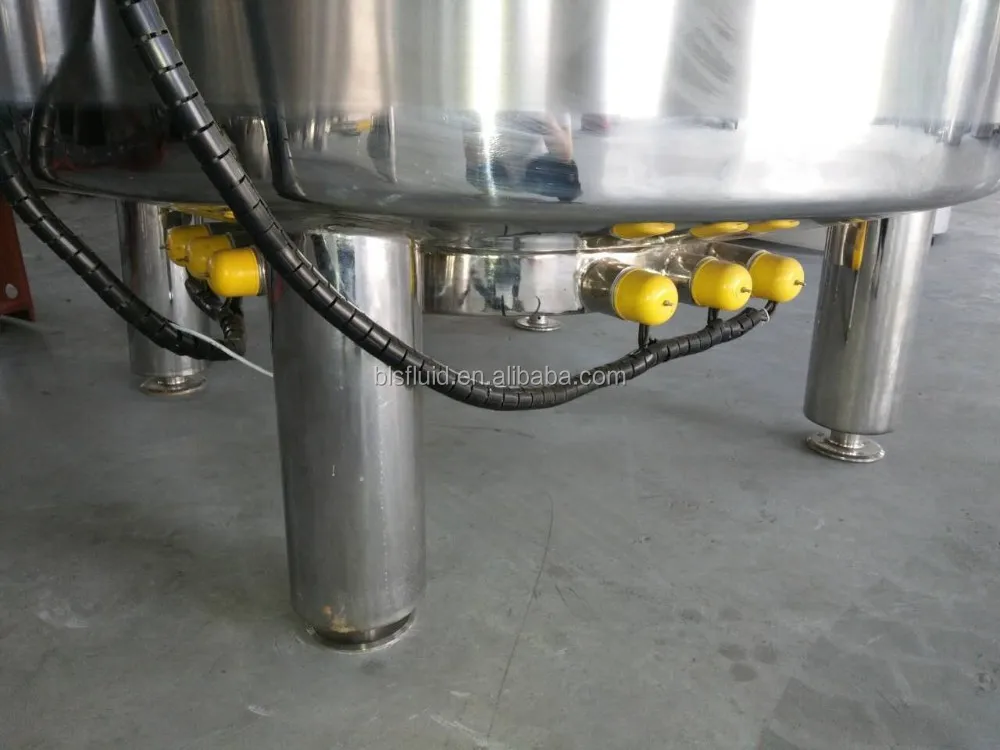

Electrical heated tube:
1. adopt threaded connection form, convenient assembly.


2. pad adopt Import teflon material, Resistant to 300 degrees temperature, difficult to leak.

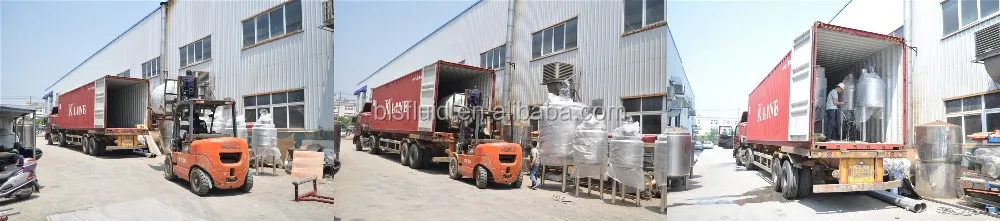

Packing & Delivery
Certifications
Our Company
FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
