stainless steel wine fermentation tank /wine tank for sale

$1,760.00 / Set | 1 Set (Min. Order)
Model Number:
PJFJ-050
$1,760.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Applicable Industries:
Hotels, Restaurant, Home Use, Retail
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DYE
Processing Types:
Alcohol
Voltage:
380V/3PH/50Hz or according
Power(W):
380V/3PH/50Hz or accoding to the requirment
Dimension(L*W*H):
according to the volume
Weight:
150KG-1800KG
Certification:
CE,PED,ISO9001
Warranty:
2 Years
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Name:
stainless steel wine fermentation tank /wine tank for sale
insulation:
50mm/80mm/100mm
Insulation Materials:
PU Foma Insulation
Material:
SUS304/SUS316L/red copper
CIP Cleaning Ball:
Tri-clamp 63/76/89
Surface Roughness of Inner Shell:
Ra≤0.4μm
Surface Roughness of Outter Head:
Mirror polished,Matt polished or Satin Finished
Head Type:
DHA/DHB
LOGO Nameplate:
Laser engraving
Product Certification Verified
CE Certified.
Valid from 2017-02-24 until 2022-02-23

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X70 cm
Single gross weight:
68.0 kg
Package Type:
Wooden case or by your needs
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

        stainless steel wine fermentation tank /wine tank for sale

Product Application

The whole set equipment is made of austenitic stainless steel. The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers’ technological requirements. Widly used in brewery, bar, hotel, amily etc.

Main Technical Parameters
FV-7BBL
FV-10BBL
FV-15BBL
FV-20BBL
FV-30BBL
Working Volume(BBL)
7
10
15
20
30
Surface Roughness of Inner Shell
Ra≤0.4μm
Head Type
DHA/DHB
Cooling Area(m²)
2
3
4
5
7
Insulation Materials
PU Foma Insulation
Cladding Shell
2B Plate,Mirror polished,Matt polished or Satin Finished,
cladding shell thickness is 2mm
Manway
Top-manway .DN 300,DN 350,DN 400,DN 500,DN 600 are available
Side-manway.ellipse manway:580X480,530X430,500X400 are available
Level Gauge
Sanitary hose connected to cleaning pipe and bottom outlet

Main Features

1. Roughness is less than 0.4μm
2. Without any dead corner
3. Discharge with rotation
4. Multi-stage cooling jacket can save more energy
5. Various heating methods (electric heating, gas heating, steam heating)
6. Filter plate (unique design with back taper)
7. Churn (manual, semi-automatic, top stirrer and bottom stirrer)
8. We have sufficient spot goods, conventional criteria beer equipment and we can deliver the goods within 3 days after signing the contract and remittance.
9. Our equipment is mainly used in brewing of beer, stout and rum. Besides, the product made by our equipment is tasty and fragrant.

Certifications
Detailed Images

Machine Parts

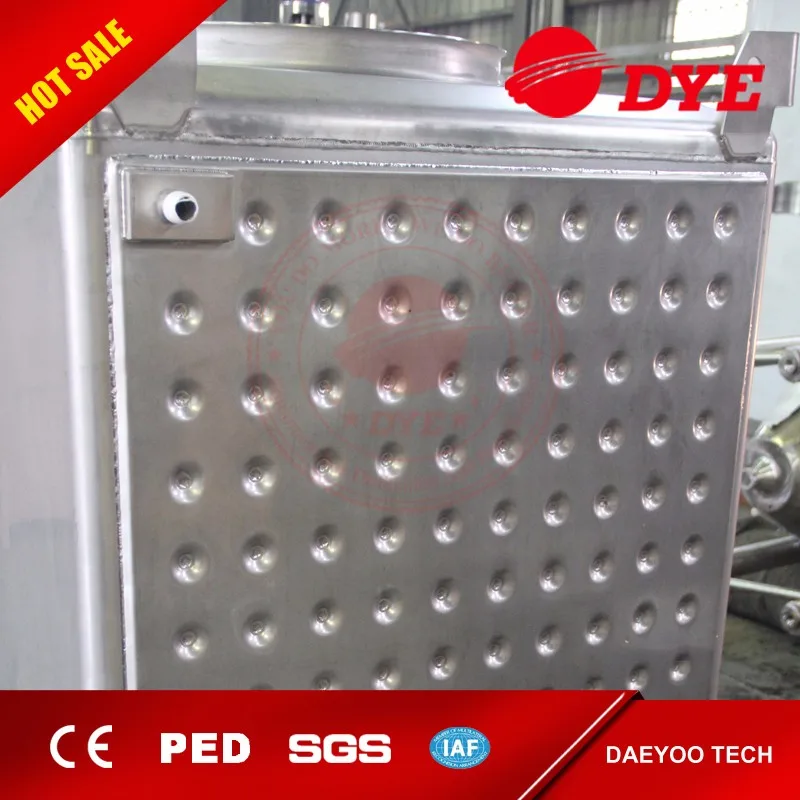

Name: Cooling jacket

Brand: DYE

Original: China

Dimple jacket, high cooling efficiency. Dimple jacket thickness: 1.5 mm, Welding hole diameter: 12 mm, centre distance between each hole is 80 mm. Jacket height is 15 mm.
It can be made according to customers' special requirements.

Main production equipment

Name: Automatic welder
Brand: ORBITIC
Original: Germany


automatic pipeline welding machine

Main production equipment

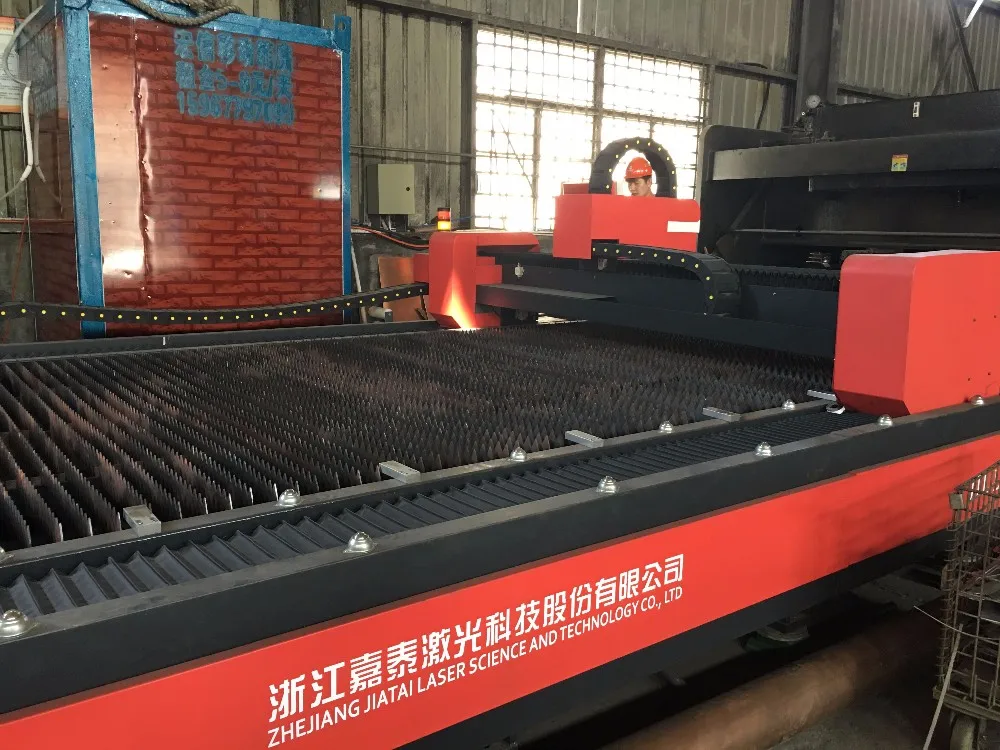

Name: Laser Cutting Machine
Brand: JTL
Original: China
We bought a Laser Cutting Machine to use for cutting stainless steel plate and copper plate at last week.
High speed,high efficiency,high performance, high precision,low cost,easy to operation;
Working for kinds of material, advanced technology, highly flexibility;
Fast speed cutting, narrow cutting gap, smooth cutting surface, low consumption material;
High-end software, simple operation,cleaning, safety, without pollution

Project Case

Name: Beer brewing equipment
Brand: DYE
Original: China


Bar brewing equipment

Our Service

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Packing & Delivery
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Quality control:

Spectrometer

We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.

surface roughometer

Strictly manufacture in accordance with standards Roughness is less than 0.22 μm
Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

thickness measuring meter

thickness of steel plates
super quality with competitive price, adopt the SUS 304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.

Our company's customer segmentation:

Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.

FAQ:

Will application of distillation equipment continue to expand in the future?
Although the pace of development of distillation equipment is rapid in recent years, there are many problems in the process, such as the enterprises are not many, product quality is not high and so on. These problems will more or less restrict the development of rectifying equipment. Thus seizing the opportunity is very important. If can seize the opportunity, the development space of distillation equipment industry will be great.

Do distillation equipment companies have to expand sales channels to improve the competitiveness?
At present, although the distillation equipment is used widely, high aroma and highly efficient products are not many; and low level of products is also common. Brand marketing lags behind others. To enhance competitiveness, Distillation equipment companies have to expand sales channels and develop high-end products.

What benefits does the network bring to distillation equipment market?
In recent years, the development of network marketing is very quick, also got more and more applications. It mainly exists in the base of network, breaking through the traditional sense of the sale, making sales more effective and also well achieving interactive communication. We can complete the transaction online. It is very convenient.

Is self-positioning very important to capture the distillation equipment market?
Different industries, only giving their products a right position, can better capture the majority of the market share. The development of distillation equipment is no exception. Although having certain development potential, it also needs a good location, thus, it can be in line with the market trends. However, how should we locate the distillation equipment better? Choosing high reputation, excellent product quality enterprises is the right way.

If you want to know more detailed price and drawings,Please click here
