steel box beam structure coil car for uncoiler or coiler function

FOB Reference Price:Get Latest Price
$5,000.00 - $9,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
steel coil car KPJ
Lead Time:
Quantity(Sets) 1 - 3 4 - 10 >10
Est. Time(days) 20 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
BEFANBY
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product Name:
steel box beam structure coil car for uncoiler or coiler function
Power supply:
Cable Reel
Capacity:
1-300ton for steel coil car
Certificates:
SGS/CE/ISO9001:2008
Application:
Transfer coil
Material:
Q235
Model:
RGV
Usage:
Heavy duty coil car transport
Item:
Coil transfer cart
Keywords:
steel coil car
Supply Ability
Supply Ability:
600 Set/Sets per Year customized coils car for 1 Ton to 100 Tons capacity and function
Packaging & Delivery
Packaging Details
The whole coils cart will be packed by the tarp, the parts will be packed by polywood case.
Port
Qingdao/Tianjin/Tianjin
Lead Time :
Quantity(Sets) 1 - 3 4 - 10 >10
Est. Time(days) 20 30 To be negotiated
Product Description

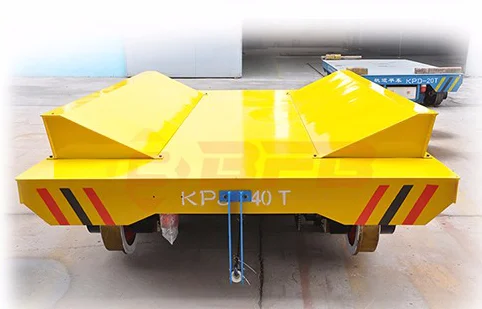

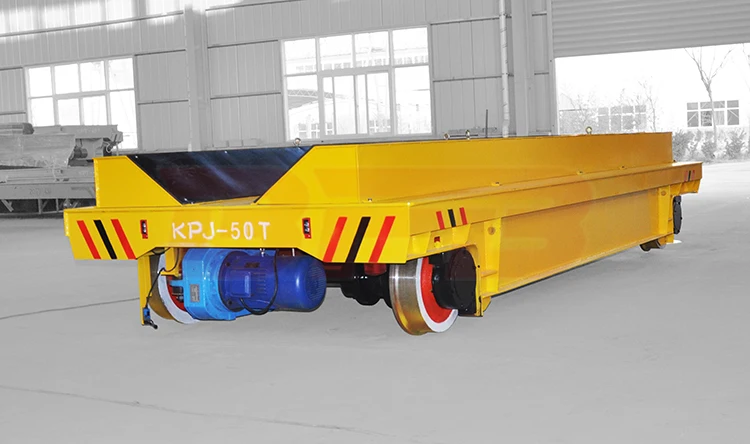

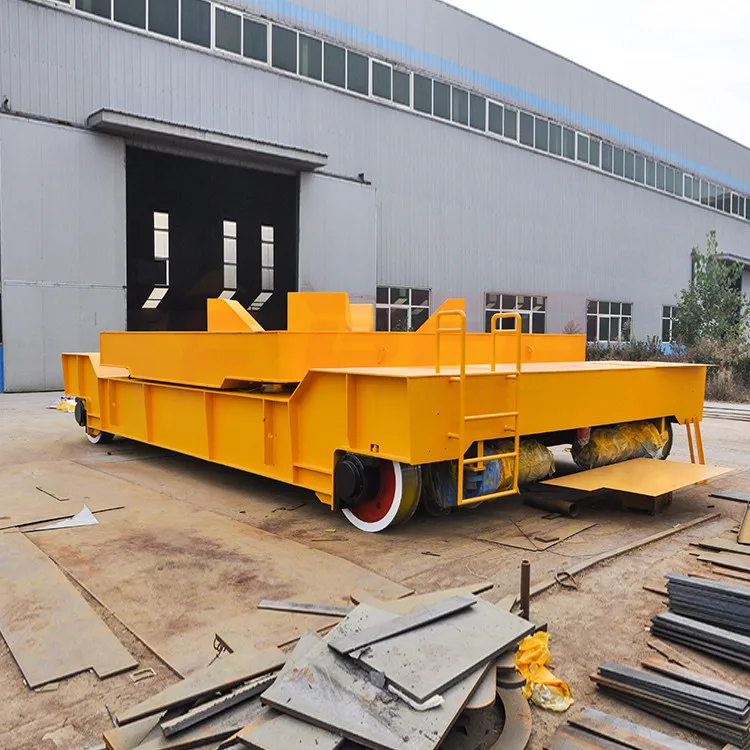

Steel box beam structure coil car for uncoiler or coiler function


Cable drum powered electric transfer cart is powered by AC 380V from cable drum mounted on the cart. Through the electric control system, the electric transfer cart starts, stops, forward and backward.

Advantage

Simple structure, low price.
No strict requirement for the construction of the railway.

Using time is not limited.

Technicial Parameters
Model
KPJ-2T
KPJ-10T
KPJ-20T
KPJ-30T
KPJ-50T
KPJ-63T
KPJ-150T
Rated load (T)
2
10
20
30
50
63
150
Table size
Length(L)
2000
3600
4000
4500
5500
5600
10000
Width(W)
1500
2000
2200
2200
2500
2500
3000
Height(H)
450
500
550
600
650
700
1200
Rail Inner Gauge (mm)
1200
1435
1435
1435
1435
1435
1435
Wheel Diameter(mm)
Φ270
Φ300
Φ350
Φ400
Φ500
Φ600
Φ600
Wheel Quantity
4
4
4
4
4
4
8
Ground Clearance (mm)
50
50
50
50
50
75
75
Running speed (min)
0-25
0-25
0-20
0-20
0-20
0-20
0-18
Motor Power (Kw)
1
1.6
2.2
3.5
5
6.3
15
Max Wheel Load (KN)
14.4
42.6
77.7
110.4
174
221.4
265.2
Reference Weight (t)
2.8
4.2
5.9
6.8
8
10.8
26.8
Recommended Rail Model
P15
P18
P24
P38
P43
P50
QU100
Parts Showing

Cart Frame


The cart frame adopts box beam structure . Its main feather: large load bearing, little table deformation, long service lifetime.

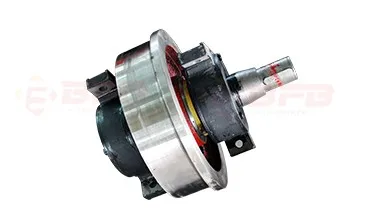

Cast Steel Wheel


Change conveniently, install easily, the larger capacity cargoes can be transported, the largest capacity can reach to 300T.

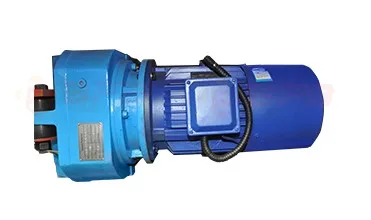

AC Motor&reducer


KPJ Series cable reel transfer cart gets power AC380V, Adopts European standard three in one reducer, mechanical transmission efficiency, stable operation, low noise, easy installation and maintenance, various flexible shaft rotation.

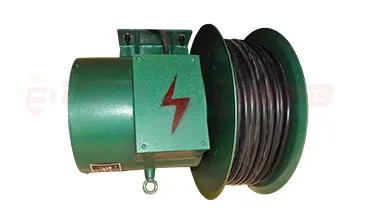

Cable reel drum


KPJ series railways flat cart are powered by the cable reel,The curl torque is large adjustment range, higher synchronism, which makes the working and operation more neatly and easily.

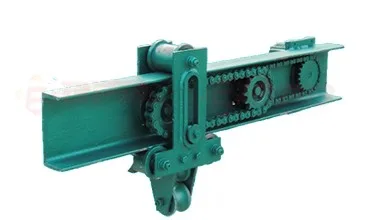

Cable arranger


The cable arranger can be installed to arrange the cables if the distance is long. (>=50m)

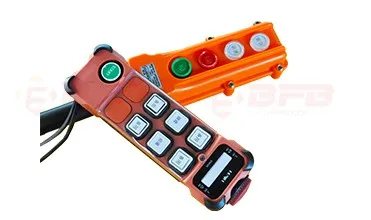

Handle remote control


It can achieve remote control, easy to operate the body of the car so that the transfer vehicle start, stop, back, turn and so on...

Sound&light alarm


For safe running, it will ring continuously to warn someones when the cart start running. Of course, the other parts can be installed, as dead man stop, emergency stop, anti-colliding switch, buffer... all can be meet only you'd like by our professional team.

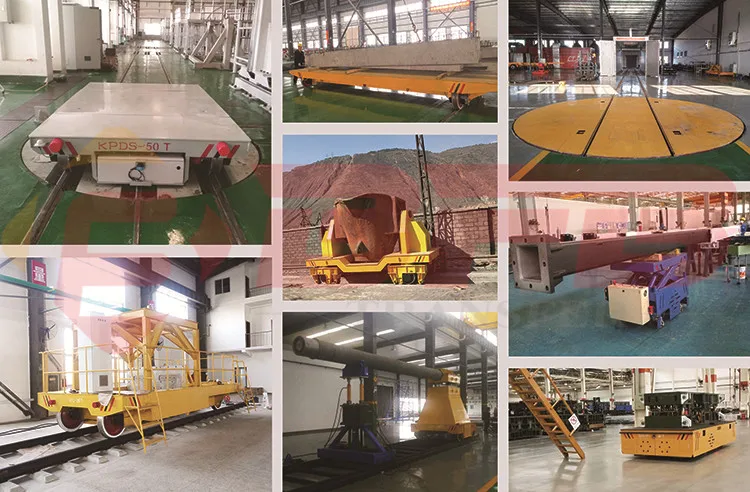

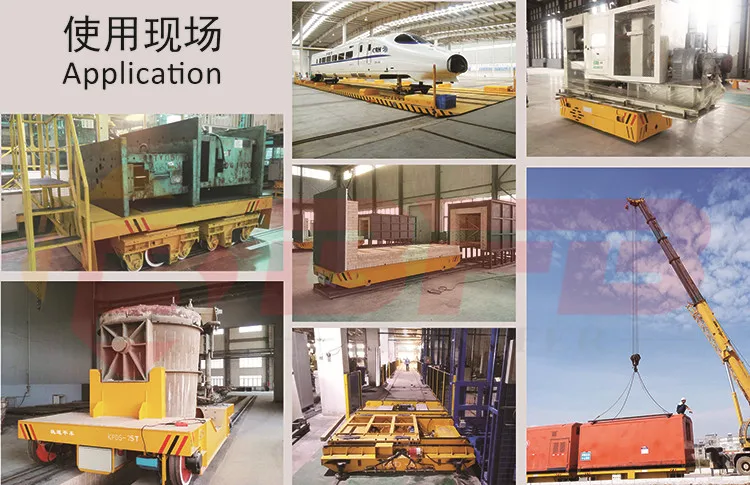

Aplication

Heavy duty battery operated rail cart can be used in many occasions, due to its simple structure, despite of the plant or assembly line, warehouse or port, only exists track, it can transport anywhere.

Our Company
FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer for transfer cart in Xinxiang city, China.

Q: How long is your delivery time?

A: In generally, the delivery time is 5-6 weeks. However, if it is urgent, we can make proper arrangement  in advance.

Q: How about your after-sale service ?

A: We can assign our technical staff for onsite installation or debugging. Moreover, we can also provide technical support via online communication.Within 24 hours technical support by email,calling or door-to-door service.

Q: What is your terms of payment ?

A: Generally, Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Of course, the 50% T/T in advance ,balance before shippment is acceptable, L/C is also Ok.

If you have another question, pls feel free to contact us as below:

Phone: 86-373-7720456 Fax: 86-373-7720077
Web: www.bfbhandling.com
Cel.&Wechat :86-15993085091 Skype: sherrychang1191
