steel cutting machine

FOB Reference Price:Get Latest Price
$21,100.00 - $68,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
BFC
Power:
3000W 1000w 4000W 2000W
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Units) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 35 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
metal, stainless steel
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
3500x1500mm
Cutting Speed:
120m/min
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cutting Thickness:
1~25mm
CNC or Not:
yes
Cooling Mode:
WATER COOLING
Control Software:
Lasercut
Place of Origin:
Beijing, China
Brand Name:
BOAO
Certification:
ce, ISO, FDA
Laser Source Brand:
Raycus
Weight (KG):
3000 KG
Key Selling Points:
Automatic
Warranty:
2 years
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Overseas service center available
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Advertising Company, metal fabrication industry
Local Service Location:
South Korea
Showroom Location:
Viet Nam, South Korea, Romania, Kazakhstan
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
2 years
Core Components:
laser generator
Product name:
fully enclosed fiber laser cutting machine
Laser Source Power:
500W,1000W,2000W,3000W,4000W
Certificate:
ISO9001, CE
Protective Cover:
Yes, full enclosed
Operation Software:
CYPcut
Keyword:
Carbon Steel Fiber Laser Cutting Machine
Laser head:
Raycus
Laser source brand:
IPG or Raycus
Cutting materials:
carbon steel, stainless steel, brass, alloy, aluminium
Supply Ability
Supply Ability:
20 Unit/Units per Month Depend on if we have worktable in stock or not
Packaging & Delivery
Packaging Details
Clear plastic cover then wooden box
Port
Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 35 45 To be negotiated
Video Description

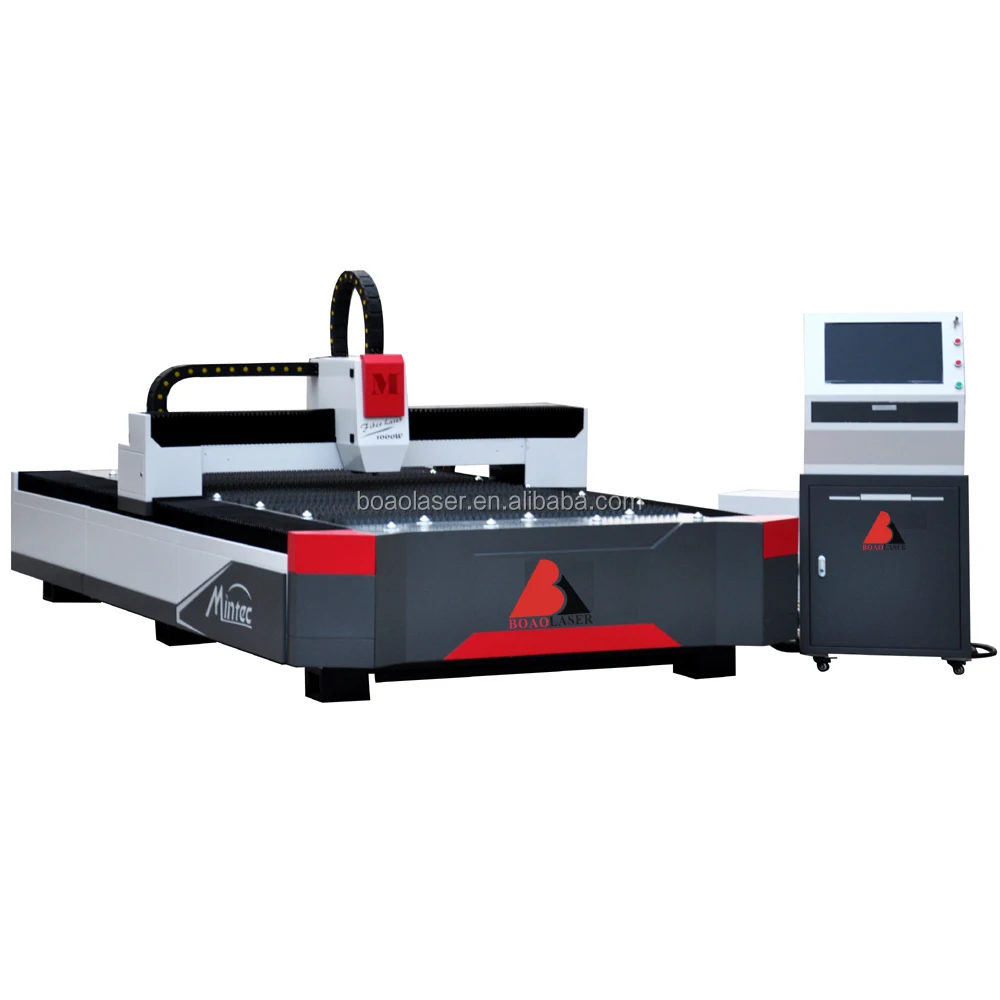

Machines Introduction
Worktable Type :
Single Worktable Type
Actual Cutting Size:
3000x1500mm
Cutting Thickness:
<20mm
Materials :
Steel,Al, Brass,Alloy etc..
Laser Power :
3000W
Delivery Time :
45 Working Days
Warranty &Service :
2 Years
Main Parts

Laser Source

Original Raycus Fiber laser Source

Laser Head

Raytools Of Swiss

Laser Cutting Software

CypCut Cutting Software In original

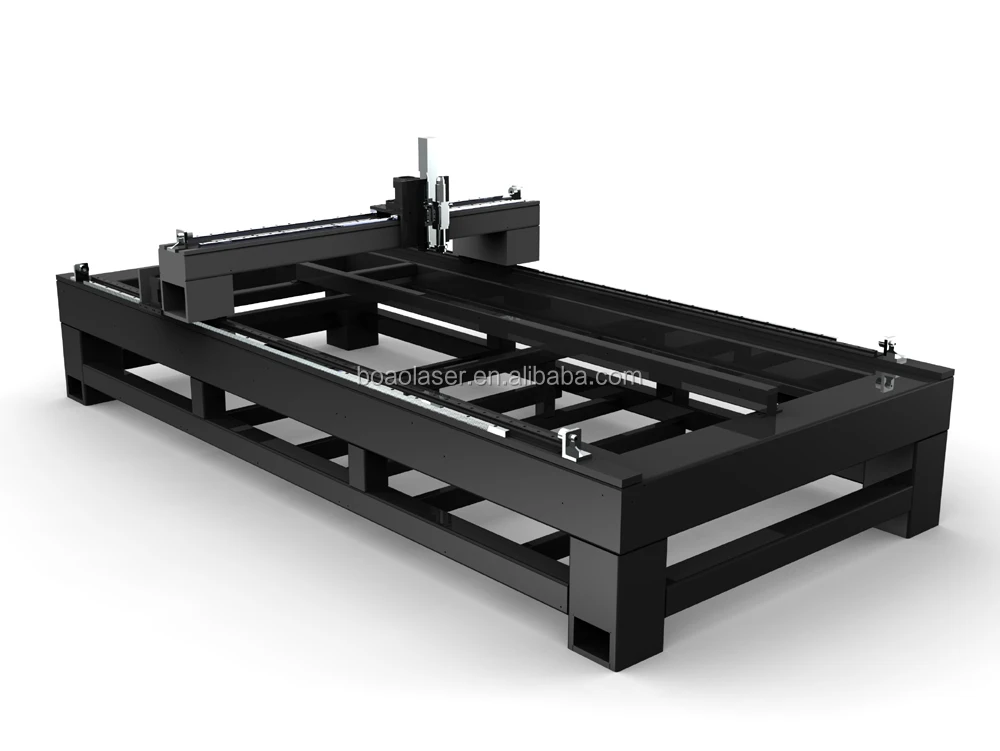

Heavy Designing Worktable

Heavy Machine Tool Designing /Welded Bed /Precision Gantry Machining Center finishing milling/Secondary annealing/The Effective
Elimination of Stress

Servo Motor System

YASKAYA Motor System of Japan .Y Axis :Double Driver,2.0KW /X axis 1.3KW /Z axis 400W
This type of configuration ensure the Repeating Precision Of Worktable: < +-0.03mm .

Shimpo of Japan Reducer

Shimpo of Japan
Technical Parameters
Model NO:
BFC3000
Laser Type
RAYCUS CHINA
Laser Wavelength
1060nm
Laser Maximum Power
3000W
Max. Cutting thickness
≤20mm
Total Power Consumption
<35KW (380v/ 3Phase/50Hz/)
Working Size
3000*1500 mm
Max.cutting speed
0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision
≤±0.03mm/m
X, Y, Z Axis Repeat Precision
≤±0.03mm /m
Min line width
≤0.15mm
Maximum Empty Running Speed
100m/min
Driving way
Imported servo motor
Transmission way
Y-axis import gear rack double driver, X-axis imported ball screw
Worktable Max Load
3Tons
Cooling System
Water Cooling
Continuous working time
24 Hours
Environment temperature
0-35°C
Power requirements
380V/3 Phases /50Hz or 60Hz

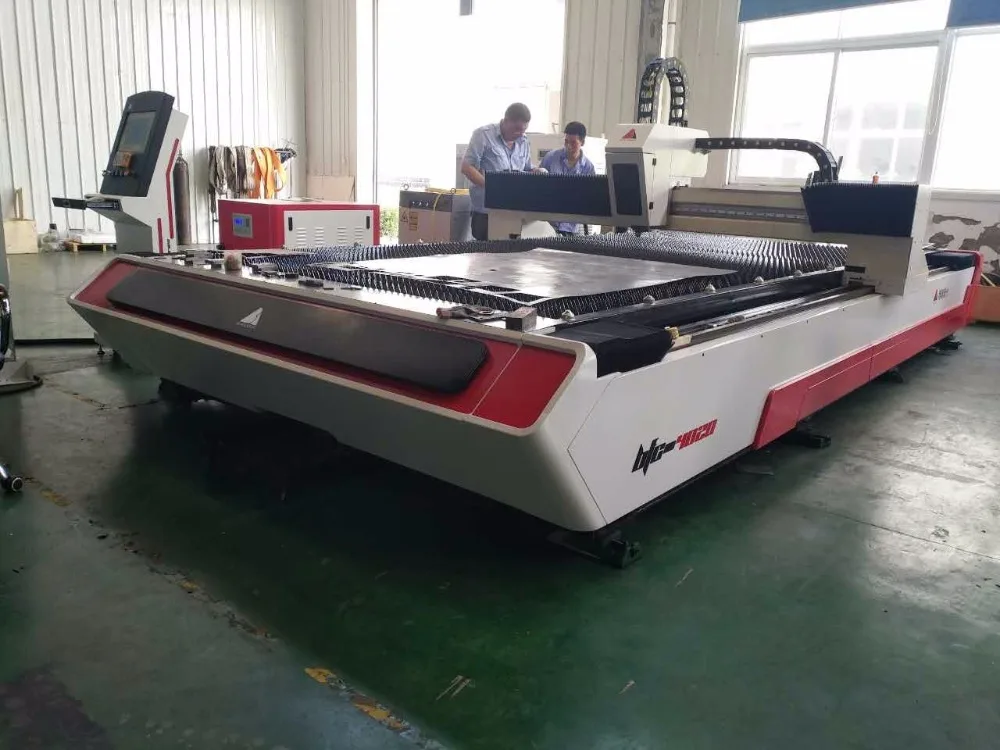

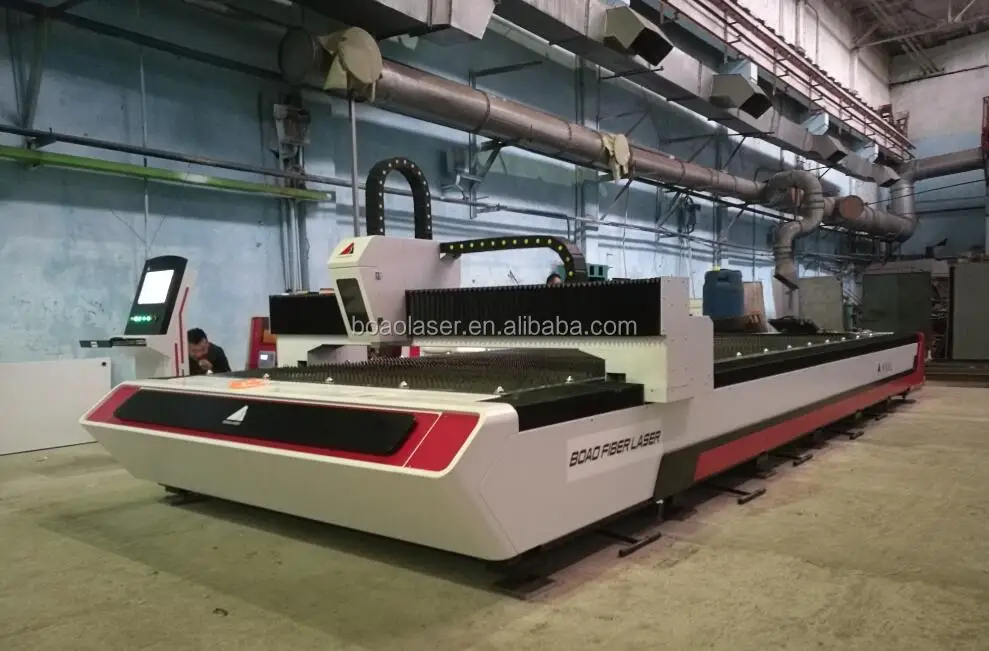

Machines And Cutting Photo
Production Procedure

Materials

Welding Worktable

Secondary Annealing

After Effective Elimination of Stress

Worktable Ready

Production

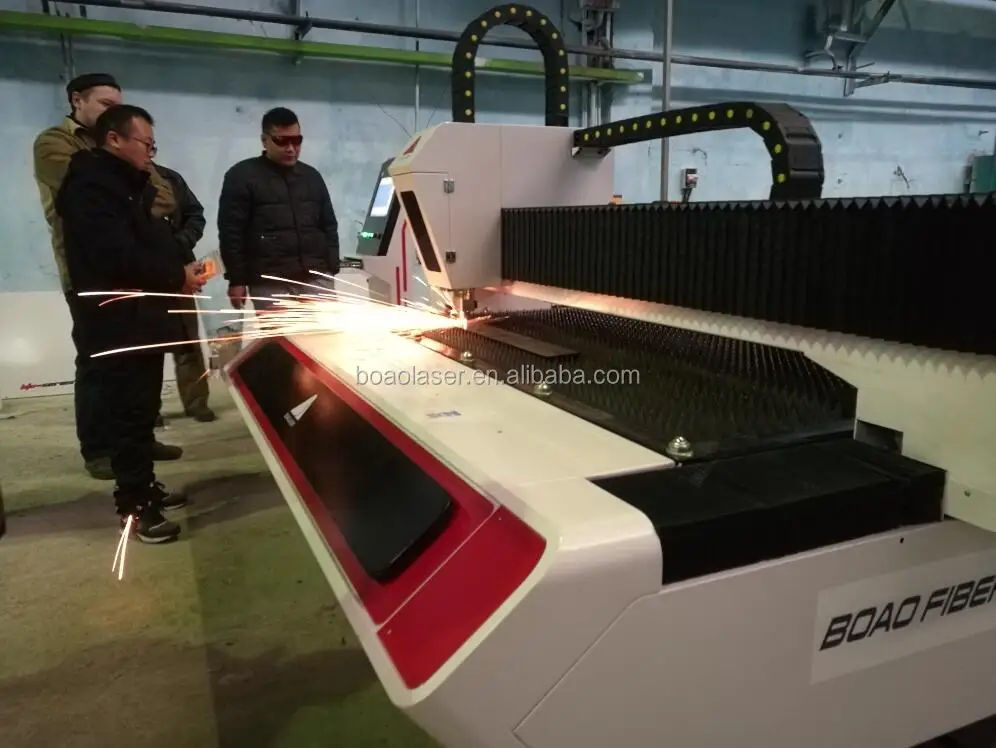

Running Test

Ready For Shipment

Transporation

Installationg And Training in Customers Factory
BOAO laser will arrange engineers go to customers factory provide the Insatllation And Training directly in English.
Service
Website :
www.boaolaser.com
General Manager:
Mr. Andy Yue
Email:
sales@boaolaser.com
andy@boaolaser.com
Tel:
0086-13910058345
0086-13911547331
0086-10-82895922
Wechat/Whatsapp:
0086-13910058345
Q: I do not know how much watt laser power fit for my application

A: You can ask us for cutting parameters of different laser power. Or you can simply let us know which kind of metal material do you need to cut, the max cutting thickness you would require. And your daily cutting thickness. Then we will recommend a suitable model to you.

Q: Do you have other working size worktable to choose with?

A: Yes, our standard model is 3x1.5m, we do have 2500x1300mm, 4x2m, 6x2m and 8x2m model to choose with

Q:Will you install the machine for me? Or is it possible if I can do it by my engineers?

A: We will offer free installation and training services in your factory.If you would like to install the machine by your own engineers. We will offer you detailed instruction manual, videos to show you step by step. Also online services available.
