steel wire rope hydraulic press machine 500 ton/wire rope swaging machine

FOB Reference Price:Get Latest Price
$20,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Nominal Force (kN):
5000
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 Negotiable
Customization:
Customized packaging (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Nominal Force (kN):
5000
Machine Type:
Double Column Hydraulic Press
Return Force (kN):
5000 kN
System:
Servo
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
tianma
Voltage:
380V/220V
Dimension(L*W*H):
4600*1700*3200
Certification:
CE&ISO9001
Weight (T):
500 T
Model Number:
500t 1250t 2500t 5000t
Motor Power (kw):
7.5 kw
Key Selling Points:
Automatic
After Warranty Service:
Video technical support
Applicable Industries:
Manufacturing Plant
Local Service Location:
none
Showroom Location:
none
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump
Power Source:
Hydraulic
MAX. FORCE:
500T
MAX. DIAMETER IN ONE PRESSING:
85mm
MAX. DIAMETER IN MULTI- PRESSING:
90mm
MAX PISTON MOVEMENT:
130mm
PISTON WORKING MOVEMENT:
110mm
TOTAL LENGTH:
1500mm
TOTAL HEIGHT:
1760mm
TOTAL WIDTH700:
700mm
weight:
1600kg
Warranty:
1 year
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
exported packing case
Port
tianjin
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 40 To be negotiated
Product Description

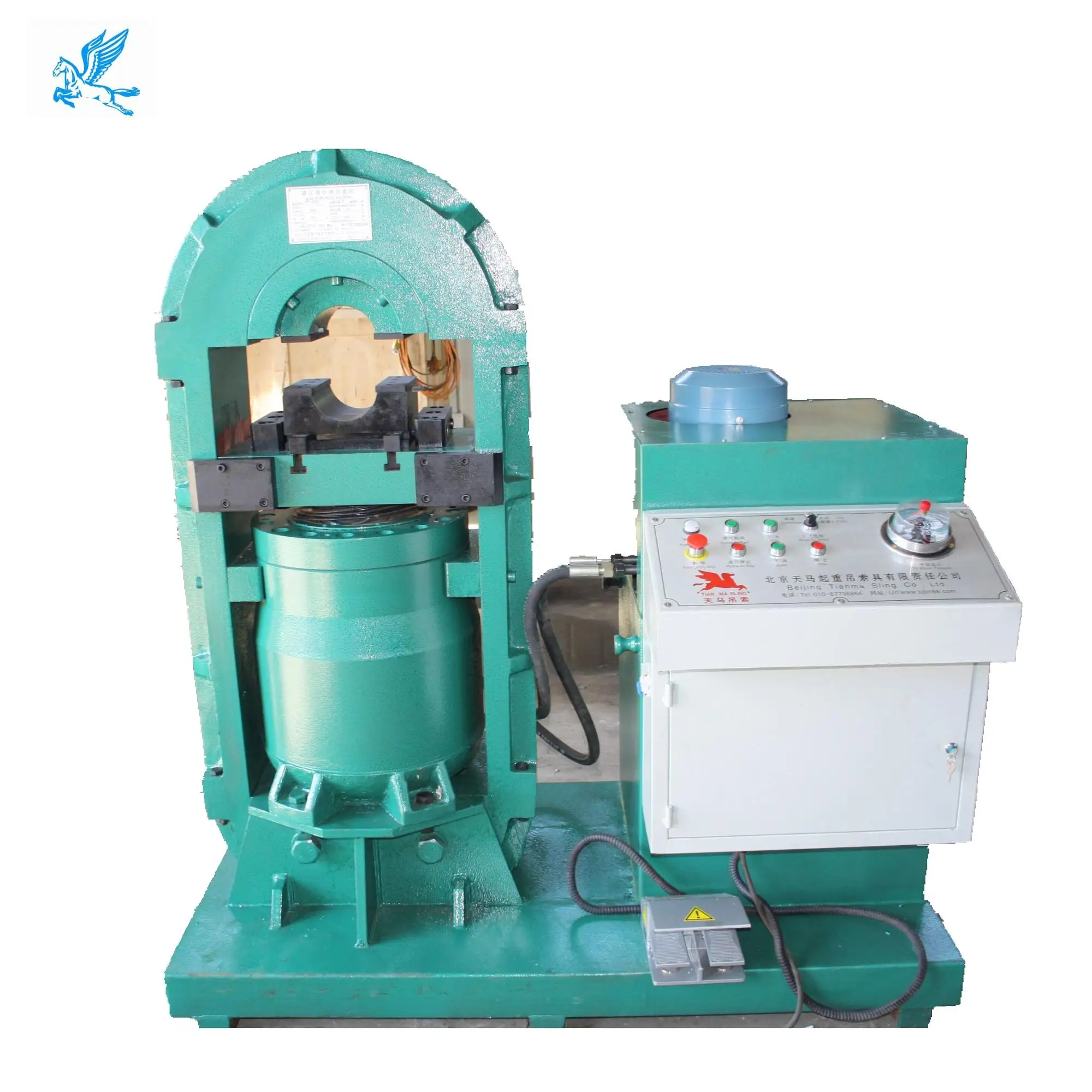

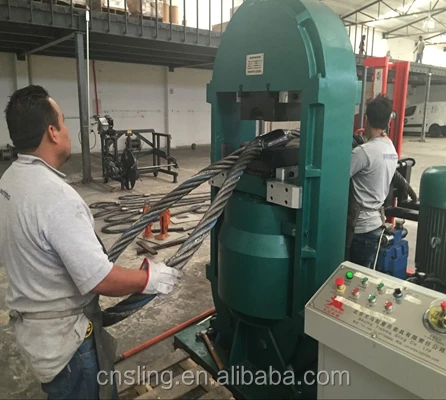

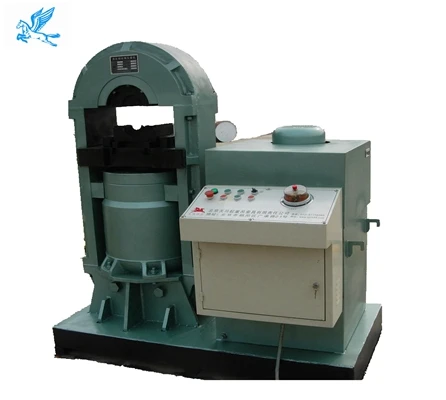

 Steel wire rope sling hydraulic press machine 500T
Wire rope hydraulic press machine is widely used in oil fields, ports, railways, construction and other related fields.
has stable tension, heavy loading capacity feature.
The machines have been exported to UK, Australia, Mexico, Malaysia,
Kazakhstan, Peru, Thailand, Omen and so on.
Product parameters
ITEM
YT500
YT1250
YT2500
Max. Force(KN)
5000
12500
25000
Max.Diameter In One Pressing
(mm)
32
56
85
Max.Diameter In Multi-Pressing (mm)
36
60
106
Max Piston Movement(mm)
130
160
270
Piston Working Movement(mm)
110
140
240
Max.working pressure(Mpa)
60
60
70
Total length (mm)
1500
1800
2400
Total Height (mm)
1760
2100
2700
Total Width(mm)
700
1000
1500
The up Speed of Piston(mm/sec)
3.6
10
10
The Down of Piston(mm/sec)
22
10
10
Power(Kw)
7.5
22
30
Voltage
50Hz 380V or customized
Weight(kg)
3200
6300
18000
Color
Green/Blue/Yellow or customized
Direction for use
1. How to select machine with suitable capacity?
Re: Please let us know the diameter range of your wire rope, so that we can select for you accordingly.
2. Is this machine hydraulic or Pneumatic driven?
Re: The wire rope press machine is driven by hydraulic system for powerful pressing and smooth performance.
3. Can you offer ferrules too?
Re: Yes. Please let us know the wire rope diameter and your order quantity, so that we can quote for you accordingly.
4. How to test wire rope tension after metal ferrule pressing?
Re: Please tell us the length of the rope and loading capacity, so that we can offer the tension testing machines for wire rope
tension testing.




Steel sleeve pressing





Aluminium sleeve pressing

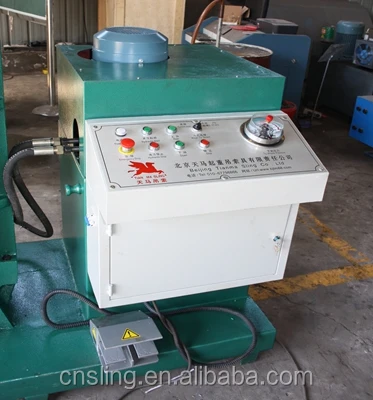

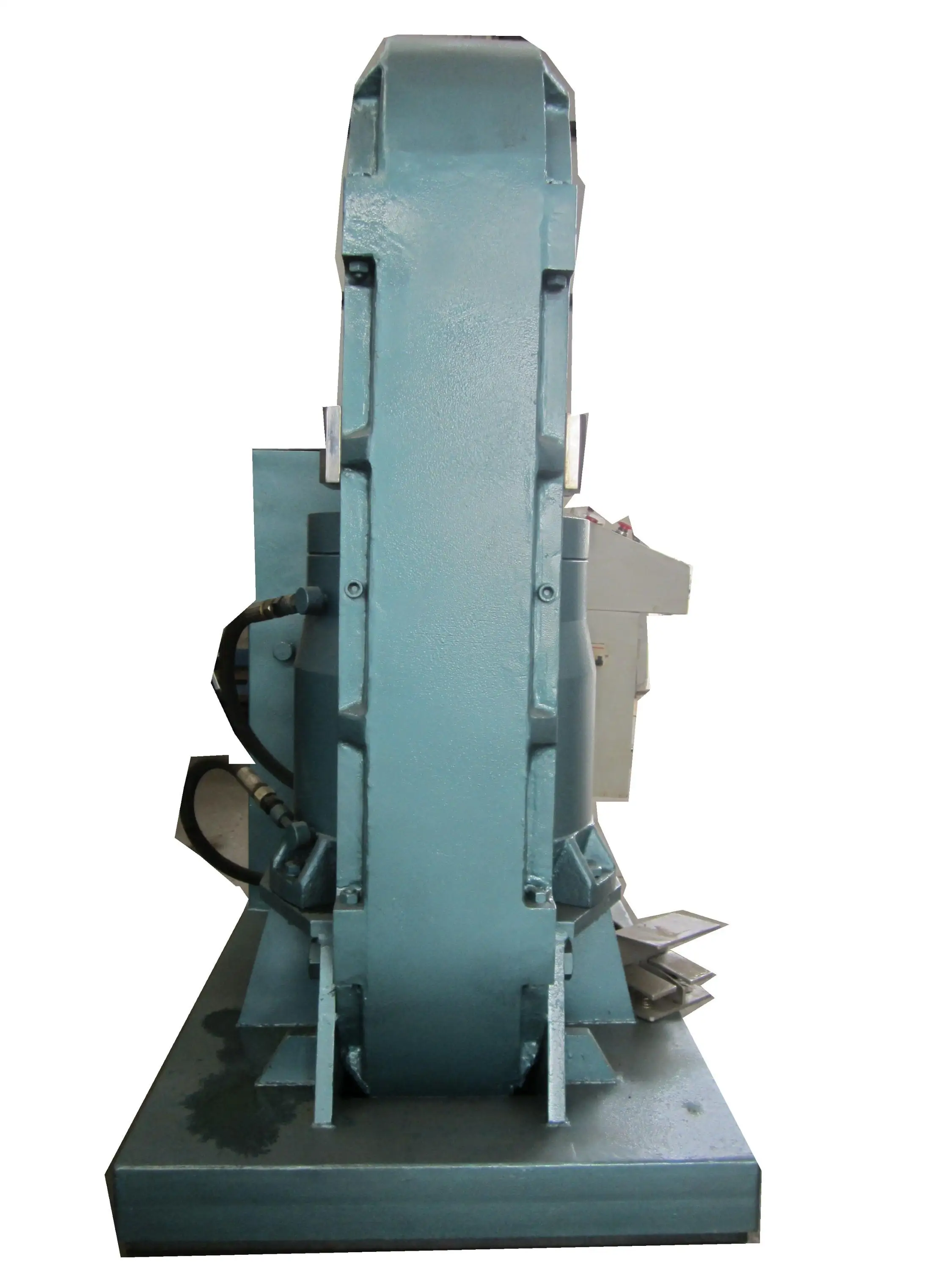

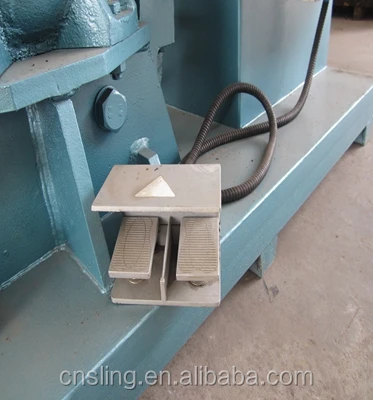

Detailed Images
Feature of wire rope press machine
1. High strength, good concentricity, pressed slings with smooth surface
2. Long service life, easy to operate.

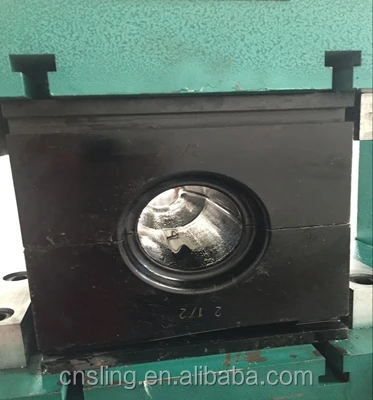

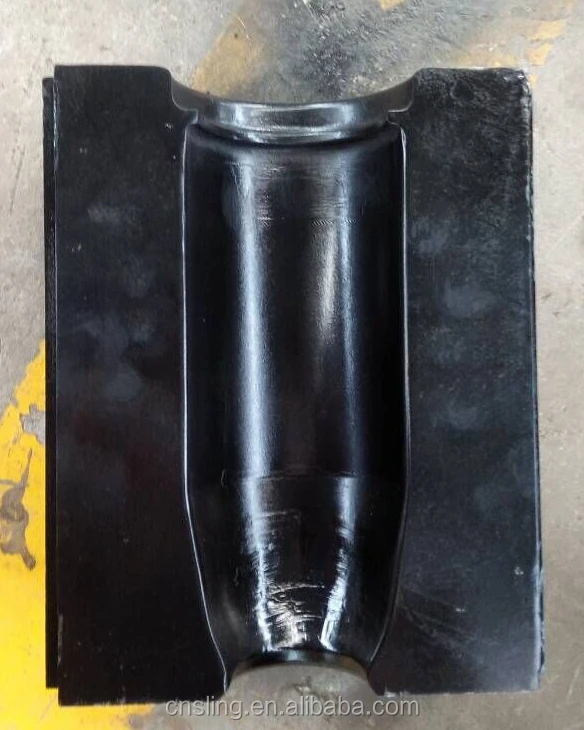

3. Square mold design, more strong and stable than other shape
4. Automatic positioning, which is easy to change different molds.
5. Piston can be stopped at any position.
Related Products
Packing&Shipping
Company Introduction
Beijing Tianma Sling Co., Ltd has been in heavy lifting industry for more than 20 years.
We are specialized in manufacturing all sizes of webbing slings, round sling, lashing straps, towing straps, polyester webbing, wire rope press machine, hydraulic testing machines, wire rope sling and other rigging equipment to the world market.

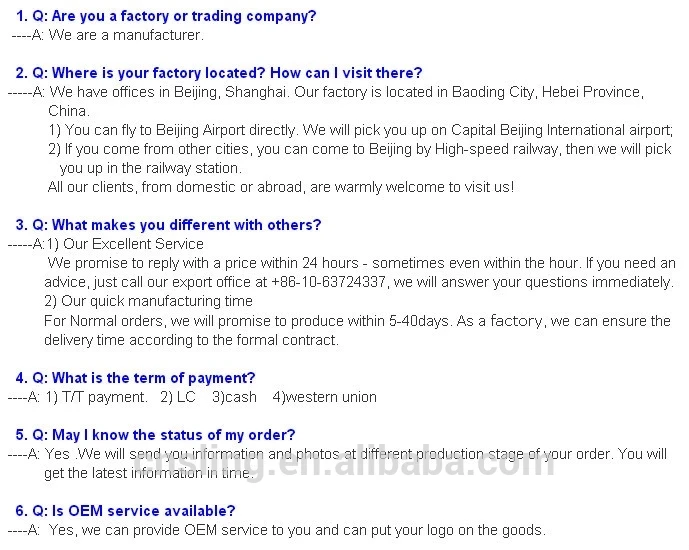

FAQ
After Sales Service
1. Warranty period: one year
2. Fast delivery and reliable quality
3. Competitive price and online technical support
4. OEM service
5. CE Certificate
