submersible river sand and gravel water suction dredge transfer pump

FOB Reference Price:Get Latest Price
US $31,970-35,350 / Sets | 1 Set/Sets submersible river sand and gravel water suction dredge tra (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Milestone
Model Number:
SS100-30-160
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
slurry/sewage
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
electric
Pressure:
High Pressure
Application:
Submersible, Mining, river dredging, sand suction
Product name:
gravel water suction dredge pump
Material:
Cr27, stainless steel
Capacity:
1000m3/h
Head:
30m
Motor Power:
160KW
Outlet dia:
12 inch
Max. Submerged Depth:
30m
Max. Solids:
72mm
Shaft seal:
Double mechanical seal
Supply Ability
Supply Ability:
600 Set/Sets per Year submersible river sand and gravel water suction dredge tra
Packaging & Delivery
Packaging Details
submersible river sand and gravel water suction dredge transfer pump
Playwood case/Sandwich Plate/As per customer' requirement
Port
Tianjin, Shanghai,Qingdao or as customer required
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 20 To be negotiated

submersible river sand and gravel water suction dredge transfer pump

Product Description



Submersible river sand and gravel water suction dredge transfer pumps are designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and insustry.



Submersible river sand and gravel water suction dredge transfer pump are avaliable in 72 different models in sizes ranging from 80mm to 400mm(3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour(100- 10560USGPM) and head up to 64 metres(210ft). It can pass solids up to 60mm(2.4inches) in diameter enabling them to transfer dense slurries with large abrasive particles.



electric slurry pump



Features of submersible river sand and gravel water suction dredge transfer pump:



1.Wear parts are all constructed with abrasion resistant materials - chromium alloy; so pumps have better stability & longer service life.

2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.

3.In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.

4.Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.

5.Professional technology support is provided during the whole process of the usage and maintenance.

 submersible pump with agitatorsubmersible pump with controller



Performance curves:

performance



Technical paremeter:







TypeCapacity Head PowerSpeed Interrupted by the maximum particle
m3/hmkwr/minmm
SS45-15-5.545155.5146013
SS15-20-5.515205.5146013
SS30-30-7.530307.5146013
SS50-26-11502611146013
SS75-25-15752515146013
SS150-18-18.51501818.598032
SS200-12-22200152298045
SS60-46-3060463098021
SS150-30-30150303098021
SS300-20-37300203798028
SS200-30-45200304598036
SS500-15-45500154598036
SS600-15-55600155598046
SS350-35-75350357598028
SS500-20-75500207598025
SS200-60-90200609098014
SS400-40-90400409098028
SS600-30-1106003011098028
SS1000-22-11010001811098028
SS500-45-1325004513298028
SS1000-22-13210002213298050
SS650-52-160650526098028
SS780-50-1857805018598038
SS800-55-2208005522098038
SS1250-35-22012503522098045
SS1750-30-25017503025098055
SS2000-35-31520003531598060

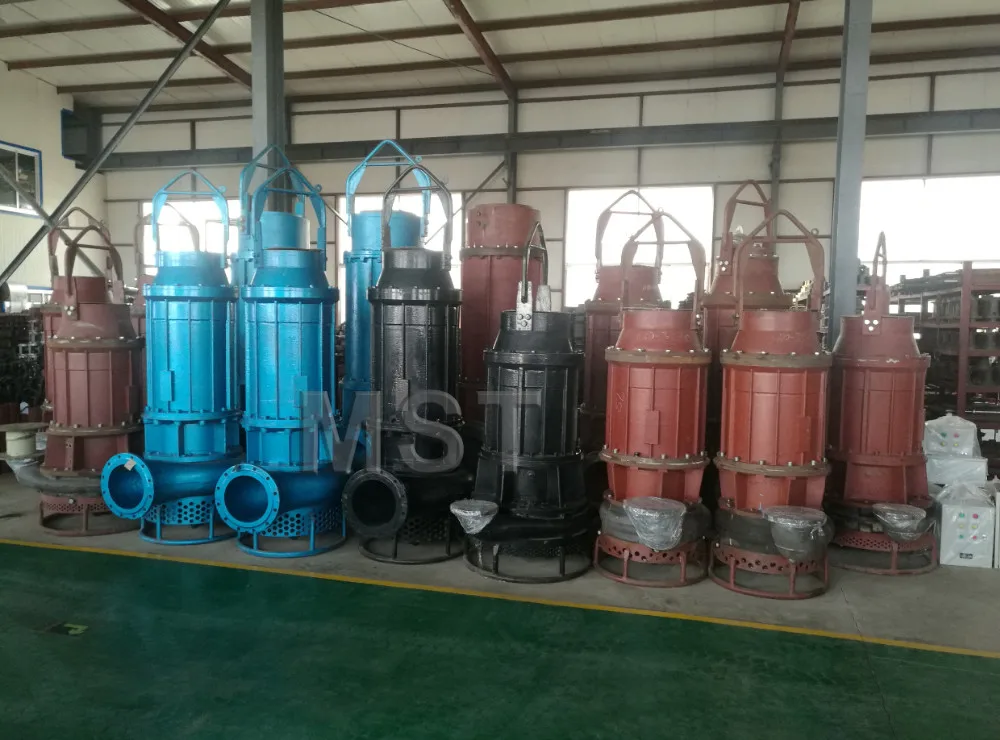

Product Overviews

 Pump for reference:

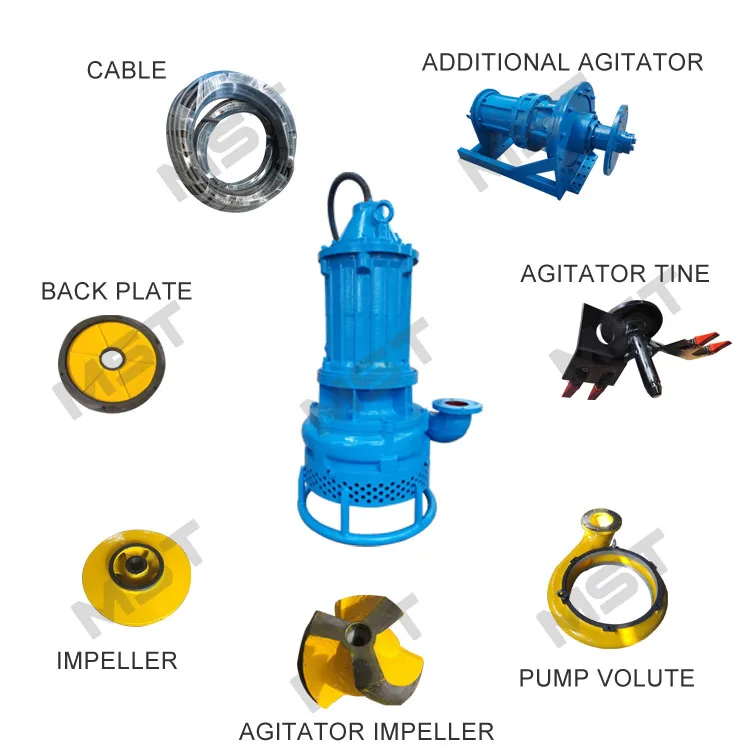

PUMP DETAILS

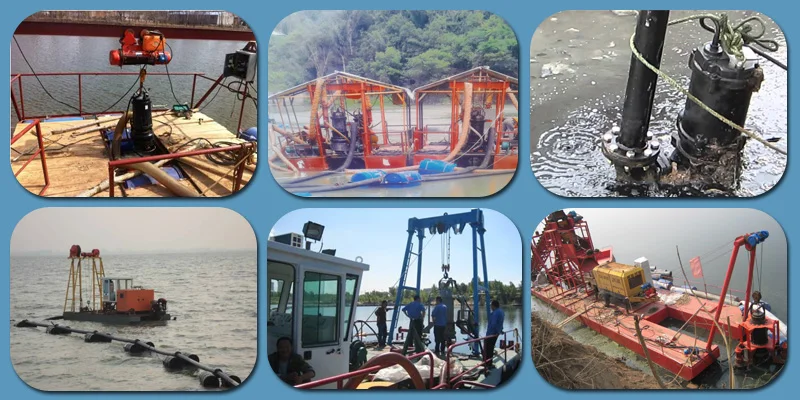

 Pump Application:



Application





Packaging & Shipping

 Package & shipping:

shipment
DELIVERY





Company Information

 Who we are:



 ADVANTAGEexpoWQ_05_06

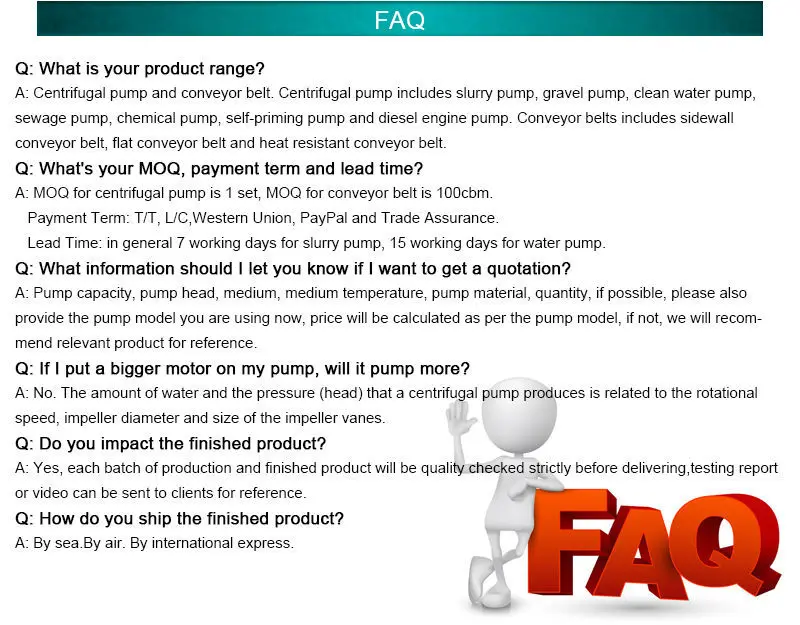

faqMay-contact-new
