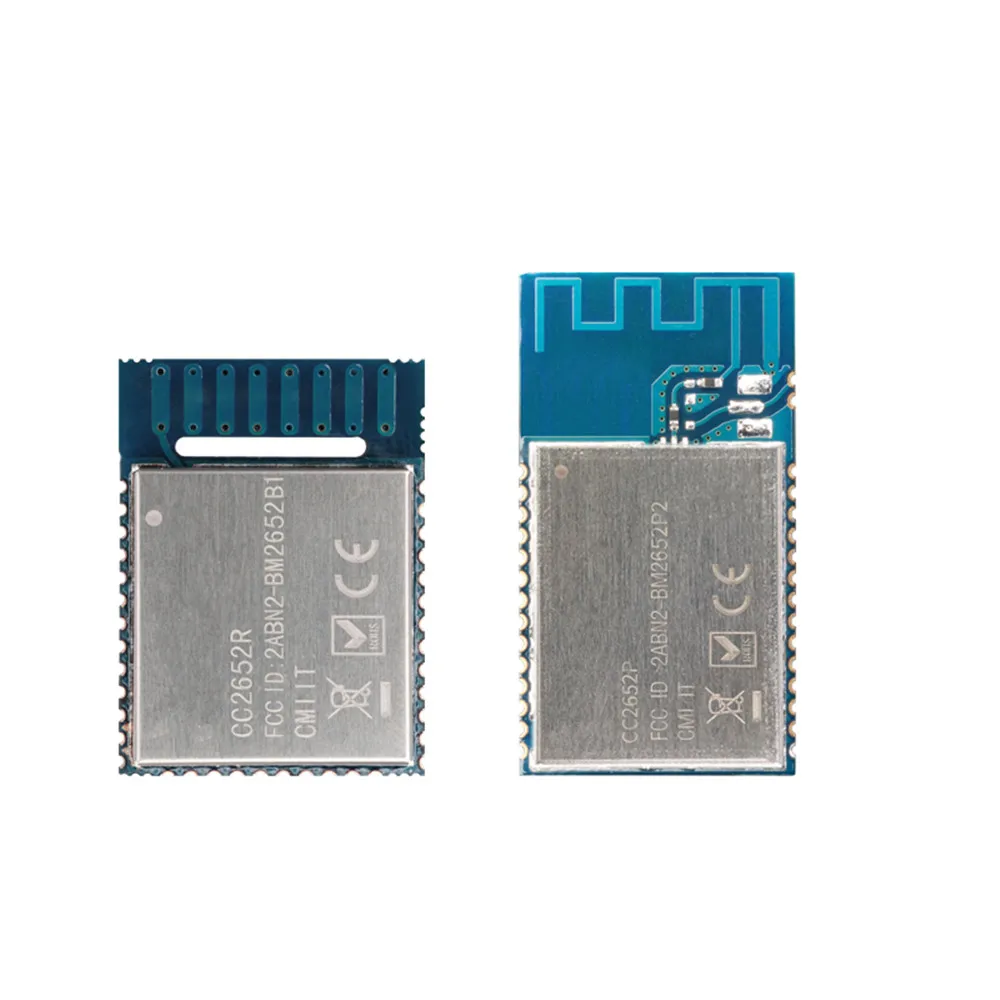

Taidacent Replace CC2650 6LoWPAN Zigbee 3.0 Module CC2652P CC2652R CC2652 for Zigbee 3.0 Gateway Dimmer Switch Hub

The CC2652 series wireless module is based on the SimpleLink multi-protocol 2.4 GHz wireless module independently developed by CC2652. In addition to integrating the high-performance ARM Cortex-M4F processor responsible for application logic and an ARM Cortex-M0 processor dedicated to the RF core, the module also has a very distinctive 16bit low-power sensor processing core. It has 352 KB of programmable flash memory and 80 KB of ultra-low leakage RAM (SRAM). Support wireless communication protocols such as Thread, ZigBee low energy Bluetooth 5.0, 6LoWPAN, Wi-SUN, etc. High and low power consumption are optional, and different transmission powers can be selected according to actual needs. PA+LNA improves anti-interference ability and com

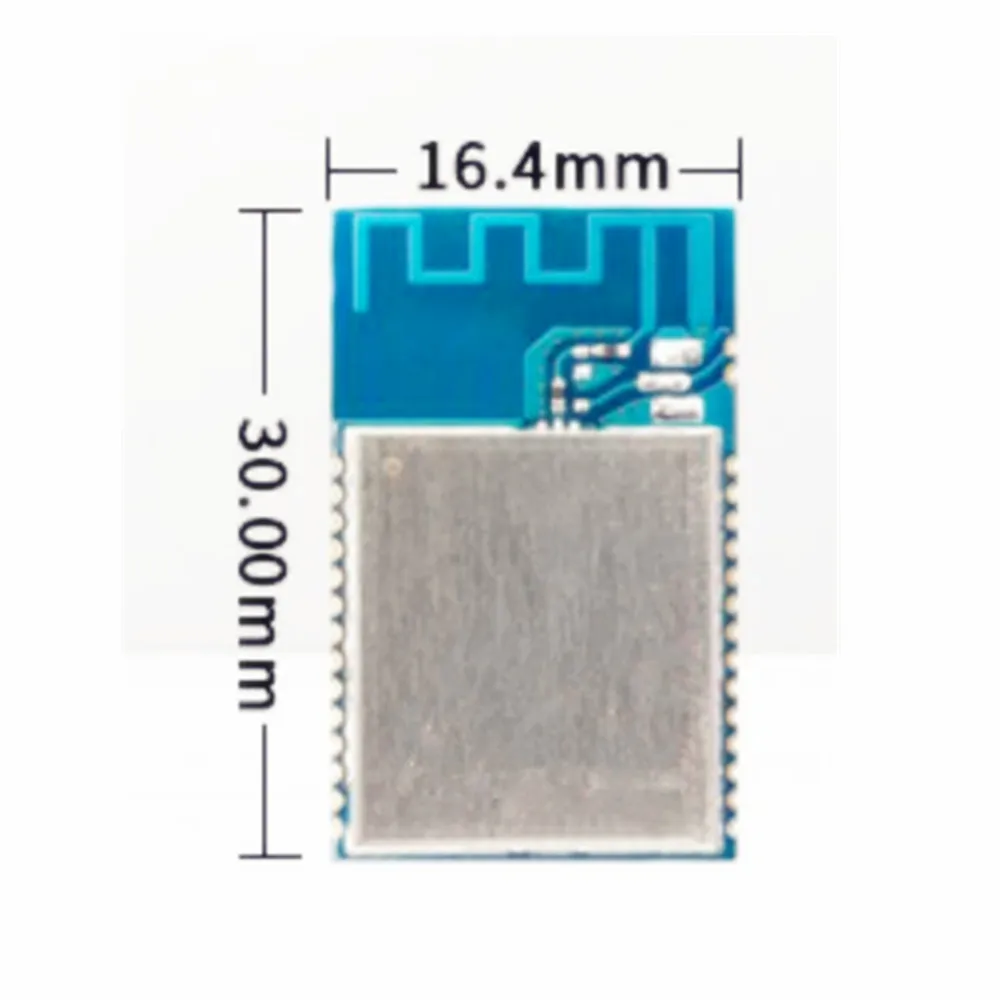

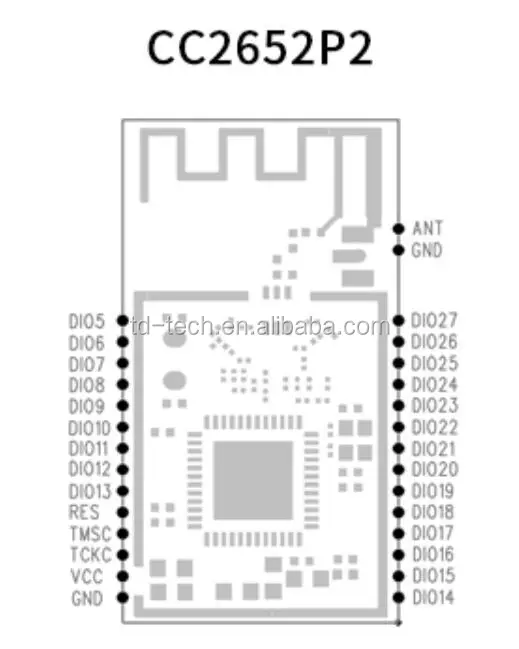

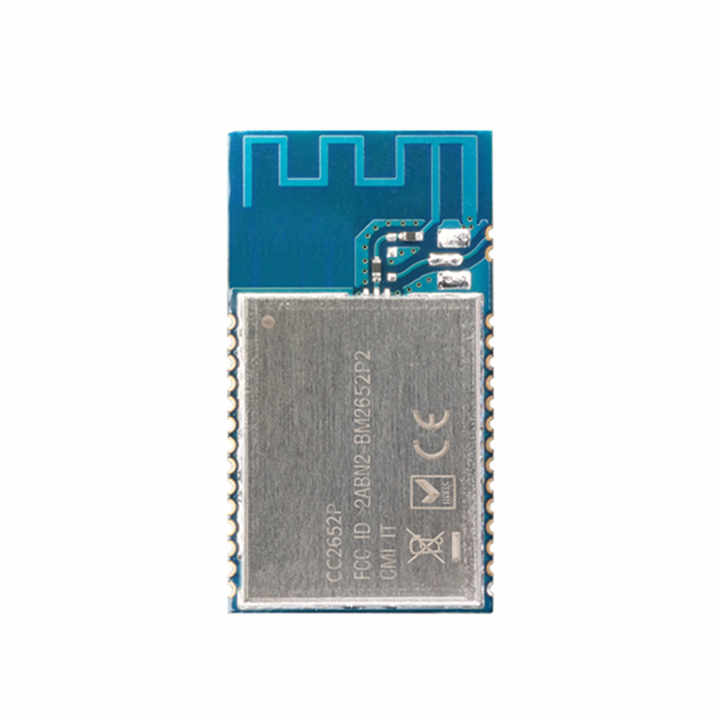

Working voltage 1.8 ~ 3.8 V, recommended as 3.3V Working frequency 2402 MHz ～ 2480 MHz Maximum transmit power + 20 dBm Receiving sensitivity -100 dBm at 802.15.4 (2.4 GHz) -105 dBm at 125-kbps (LE Coded PHY) SRAM 80 KB FLASH 352 KB GPIO qty 23 pcs Power consumption Receiving current: 6.9 mA Transmitting current: 7.3 mA at 0 dBm 9.6 mA at 5 dBm 22 mA at 10 dBm 85 mA at 20 dBm MCU 48 MHz (CoreMark): 3.4 mA (71 μA/MHz) Sensor Controller: 30.8 μA at Low Power-Mode, 2 MHz 808 μA at Active-Mode, 24 MHz Sleep: 0.94 µA (RTC running, 80KB RAM and CPU retention) Shutdown: 150 nA Crystal frequency 48 MHz, 32.768KHz Communication Interface UART, I2S, I2C, SPI, ADC Module size 25 x 16.4 mm Operating temperature - 40 ℃ ～ + 85 ℃ Storage temperature - 40 ℃ ～ + 125 ℃

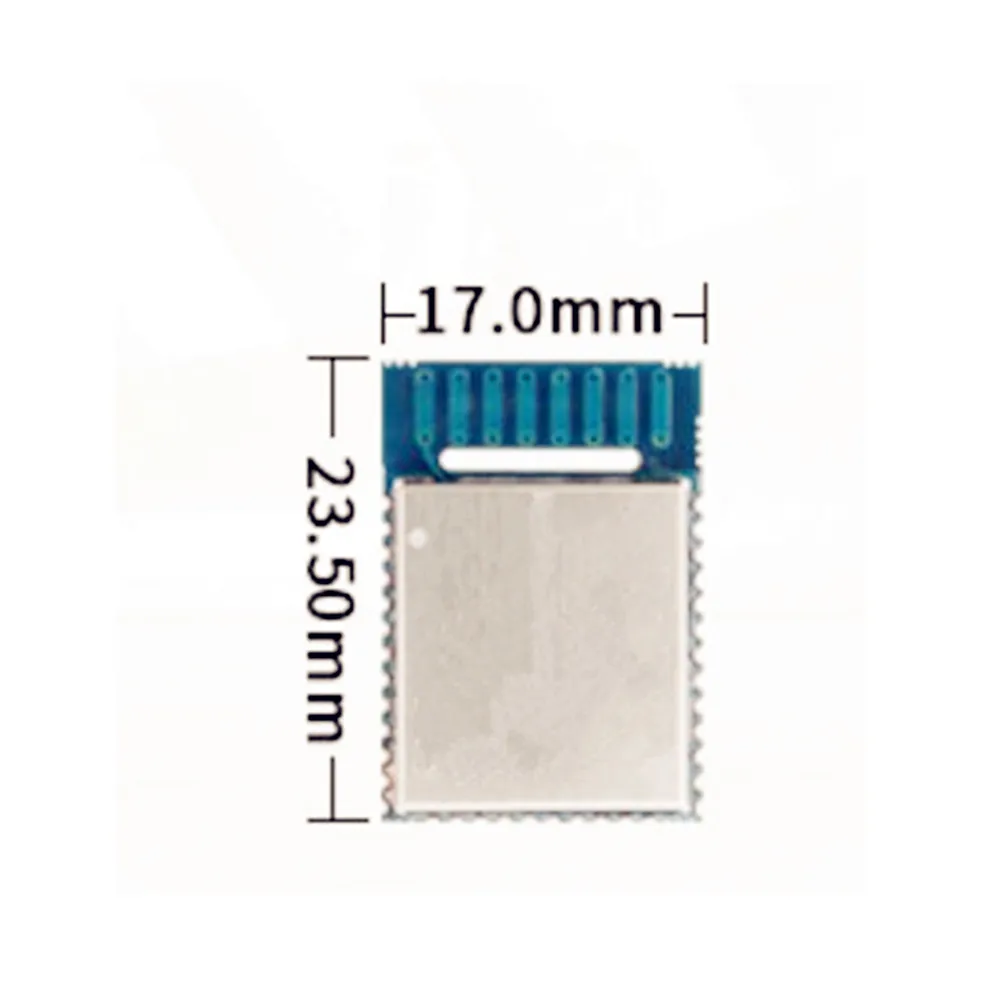

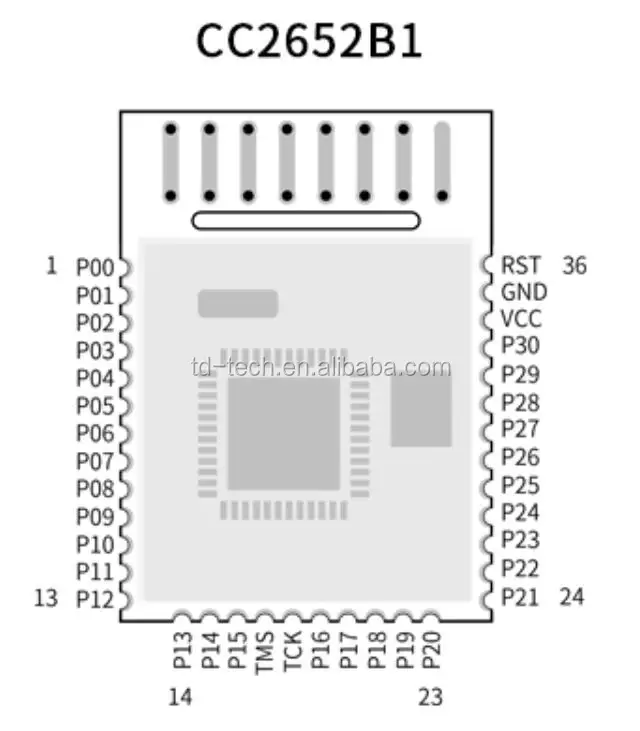

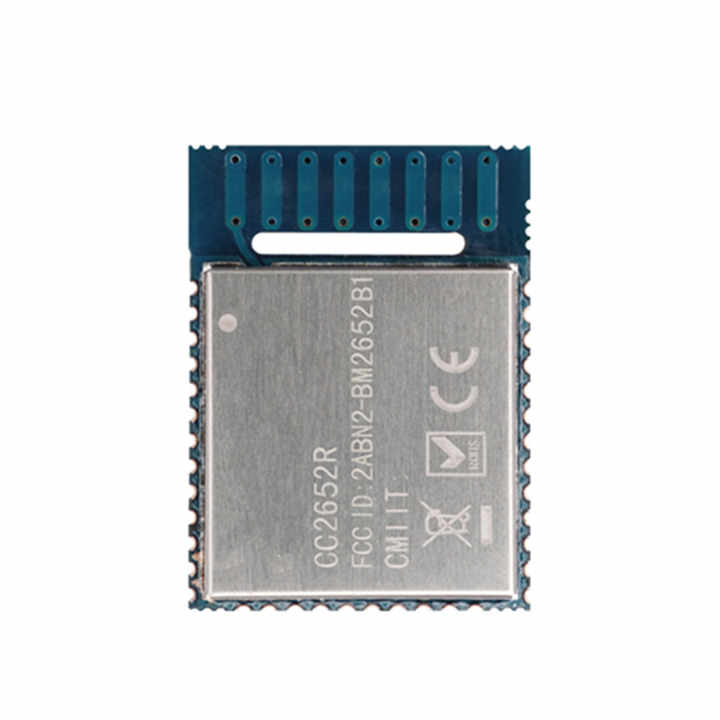

Operating voltage 1.8V to 3.8V, recommended as 3.3V Working frequency 2402MHz ～ 2480MHz Maximum transmit power +5 dBm Receiving sensitivity -100 dBm at 802.15.4 (2.4 GHz) -105 dBm at 125-kbps (LE Coded PHY) GPIO qty 31 pcs Power consumption Receiving current: 6.9 mA Transmitting current: 7.3 mA at 0dBm 9.6 mA at 5dBm MCU 48 MHz (CoreMark): 3.4 mA (71 μA / MHz) Sensor Controller: 30.8 μA at Low Power-Mode, 2MHz 808 μA at Active-Mode, 24 MHz Sleep: 0.94 μA (RTC operation, 80KB RAM and CPU retention) Shutdown: 150 nA RAM 80 KB FLASH 352 KB Crystal frequency 48 MHz Packaging method SMT package (half-hole stamp) Communication Interface UART, I2S, I2C, SPI, ADC Module size 22.5 x 17.03 mm Working temperature -40℃ ～ +85℃ Storage temperature -40℃ ～ +125℃

box

Shenzhen Taida Century Technology Co., Ltd. was born in Shenzhen in 2013. It was founded by several geeks who graduated from the top universities in China. Nowadays ,Shenzhen Taida Century Technology Co., Ltd. specializes in IoT(Internet of Things), mainly committed to design and production of wireless modules, bluetooth module, wifi module, power module, wireless sensor, antenna, relay module, switch module, display module, power amplifier module etc. Products are exported to the United States, Europe, Russia, Southeast Asia, Northeast Asia, Australia, South America, the Middle East, etc. The company's mission is to make everything connect more friendly and more intelligently.

1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(40.00%),Western Europe(20.00%),Eastern Asia(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Central America(1.00%),Africa(1.00%),South Asia(1.00%),Northern Europe(1.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Electronics Module,Battery,Antenna,Bluetooth Module,Wireless Module

4. why should you buy from us not from other suppliers?
We have specialized in IoT ( Internet of Things ) for 5 years. We can supply technology support from experienced enginners. We have sufficient production capacity. We offer competitive price and supply fast delivery.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian
