thermal insulation material waterproof 19mm calcium silicate board

FOB Reference Price:Get Latest Price
$3.50 - $17.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
JDWOOL
Model Number:
2400*1200mm1200*2400mm
Name:
waterproof 19mm calcium silicate board
Density:
170/200/230/500 kg/m3
Raw Materials:
Quartz Sand
Feature:
Fireproof
Application:
Lining Etc
Thickness:
4-25mm
Advantage:
Easy-installing
Certification:
ISO
Asbestos:
100% Non Abestos
Function:
Moisture-.proof
Supply Ability
Supply Ability:
500 Cubic Meter/Cubic Meters per Day waterproof 19mm calcium silicate board
Packaging & Delivery
Packaging Details
pp bag in carton and with pallet for 25 mm calcium silicate board
Port
Any port-China

thermal insulation material waterproof 19mm 2016 mdf calcium silicate board


Product despriction of waterproof 19mm 2016 mdf calcium silicate board



Calcium silicate boards, also called asbestos free mipor calcium silicate products, can be used in industries like power, oil, chemical, shipping, metallurgy.

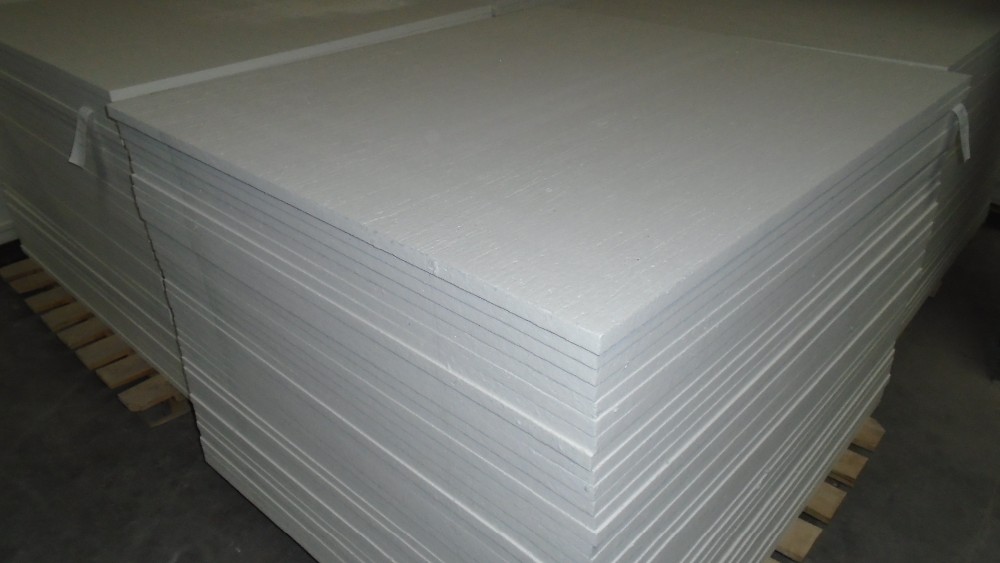

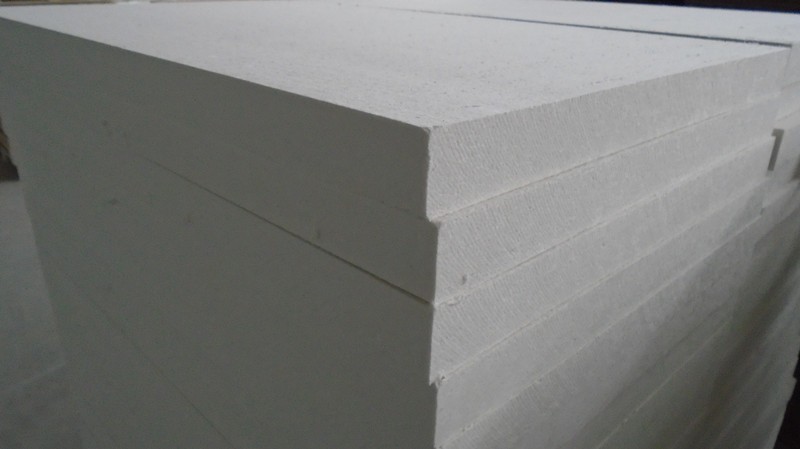

 Special shape images of waterproof 19mm 2016 mdf calcium silicate board

We customized for clients of various sizes and shapes of calcium silicate products.




Data and production line  of waterproof 19mm 2016 mdf calcium silicate board
Product650℃ Calcium Silicate Board1000℃ Calcium Silicate Board

The max service temperature

(℃)

650



1000℃

Bulk density

(Kg/m3)

170220500135170220
Min. Flexural strength Mpa0.250.31.00.20.30.35

Compressive strength at 5 deformation

(Mpa)

0.50.62.00.40.60.7
Max. Linear shrinkage(%)222222

Max. Thermal conductivity

(W/m.k)

average temp. 70

0.0520.0560.10.0490.0550.058








Character of waterproof 19mm 2016 mdf calcium silicate board



1.Excellent mechanical strength, excellent operating property



2.Low thermal conductivity, low shrinkage, low impurity content



3.Smooth surface, uniform thickness



4.Resistance to heat shock, resistance to chemical erosion



5. 100% asbestos free


Application of waterproof 19mm 2016 mdf calcium silicate board



Power Plants

Boilers, Steam Pipelines, Exhaust Ducts of Gas,Based Plants, Turbines,Fuel Oil Lines & Chimney.

Fertilizer, Refinery & Petrochemical Industry

Reformer, Gas Cracker, Heater,Ducts, Boiler, Steam Pipelines & Process Pipelines.

Iron & Steel Industry

Blast Furnace Shaft, Stoves & Bustle Pipe, Soaking Pits, Reheat and Annealing Furnaces, Waste Heat Boiler, Roof Top & Regenerator Shields of Coke Oven Batteries & Lime Kiln, Hot-Air & Flue Gas Ducts.

Sponge Iron

Gas Based Reformer, Desulphuriser Vessel, Hot-Air & Flue Gas Ducts & Waste Heat Recovery System.

Cement Industry

Preheater Cyclones, Precalcinator, Kiln Riser Duct, Firing hood, Grate-Cooler,Tertiary Air-Duct, Flue-Gas Ducts & E.S.P

Aluminum Industry

Reduction Cells (Pots), Soaking Pits Homogenizing and Holding Furnaces/Alumina Calciner

Furnaces

Heat Treatment & Reheating.

Ceramic &Glassware

Tunnel Kiln, Glass Melting Furnaces, Regenerator & Annealing Lehrs

Sugar

Boiler, Steam Pipelines & Process & Pipelines.

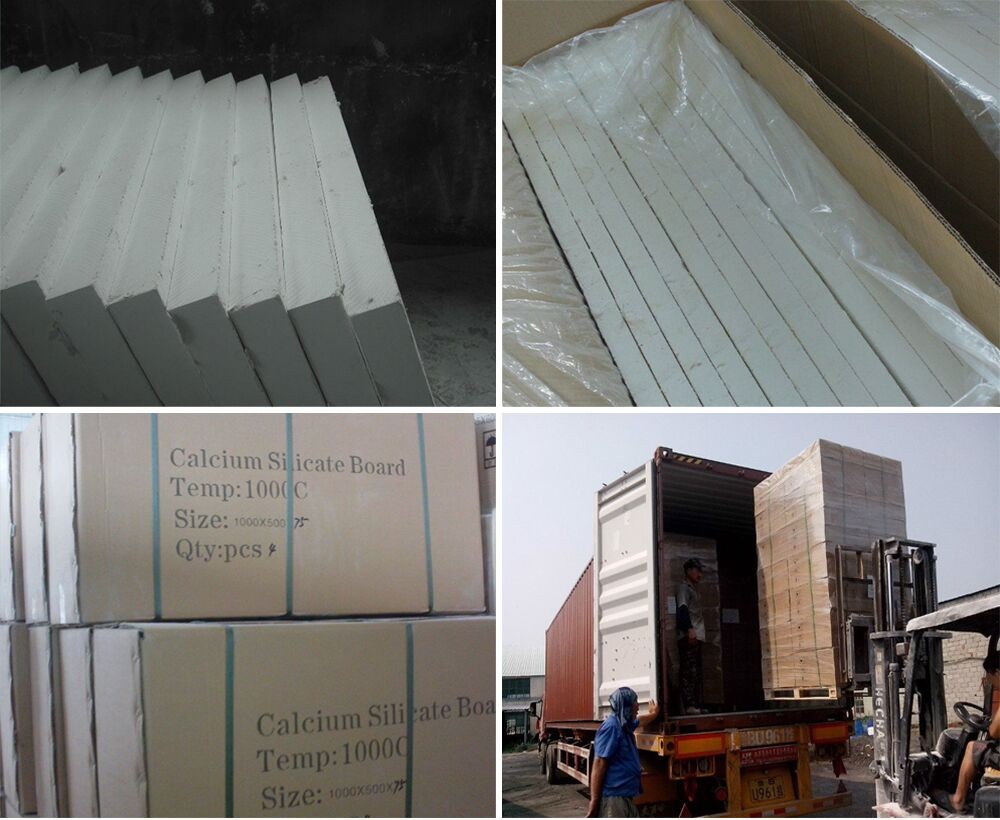

Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet).
Company

We are zhengzhou JinDing thermal insulation material factory specializing in the  researching, developing and manufacturing, has more than 60 years of production experience.

 1.  1 national R&D institution: Peking University has close relations of cooperation laboratory in product development and technology with us

 2.  4 kinds :               Our product range: ceramic fiber products (blanket, paper, board, module,also special shape), rock wool , glass wool , 2016 mdf calcium silicate board.

 3.   5 certificate:       ISO900, CE, SGS, TUV, BV, etc.

 4.   23 years :            Our export experience more than 23 years.

 5.   150,000 m2 :      Our factory total areas.
Our value is: To the quality strives for the survival,
                       Energy saving cause parallel

company history





Certification

Our products are well received by the world. Welcome to pay a visit to our factory.
visting
1.Are you a trader or manufacturer?
We are manufacturer, we have own factory.

2.Can you accept OEM or ODM?
Of course, Logo is also acceptable.

3.What is the delivery time?
About 10-20 days after the contract signing.

4.What is your payment methods?
T/T L/C D/P Paypal West Union and others .

5. Do you have warehouses abroad ?
Yes, we have , both in Europe and Middle East. Others is planing.

Service
1. Timely response : to your inquiry in 24 hours,  quickly respond mails and provide solutions.

2. Free sample :Sample and trial order are accepted for the quality evaluation.

3. Shorter delivery time : Book the earliest vessel or plane to guarantee the delivery time.

4. Professional Services : Provide high or cold temperature solutions and professionals installation and technology services for you
Contact Us



If you have any question , please contact us any time.

Welcome your kindly inquiry on our high quality products.

Happy to set a good cooperation with you, Thank you!
